House Plan 629 Redwood, Arts and Crafts House Plan

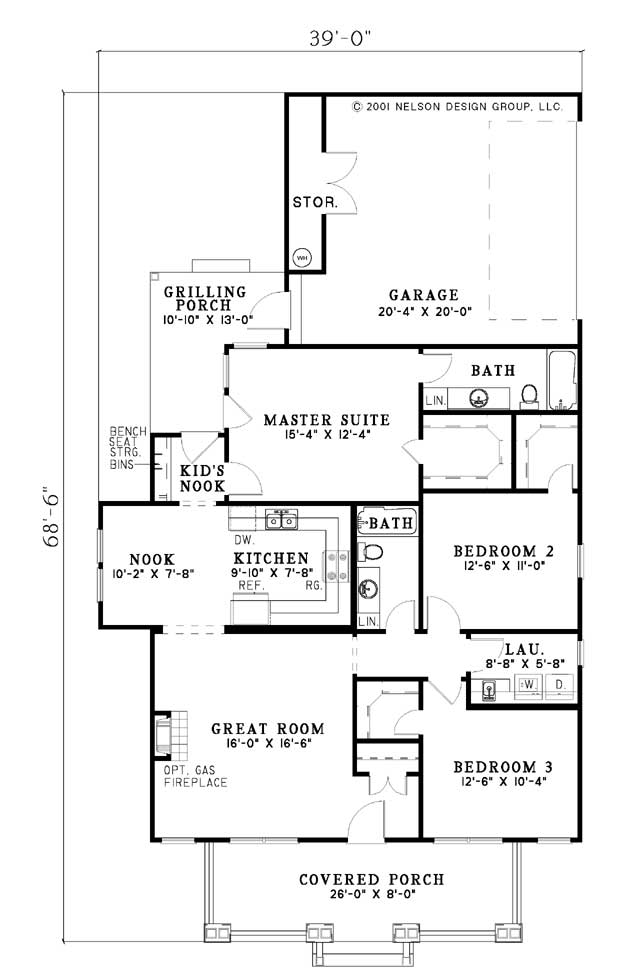

House Plan NDG 629 Main Floor

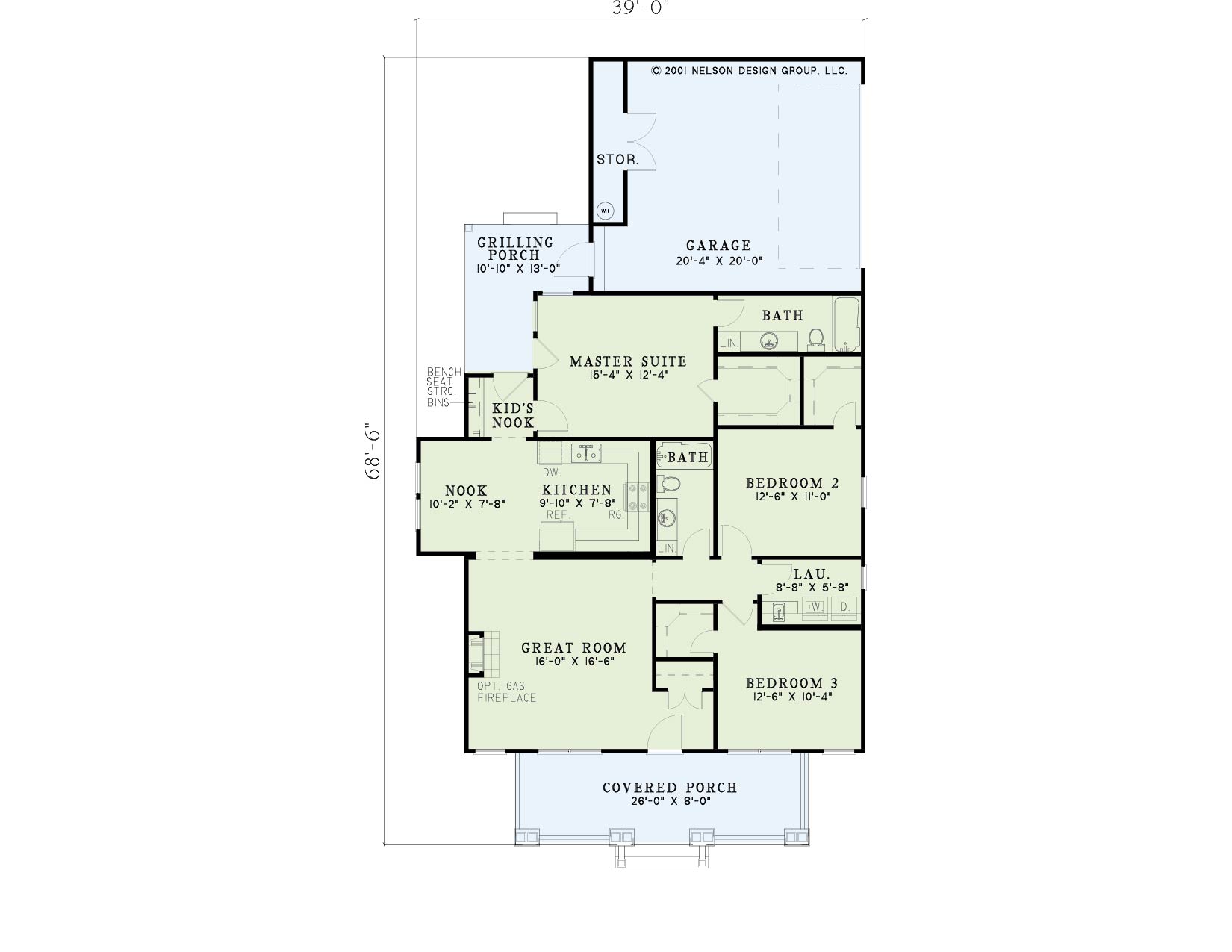

House Plan NDG 629 Main Floor

Floor plans

NDG 629

House Plan 629 Redwood, Arts and Crafts House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 629
  • Total Living Space:1399Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 68
  • Depth In.: 6


This home has detail and style reminiscent of the Arts and Crafts era. Enjoy a cup of coffee with neighbors on the expansive front porch detailed with double columns and railing. Upon entry notice a large closet perfect for seasonal storage and on to the large great room complete with a cozy fireplace for cherished family time. A breakfast nook is attached to the kitchen and just steps from the grilling porch entry and garage entry. A nearby kid's nook keeps organization and clutter at a minimum. The master suite has a private bath, a large walk-in closet and is privately located at the rear of the home. For convenience, the laundry room is centrally located next to the two additional bedrooms and bathroom.


  • Total Living Space:1399Sq.Ft.
  • Main Floor: 1399 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 308 Sq.Ft.
  • Garage (Sq.Ft.): 488 Sq.Ft.
  • Total Square Feet: 2195 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
