House Plan 628 Mulberry, Arts and Crafts House Plan

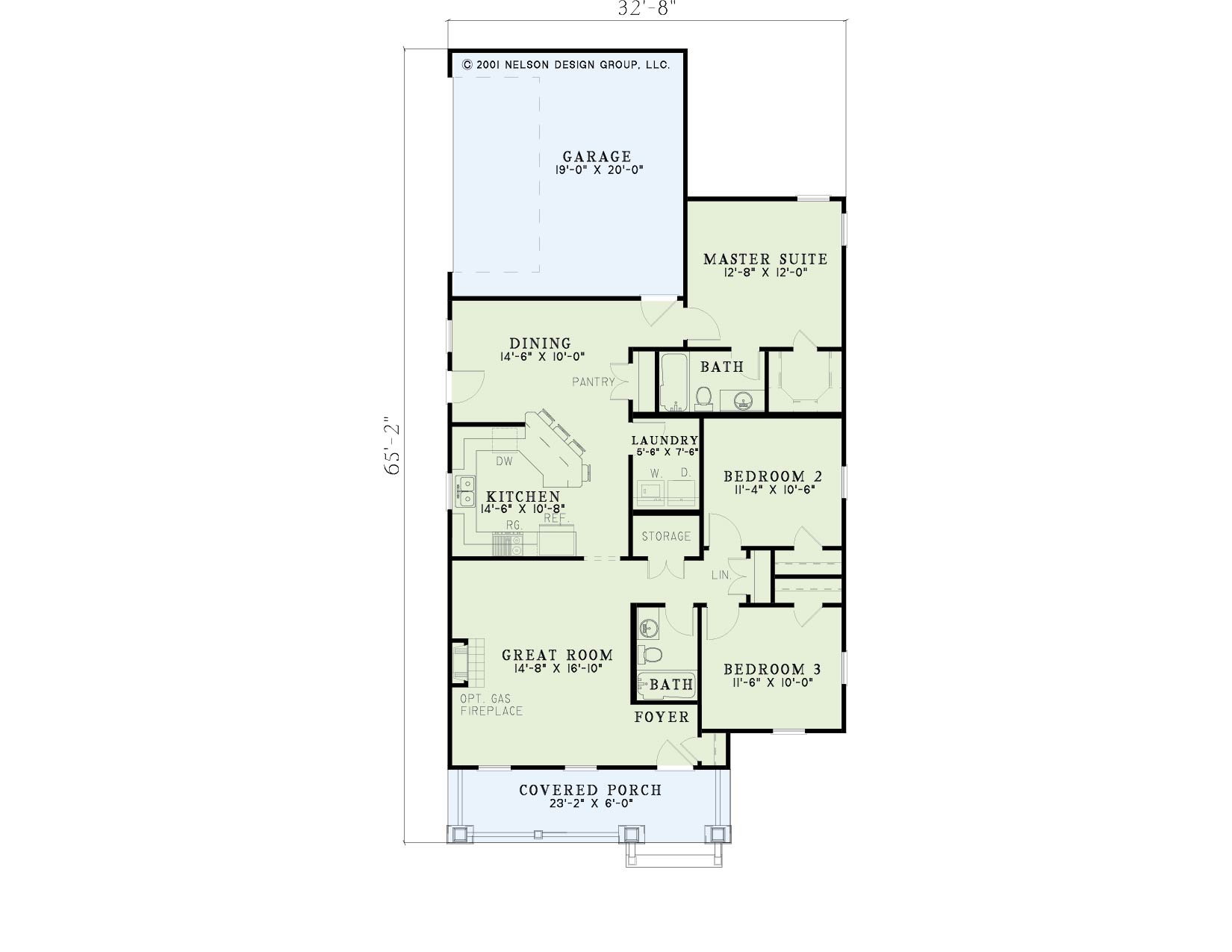

House Plan NDG 628 Main Floor
House Plan NDG 628 Main Floor

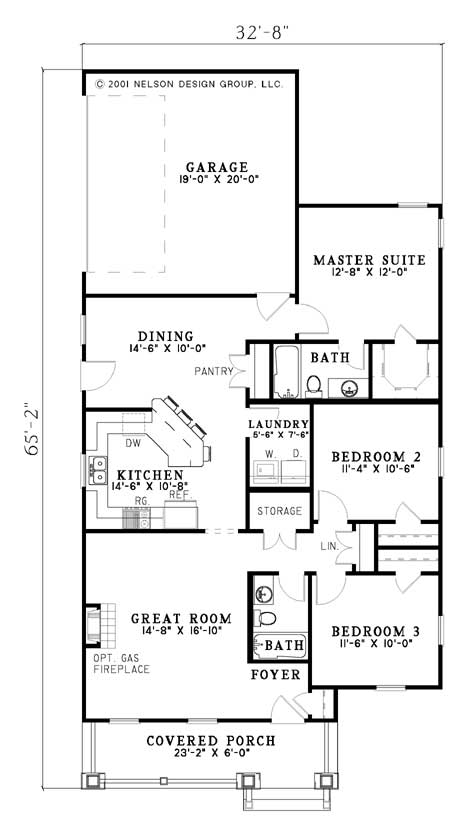

Floor plans

House Plan NDG 628 Main Floor
NDG 628

House Plan 628 Mulberry, Arts and Crafts House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 628
  • Total Living Space:1348 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 32
  • Width In.: 8
  • Depth Ft.: 65
  • Depth In.: 2

Description

Indulge yourself in this timeless Arts and Crafts style home. Columns and a beaded ceiling gracefully adorn the front covered porch. Relax with family in the spacious great room with optional fireplace. A lovely step saver kitchen with angled bar counter and a large pantry adjoins the dining room for the ultimate dinner gathering. The laundry room is located just steps away from the kitchen for convenience and if two bedrooms are sufficient, use the third as an optional study or den. The master suite is quietly placed at the rear of the home and has plenty of wall space, a spacious walk-in closet, and a private bathroom.

Specifications

  • Total Living Space:1348 Sq.Ft.
  • Main Floor: 1348 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 139 Sq.Ft.
  • Garage (Sq.Ft.): 387 Sq.Ft.
  • Total Square Feet: 1874 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
