House Plan 627 Pine Oak, Arts and Crafts House Plan

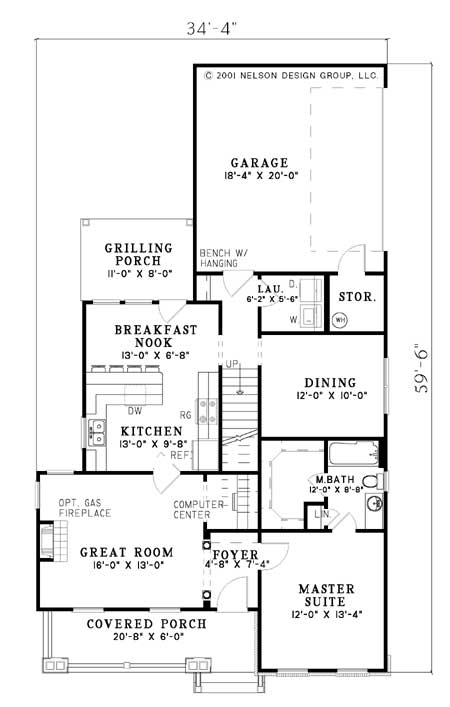

House Plan NDG 627 Main Floor

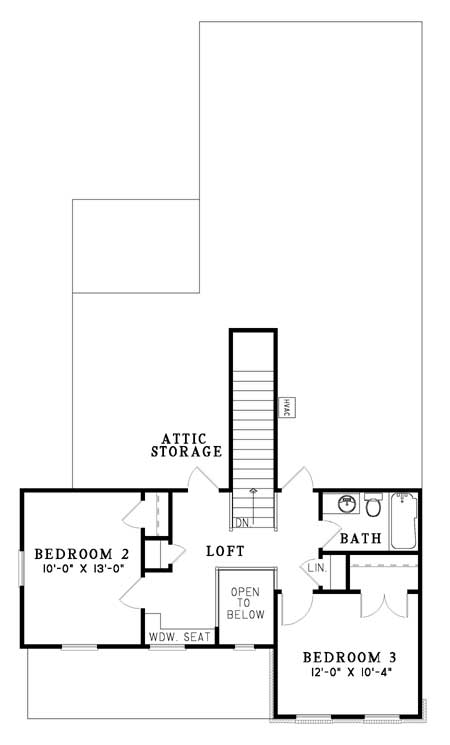

House Plan NDG 627 Upper Floor

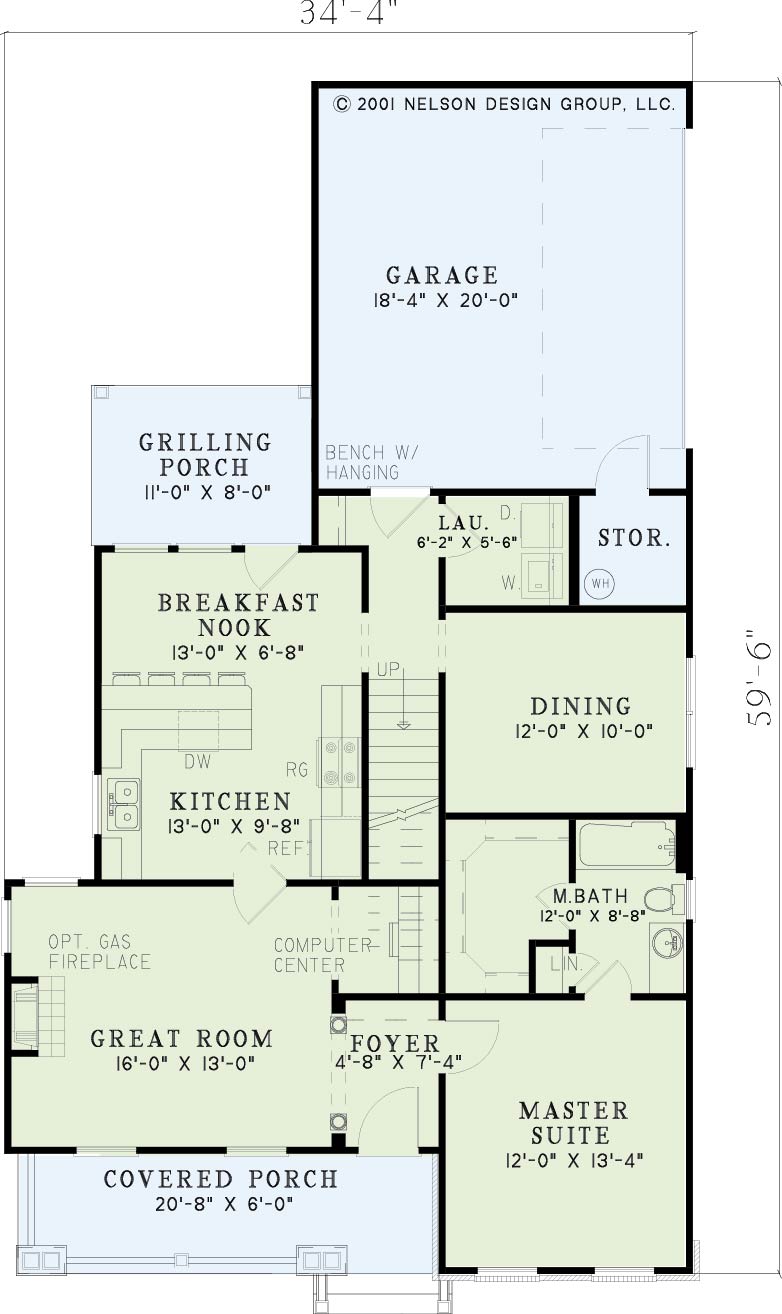

House Plan NDG 627 Main Floor

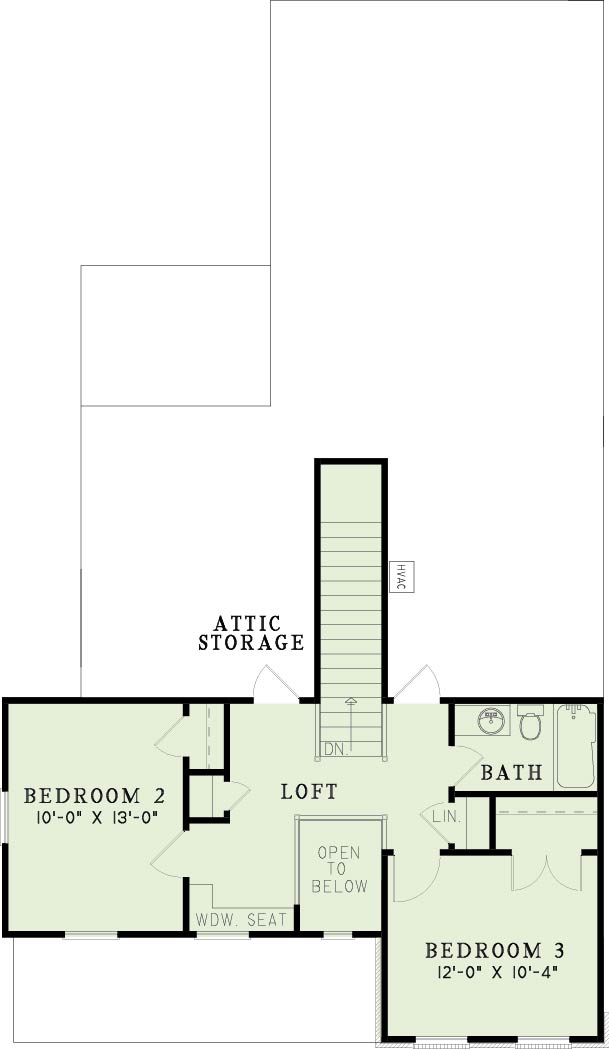

House Plan NDG 627 Upper Floor

Floor plans

House Plan NDG 627 Main Floor

House Plan NDG 627 Upper Floor
NDG 627

House Plan 627 Pine Oak, Arts and Crafts House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 627
  • Total Living Space:1559 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 34
  • Width In.: 4
  • Depth Ft.: 59
  • Depth In.: 6

Description

This Arts and Crafts style home is simple yet elegant. A beaded ceiling and double columns set atop brick pillars enhancing the covered front porch. As you enter the foyer, admire eight-inch columns inviting you into a spacious great room with fireplace and swinging door to the kitchen. Family can enjoy a sunny breakfast nook adjoining the kitchen and accessing a rear-grilling porch. Just across the hall is a formal dining room for large family gatherings or perhaps a den if desired. For privacy and convenience, this split bedroom plan places the spacious master suite on the main level. Two additional two bedrooms, a full bath and a loft area with window are located upstairs.

Specifications

  • Total Living Space:1559 Sq.Ft.
  • Main Floor: 1063 Sq.Ft
  • Upper Floor (Sq.Ft.): 496 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 212 Sq.Ft.
  • Garage (Sq.Ft.): 419 Sq.Ft.
  • Total Square Feet: 2190 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
