House Plan 609 Willow Lane, French Traditional House Plan

House Plan NDG 609 Main Floor
House Plan NDG 609 Main Floor

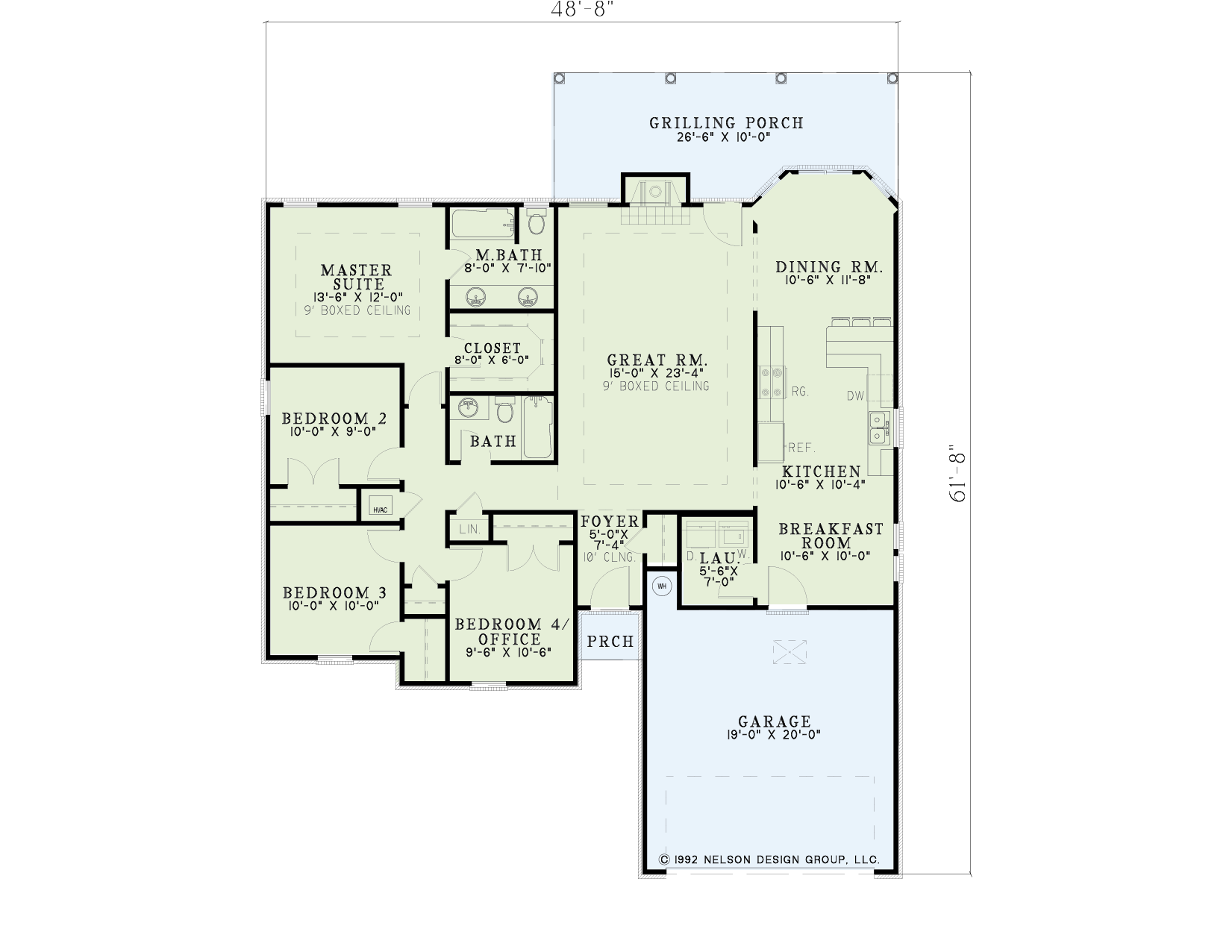

Floor plans

NDG 609

House Plan 609 Willow Lane, French Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 609
  • Total Living Space:1658Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 8
  • Depth Ft.: 61
  • Depth In.: 8

Description

This four-bedroom design by Nelson Design Group includes plenty of storage and nine-foot boxed ceilings. A fireplace warms the expansive great room and a nearby French door leads to the large grilling porch. Meals are a breeze with dual access to the kitchen from both the dining room and convenient breakfast room. When the entertaining is done, relax in the master suite with private bath and walk-in closet.

Specifications

  • Total Living Space:1658Sq.Ft.
  • Main Floor: 1658 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 262 Sq.Ft.
  • Garage (Sq.Ft.): 407 Sq.Ft.
  • Total Square Feet: 2327 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
