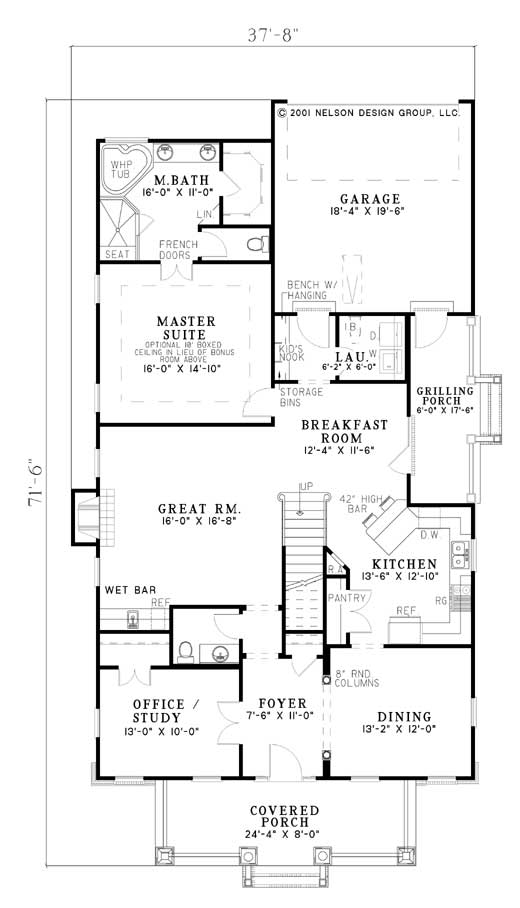

House Plan NDG 594 Main Floor

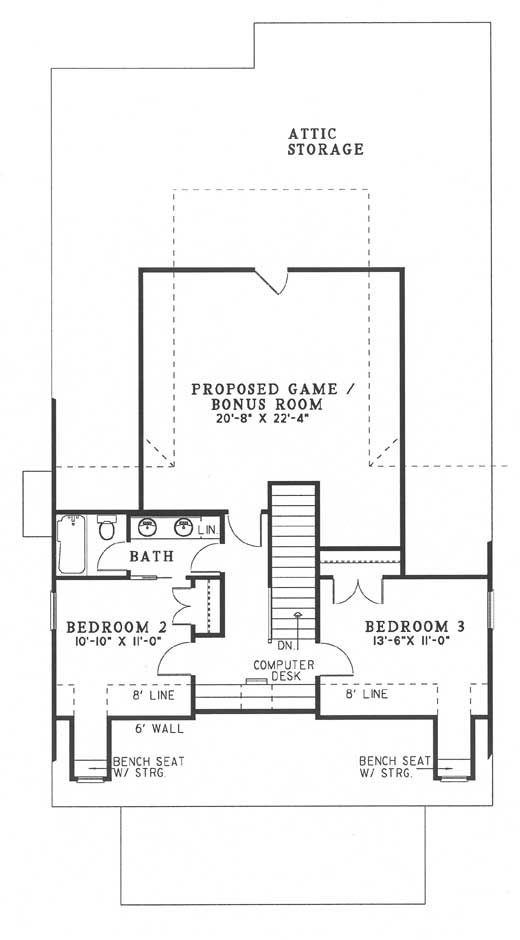

House Plan NDG 594 Upper Floor

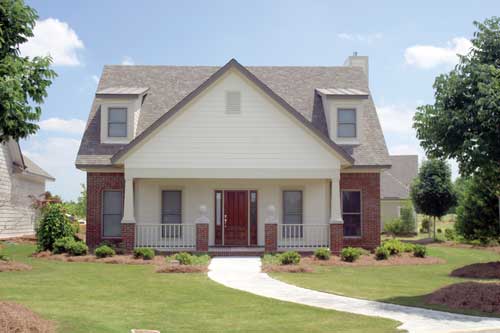

House Plan - 594p Front View>

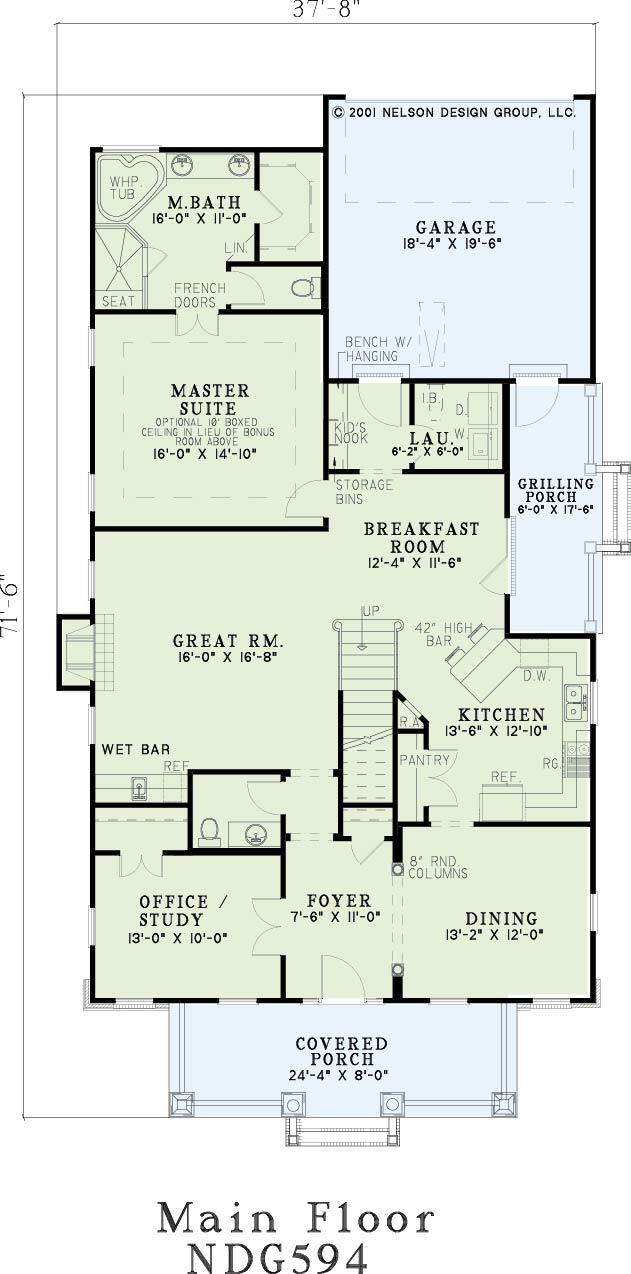

House Plan NDG 594 Main Floor

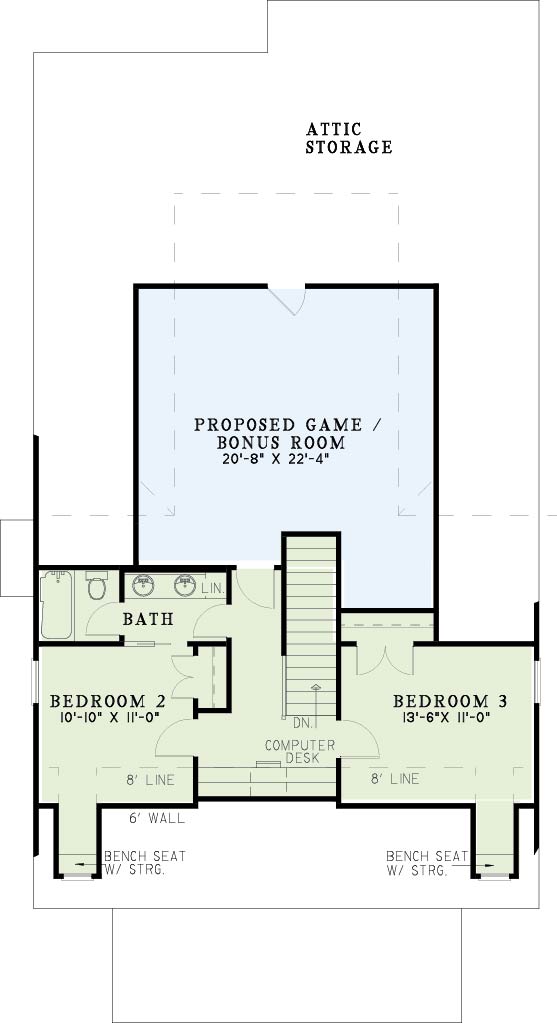

House Plan NDG 594 Upper Floor
House Plan - 594p Front View

Floor plans

NDG 594

House Plan 594 Holly, Arts and Crafts House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 594
  • Total Living Space:2237Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 37
  • Width In.: 8
  • Depth Ft.: 71
  • Depth In.: 6

Description

This home has dormers with copper roofing and a covered porch for lovely street appeal. From the foyer you’ll find a study/home office or fourth bedroom if needed, across from a formal dining room with a column-lined entry. The large great room with built-in wet bar and a large fireplace are centrally located for a family oriented atmosphere. A large breakfast room accesses the covered grilling porch perfect for entertaining. After a long day retire to your master bedroom with French door entry to your elegant master bathroom complete with whirlpool tub, separate shower and large walk-in closet. The upstairs has a built-in computer desk for study time, two bedrooms, a full bath, and a large optional game/bonus room .

Specifications

  • Total Living Space:2237Sq.Ft.
  • Main Floor: 1708 Sq.Ft
  • Upper Floor (Sq.Ft.): 529 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 436 Sq.Ft.
  • Porch (Sq.Ft.): 305 Sq.Ft.
  • Garage (Sq.Ft.): 372 Sq.Ft.
  • Total Square Feet: 3350 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
