House Plan 592 Olive Street, Country House Home Plan

House Plan 592 Olive Street, Country House Home Plan

Floor plans

NDG 592

House Plan 592 Olive Street, Country House Home Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 592
  • Total Living Space:2810Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 61
  • Width In.: 4
  • Depth Ft.: 62
  • Depth In.: N/A

Description

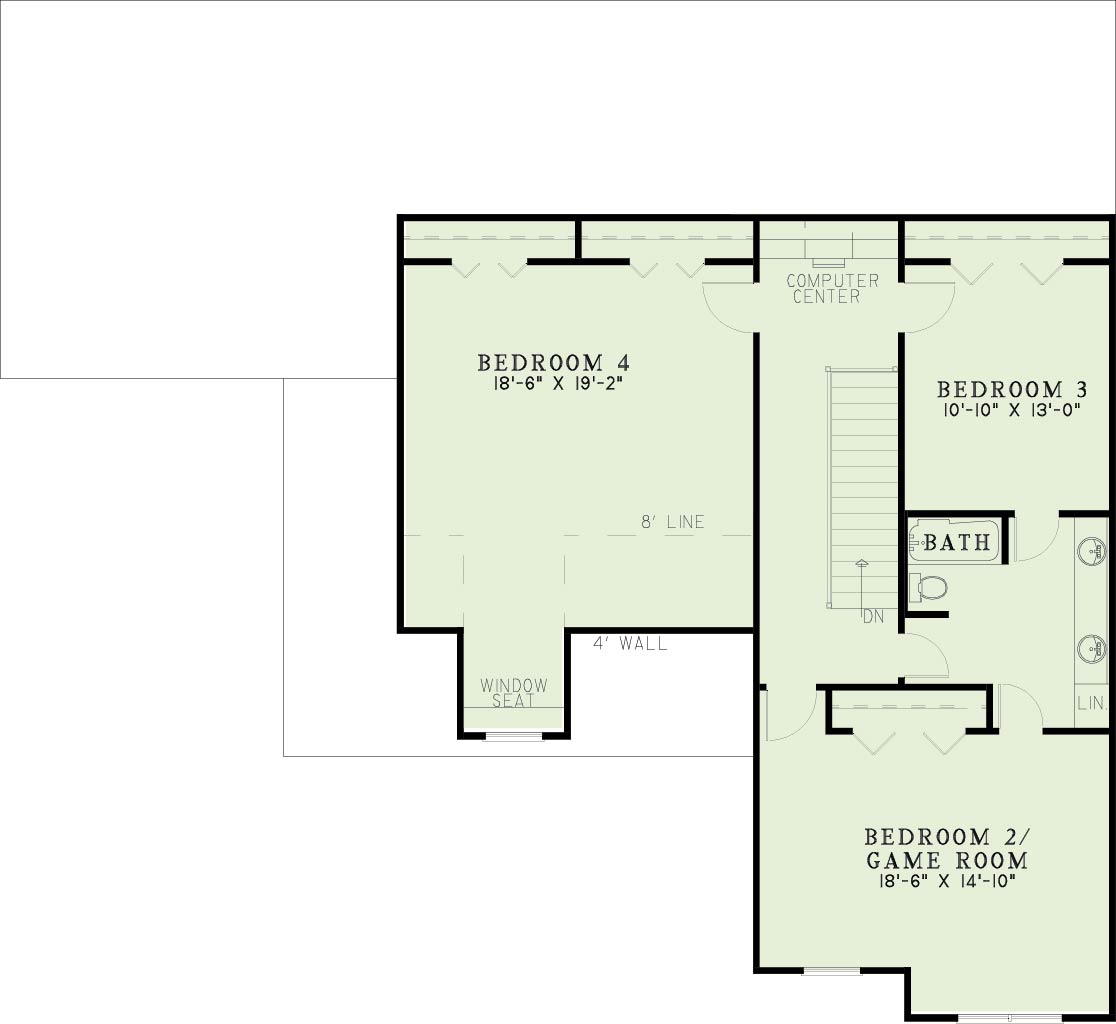

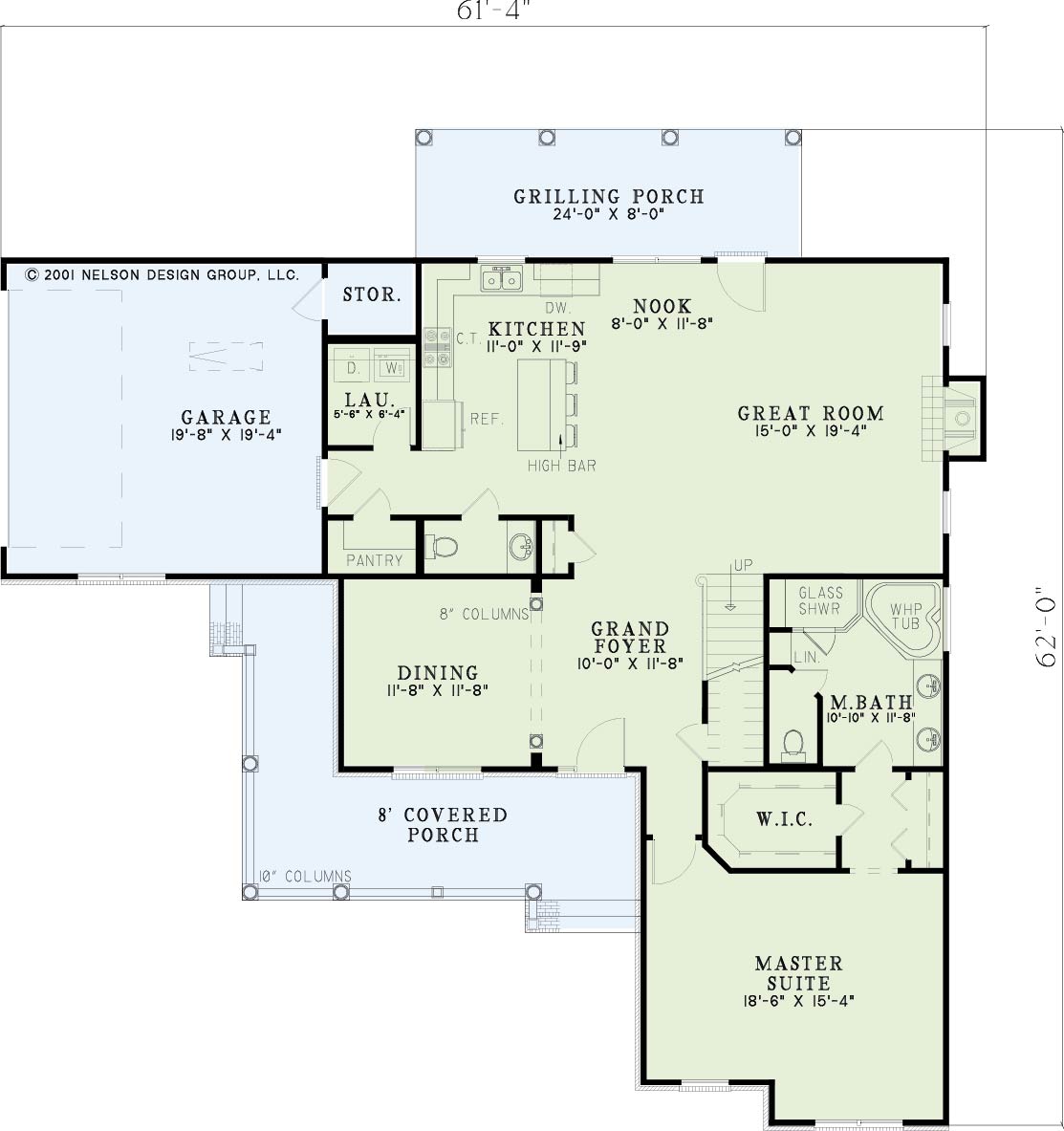

A combination of brick and siding are just right for this traditional, yet up to date home. The Grand Foyer introduces a main floor allowing privacy for the exquisite Master Suite while lending to spacious living areas. The step saver kitchen has an island bar with seating, a view of the grilling porch and adjoins the great room for cozy entertaining options. The upstairs includes a centrally located computer center, three additional bedrooms and a shared bathroom.

Specifications

  • Total Living Space:2810Sq.Ft.
  • Main Floor: 1610 Sq.Ft
  • Upper Floor (Sq.Ft.): 1200 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 461 Sq.Ft.
  • Garage (Sq.Ft.): 429 Sq.Ft.
  • Total Square Feet: 3700 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,100.00)
    • CAD ($2,200.00)
    • Five Set ($1,200.00)
    • PDF ($1,100.00)
    • PDF + Unlimited Build ($1,800.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
