House Plan 587 Wisteria, Arts and Crafts House Plan

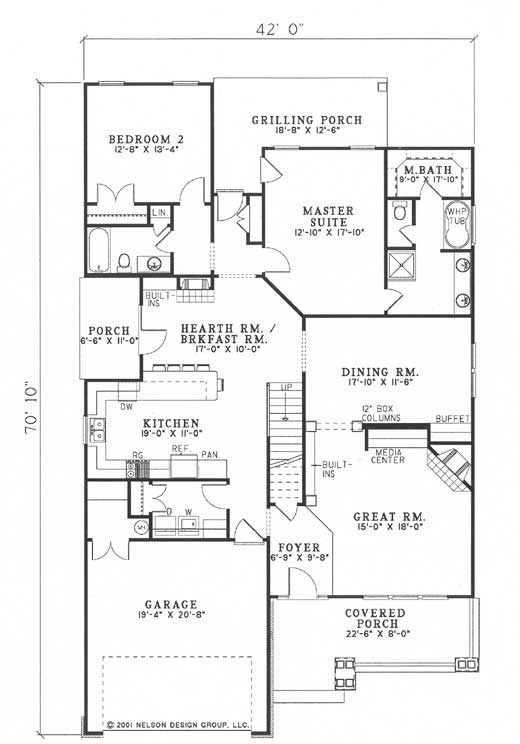

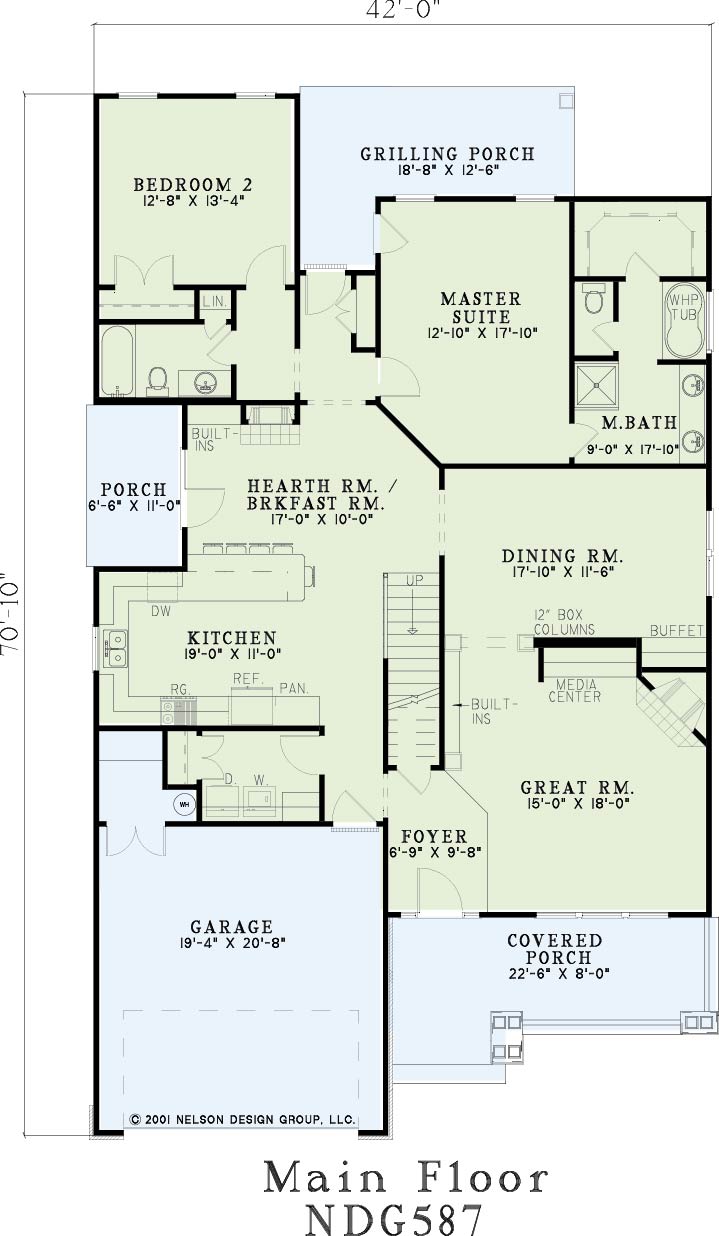

House Plan NDG 587 Main Floor

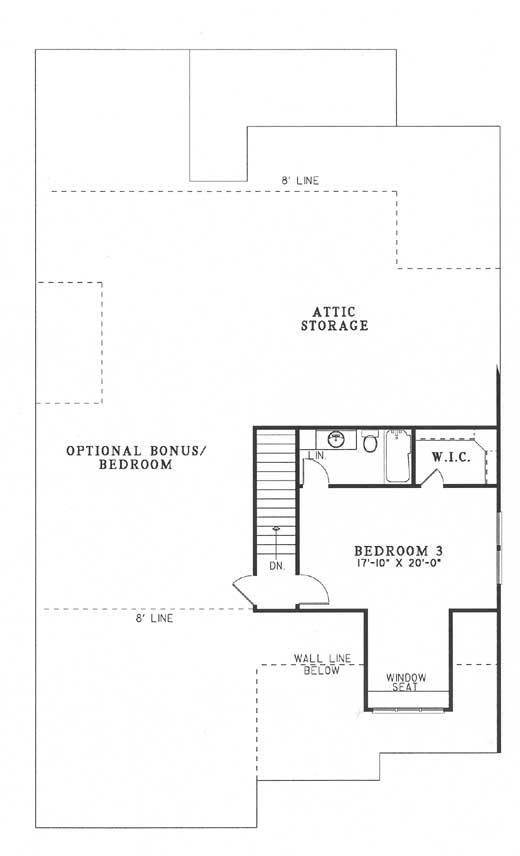

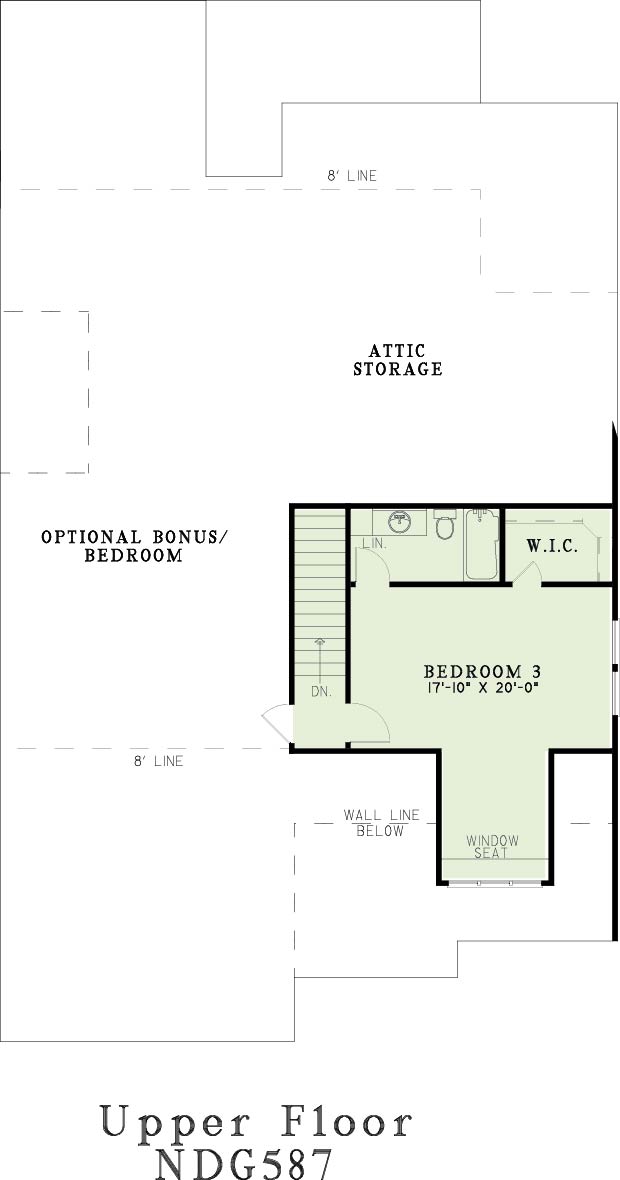

House Plan NDG 587 Upper Floor
House Plan NDG 587 Main Floor
House Plan NDG 587 Upper Floor

Floor plans

House Plan NDG 587 Main Floor

House Plan NDG 587 Upper Floor
NDG 587

House Plan 587 Wisteria, Arts and Crafts House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 587
  • Total Living Space:2288 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 42
  • Width In.: N/A
  • Depth Ft.: 70
  • Depth In.: 10

Description

We have created a design that resembles a home that your grandfather might have built. Double columns atop brick pillars enhance the front covered porch. An open foyer leads through a great room with corner fireplace and built in media center. A formal Dining Room accesses the cozy hearth room and kitchen divided by a bar counter for additional seating. Also on the main floor are the Master Suite, an additional bedroom and a full bathroom. Foyer stairs lead up to a large bedroom with private bath as well as an optional bonus area.

Specifications

  • Total Living Space:2288 Sq.Ft.
  • Main Floor: 1903 Sq.Ft
  • Upper Floor (Sq.Ft.): 385 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 425 Sq.Ft.
  • Garage (Sq.Ft.): 435 Sq.Ft.
  • Total Square Feet: 3148 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
