House Plan 585 Laurel Street, Country House Home Plan

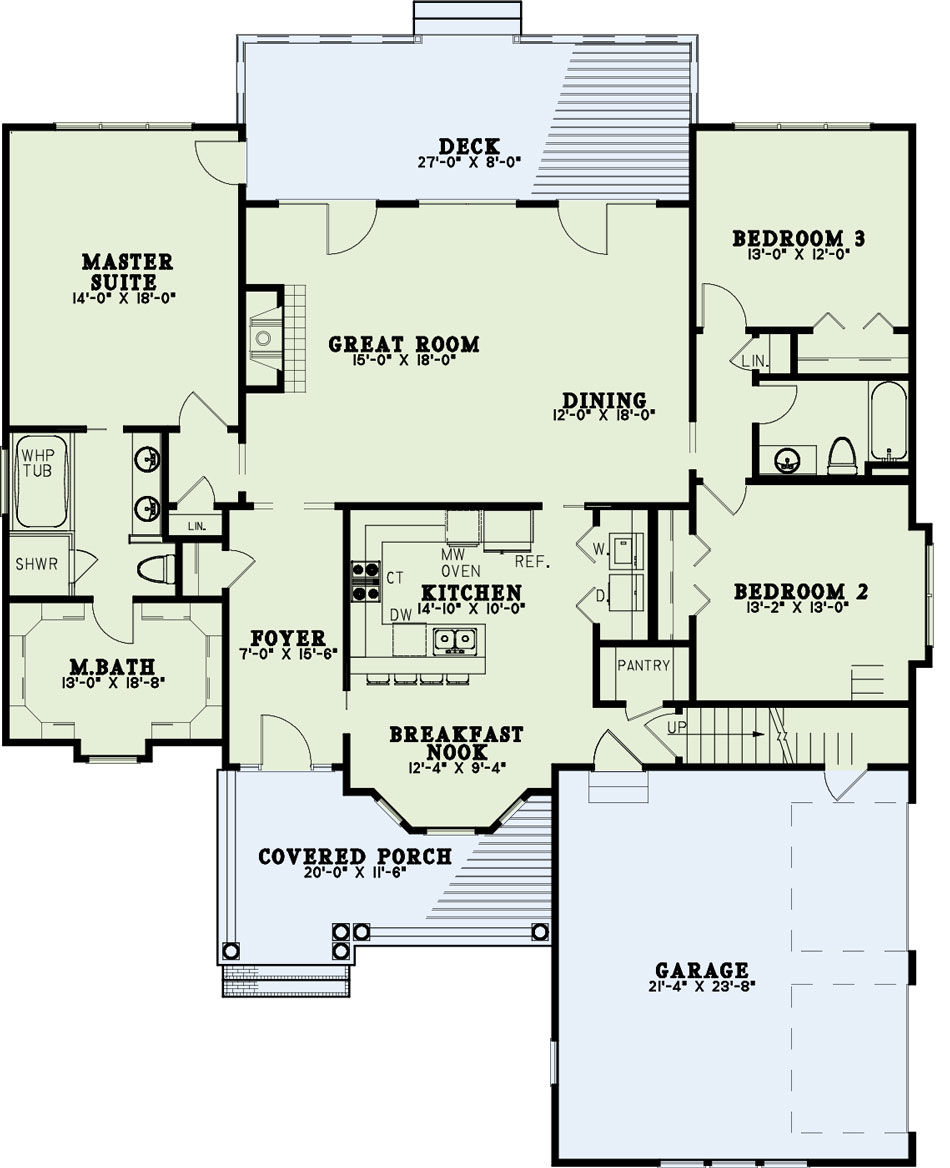

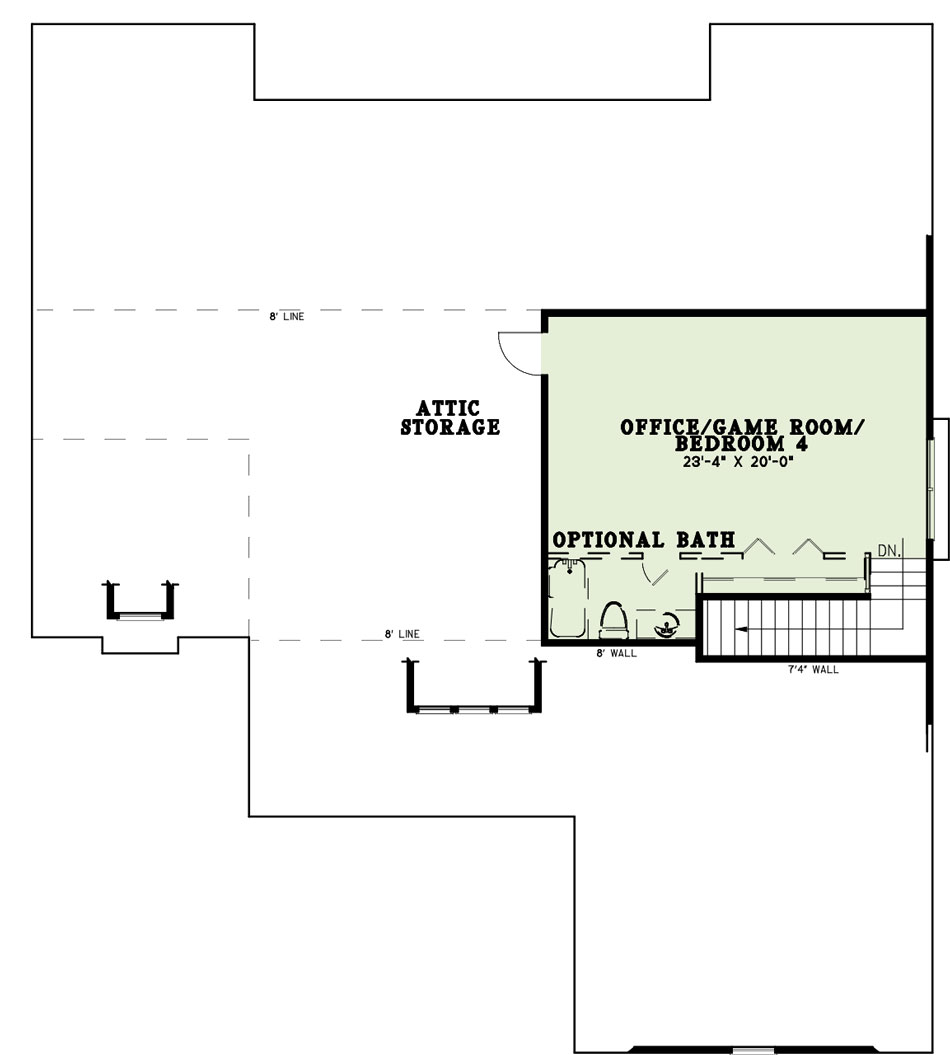

Floor plans

NDG 585

House Plan 585 Laurel Street, Country House Home Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 585
  • Total Living Space:2071Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 56
  • Width In.: 4
  • Depth Ft.: 68
  • Depth In.: 6


This home is enhanced with Craftsman style railing and a wooden porch extending a warm welcome to family and friends. Wasted space isn’t an issue with this historical plan packed full of amenities. The kitchen and breakfast bay area enjoys a front view with plenty of natural lighting and large walk-in pantry near the upstairs access. A great room and dining area share a large fireplace and enjoy double access to the rear deck. The master suite is separate from the other bedrooms and bath for added privacy. In addition, enjoy a home office or an extra bedroom with full bath for a growing family.


  • Total Living Space:2071Sq.Ft.
  • Main Floor: 2071 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 443 Sq.Ft.
  • Porch (Sq.Ft.): 191 Sq.Ft.
  • Garage (Sq.Ft.): 527 Sq.Ft.
  • Total Square Feet: 3232 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
