House Plan 584 Hickory Place, European Home Plan

>

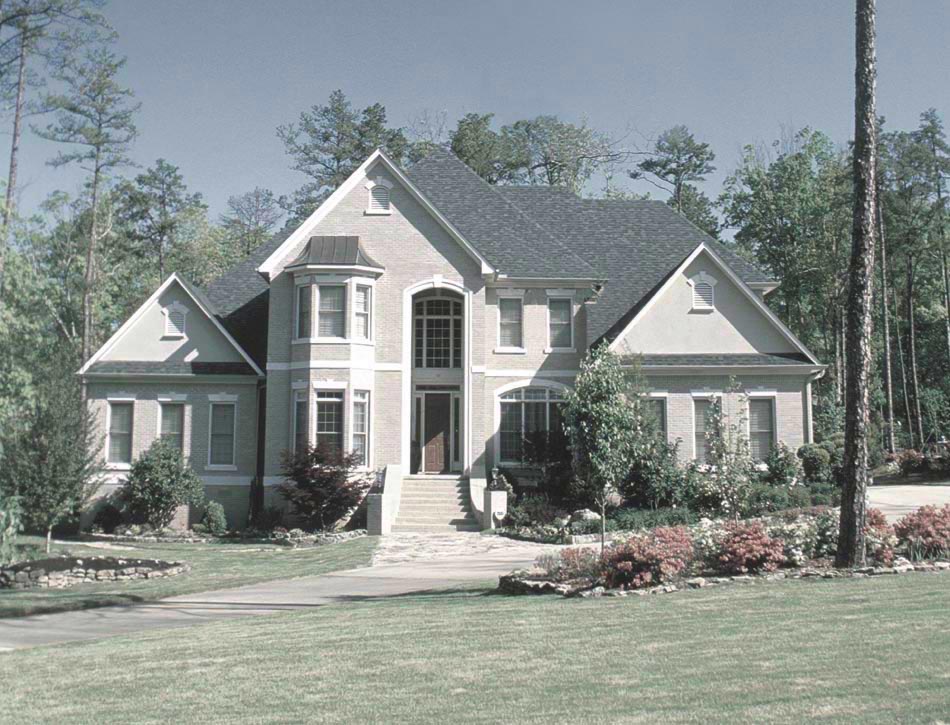

House Plan NDG 584 Front Exterior>
House Plan NDG 584 Front Exterior

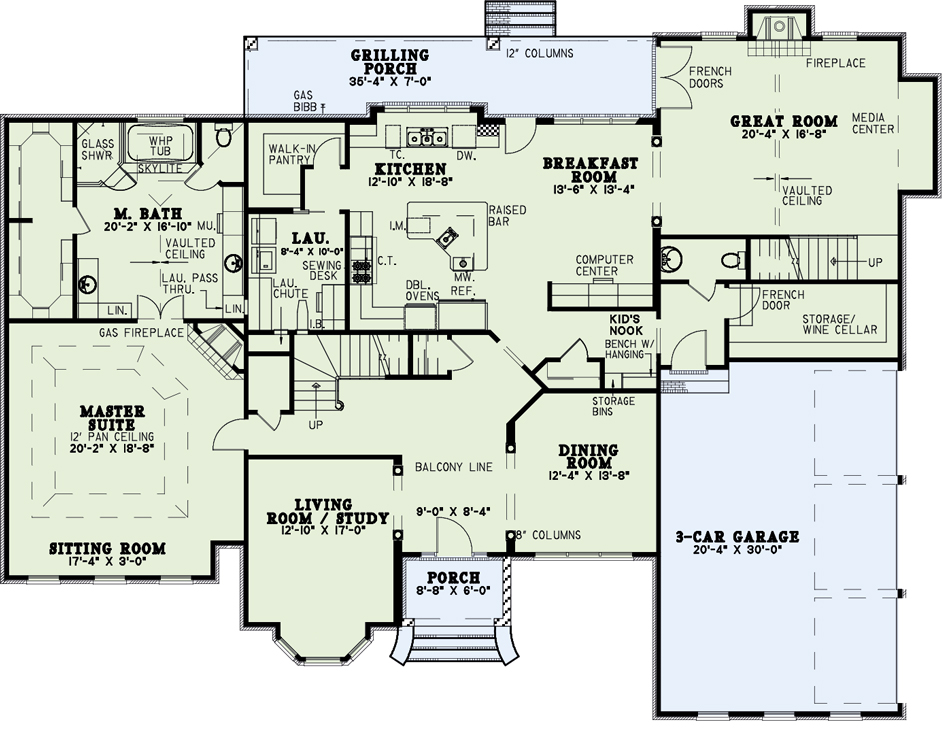

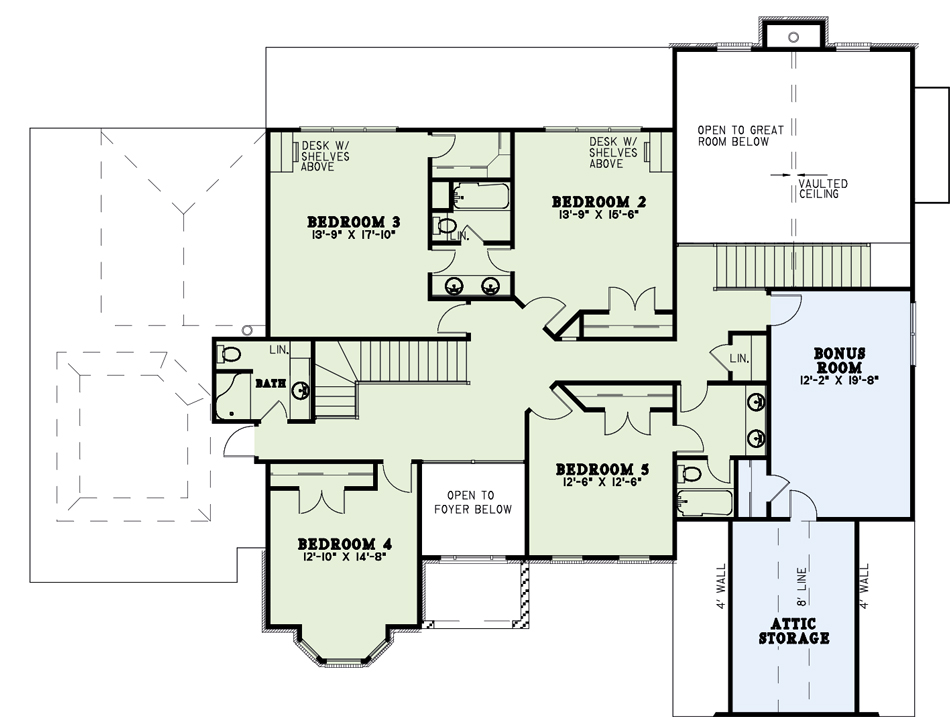

Floor plans

NDG 584

House Plan 584 Hickory Place, European Home Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 584
  • Total Living Space:4461Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 79
  • Width In.: 10
  • Depth Ft.: 60
  • Depth In.: 6

Description

French classic design and ambiance culminate in this home. The great room features vaulted ceilings, built-in media center, fireplace and french door entry to the rear-grilling porch. The kitchen offers a large walk-in pantry and island bar for culinary preparation. The wine cellar stands ready for the quiet nights at home as you relax by the fireplace in the master suite. The master bath alludes to the comfort it contains with separate walk-in closets, glass shower and whirlpool tub illuminated by skylights. The upper floor showcases two bedrooms with desks, shelves and shared access to full bath. An additional bedroom features bay window lighting and full bath adjacent. The remaining bedroom accesses a private bath. Bonus room and storage area completes this design.

Specifications

  • Total Living Space:4461Sq.Ft.
  • Main Floor: 2861 Sq.Ft
  • Upper Floor (Sq.Ft.): 1600 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 250 Sq.Ft.
  • Porch (Sq.Ft.): 310 Sq.Ft.
  • Garage (Sq.Ft.): 610 Sq.Ft.
  • Total Square Feet: 5631 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 39
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
