House Plan 582 Lauralynn, Affordable House Plan

Floor plans

NDG 582

House Plan 582 Lauralynn, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 582
  • Total Living Space:1304Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 41
  • Width In.: 10
  • Depth Ft.: 54
  • Depth In.: 6

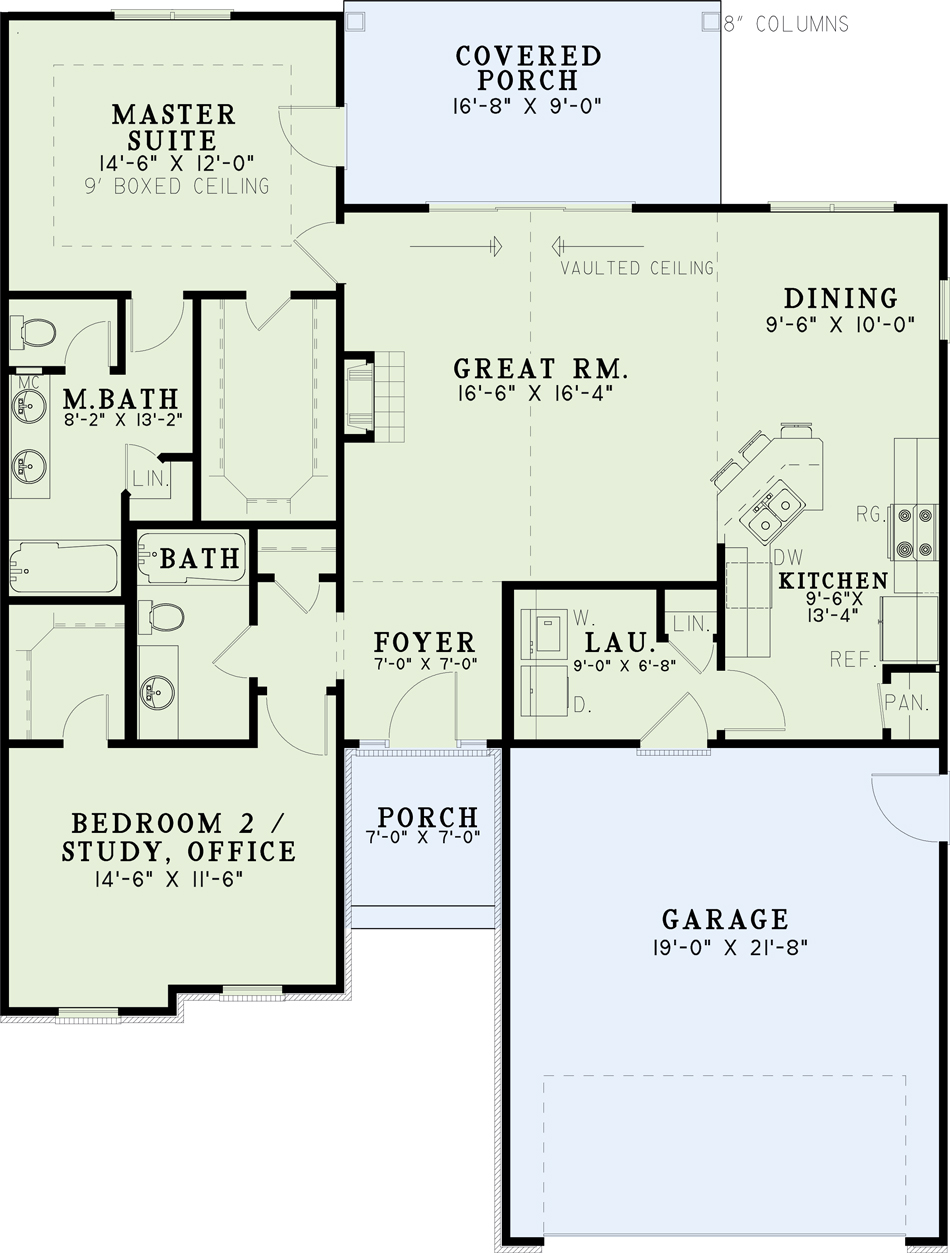

A charming exterior lends curb appeal to this Nelson Design Group home. A vaulted ceiling and cozy fireplace add elegance to the great room. Nearby, the step-saving kitchen merges with the dining room for your convenience. A rear covered porch is also available for outdoor dining possibilities. Relax the day away in this secluded master suite with boxed ceiling. An additional bedroom/study is also included at the front of this design. Comfortable and private, this room will prove to be perfect for any guest visiting your home.


  • Total Living Space:1304Sq.Ft.
  • Main Floor: 1304 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 191 Sq.Ft.
  • Garage (Sq.Ft.): 621 Sq.Ft.
  • Total Square Feet: 2116 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
