House Plan 573 Linden Avenue, Traditional House Plan

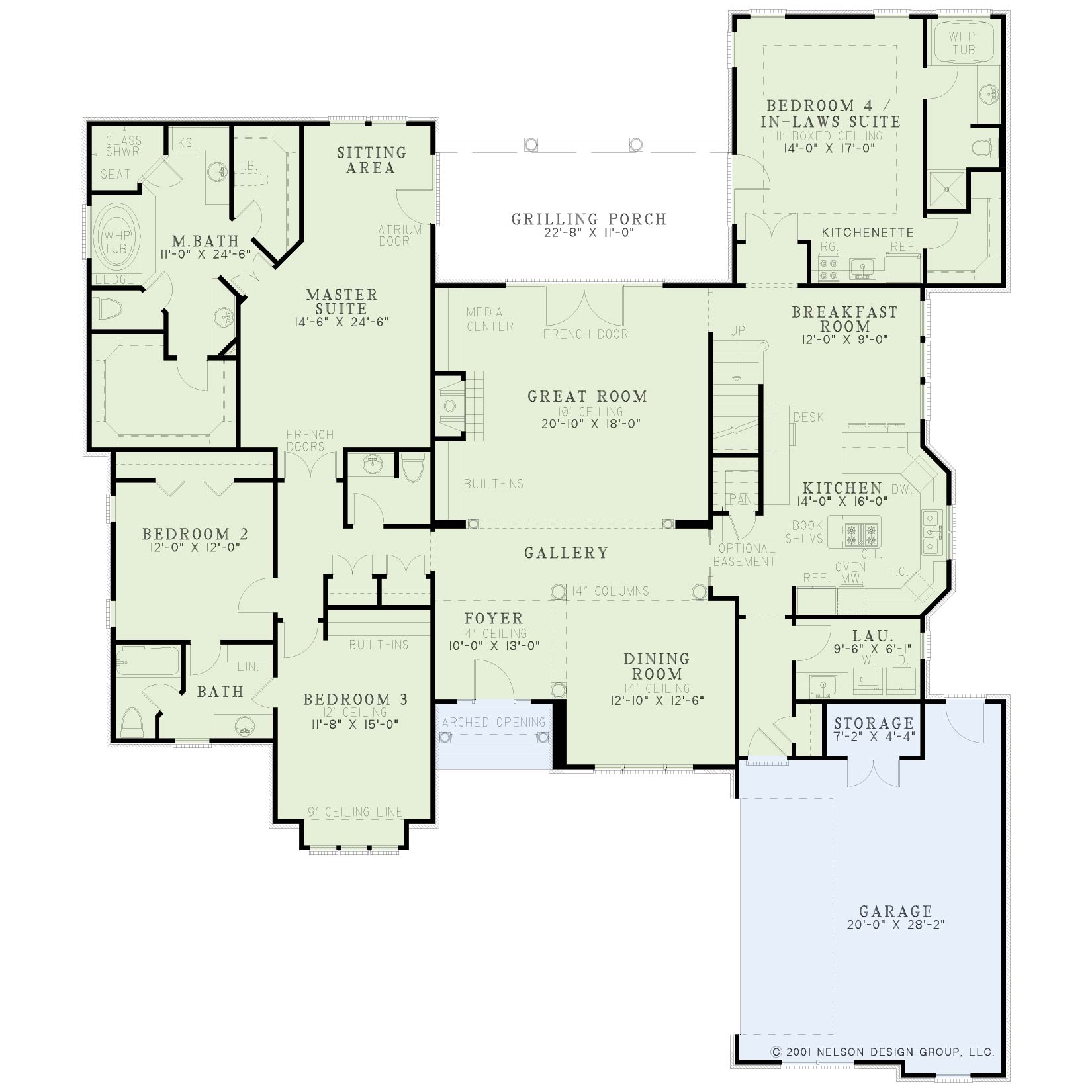

House Plan NDG 573 Main Floor

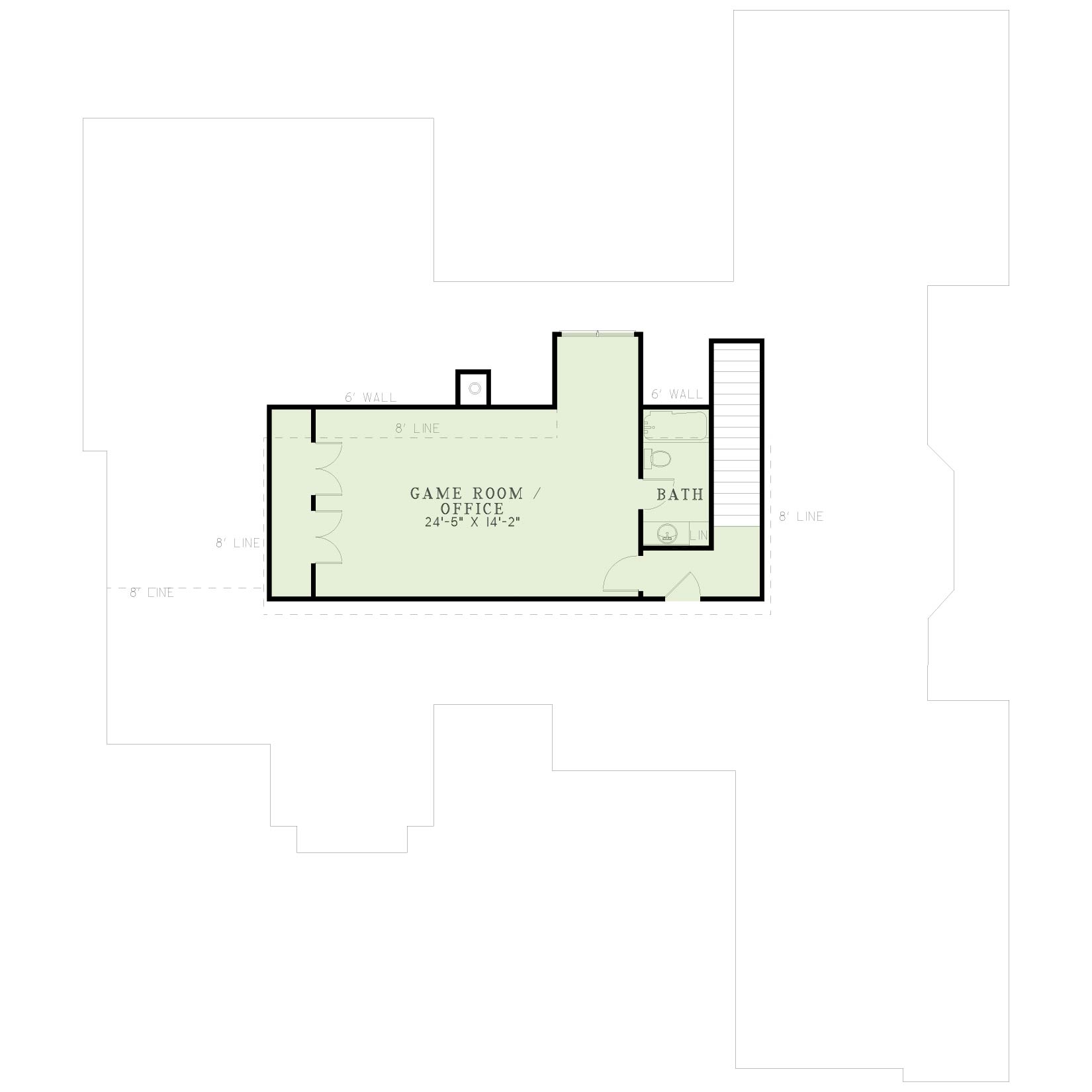

House Plan NDG 573 Upper Floor
House Plan NDG 573 Main Floor
House Plan NDG 573 Upper Floor

Floor plans

NDG 573

House Plan 573 Linden Avenue, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 573
  • Total Living Space:3568Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 70
  • Width In.: N/A
  • Depth Ft.: 81
  • Depth In.: N/A

Description

An arched opening with columns welcomes guests into this remarkable home. High ceilings are used throughout and massive fourteen-foot ceilings are used in the foyer and dining room. The kitchen is fit for a gourmet cook with a work island and adjoins a large breakfast room with a wall of windows for plenty of natural lighting. A glorious Master Suite and Mother in-law quarters are opposite each other giving the family many options. This home has a Great room with built-in media center and French door to a rear-grilling porch. The upstairs has a full bathroom and large game room or home office with abundant storage.

Specifications

  • Total Living Space:3568Sq.Ft.
  • Main Floor: 3051 Sq.Ft
  • Upper Floor (Sq.Ft.): 517 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 279 Sq.Ft.
  • Garage (Sq.Ft.): 547 Sq.Ft.
  • Total Square Feet: 4394 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
