House Plan 572 Brittany Lane, Traditional House Plan

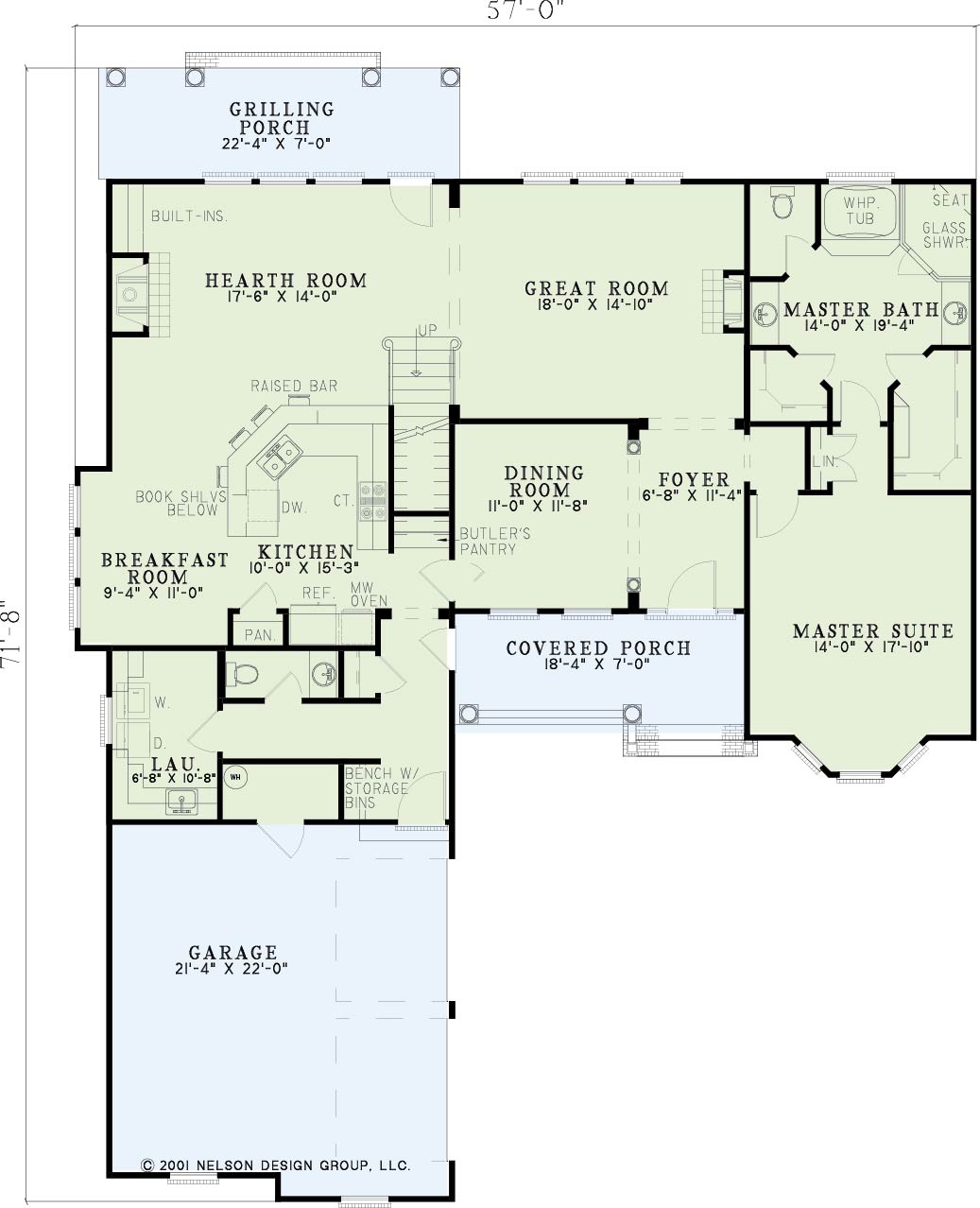

House Plan NDG 572 Main Floor

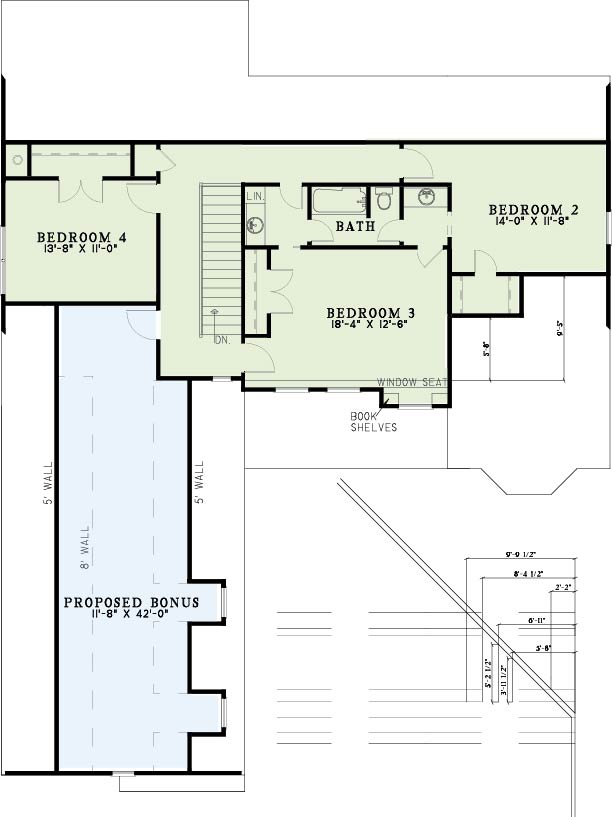

House Plan NDG 572 Upper Floor
House Plan NDG 572 Main Floor
House Plan NDG 572 Upper Floor

Floor plans

NDG 572

House Plan 572 Brittany Lane, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 572
  • Total Living Space:2886Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 57
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 8

Description

The covered front porch alludes to the comfort contained within this home. The great room offers a cozy fireplace to gather your friends and family. The kitchen offers a snack bar with bookshelves below and a butler's pantry for storage. The hearth room features a warm fireplace and access to the rear-grilling porch. The master suite is illuminated by bay windows as the bath offers, his and her, walk-in closets, glass shower with seat, and whirlpool tub. Traveling upstairs the children will enjoy the privacy of their own floor, a proposed bonus room and full bath access.

Specifications

  • Total Living Space:2886Sq.Ft.
  • Main Floor: 1921 Sq.Ft
  • Upper Floor (Sq.Ft.): 965 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 528 Sq.Ft.
  • Porch (Sq.Ft.): 284 Sq.Ft.
  • Garage (Sq.Ft.): 536 Sq.Ft.
  • Total Square Feet: 4234 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 12:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
