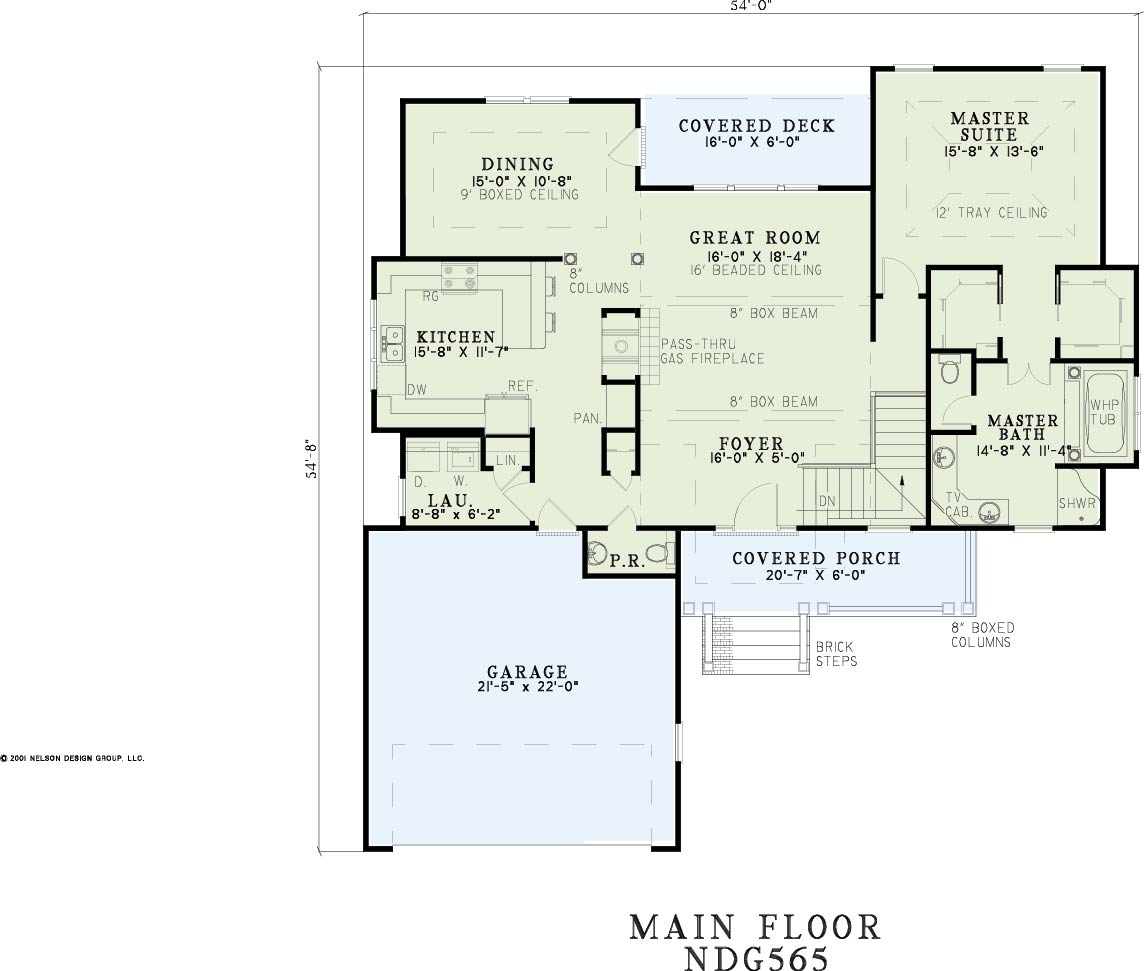

House Plan NDG 565 Main Floor

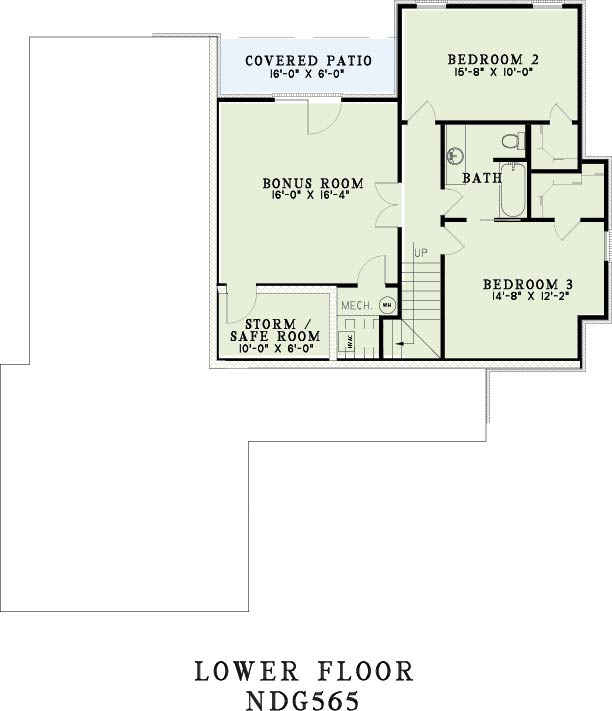

House Plan NDG 565 Upper Floor

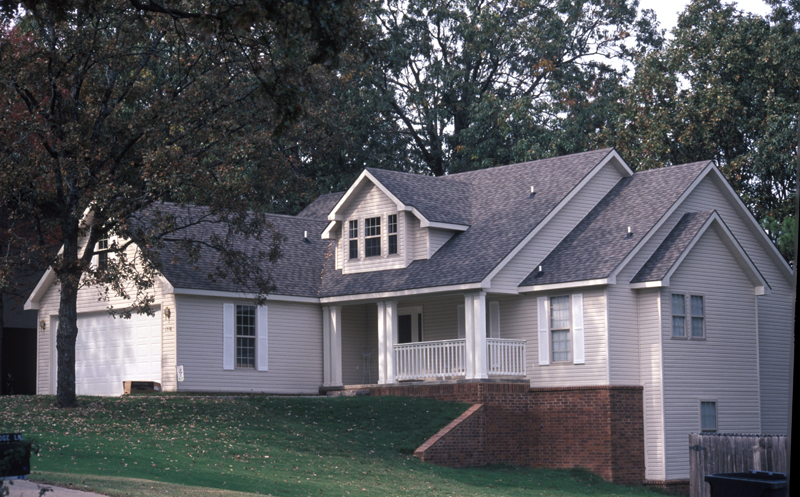

House Plan NDG 565 Front Exterior>
House Plan NDG 565 Main Floor
House Plan NDG 565 Upper Floor
House Plan NDG 565 Front Exterior

Floor plans

NDG 565

House Plan 565 Thomas Road, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 565
  • Total Living Space:2447Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 54
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 8

Description

A crisp autumn breeze touches your face as you enter this home. The great room with beaded ceiling and pass-through fireplace provides an excellent place for quality family time. This open floor plan creates an ambiance that is carried throughout this design. The children will love having a floor to themselves with a shared full bath and patio access. The Master suite is adorned with twelve foot pan ceiling, large his and her walk-in closets, and spacious master bath.

Specifications

  • Total Living Space:2447Sq.Ft.
  • Main Floor: 1484 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 221 Sq.Ft.
  • Garage (Sq.Ft.): 471 Sq.Ft.
  • Total Square Feet: 3139 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 9:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
