House Plan 554 The Devon, Florida House Plan

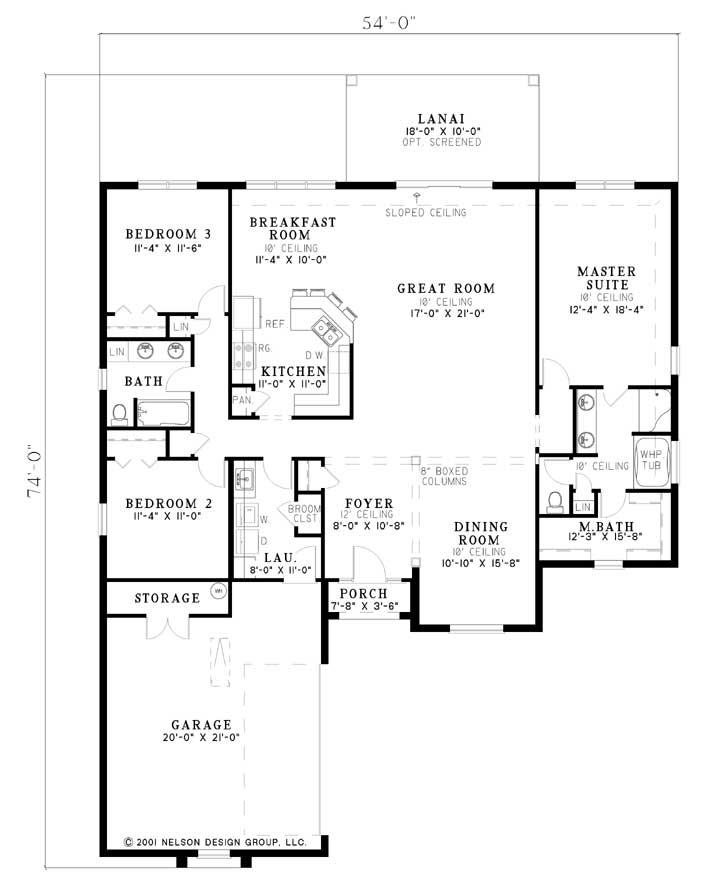

House Plan NDG 554 Main Floor

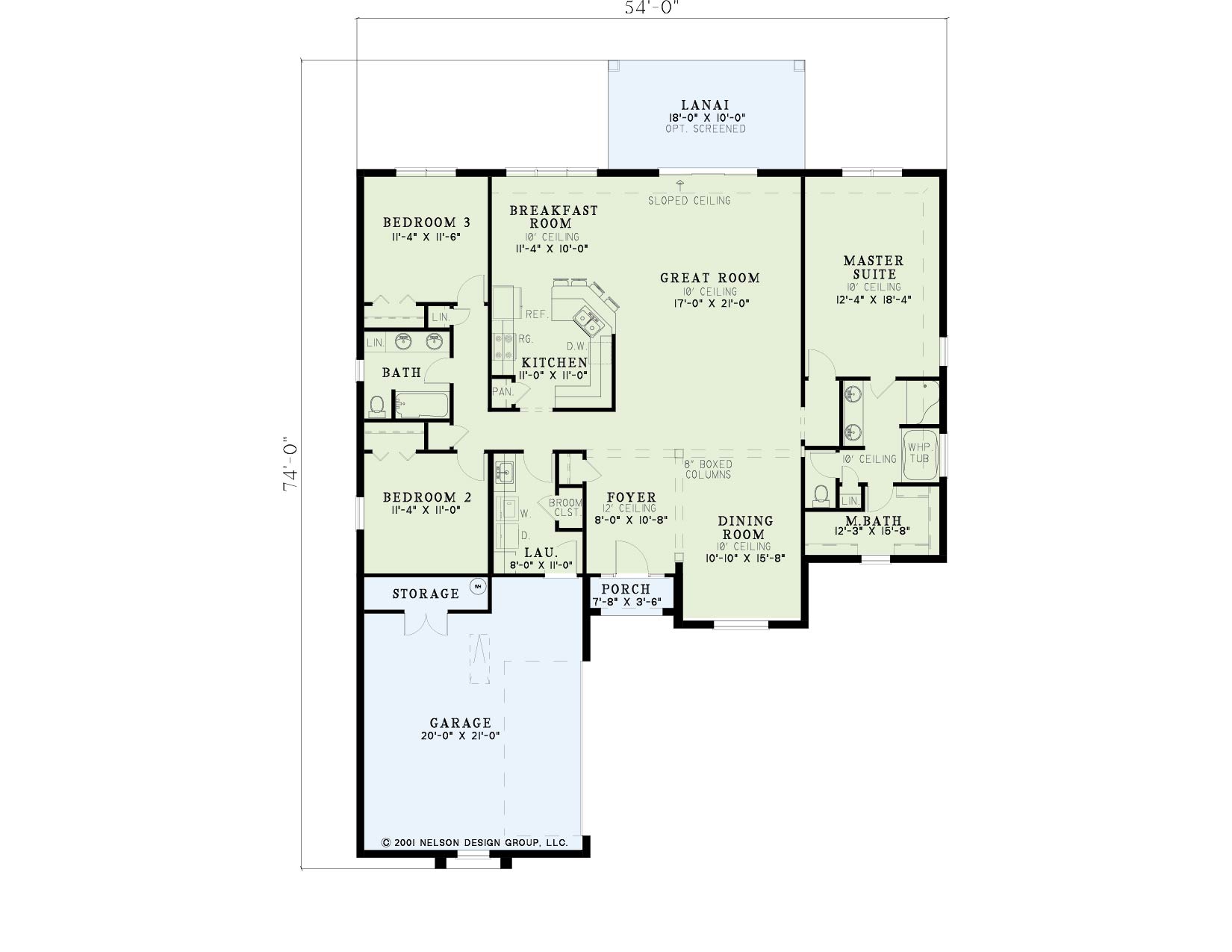

House Plan NDG 554 Main Floor

Floor plans

NDG 554

House Plan 554 The Devon, Florida House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 554
  • Total Living Space:2056Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 54
  • Width In.: N/A
  • Depth Ft.: 74
  • Depth In.: N/A

Description

Note: 8-inch concrete wall construction and tile roofing. See NDG-519 for a standard wood-framed version.

An open layout makes entertaining in this charming split-bedroom home both easy and enjoyable. The large great room flows smoothly into the formal dining room and breakfast room. The walk-through kitchen with angled bar promotes quick serving access to all living areas. An optional screened lanai provides an excellent place to enjoy the outdoors during inclement weather conditions. The master bath wing features a dual-sink vanity, separate whirlpool tub and shower, along with a large walk-in closet.

Specifications

  • Total Living Space:2056Sq.Ft.
  • Main Floor: 2056 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 203 Sq.Ft.
  • Garage (Sq.Ft.): 549 Sq.Ft.
  • Total Square Feet: 2808 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
