House Plan 553 The Mansor, Florida House Plan

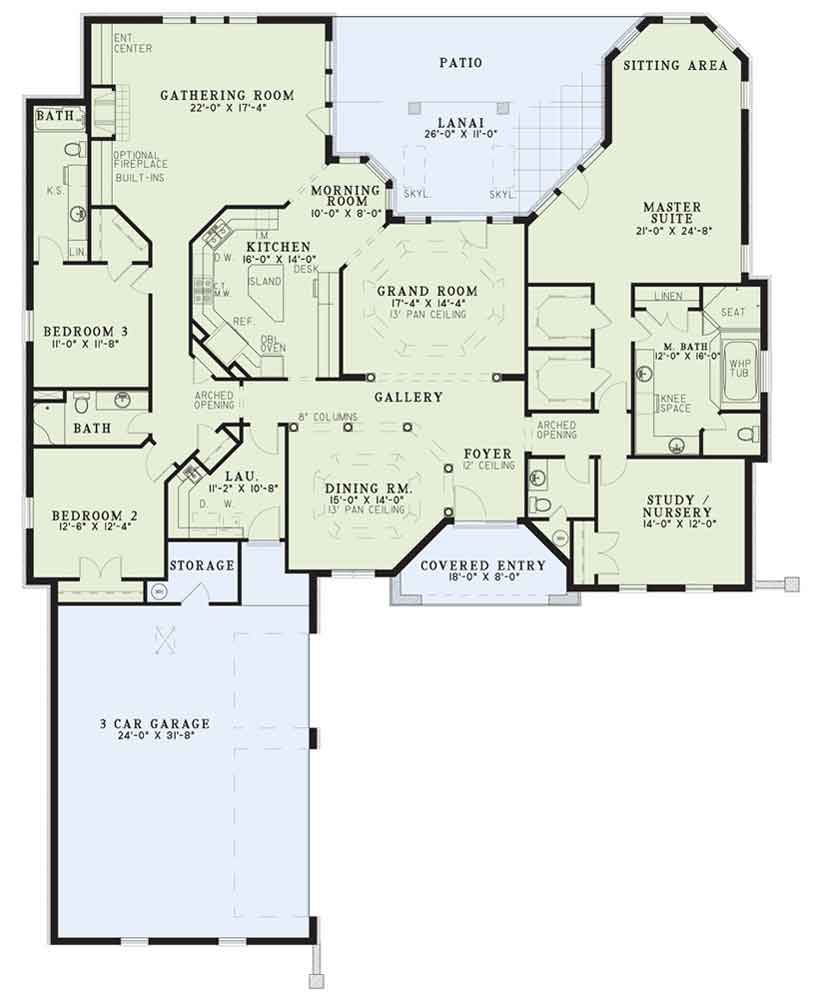

House Plan NDG 553 Main Floor
House Plan NDG 553 Main Floor

Floor plans

NDG 553

House Plan 553 The Mansor, Florida House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 553
  • Total Living Space:3167Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 70
  • Width In.: N/A
  • Depth Ft.: 88
  • Depth In.: 6


Note: 8-inch concrete wall construction and tile roofing; see NDG-112 for standard wood framing.

A family home if ever there was one, this house achieves it all in one single level. Columns and pan ceilings accent the main living areas, which access the kitchen through arched cased openings. A large gathering room at the back of the house features a fireplace and entry to the covered porch. The split-bedroom plan gives each secondary bedroom its own bath, while the master bedroom dominates the right wing of the house. Twin walk-in closets, a huge master bath and an adjoining nursery or study round out the suite.


  • Total Living Space:3167Sq.Ft.
  • Main Floor: 3167 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 638 Sq.Ft.
  • Garage (Sq.Ft.): 819 Sq.Ft.
  • Total Square Feet: 4624 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
