House Plan 540 Brandon Circle, Country Home House Plan

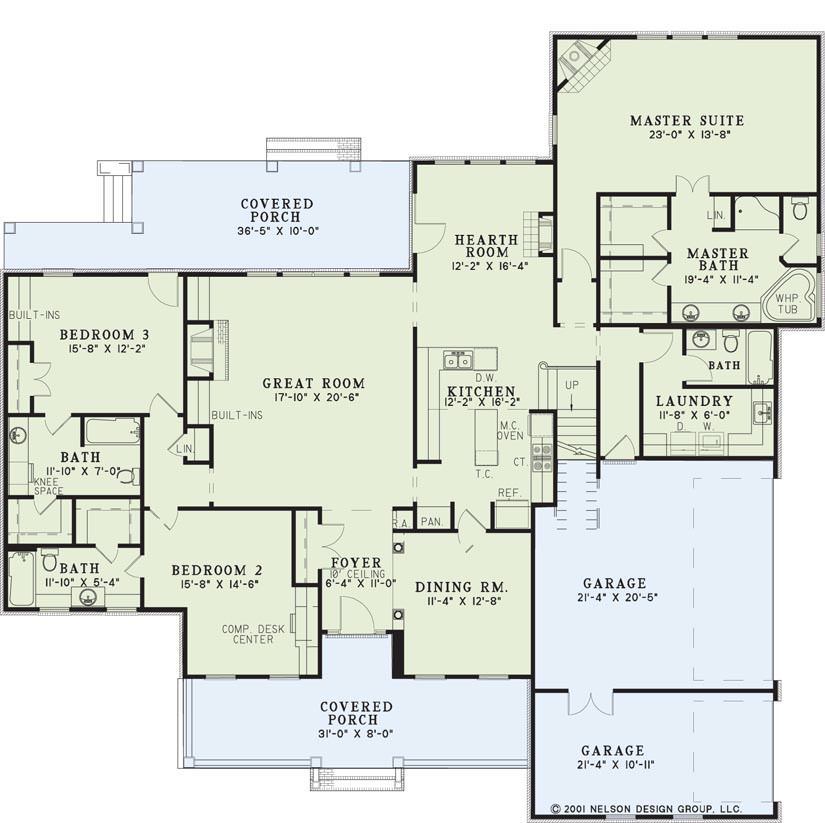

House Plan NDG 540 Main Floor

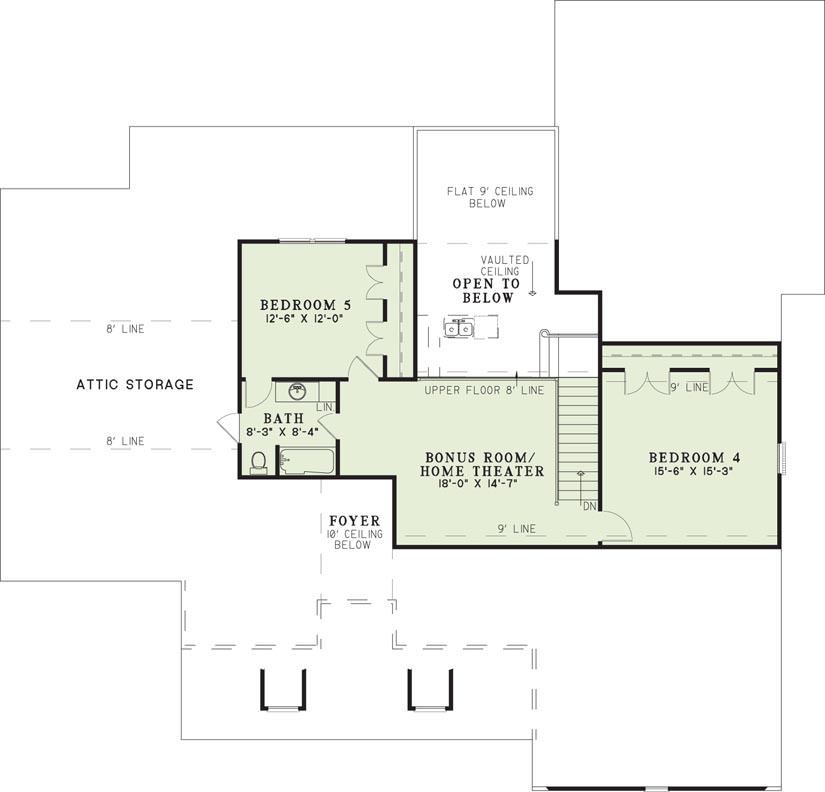

House Plan NDG 540 Upper Floor
House Plan NDG 540 Main Floor
House Plan NDG 540 Upper Floor

Floor plans

NDG 540

House Plan 540 Brandon Circle, Country Home House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 540
  • Total Living Space:3456Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 72
  • Width In.: 10
  • Depth Ft.: 69
  • Depth In.: 10

Description

Integrating three complete suites in this magnificent five-bedroom home. Walk-in closets and built-ins are utilized extensively throughout the secondary downstairs bedrooms with the second bedroom enjoying a complete computer center. A lovely corner fireplace graces the master suite while sleek French doors lead into the master bath. The large kitchen flows into a spectacular hearth room featuring a fireplace and access to the vast covered porch. Two secondary bedrooms upstairs flank the shared bonus room with an overhead view of the open kitchen below.

Specifications

  • Total Living Space:3456Sq.Ft.
  • Main Floor: 2609 Sq.Ft
  • Upper Floor (Sq.Ft.): 847 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 544 Sq.Ft.
  • Garage (Sq.Ft.): 704 Sq.Ft.
  • Total Square Feet: 4704 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
