House Plan 536 Chantilly Circle, Renaissance House Plan
Plan Details
- Plan Number: NDG 536
- Total Living Space:2290Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 50
- Width In.: N/A
- Depth Ft.: 52
- Depth In.: N/A
Description

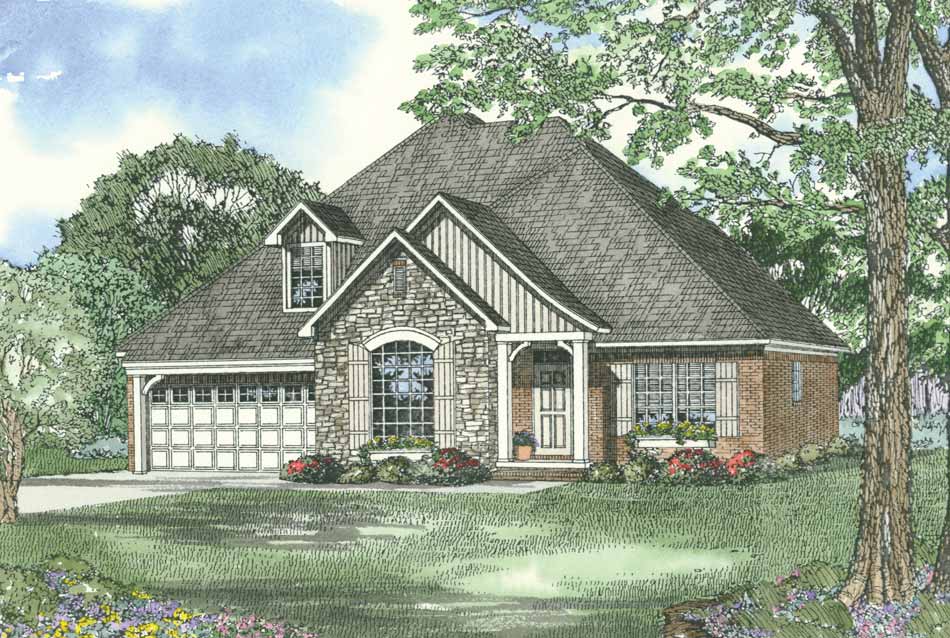

This French Country has a great room with fireplace and access to a rear-grilling porch. The kitchen has a pass-thru to the great room and adjoins a large breakfast room with a bar counter. The main level master suite has a large bathroom with walk-in closet and all the amenities. Travel upstairs and find three bedrooms and a full bathroom and easily accessed attic storage for seasonal usage.
Specifications
- Total Living Space:2290Sq.Ft.

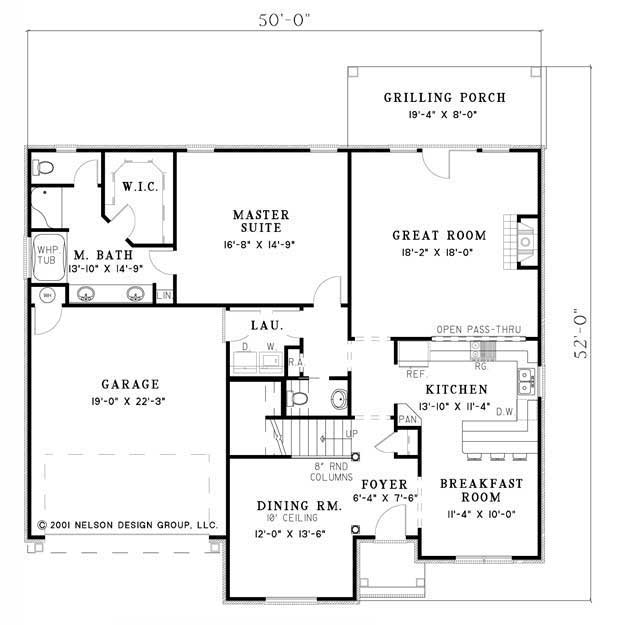

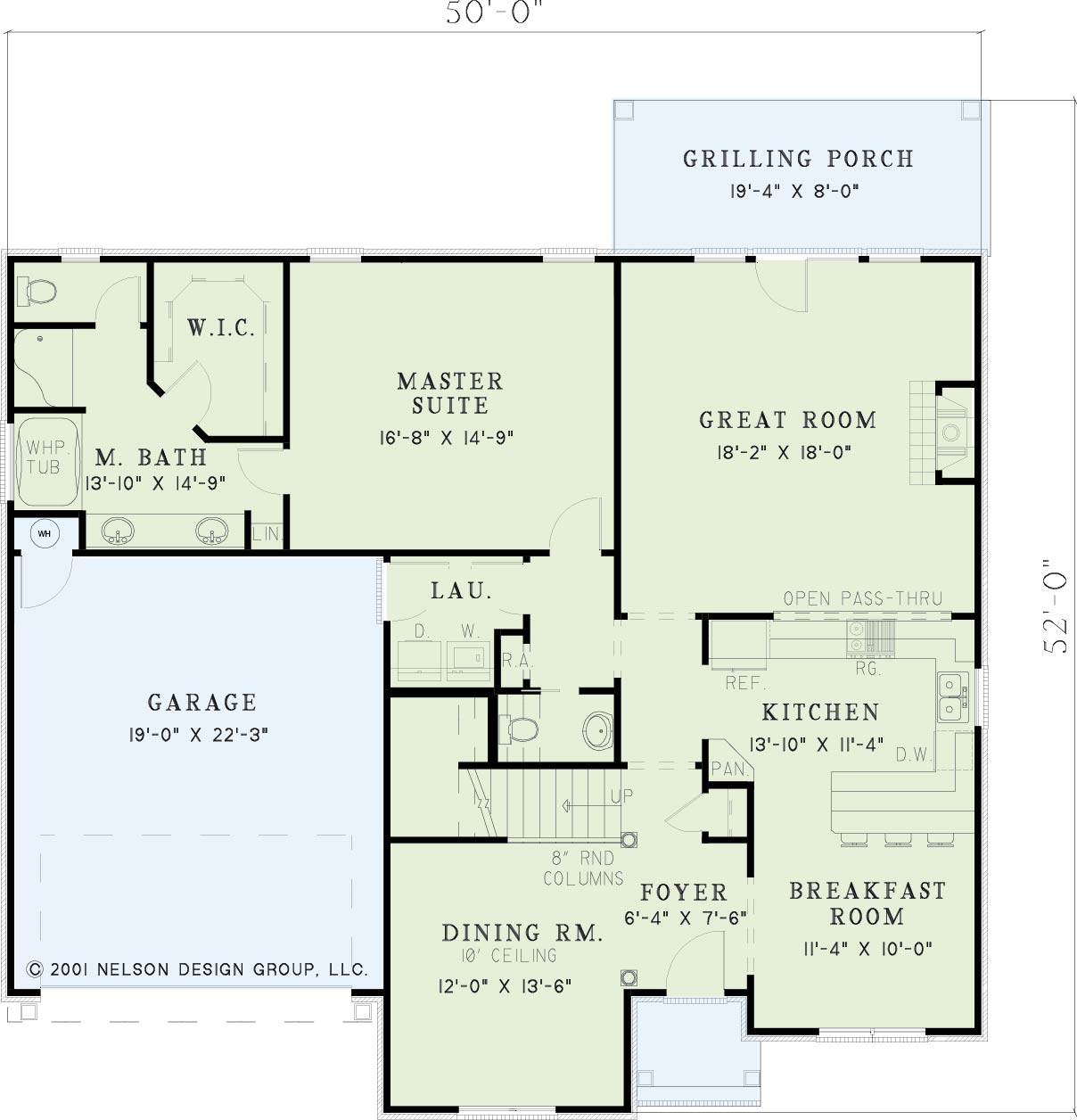

- Main Floor: 1563 Sq.Ft

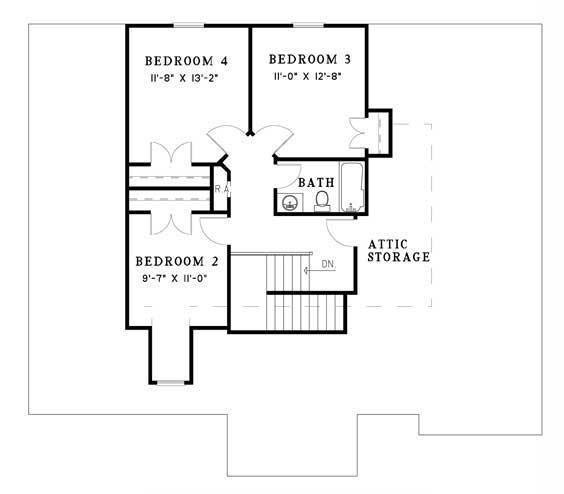

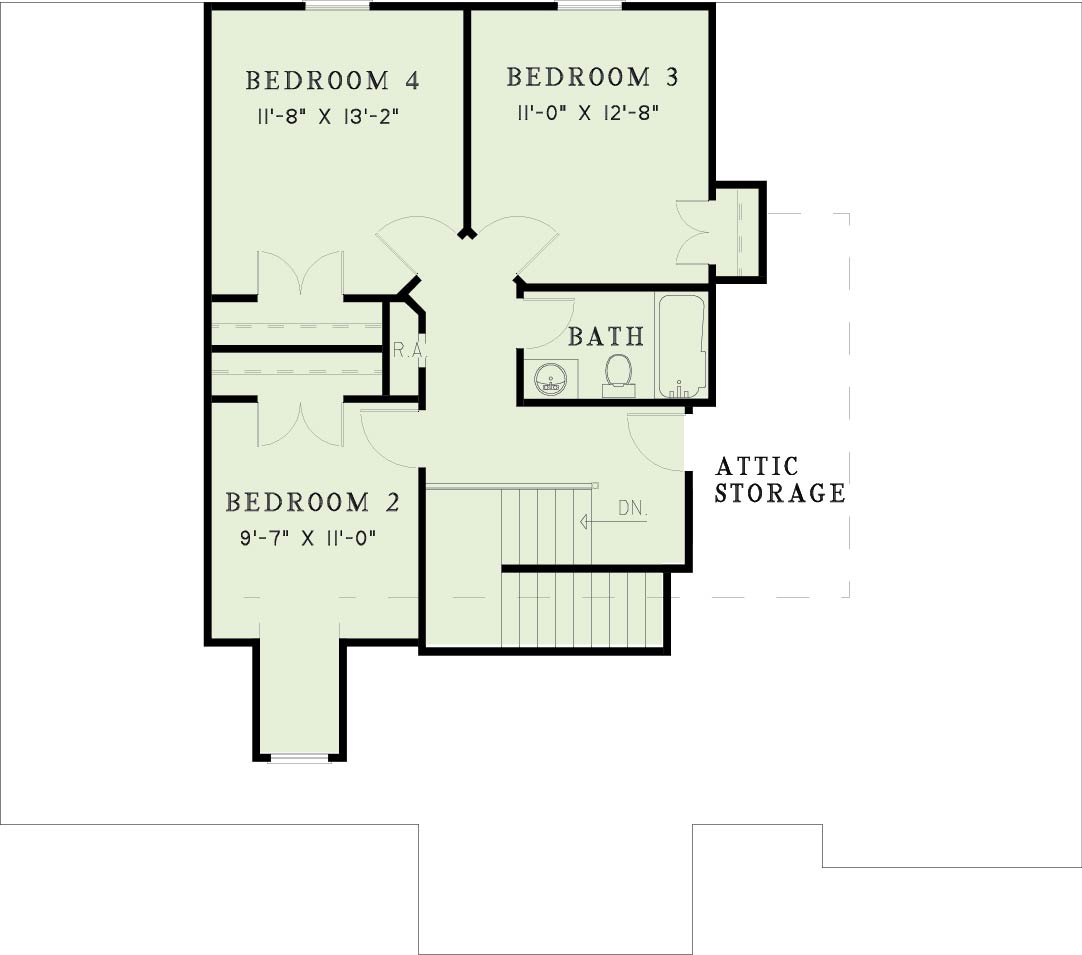

- Upper Floor (Sq.Ft.): 727 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 167 Sq.Ft.
- Garage (Sq.Ft.): 440 Sq.Ft.
- Total Square Feet: 2897 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 30
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
