House Plan 534 Autumn Drive, Heritage House Plan

House Plan 534 Autumn Drive, Heritage House Plan

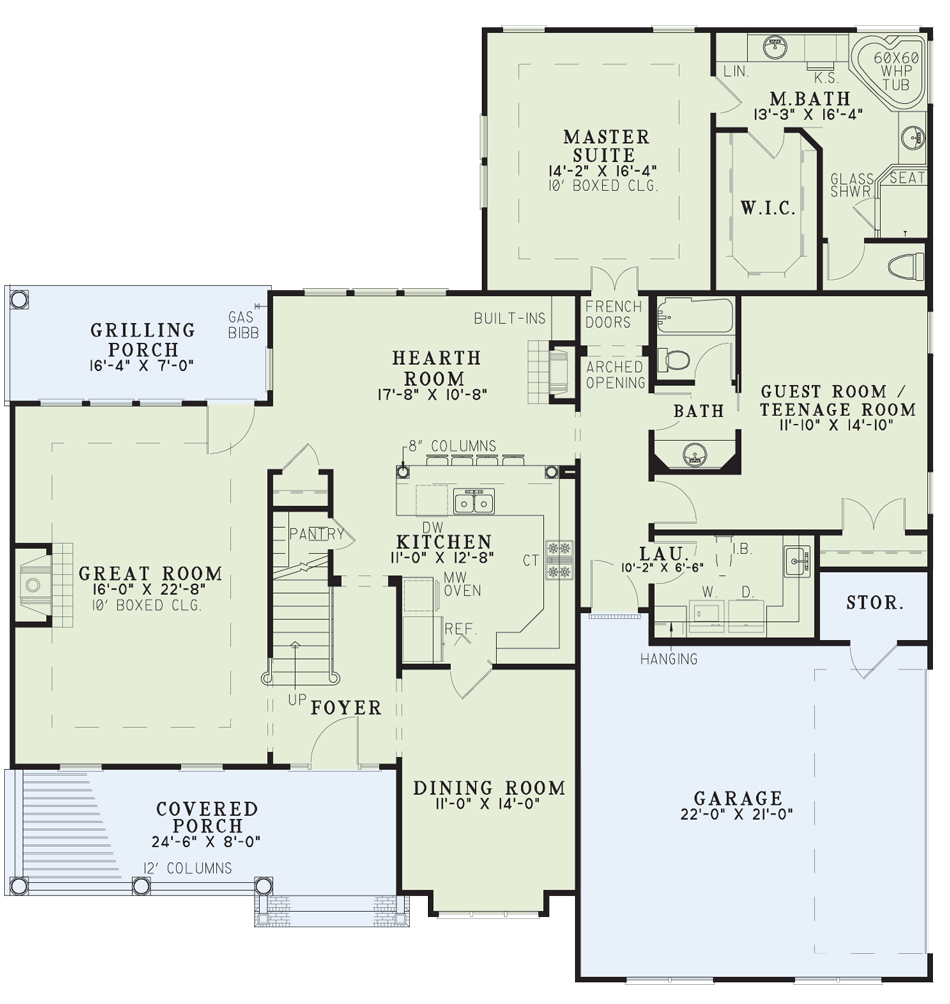

House Plan NDG 534 Main Floor

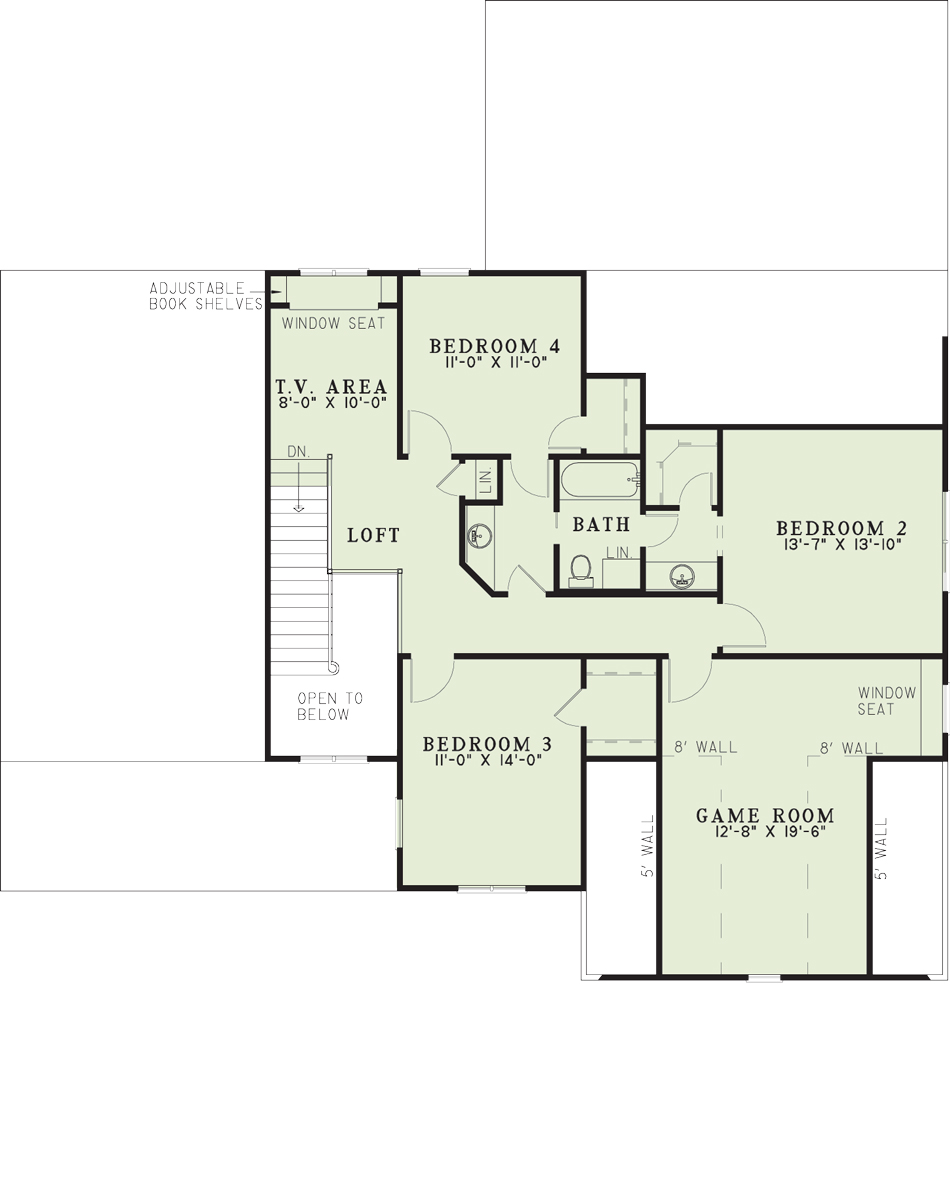

House Plan NDG 534 Upper Floor

Floor plans

NDG 534

House Plan 534 Autumn Drive, Heritage House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 534
  • Total Living Space:3248Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 58
  • Width In.: 6
  • Depth Ft.: 60
  • Depth In.: 6

Description

You will find yourself lost in thought as you relax on the covered front porch of this home. As you enter the foyer carefully concealing a large walk-in pantry, you will be transfixed by the abundant convenience of the floor plan. The great room with fireplace and boxed ceiling gaining entry to the rear-grilling porch for the summer dinners. The kitchen snack bar accentuated by eight-inch columns. Your guests will find a suite complete with full bath amenities awaiting them. Romantic evenings may be enjoyed around the fireplace in the hearth room. As you adjourn to your master bath with walk-in closet, corner whirlpool tub and glass shower with seat to finalize your day, the kids enjoy the privacy of the upper floor with bonus room and TV area boasting a window seat.

Specifications

  • Total Living Space:3248Sq.Ft.
  • Main Floor: 2021 Sq.Ft
  • Upper Floor (Sq.Ft.): 1227 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 324 Sq.Ft.
  • Garage (Sq.Ft.): 519 Sq.Ft.
  • Total Square Feet: 4091 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,200.00)
    • CAD ($2,400.00)
    • Five Set ($1,300.00)
    • PDF ($1,200.00)
    • PDF + Unlimited Build ($1,900.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
