House Plan 532 Wellington Lane, Village at Wellington House Plan

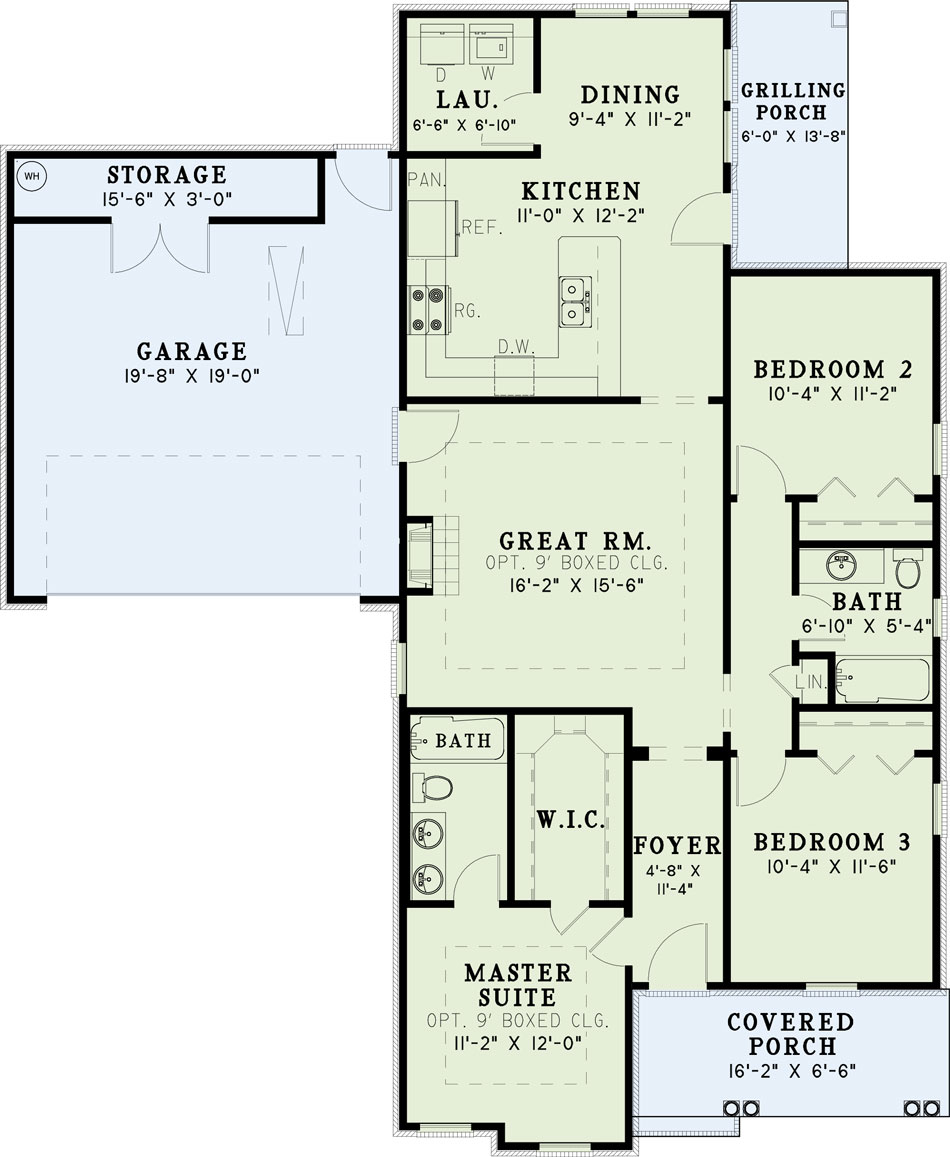

Floor plans

NDG 532

House Plan 532 Wellington Lane, Village at Wellington House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 532
  • Total Living Space:1321Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 47
  • Width In.: 6
  • Depth Ft.: 58
  • Depth In.: 6


Enjoy the elegant porch with double columns and railing that give life to this traditional home. Guests will enjoy hot chocolate and a cozy fireplace in your great room enhanced with a nine foot boxed ceiling. The kitchen adjoins a large dining area and accesses a rear porch giving you the option of grilling or simply relaxing. After entertaining, seclude yourself in the master suite adorned by nine foot boxed ceiling, full bath, and a huge walk-in closet. This split bedroom design offers the children their own privacy on the other side of the house with their own rooms and full bathroom in between.


  • Total Living Space:1321Sq.Ft.
  • Main Floor: 1321 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 154 Sq.Ft.
  • Garage (Sq.Ft.): 388 Sq.Ft.
  • Total Square Feet: 1863 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 7:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
