House Plan 528 Windstone Place, Village at Windstone III House Plan

Floor plans

NDG 528

House Plan 528 Windstone Place, Village at Windstone III House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 528
  • Total Living Space:2354Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: N/A
  • Depth Ft.: 72
  • Depth In.: 7

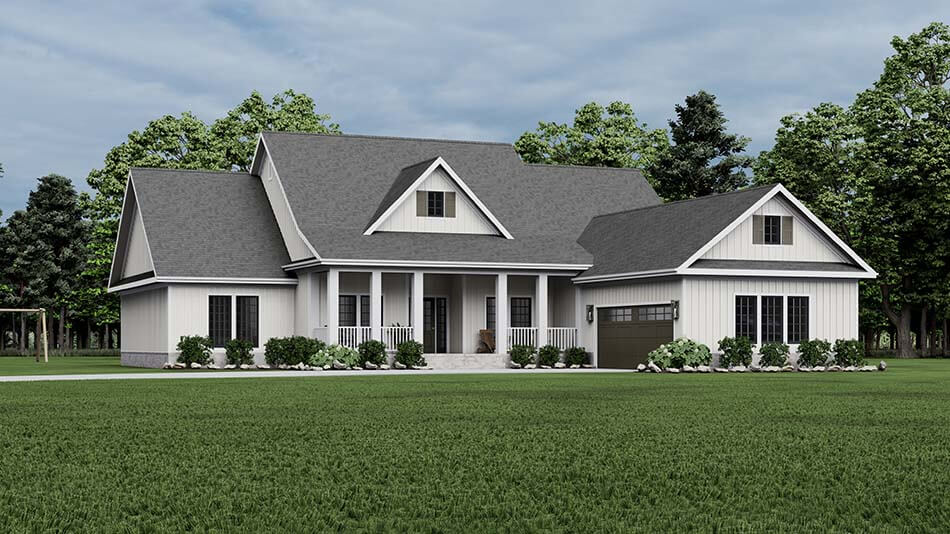

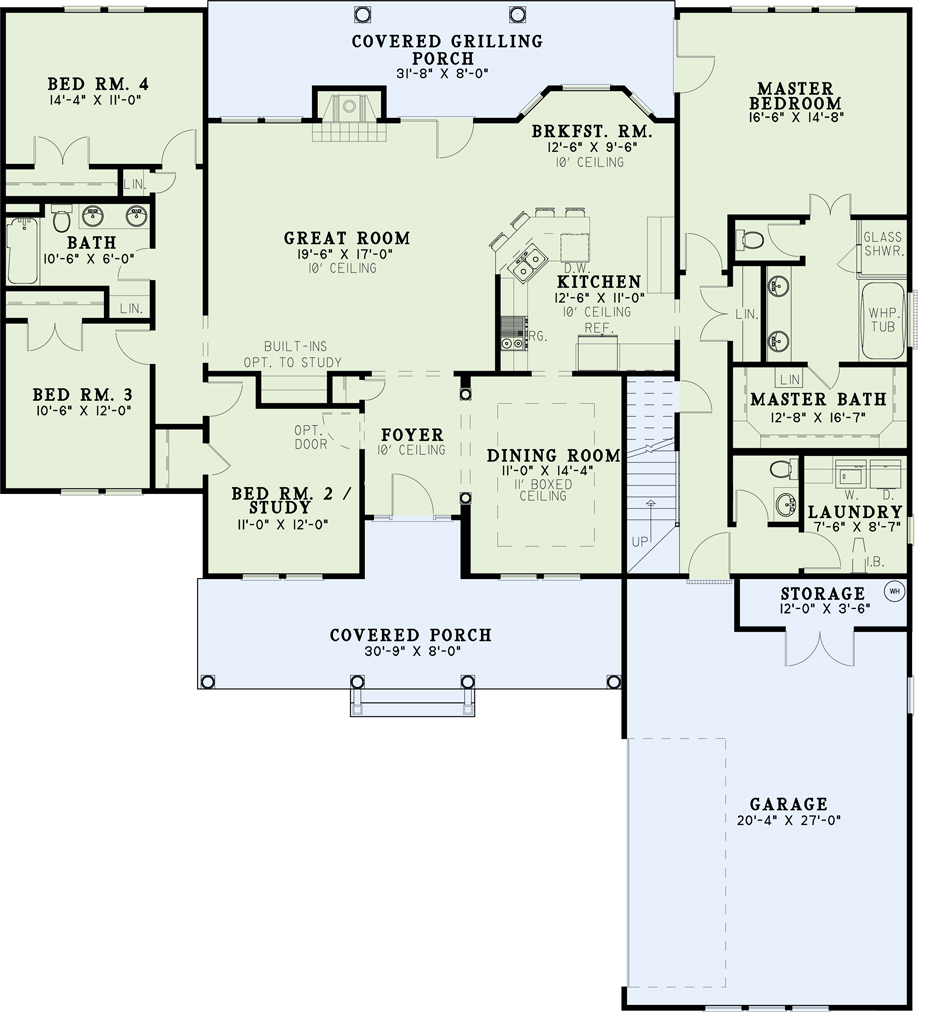

Cedar shake and a cozy porch with round columns introduce this split bedroom plan. Our home is elegant enough for the elite and conservative at the same time. Once inside the foyer, a ten foot ceiling continues through to the great room for a grand effect. The dining room has a column entry and opening to the kitchen enhanced with an eleven foot boxed ceiling and open bar seating. The kitchen and breakfast room both with ten foot ceilings, enjoy an outside view looking through a large covered grilling porch. An elegant master suite includes a large walk-in closet, whirlpool tub, shower, and separate toilet room. A large laundry room and half bathroom lead to a courtyard entry garage. An upstairs bonus room is available if desired.


  • Total Living Space:2354Sq.Ft.
  • Main Floor: 2354 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

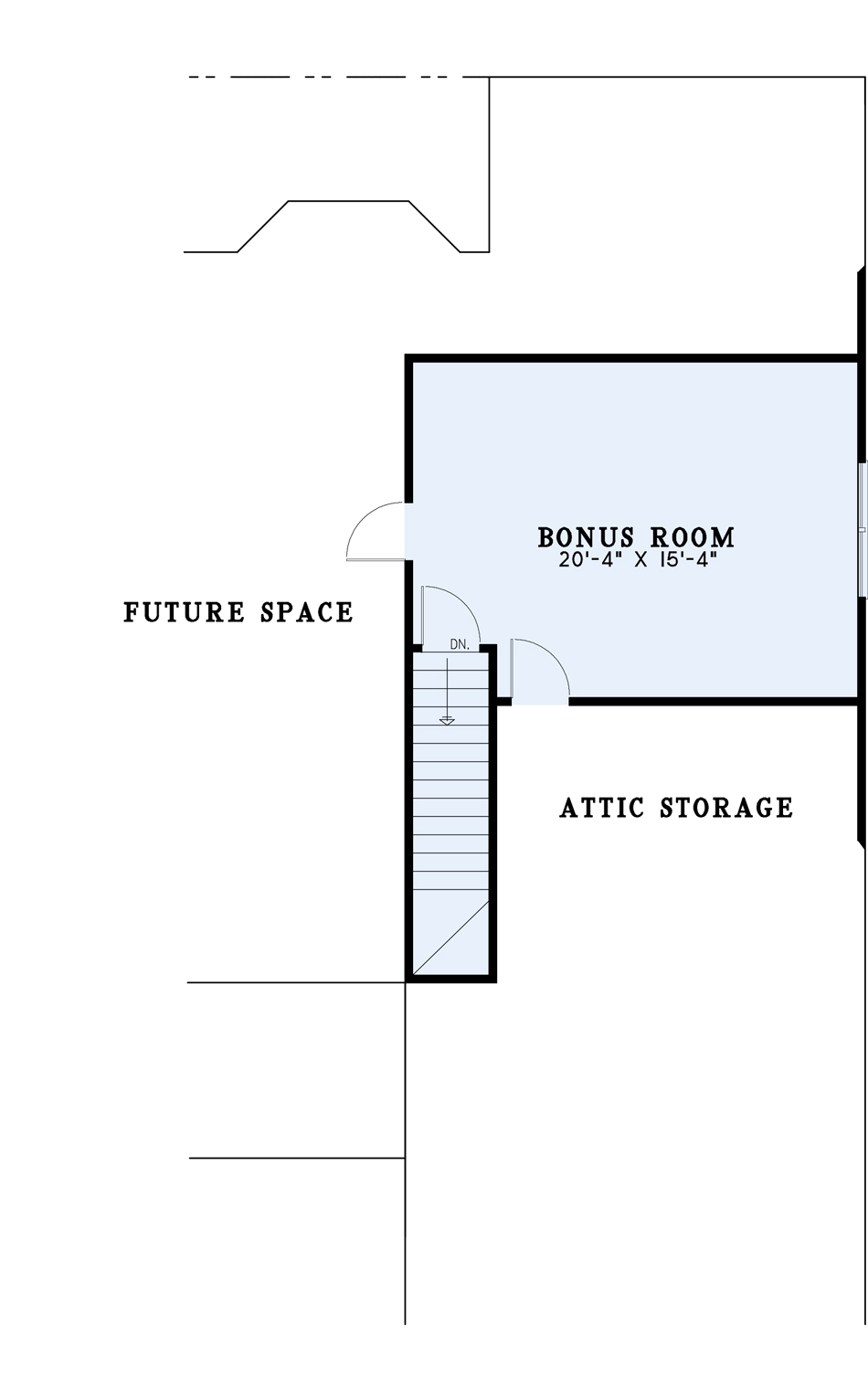

  • Bonus Room (Sq.Ft.): 326 Sq.Ft.
  • Porch (Sq.Ft.): 525 Sq.Ft.
  • Garage (Sq.Ft.): 656 Sq.Ft.
  • Total Square Feet: 3861 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
