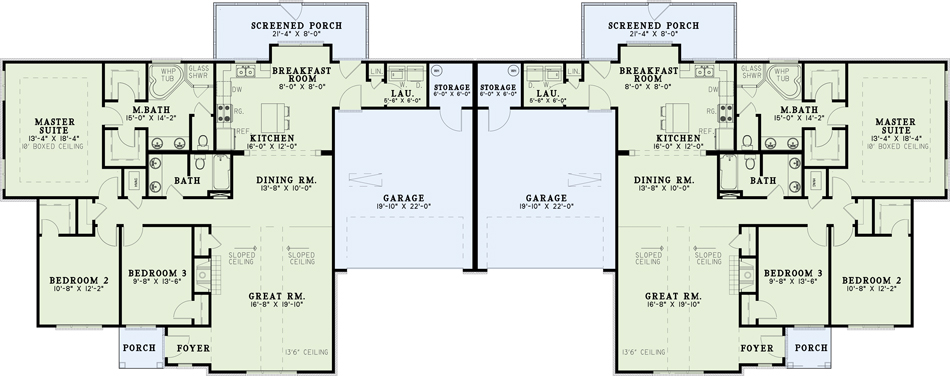

Floor plans

NDG 527

House Plan 527 Ivy Green, Multi-Family House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 527
  • Total Living Space:1870Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 130
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: N/A

Description

Optimum convenience abounds in this duplex. The great room offers a warm fireplace and sloped ceilings. The kitchen offers island bar open to the breakfast room accessing the rear-screened porch. The master bath features his and hers walk-in closets, glass shower, double vanities and a whirlpool tub. The remaining two bedrooms share access to a full bath in the hall. You will find an additional storage room in the garage.

Specifications

  • Total Living Space:1870Sq.Ft.
  • Main Floor: 1870 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 195 Sq.Ft.
  • Garage (Sq.Ft.): 463 Sq.Ft.
  • Total Square Feet: 2528 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
