House Plan 524 Wellington Lane, Affordable House Plan

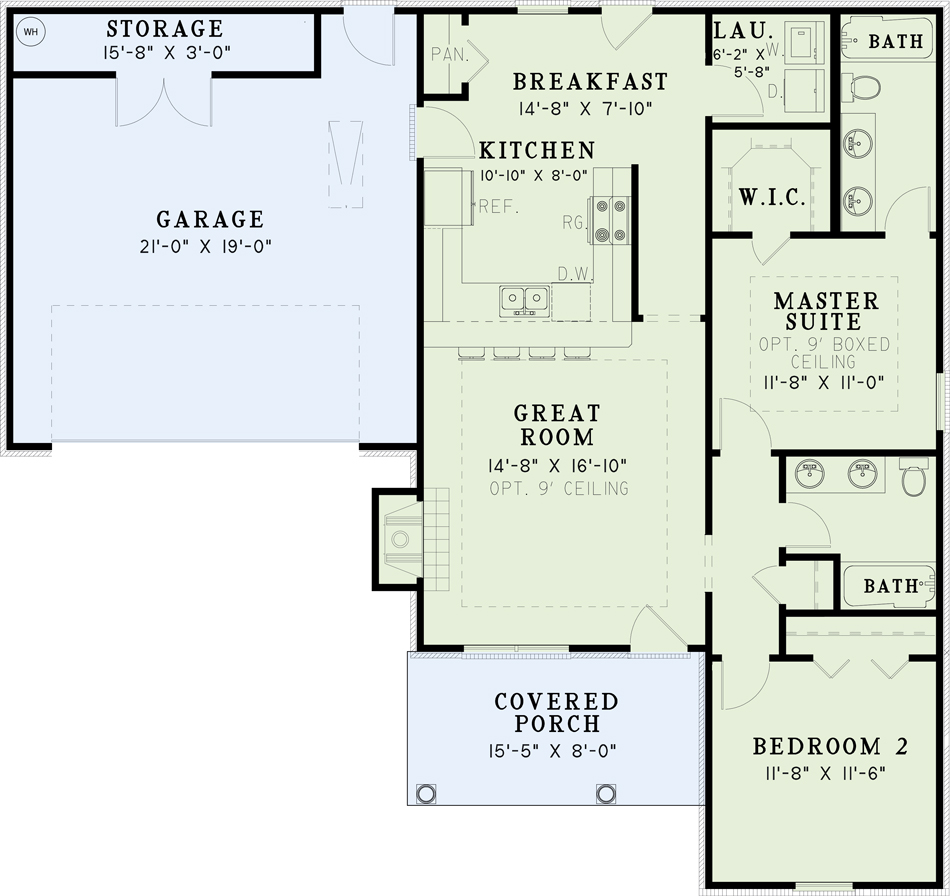

Floor plans

NDG 524

House Plan 524 Wellington Lane, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 524
  • Total Living Space:1067Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 8
  • Depth Ft.: 45
  • Depth In.: 10


This stately home has all the amenities you’re looking for in a home. The covered front porch is accented by ten inch round columns and beaded ceiling. As you enter the expansive great room with optional nine foot ceiling, you’ll enjoy the openness created by the eat at snack bar open to the kitchen. Starting your day will be fun and easy in the convenient kitchen with breakfast room. After a full day of activity, you’ll breathe easy in the privacy of the master suite, with full bath and huge walk-in closet. The second bedroom would make a lovely nursery for the family just starting out, or the perfect spare bedroom for overnight guests.


  • Total Living Space:1067Sq.Ft.
  • Main Floor: 1067 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 120 Sq.Ft.
  • Garage (Sq.Ft.): 487 Sq.Ft.
  • Total Square Feet: 1674 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 7:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
