House Plan 518 Quail Drive, Traditional House Plan

>

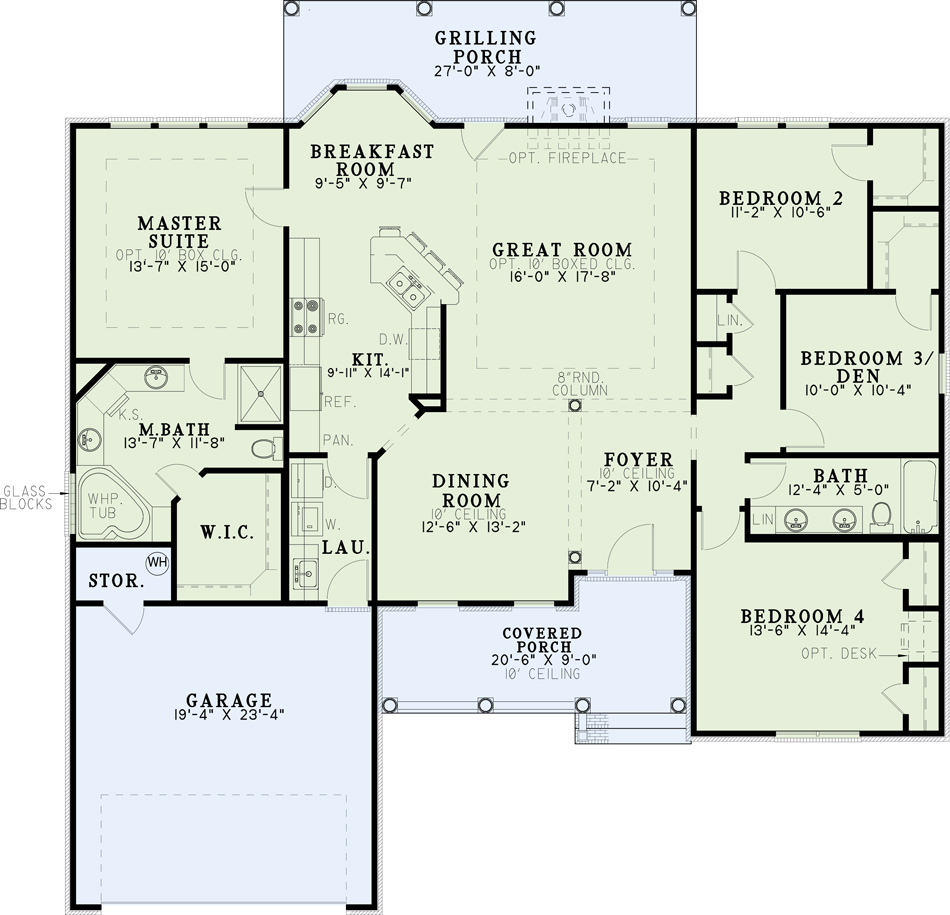

Floor plans

NDG 518

House Plan 518 Quail Drive, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 518
  • Total Living Space:1911Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 57
  • Width In.: N/A
  • Depth Ft.: 59
  • Depth In.: 4

Description

This design is the perfect home for a growing family. Either full brick or siding is available depending on your desired style. High ceilings are used in the foyer, dining room and great rooms also accented with round eight-inch columns. A roomy kitchen has bar seating and a view of the great room fireplace and adjoins a breakfast bay. The spacious master suite is set apart from the other bedrooms for the ultimate in privacy as well as luxury.

Specifications

  • Total Living Space:1911Sq.Ft.
  • Main Floor: 1911 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 358 Sq.Ft.
  • Garage (Sq.Ft.): 422 Sq.Ft.
  • Total Square Feet: 2691 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
