House Plan 516B Belmont Avenue, Traditional House Plan

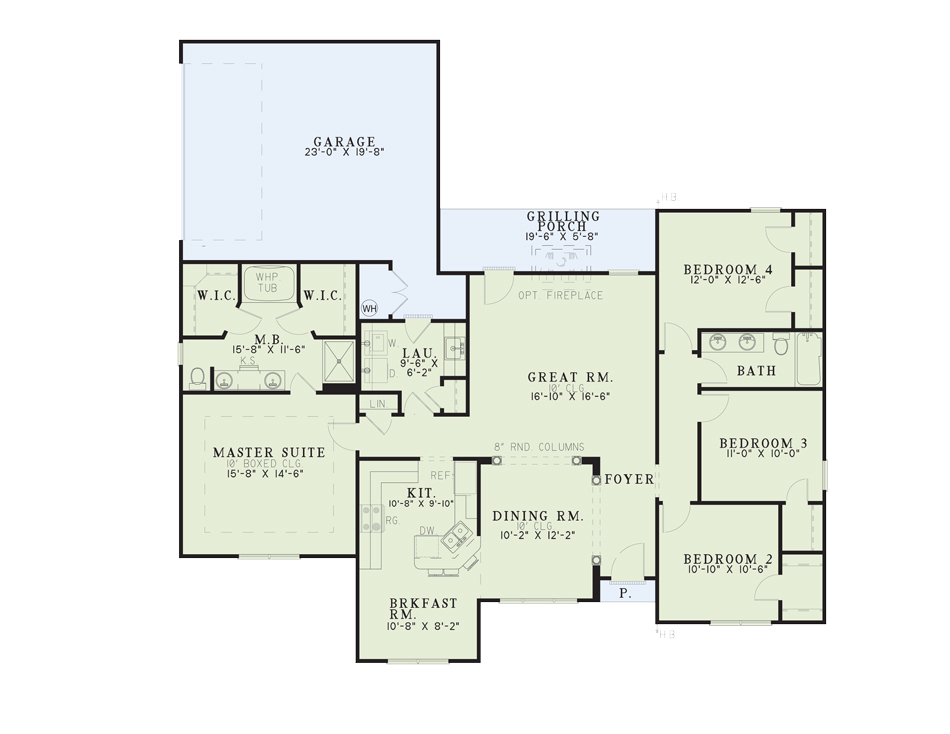

House Plan NDG 516 Main Floor
House Plan NDG 516 Main Floor

Floor plans

NDG 516B

House Plan 516B Belmont Avenue, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 516B
  • Total Living Space:1841Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: 8
  • Depth Ft.: 56
  • Depth In.: 6

Description

Two wonderful exteriors are available for this split bedroom plan. Enter a lovely foyer separating the column-lined formal dining room from three additional bedrooms and full bathroom. As this dining room gently accesses the kitchen it has a view of the great room fireplace for a cozy atmosphere while dining. Near the kitchen is a large laundry room with storage and access to the garage. And just steps away is the master suite bedroom with a ten foot boxed ceiling and private bath with walk-in closets, whirlpool tub, separate shower and double vanity with knee space.

Specifications

  • Total Living Space:1841Sq.Ft.
  • Main Floor: 1841 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 206 Sq.Ft.
  • Garage (Sq.Ft.): 437 Sq.Ft.
  • Total Square Feet: 2484 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
