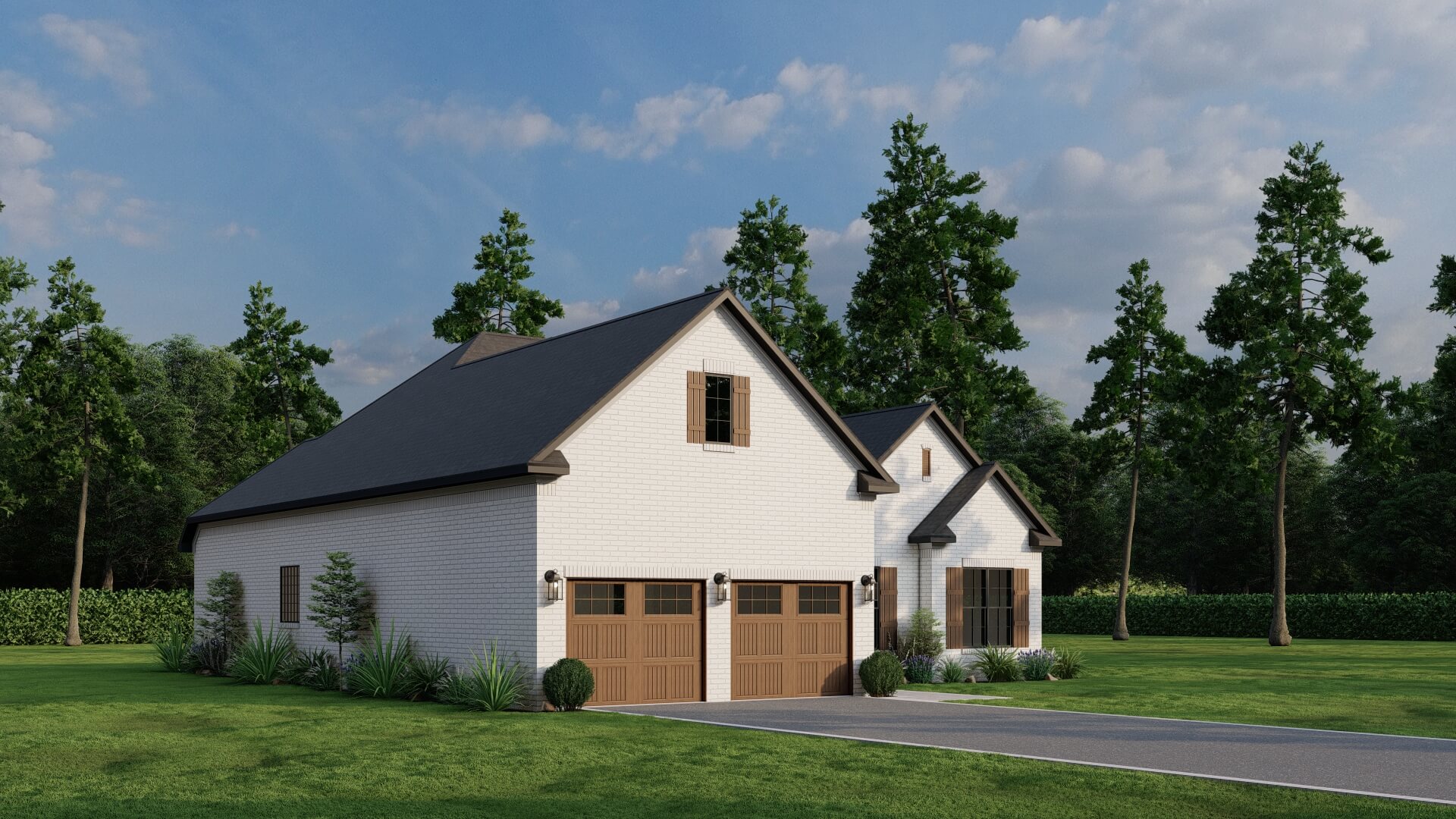

House Plan 5149 Cameron Place, Traditional House Plan

House Plan MEN 5149 Main Floor

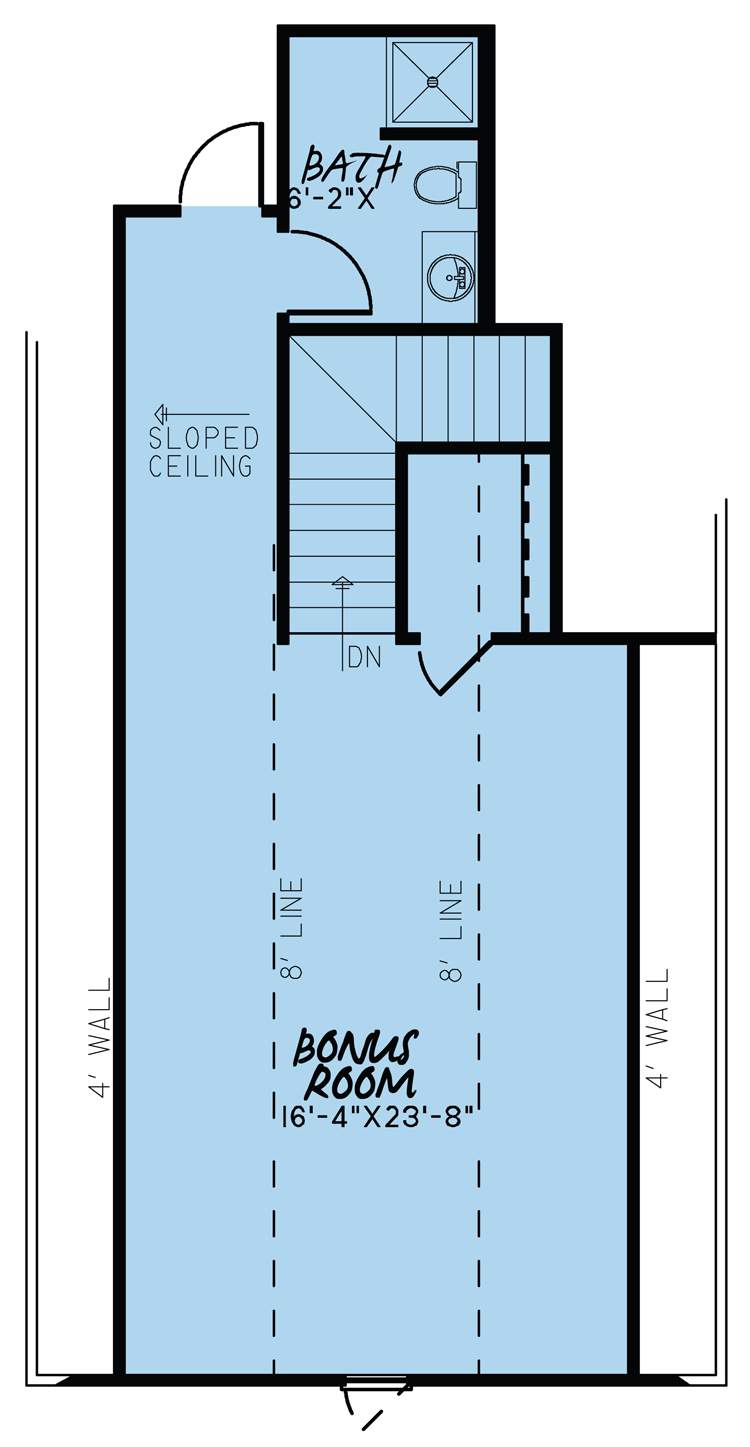

House Plan MEN 5149 Upper Floor/Bonus Room
House Plan MEN 5149 Main Floor
House Plan MEN 5149 Upper Floor/Bonus Room

Floor plans

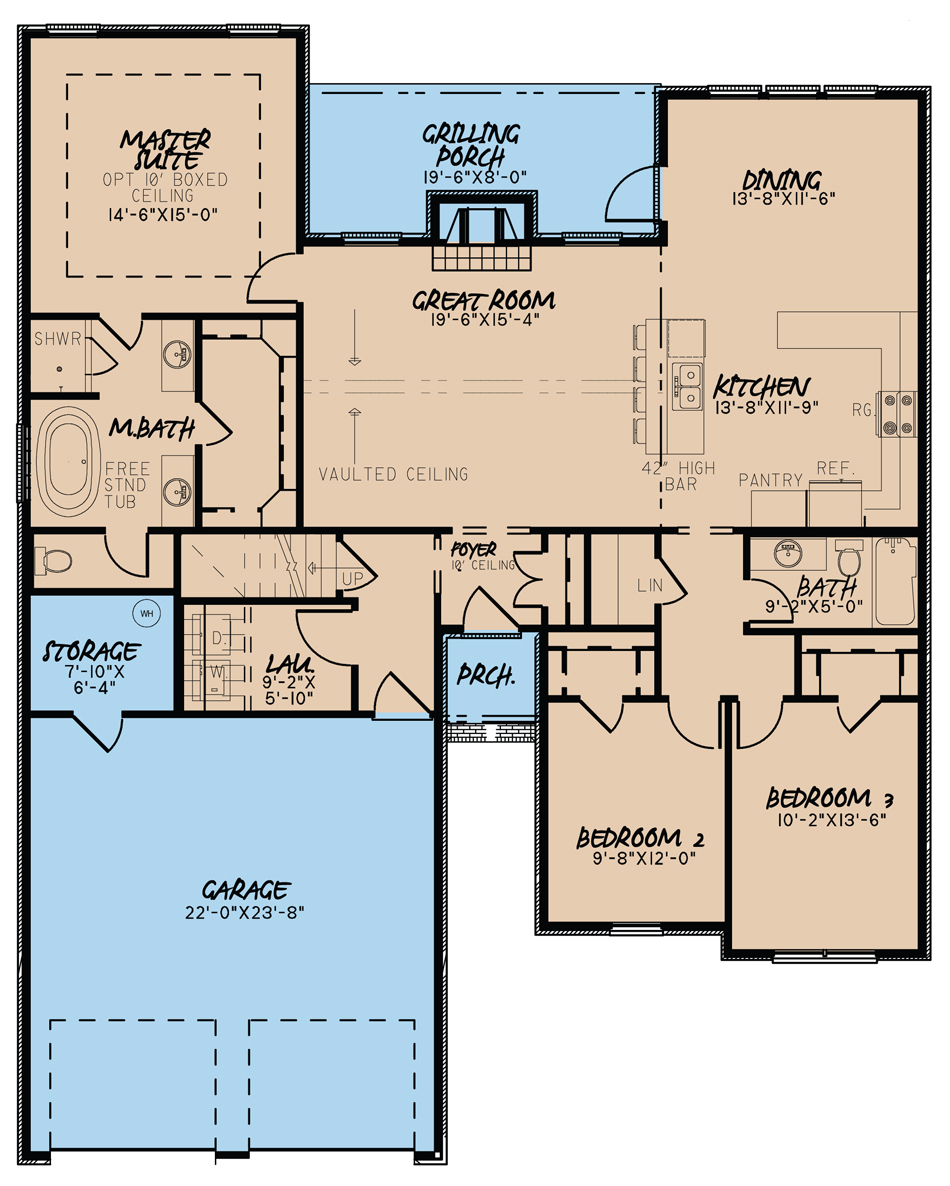

House Plan MEN 5149 Main Floor

House Plan MEN 5149 Upper Floor/Bonus Room
MEN 5149

House Plan 5149 Cameron Place, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5149
  • Total Living Space:1757Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 49
  • Width In.: N/A
  • Depth Ft.: 61
  • Depth In.: 4

Description

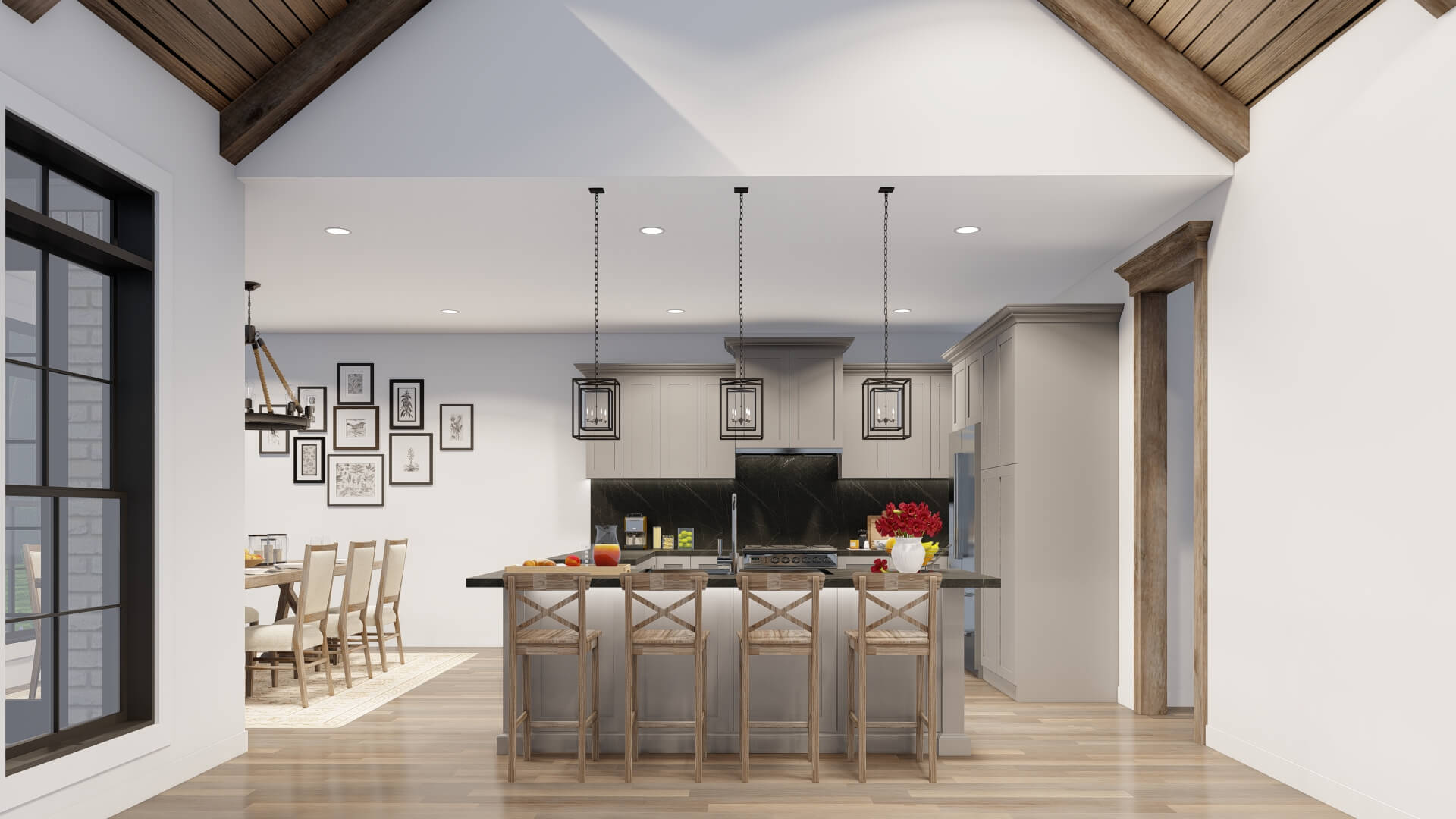

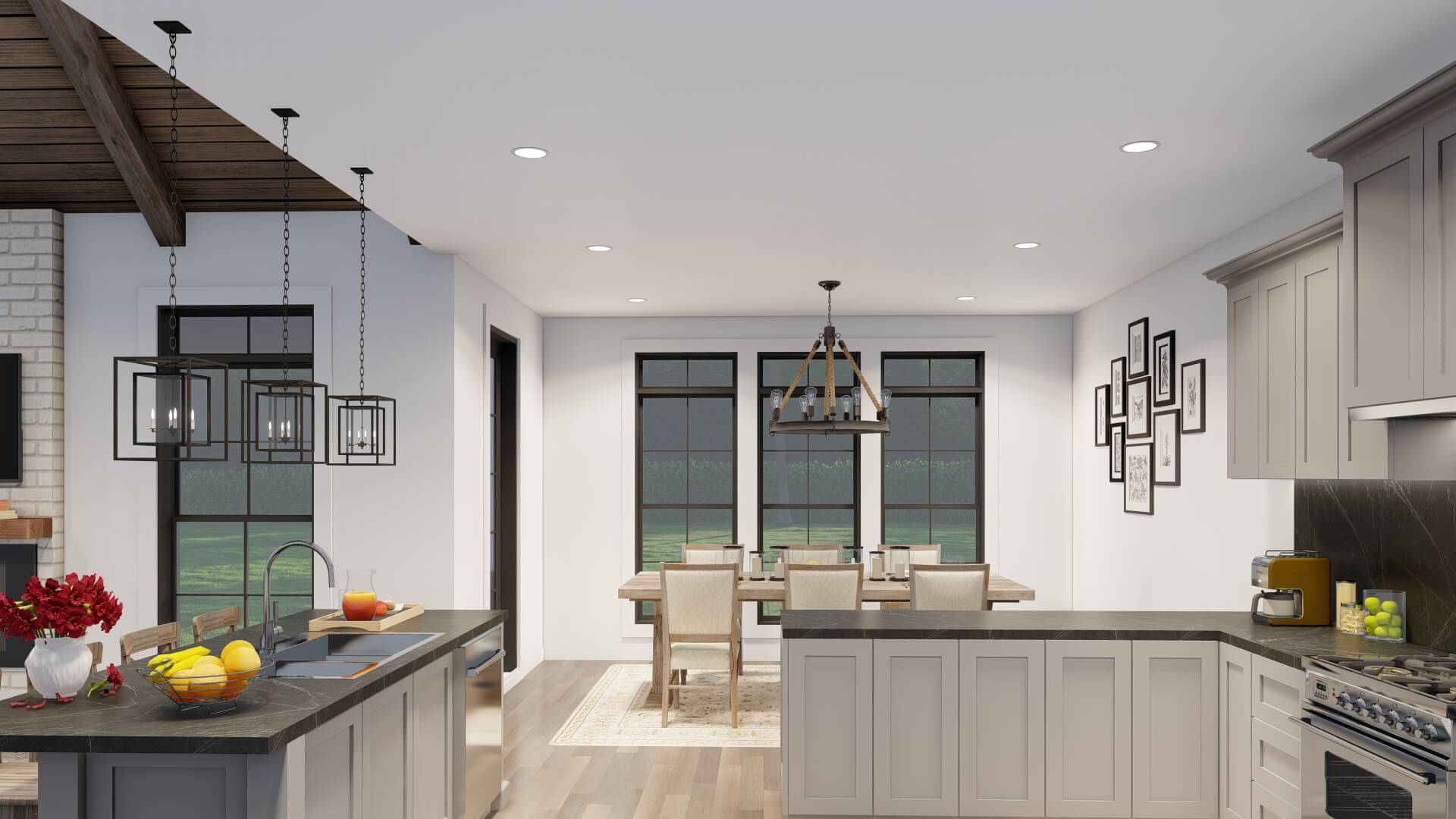

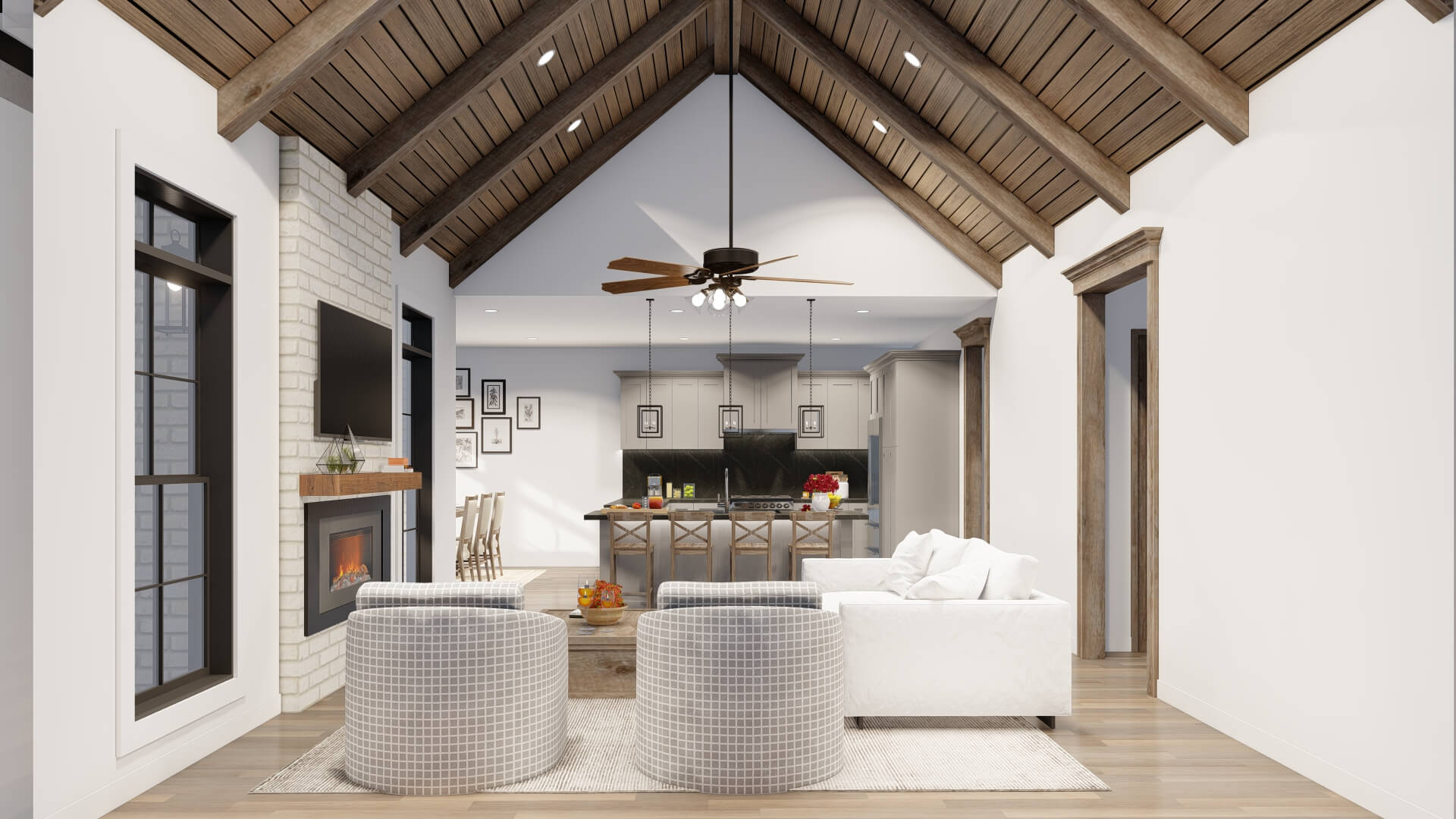

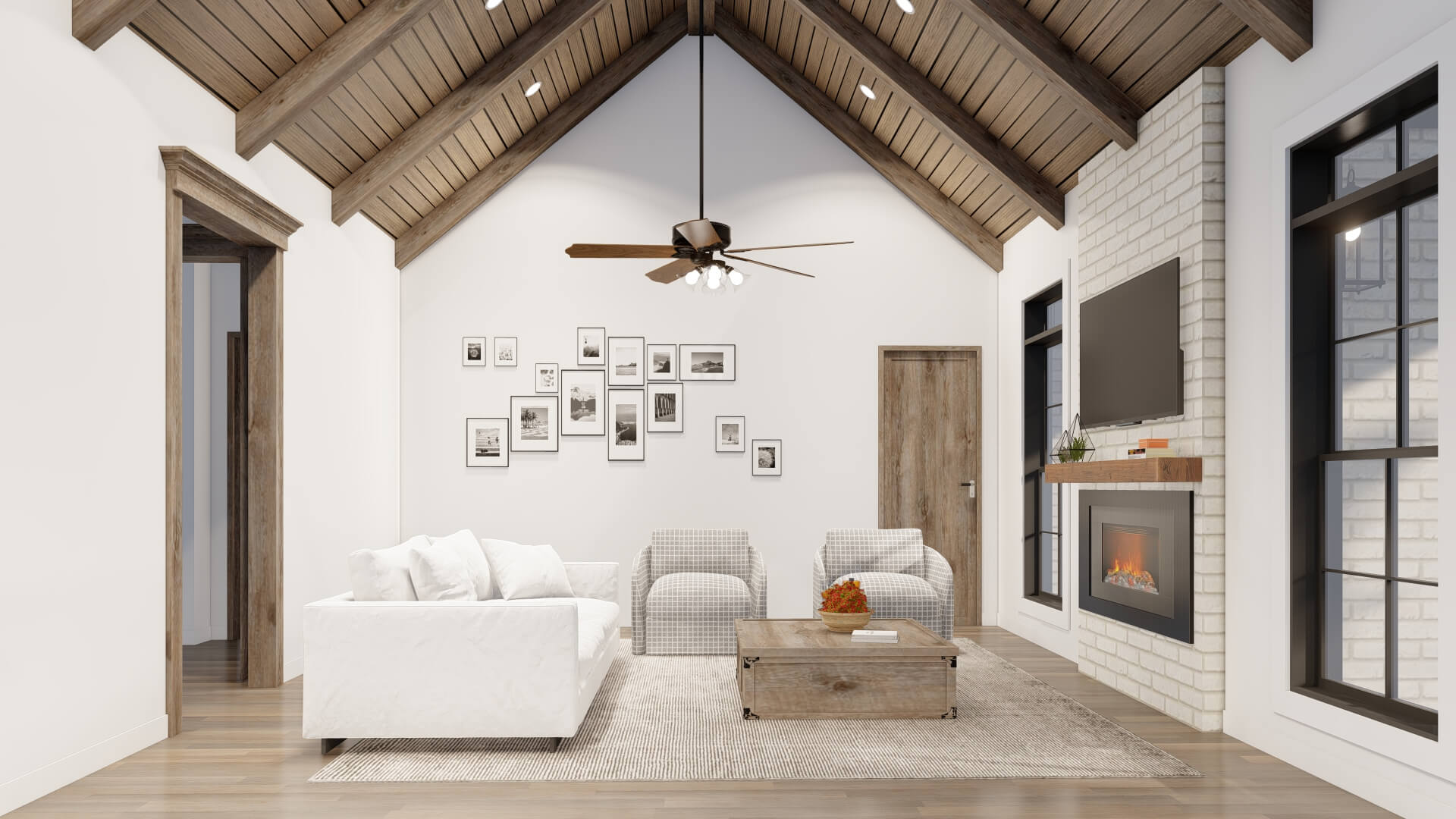

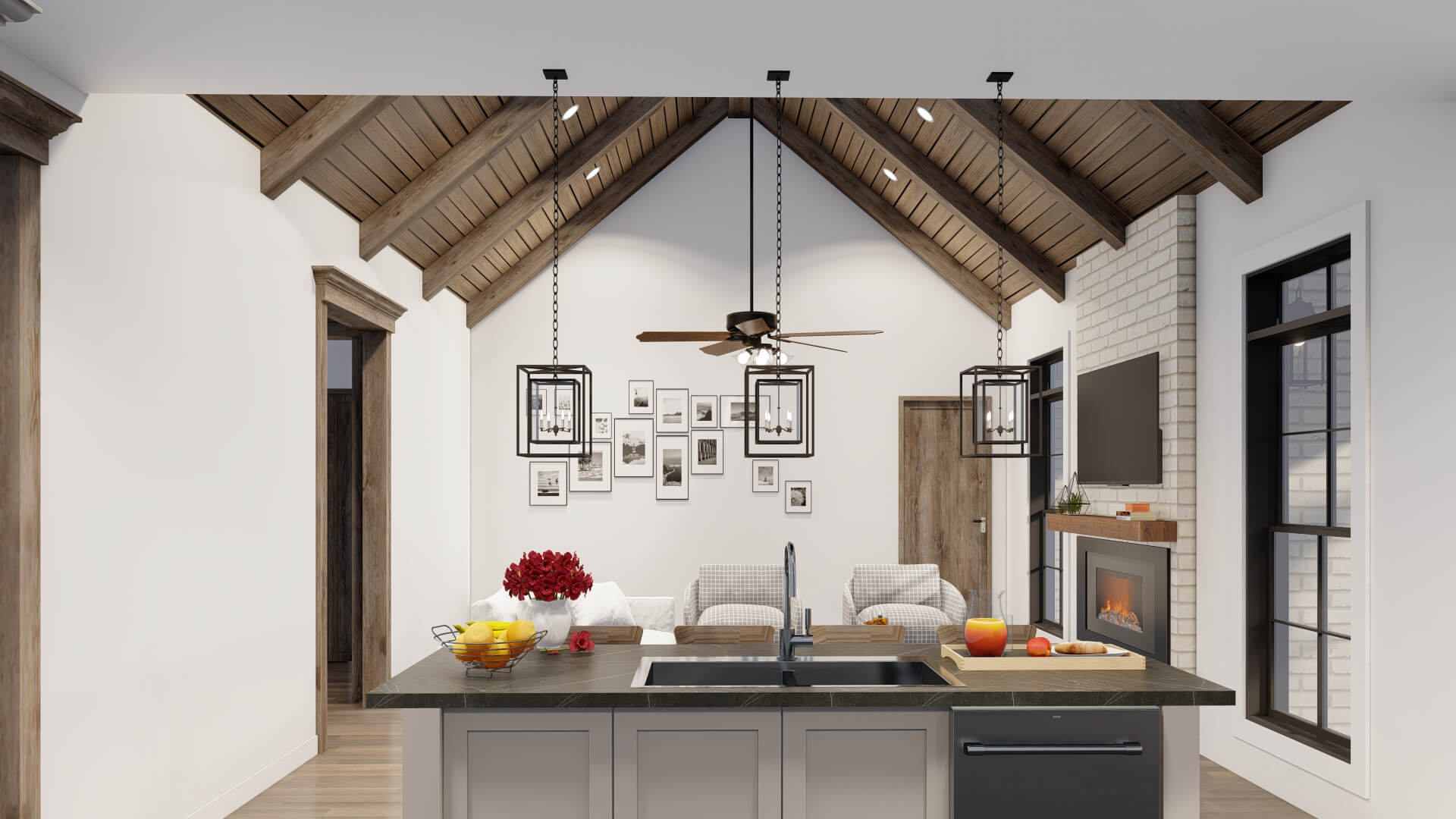

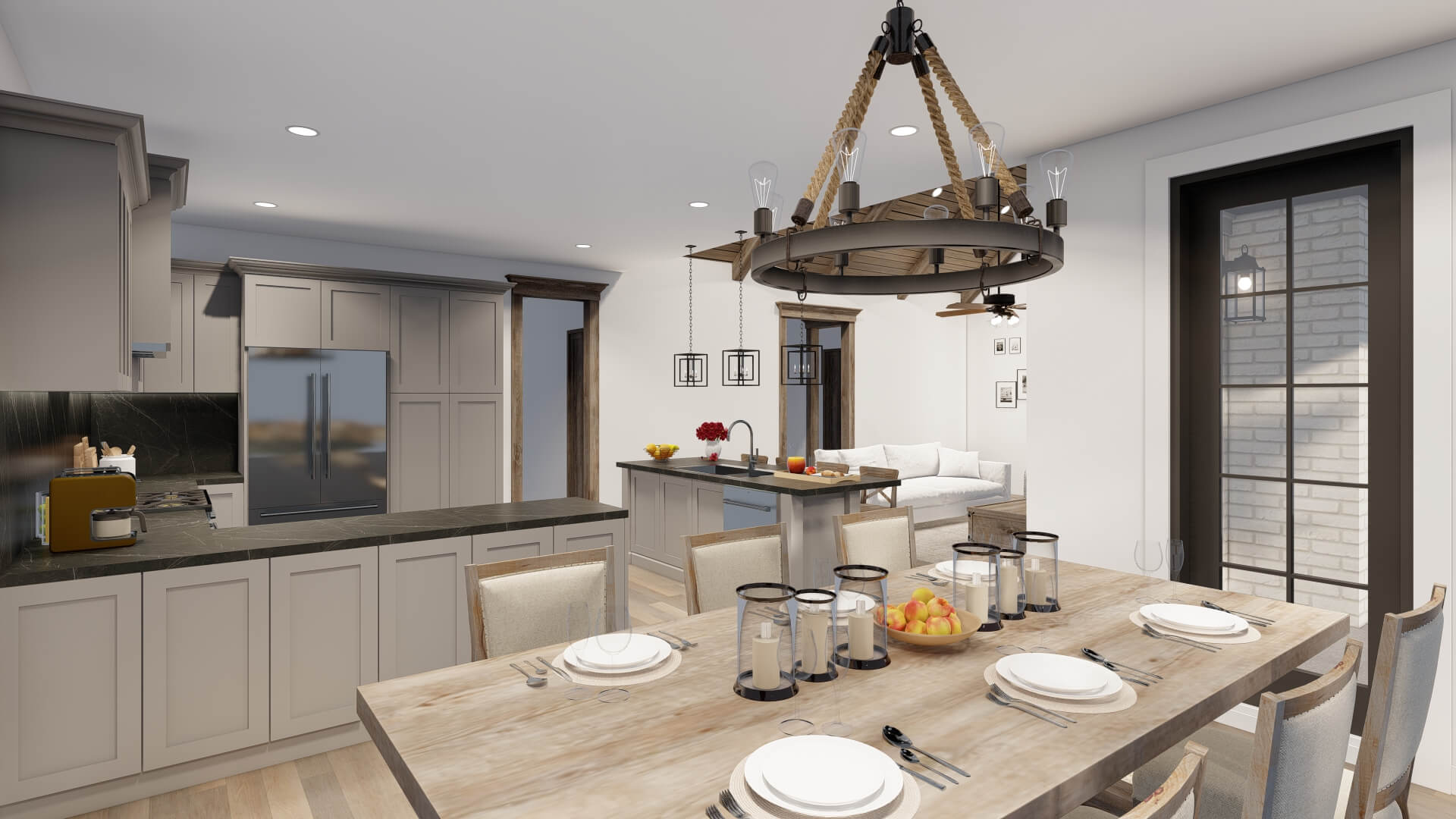

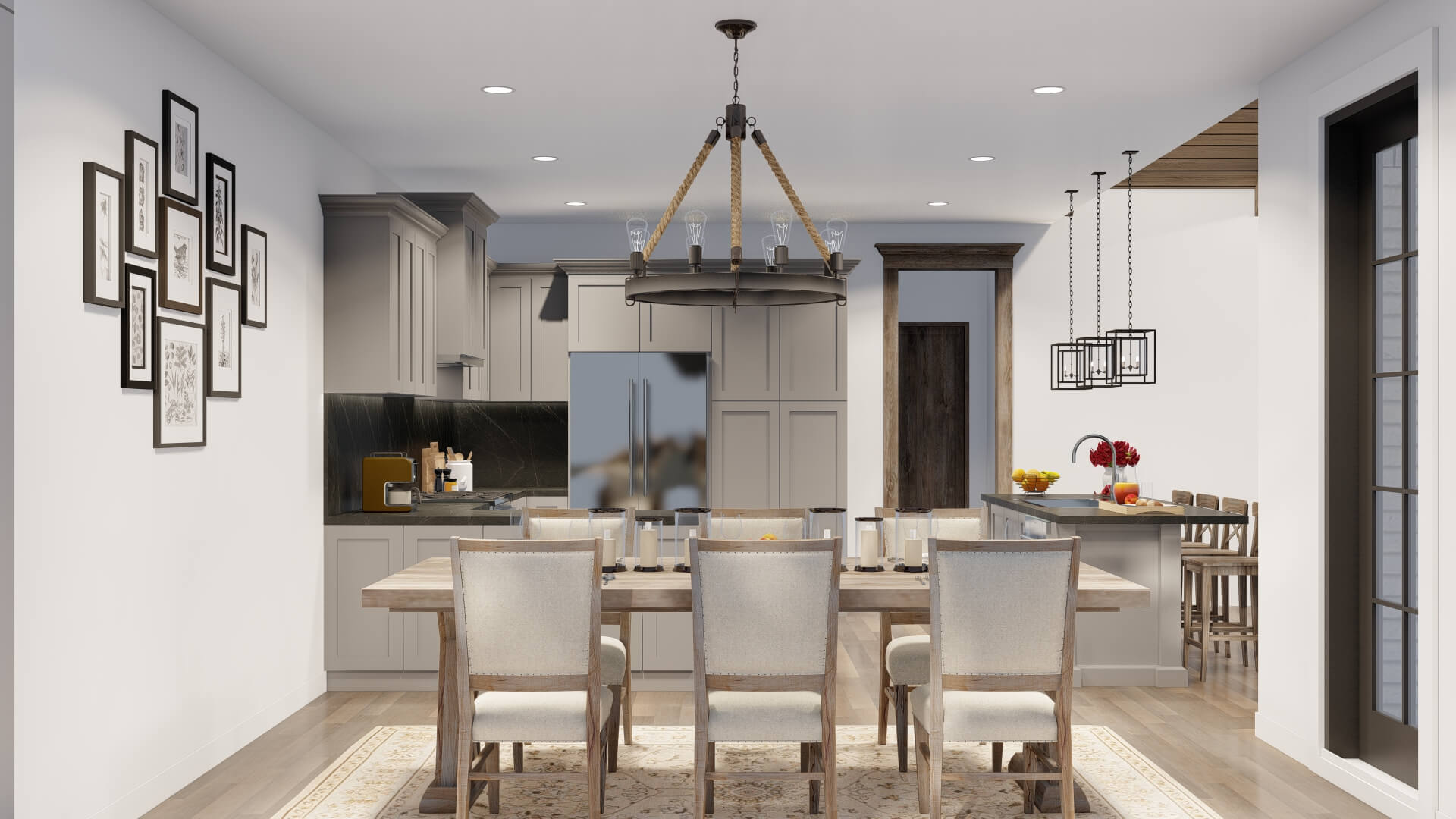

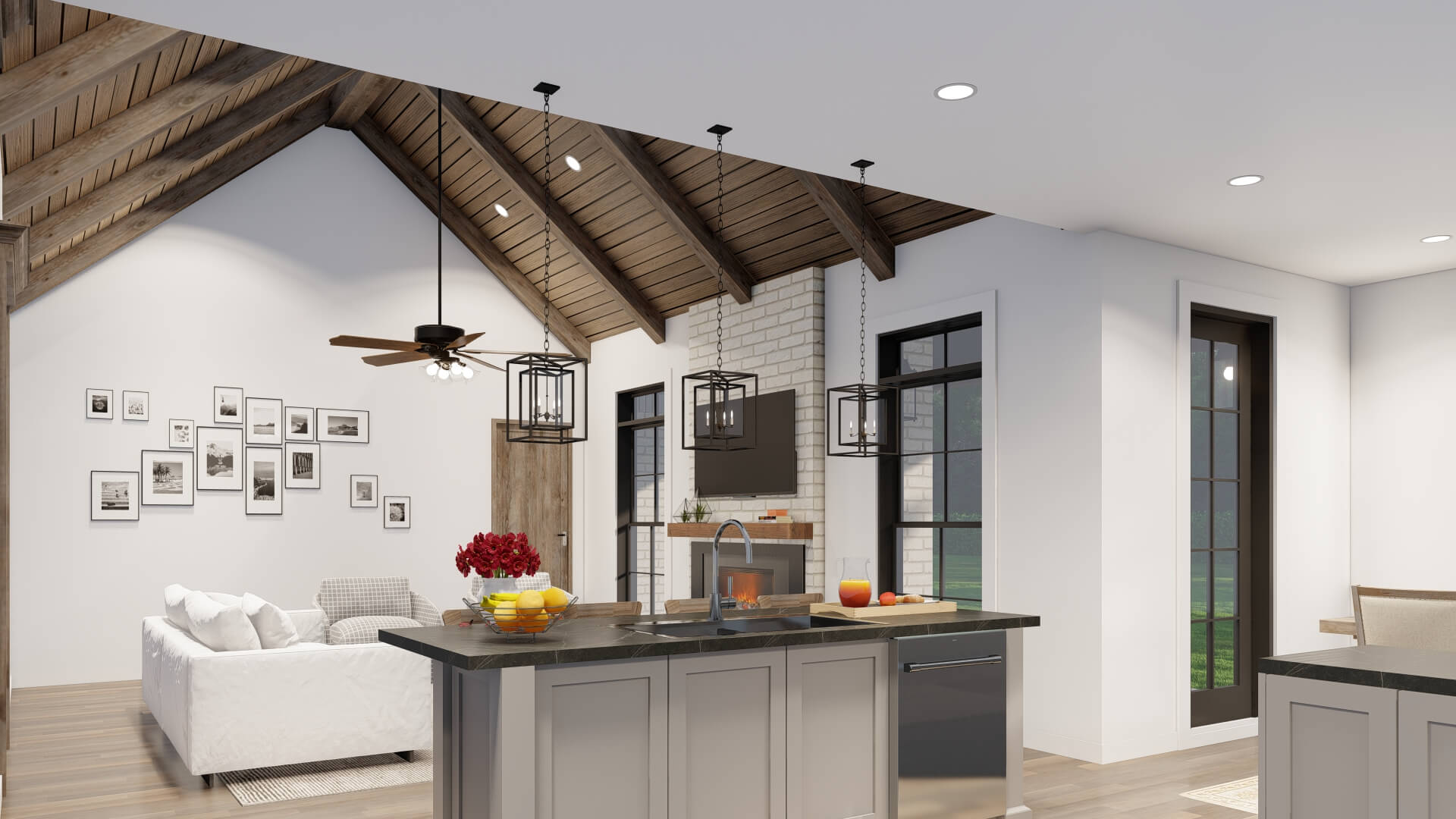

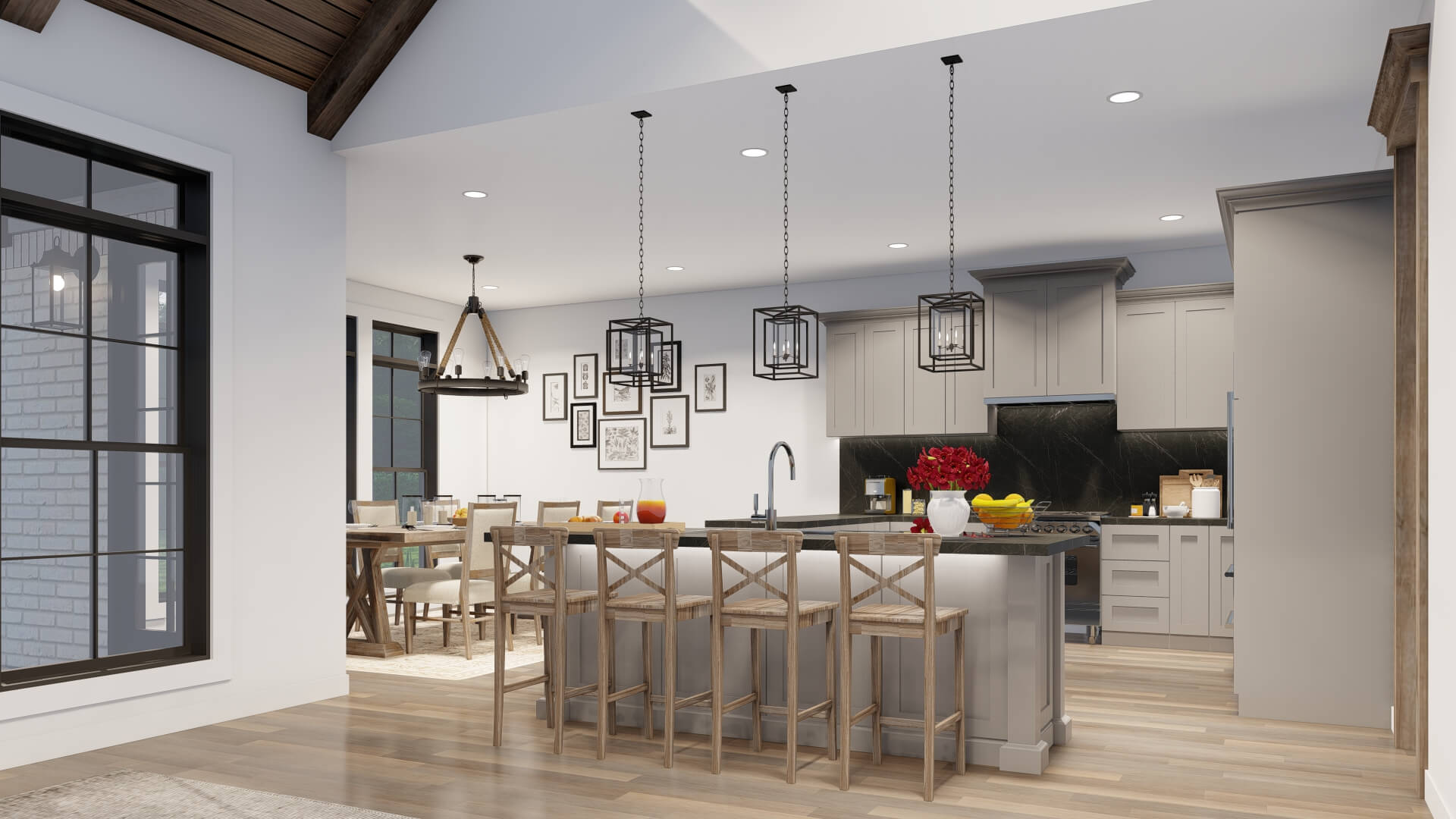

The perfect home for your traditional neighborhood, this house plan uses every square foot with no wasted space! The open great room, kitchen and dining room allows for a great living space for the family. A spacious master suite is privately located on the left side of the home a features a master bath complete with free standing tub and separate vanities. Need a bit of extra space? The optional bonus room above the garage makes the perfect guest room, game room or separate living space!

Specifications

  • Total Living Space:1757Sq.Ft.
  • Main Floor: 1757 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 563 Sq.Ft.
  • Porch (Sq.Ft.): 195 Sq.Ft.
  • Garage (Sq.Ft.): 598 Sq.Ft.
  • Total Square Feet: 3113 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
