House Plan 5137 Red River Retreat, Farmhouse House Plan
Floor plans
MEN 5137
House Plan 5137 Red River Retreat, Farmhouse House Plan
Plan Details
- Plan Number: MEN 5137
- Total Living Space:2144Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: No
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 46
- Width In.: N/A
- Depth Ft.: 59
- Depth In.: 7
Description

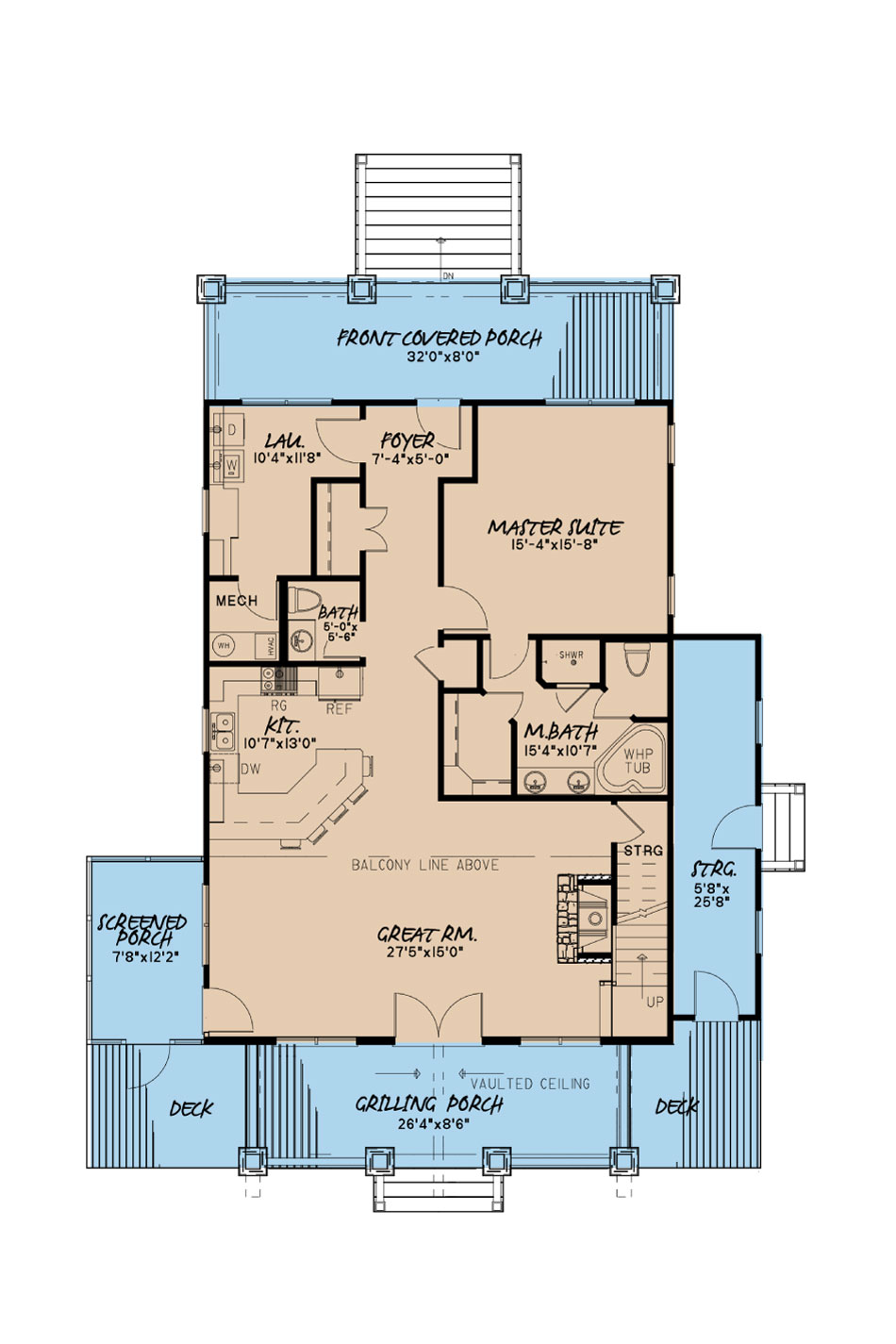

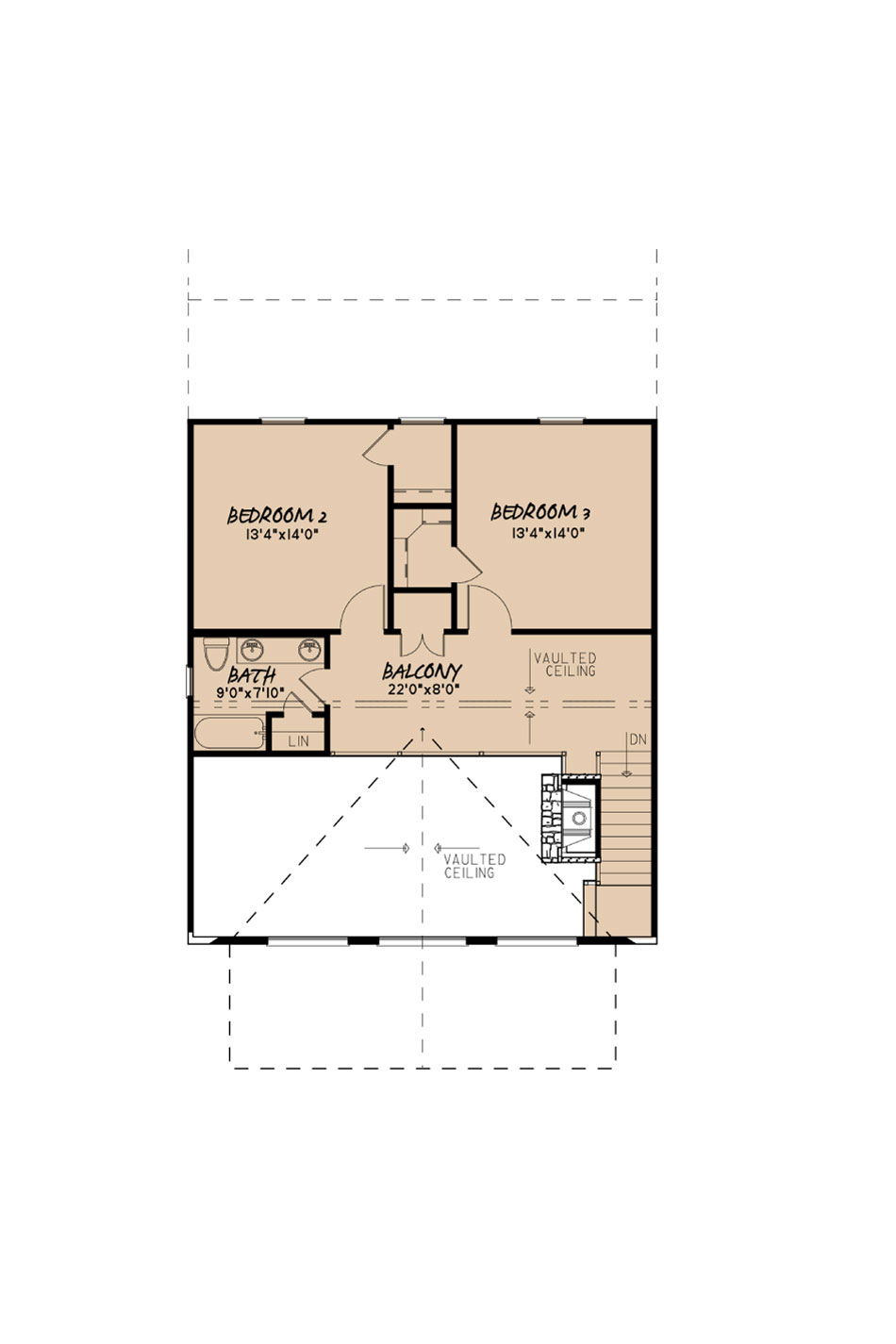

Build this beautiful rustic home plan and have the perfect getaway! Enjoy your beautiful river, lake or mountain view from the grilling porch and the great room with its abundance of windows. The open floor plan allows for family to gather together and share in all the fun. A large laundry room helps keep the mess out of the home and offers a mechanical room for the water heater and hvac system. The master suite boasts a spacious bedroom and a bath with a corner whirl pool tub and separate shower. Upstairs you'll find a large balcony over looking the great room as well as bedrooms 2 and 3 with a shared hall bath.
Specifications
- Total Living Space:2144Sq.Ft.
- Main Floor: 1411 Sq.Ft
- Upper Floor (Sq.Ft.): 733 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 580 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 2881 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 9:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
