House Plan 5129 Pine Hills, Country Home House Plan

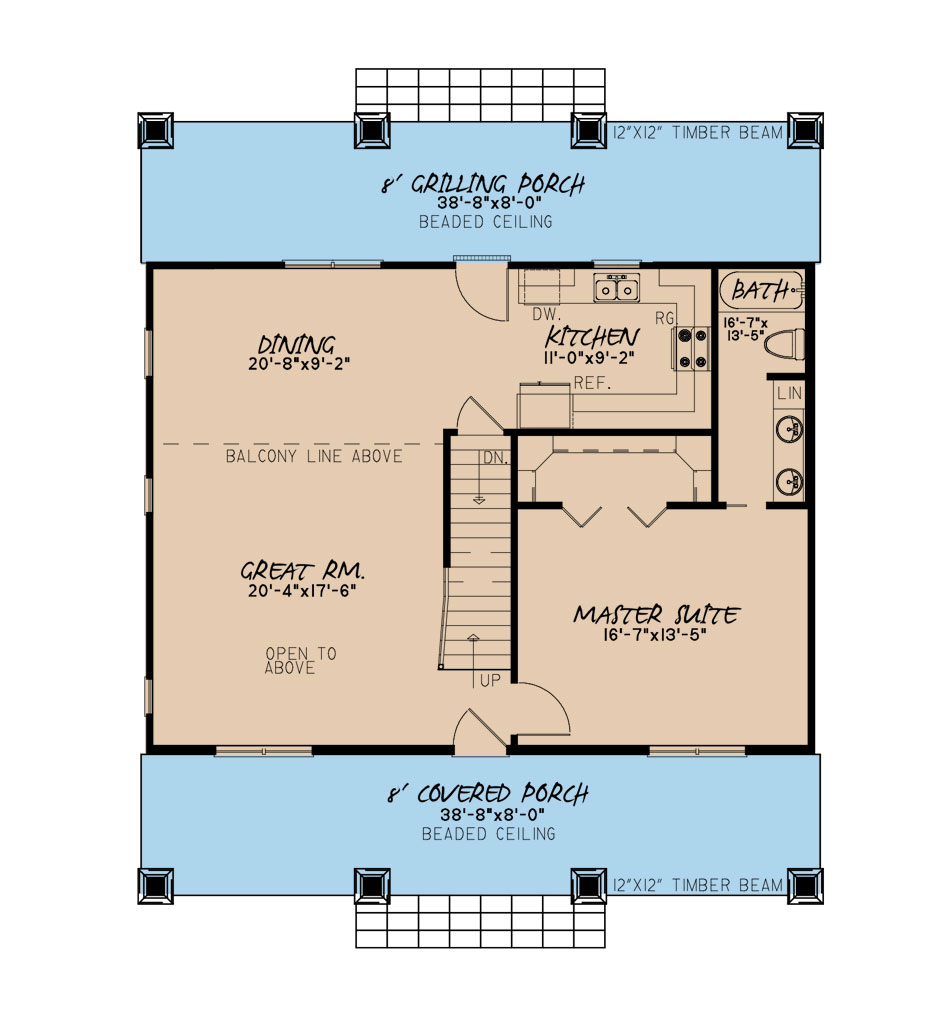

House Plan MEN 5129 Main Floor

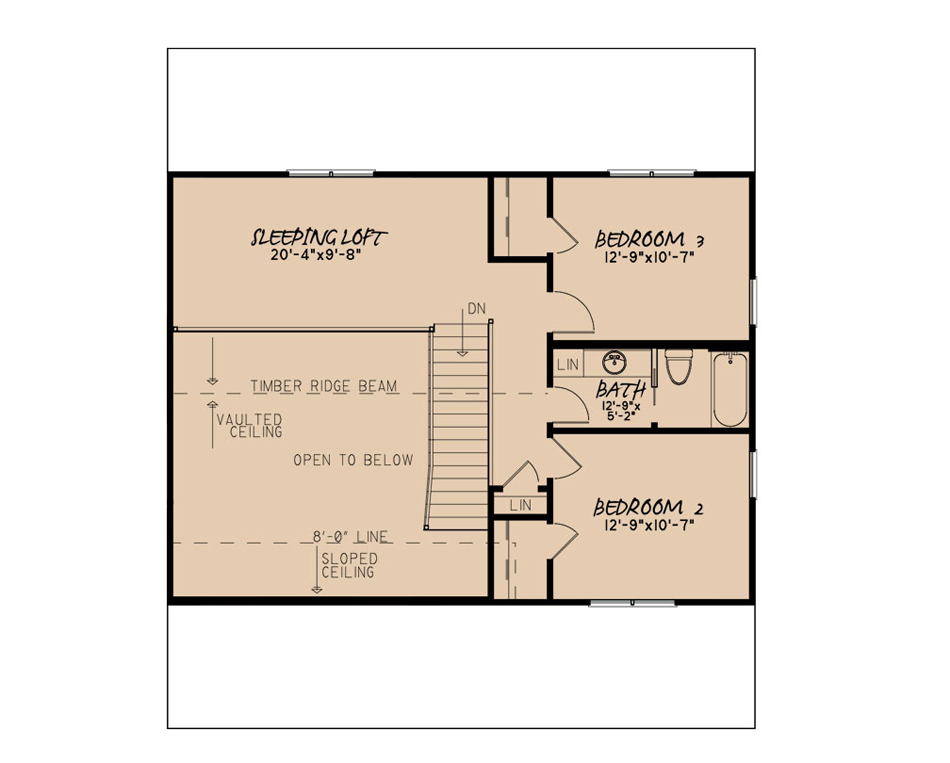

House Plan MEN 5129 Upper Floor
House Plan MEN 5129 Main Floor
House Plan MEN 5129 Upper Floor

Floor plans

MEN 5129

House Plan 5129 Pine Hills, Country Home House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5129
  • Total Living Space:1764Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 38
  • Width In.: N/A
  • Depth Ft.: 44
  • Depth In.: N/A

Description

Charming rustic design is perfectly captured in this house plan. The identical 8 foot covered porches in the front and rear of the home give plenty of out door living space to enjoy warm summer evenings. A semi open floor plan inside allows the great room and dining room flow together while the kitchen has a space of its own connected to the dining room. The master suite is complete with a spacious bedroom, large closet and bathroom with a double vanity. Upstairs the sleeping loft over looks the great room below while 2 bedrooms and a bath are located on the right.

Specifications

  • Total Living Space:1764Sq.Ft.
  • Main Floor: 1064 Sq.Ft
  • Upper Floor (Sq.Ft.): 700 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 608 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2372 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Lower Level
