House Plan 508 Quail Drive, Traditional House Plan
Floor plans
NDG 508
House Plan 508 Quail Drive, Traditional House Plan
PDF: $1,000.00
Plan Details
- Plan Number: NDG 508
- Total Living Space:2100Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 61
- Width In.: 4
- Depth Ft.: 68
- Depth In.: 4
Description

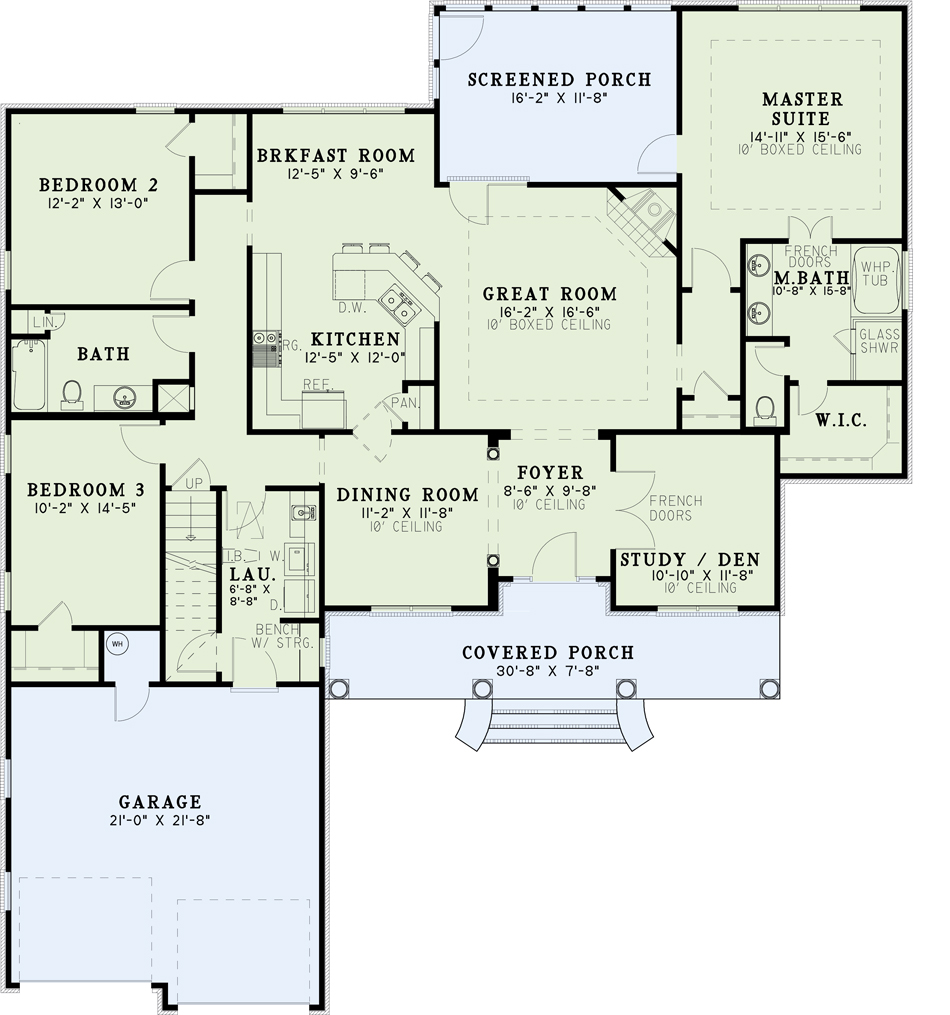

The nostalgic front porch and magnificent columns welcome you to this charming home. From the open foyer, guests can enter the study through stylish French doors, the formal dining room via column-accented entry or the great room with a reliant corner fireplace. The family chef is sure to enjoy the large kitchen area with breakfast bar and swinging door access to the dining room. Elegant French doors and boxed ceiling highlight an impressive master suite.
Specifications
- Total Living Space:2100Sq.Ft.
- Main Floor: 2100 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A

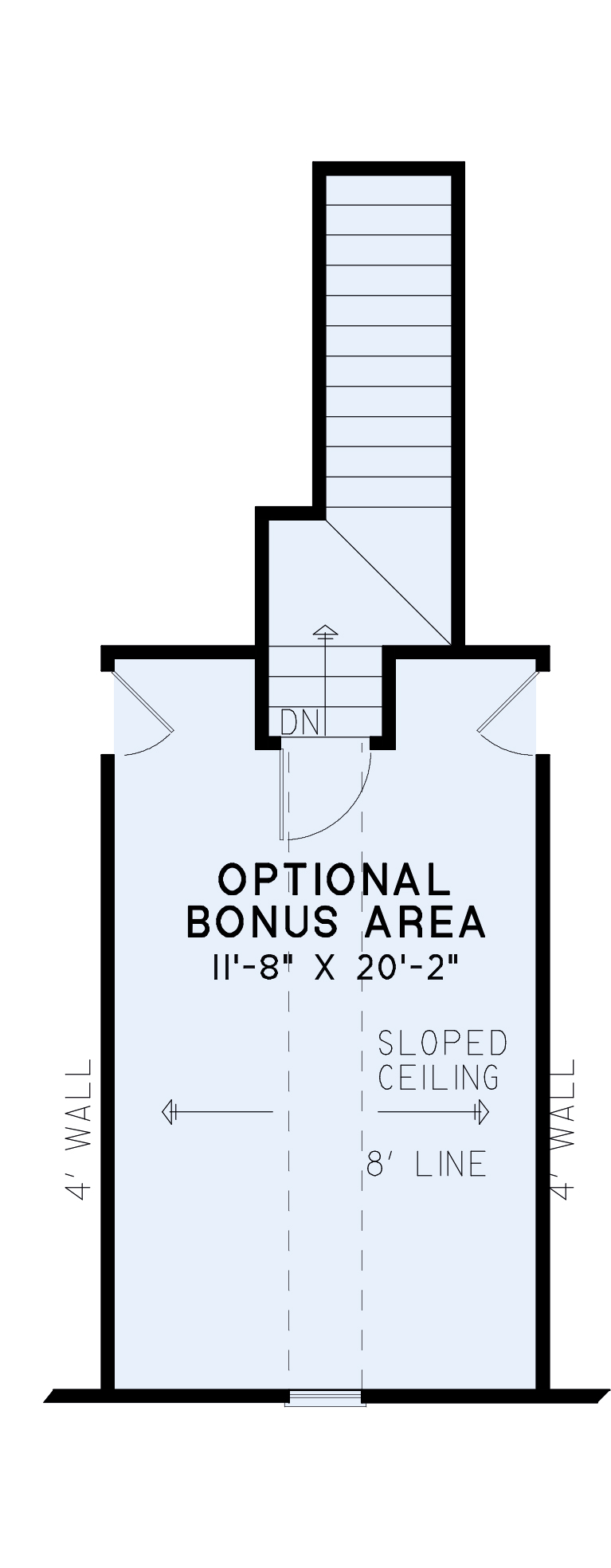

- Bonus Room (Sq.Ft.): 256 Sq.Ft.
- Porch (Sq.Ft.): 398 Sq.Ft.
- Garage (Sq.Ft.): 475 Sq.Ft.
- Total Square Feet: 3227 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 10:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 7
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
