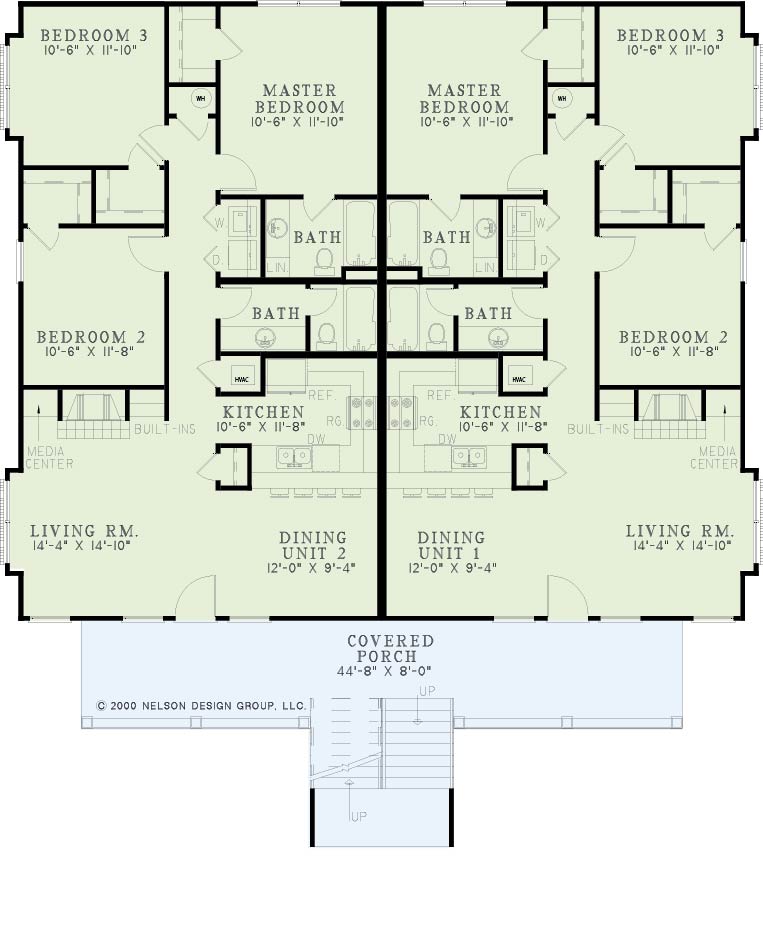

House Plan NDG 506 Main Floor

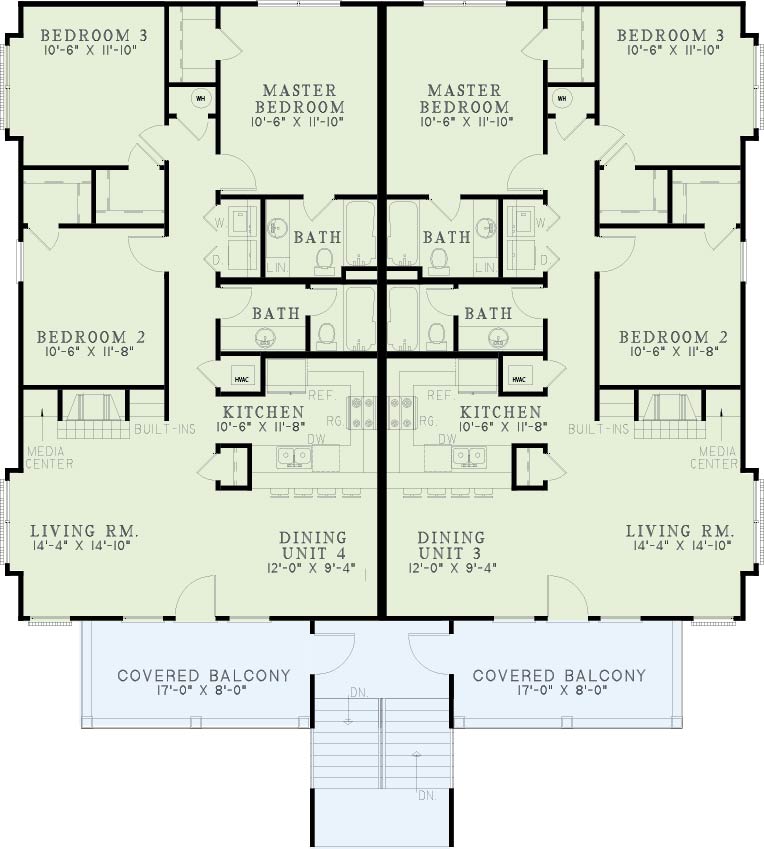

House Plan NDG 506 Upper Floor
House Plan NDG 506 Main Floor

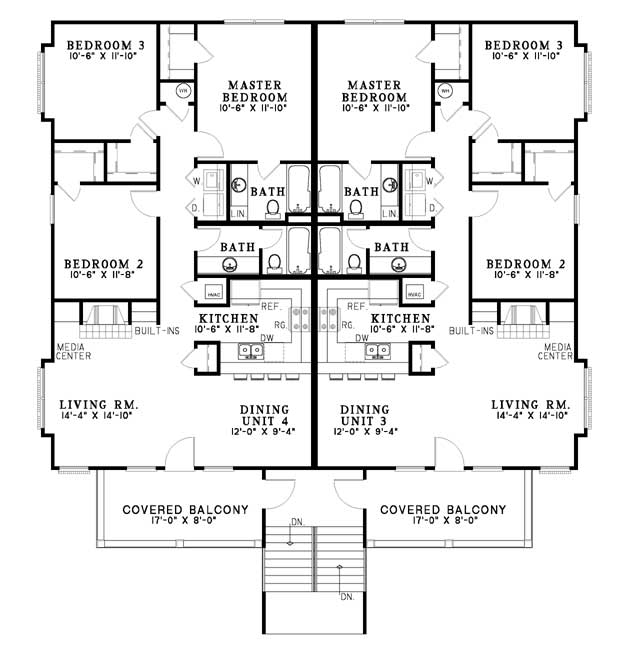

House Plan NDG 506 Upper Floor

Floor plans

NDG 506

House Plan 506 Hidden Hill Cove, Multi-Family House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 506
  • Total Living Space:1258Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 56
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: N/A

Description

This brick and siding Four-plex plan has the charm of a southern traditional single-family home. Each of the four living spaces has three bedrooms with walk-in closets, and two full bathrooms. The step saver kitchen has a bar counter for additional seating while entertaining in the spacious dining area. The living room has a cozy fireplace nestled between a built-in media center and bookshelves for a clutter free area. A covered porch lines the front of the Four-plex with private balconies for each unit above. Heat/Cooled Unit 1: 1258 Sq.Ft Heat/Cooled Unit 2: 1258 Sq.Ft Heat/Cooled Unit 3: 1258 Sq.Ft Heat/Cooled Unit 4: 1258 Sq.Ft

Specifications

  • Total Living Space:1258Sq.Ft.
  • Main Floor: 1258 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 714 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1972 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
