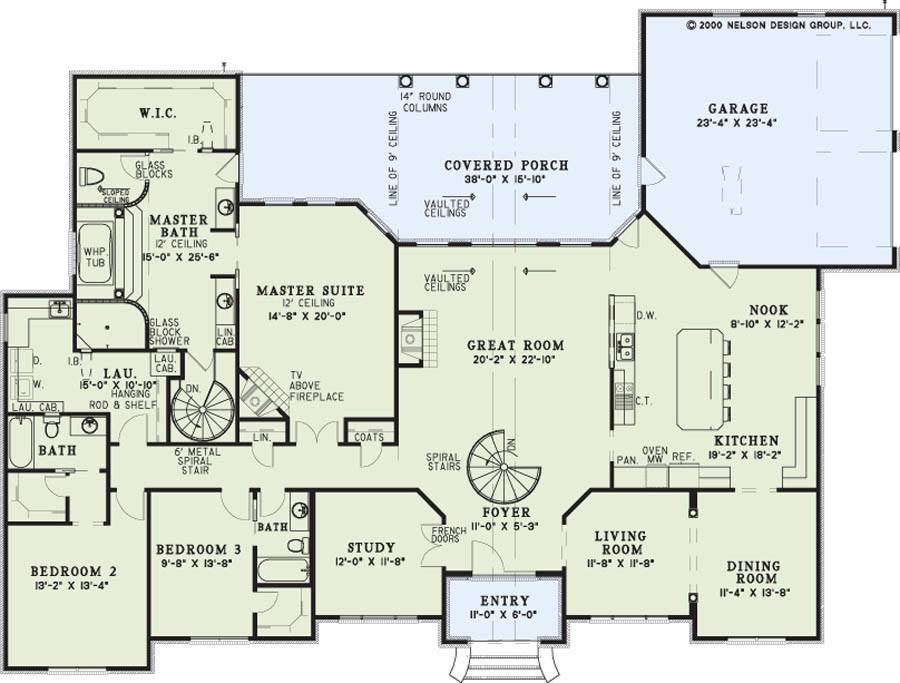

House Plan NDG 505 Main Floor

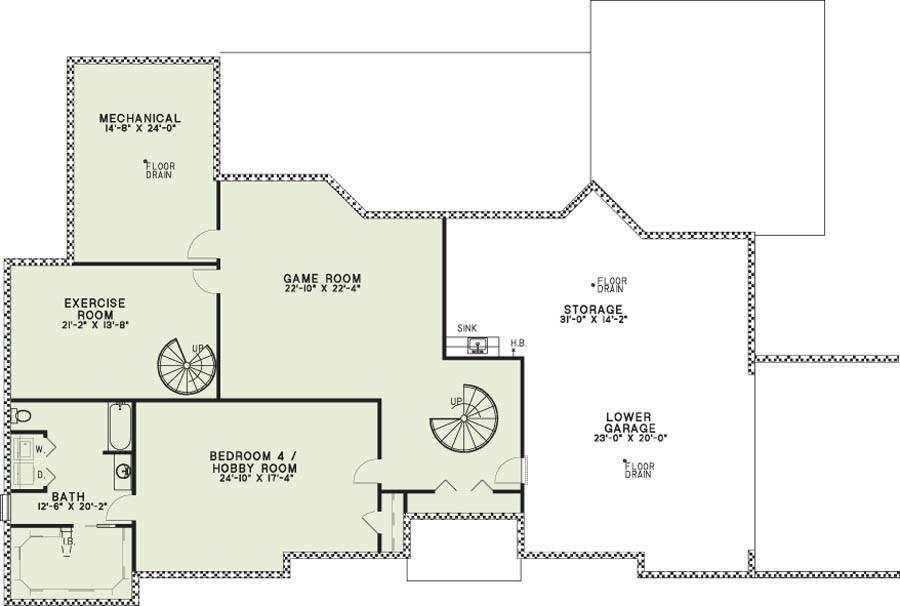

House Plan NDG 505 Basement

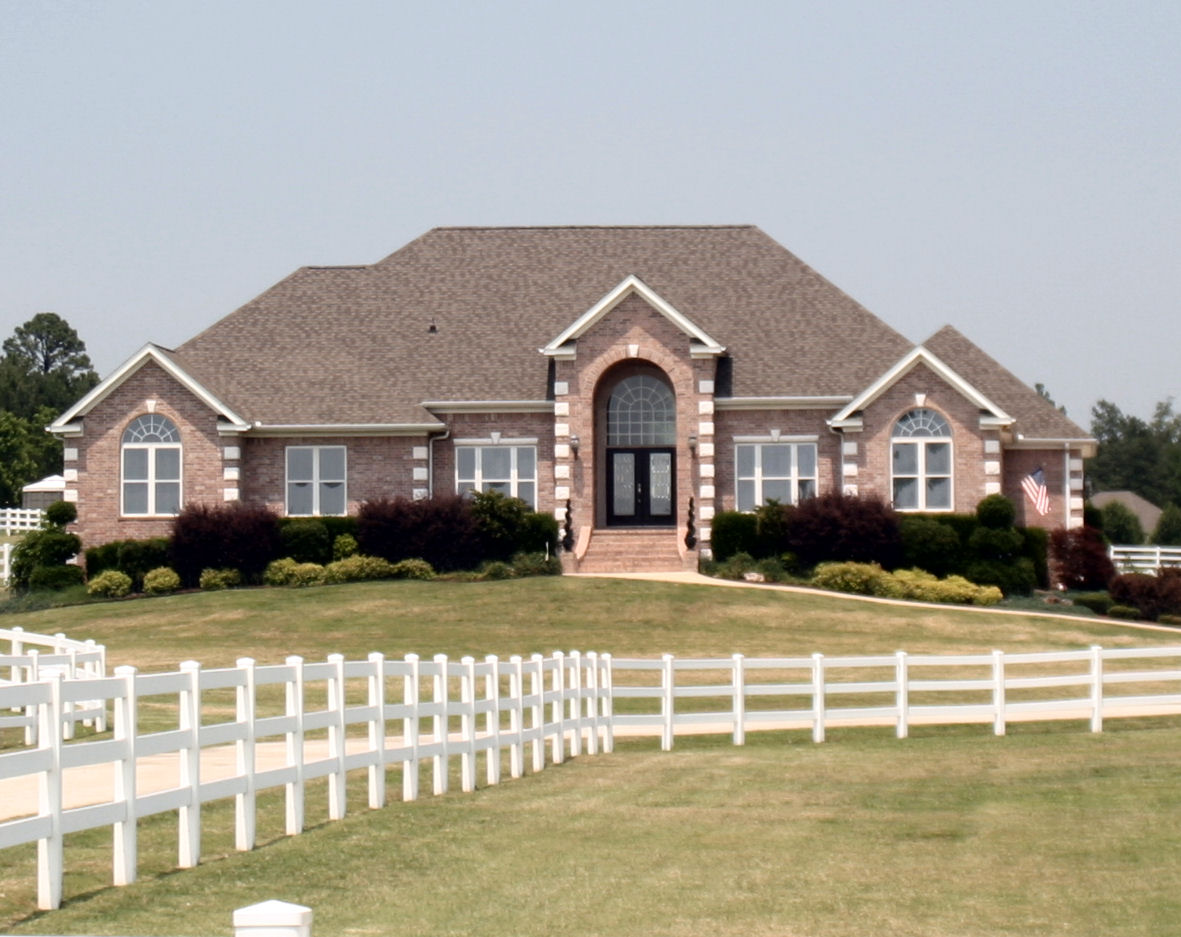

House Plan - NDG505 1 Front View>
House Plan NDG 505 Main Floor
House Plan NDG 505 Basement
House Plan - NDG505 1 Front View

Floor plans

NDG 505

House Plan 505 Dogwood Avenue, French Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 505
  • Total Living Space:4828Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 4 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 84
  • Width In.: 2
  • Depth Ft.: 62
  • Depth In.: N/A

Description

Entering this stately home you become overwhelmed by the expansive floor plan. The great room features vaulted ceilings, a grand fireplace, and amazing rear view. The open kitchen offers the chef ample counter space utilizing the island bar to showcase their culinary exquisiteness. The master suite offers a cozy fireplace with TV above while the bath presents a column accented whirlpool tub, walk-in closet and glass shower. Each of the remaining bedrooms offers a walk-in closet. As you descend the spiral staircases entering the lower level you'll enter an array of activity rooms to include an exercise, hobby, and game room with access to a full bath and walk-in closet.

Specifications

  • Total Living Space:4828Sq.Ft.
  • Main Floor: 3062 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1766 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 618 Sq.Ft.
  • Garage (Sq.Ft.): 1851 Sq.Ft.
  • Total Square Feet: 7297 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
