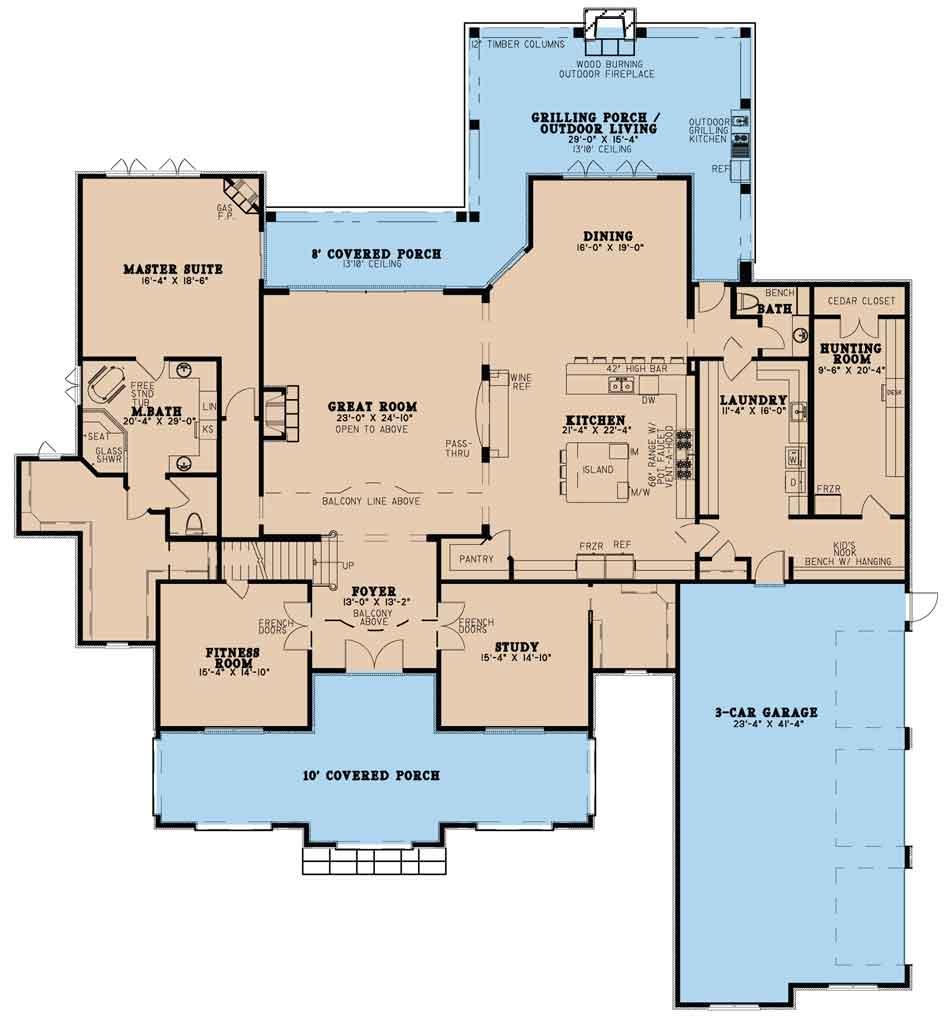

House Plan MEN 5047 Main Floor

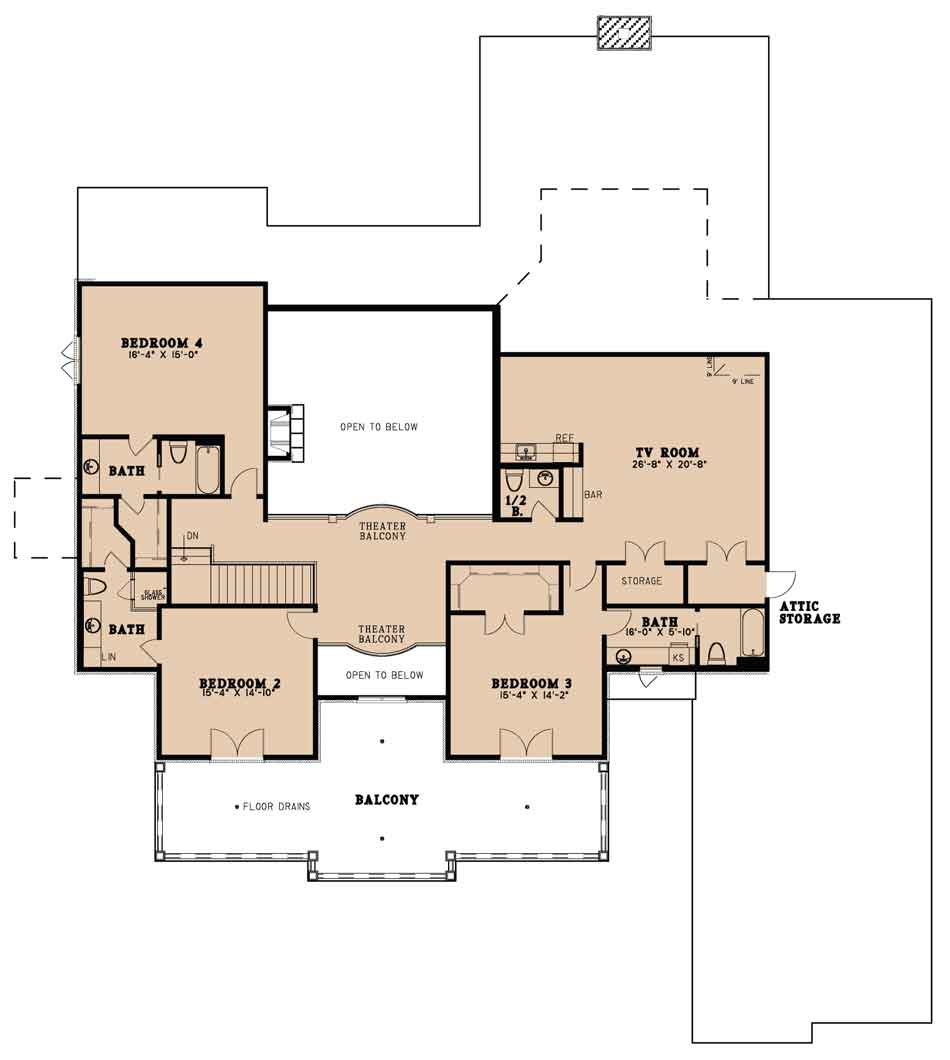

House Plan MEN 5047 Upper Floor
>
House Plan MEN 5047 Main Floor
House Plan MEN 5047 Upper Floor

Floor plans

MEN 5047

House Plan 5047 New England Manor, European House Plan

PDF: $3,500.00

Plan Details

  • Plan Number: MEN 5047
  • Total Living Space:6001Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 2
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 92
  • Width In.: N/A
  • Depth Ft.: 102
  • Depth In.: 10

Description

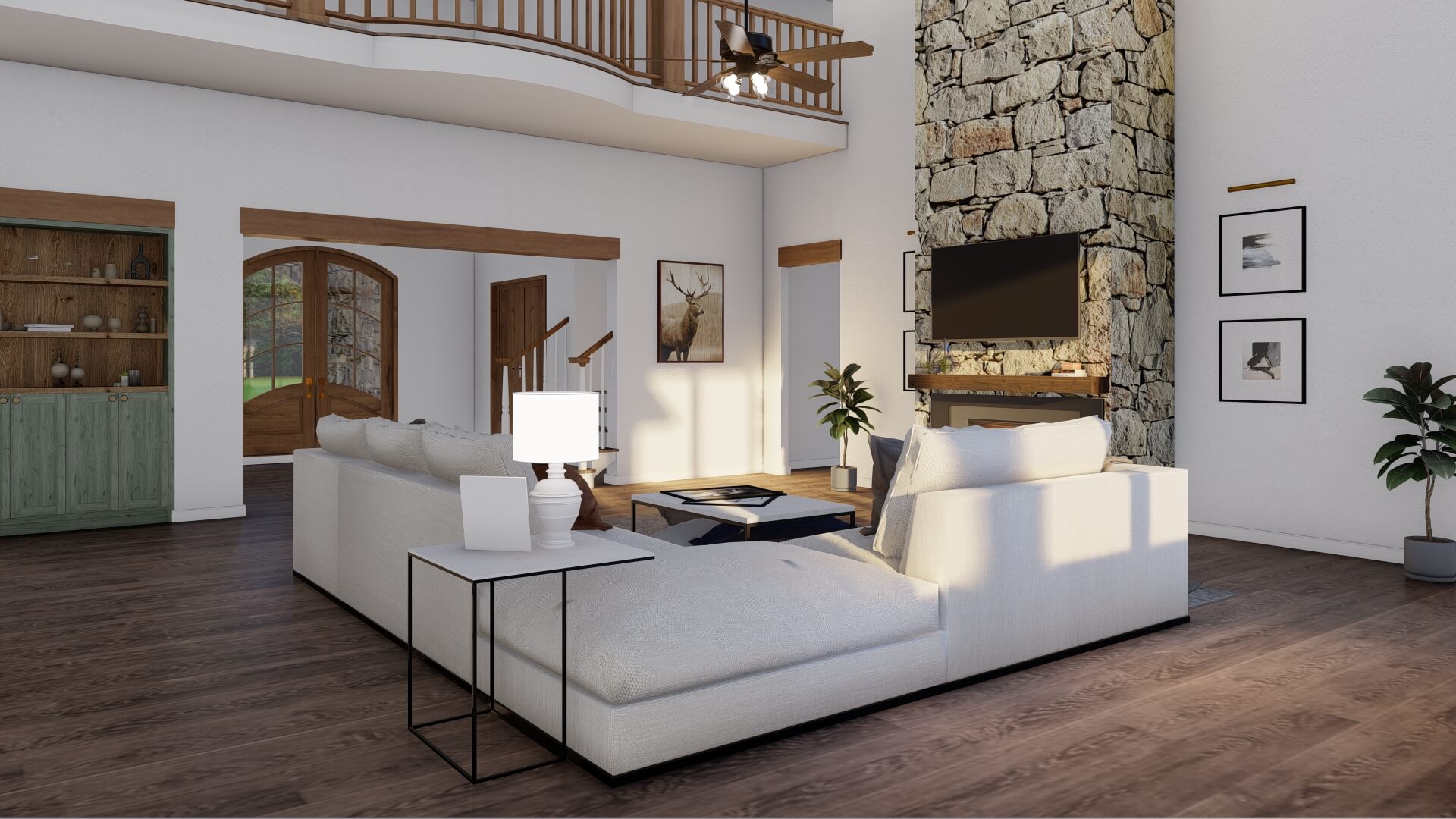

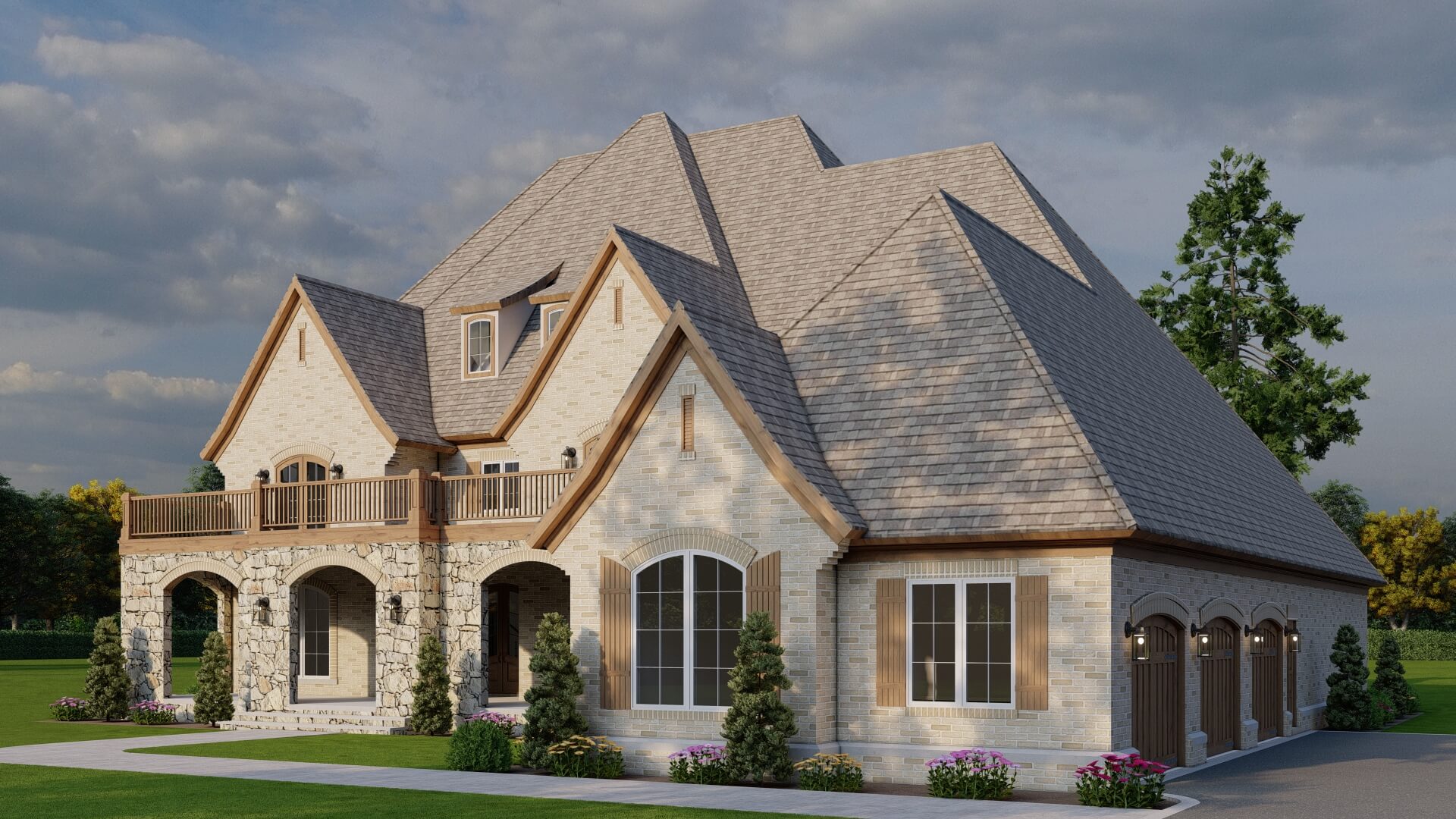

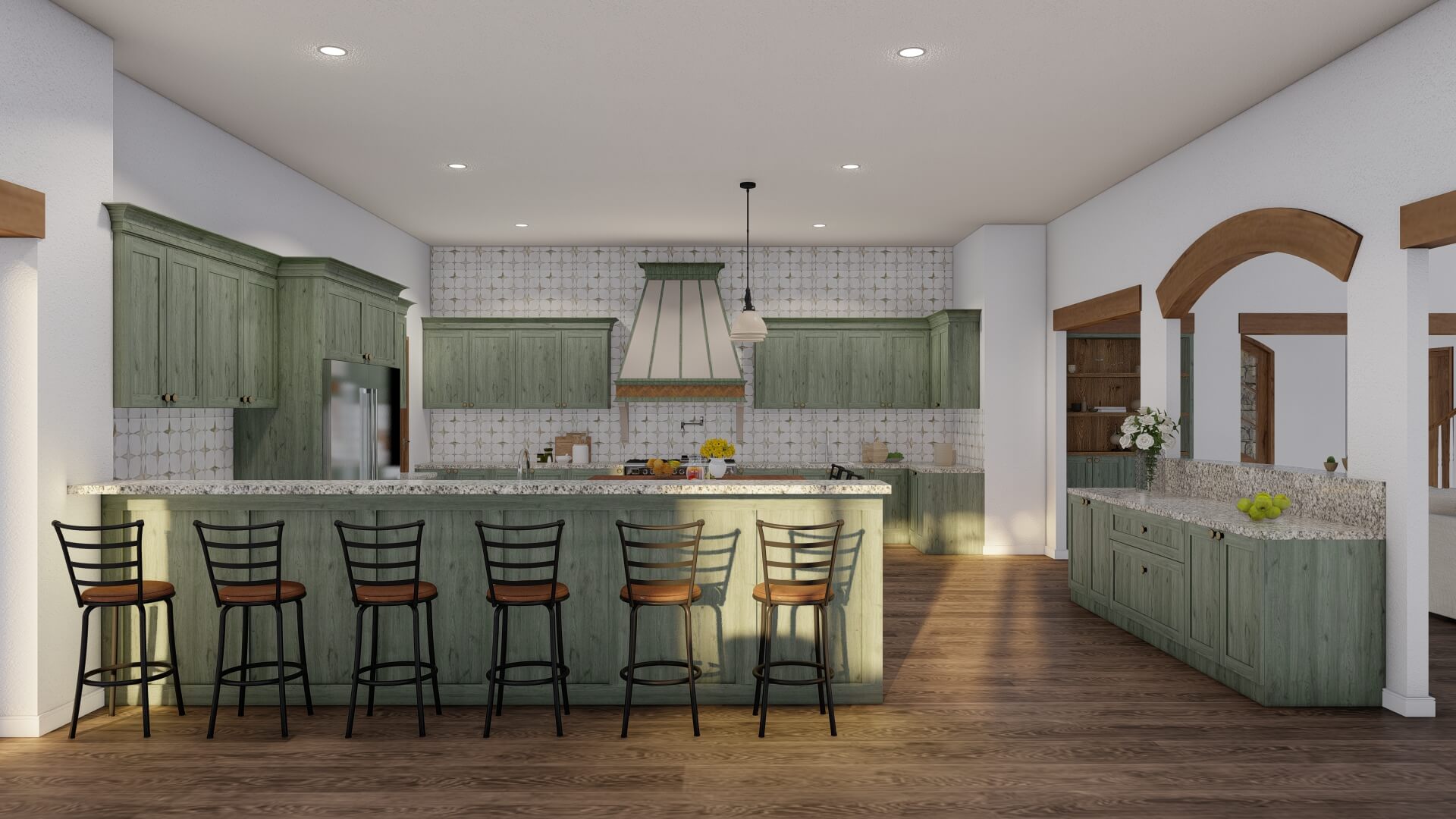

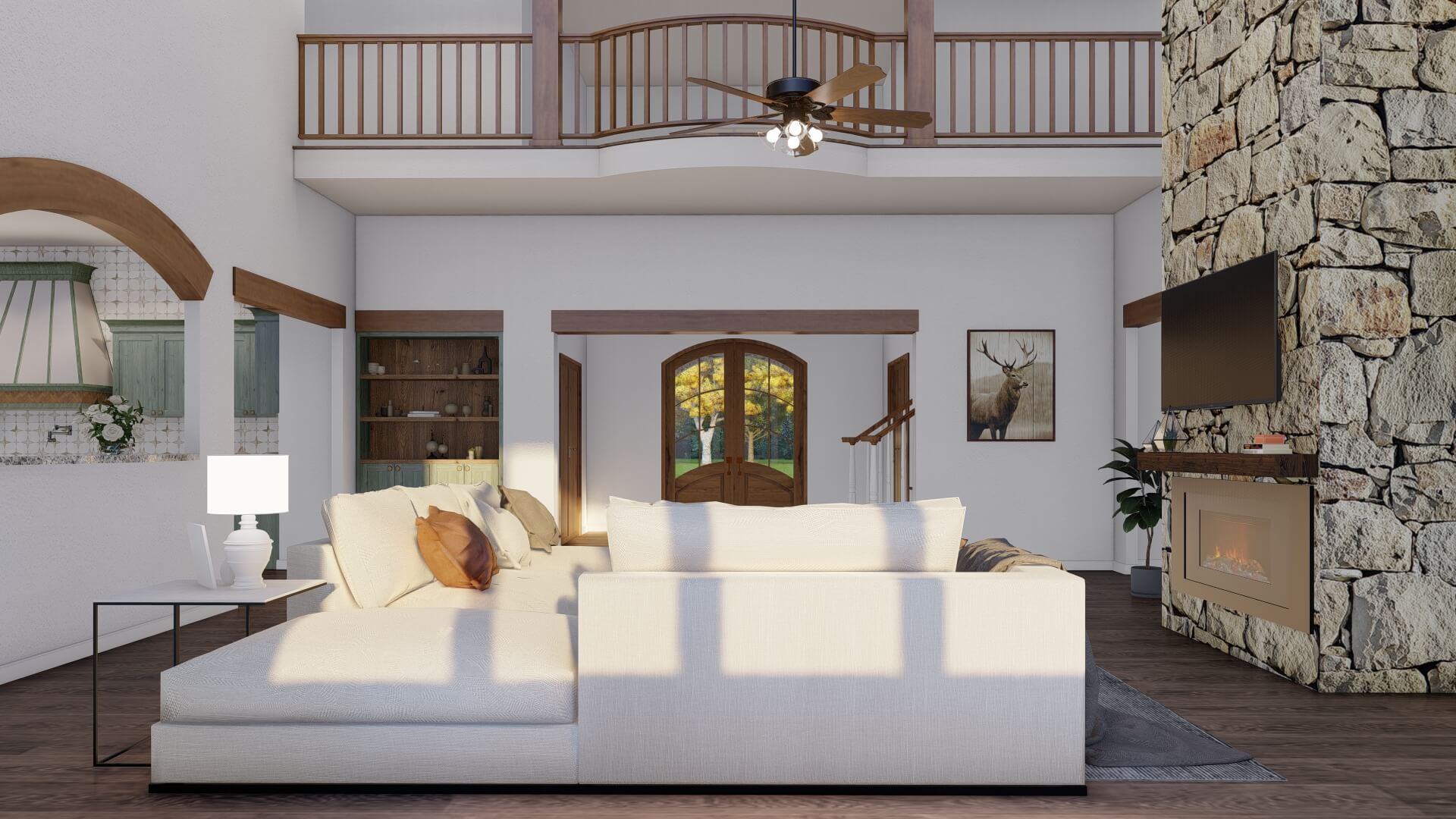

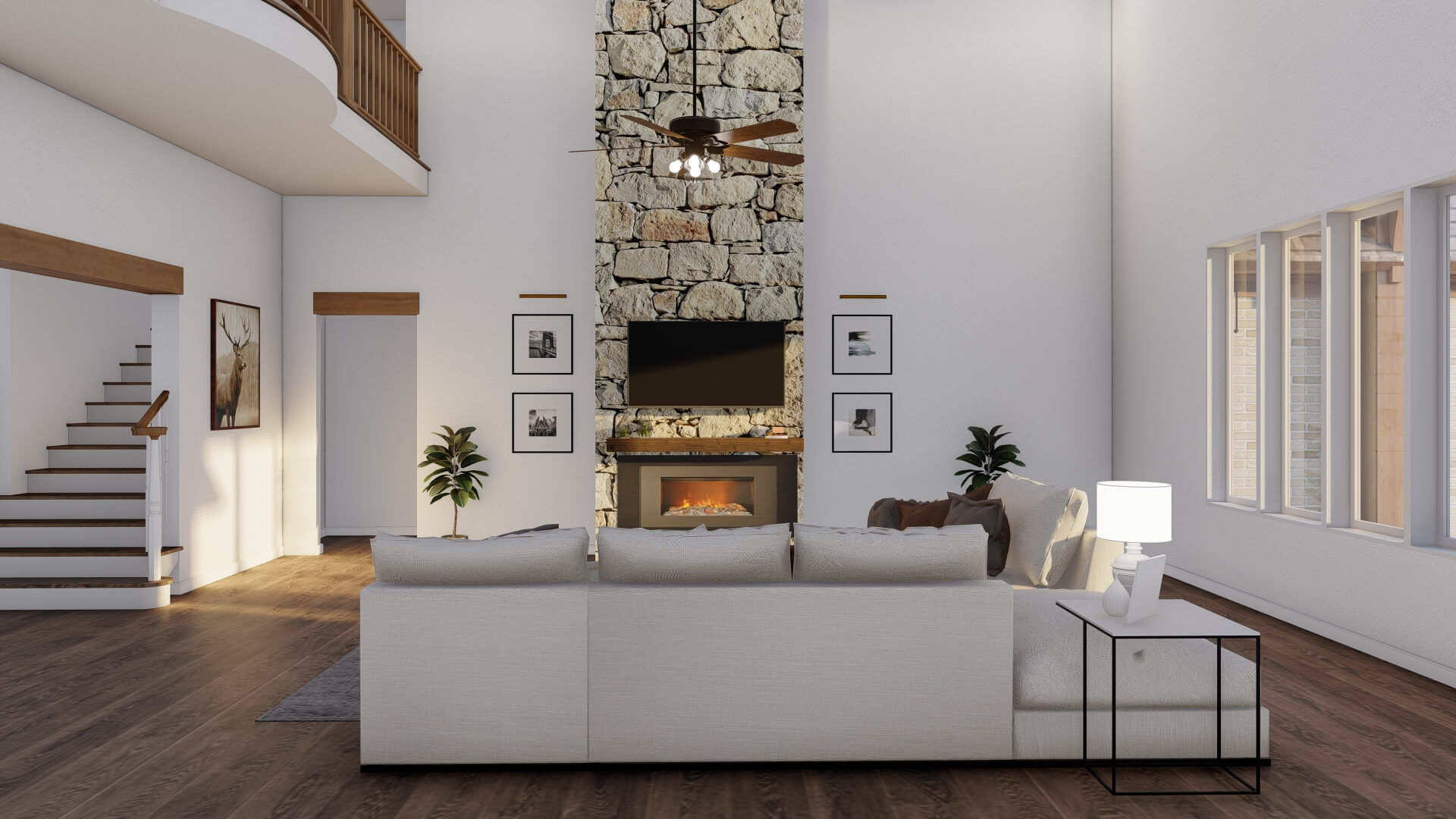

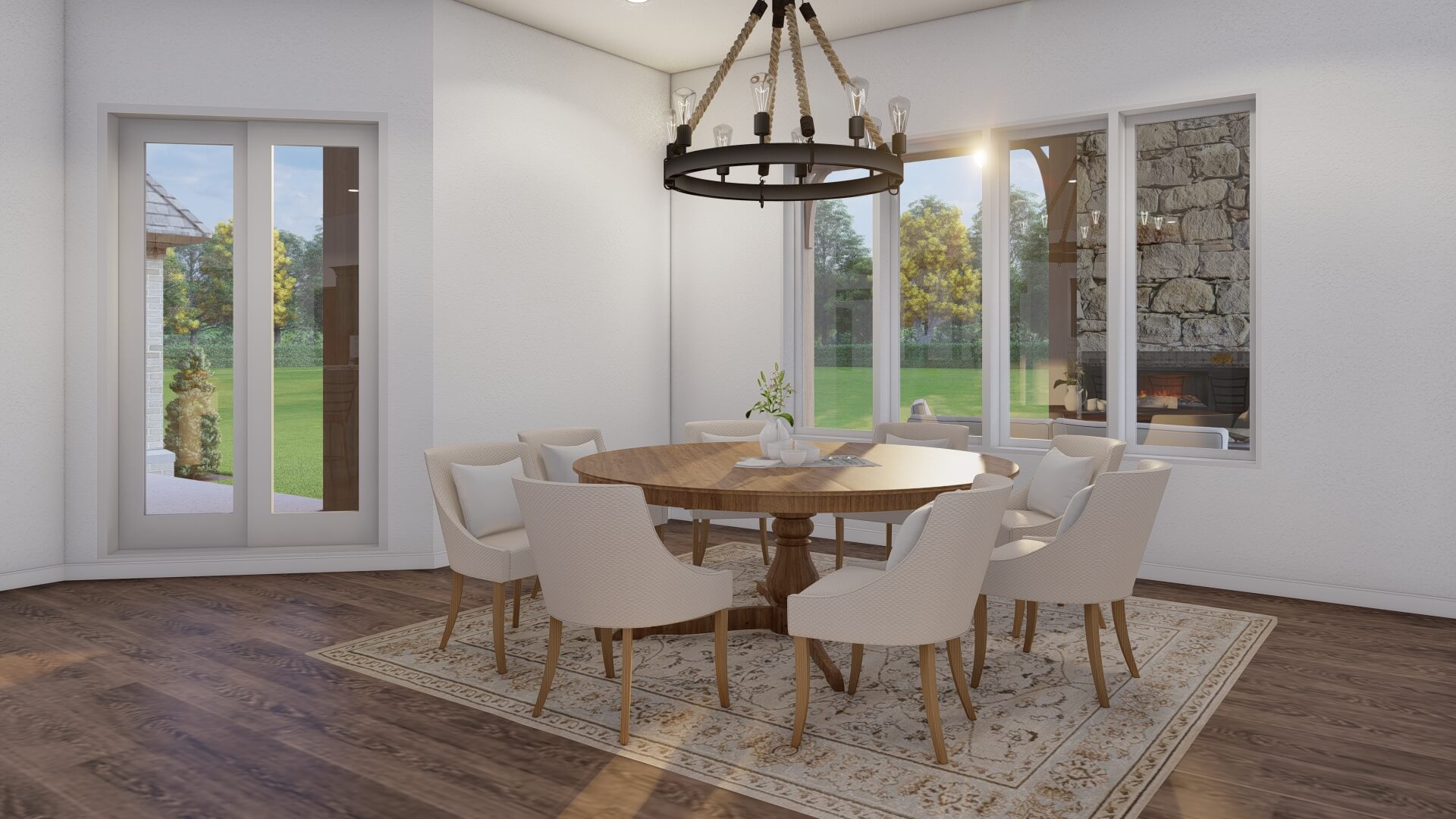

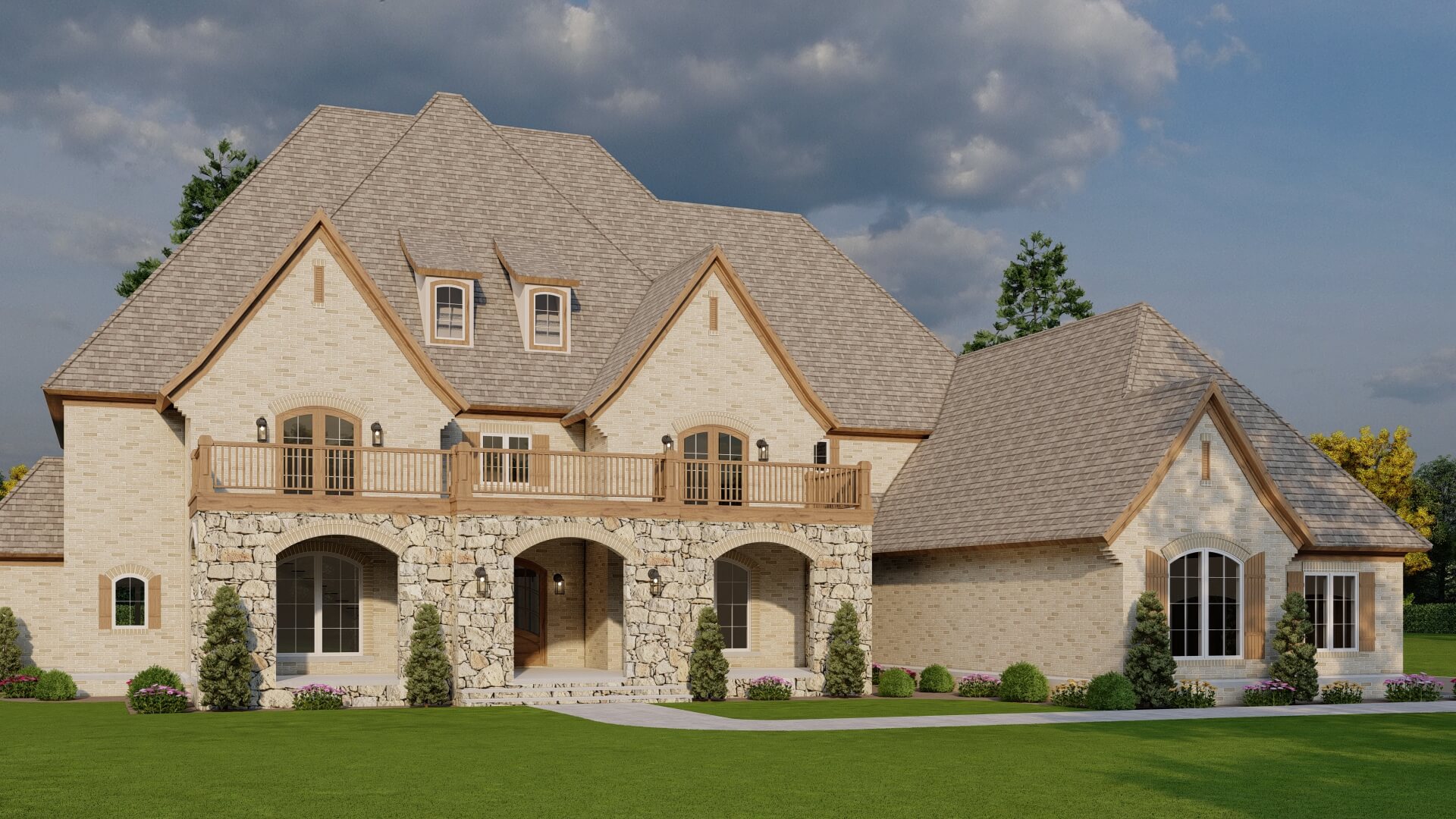

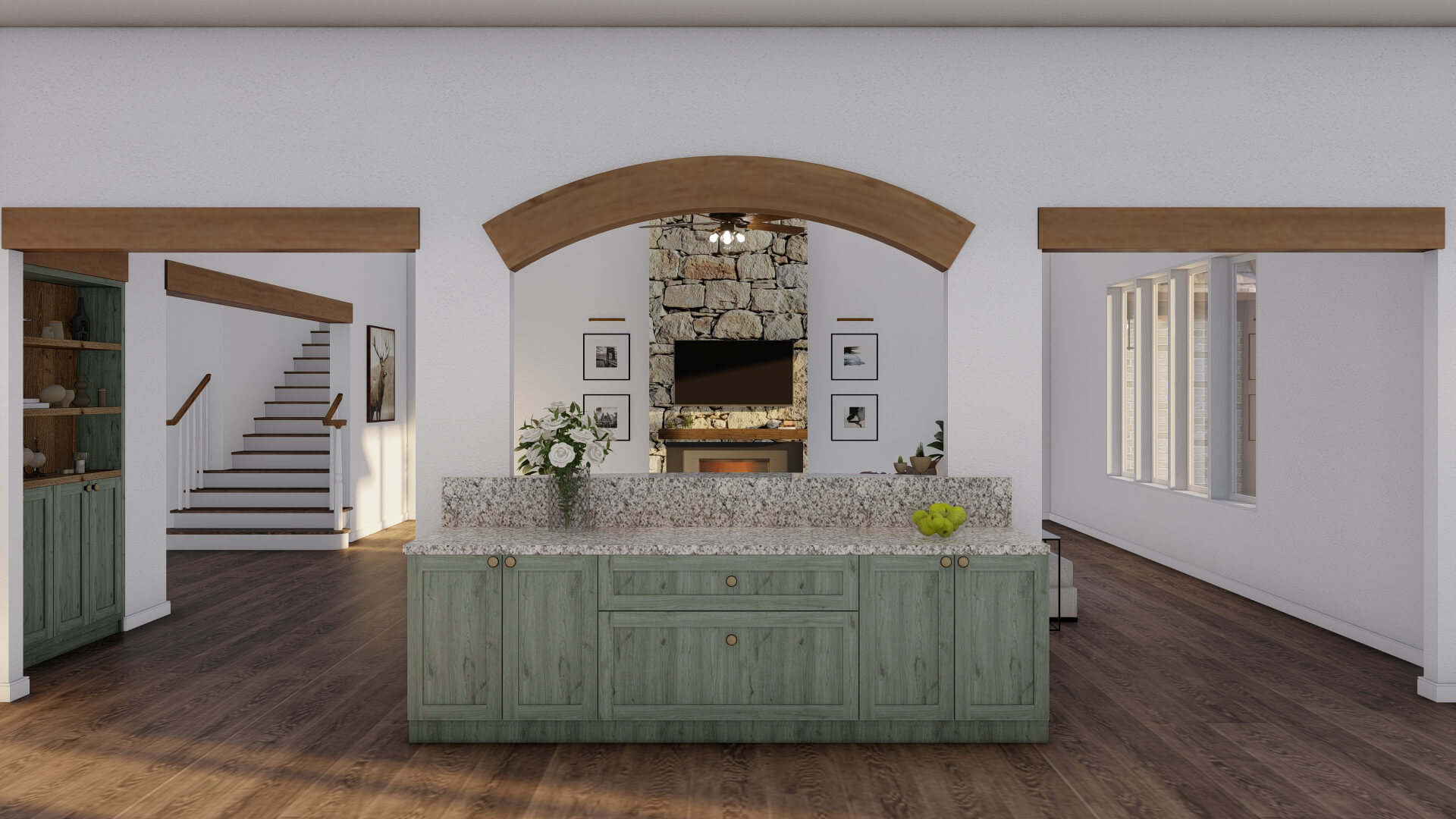

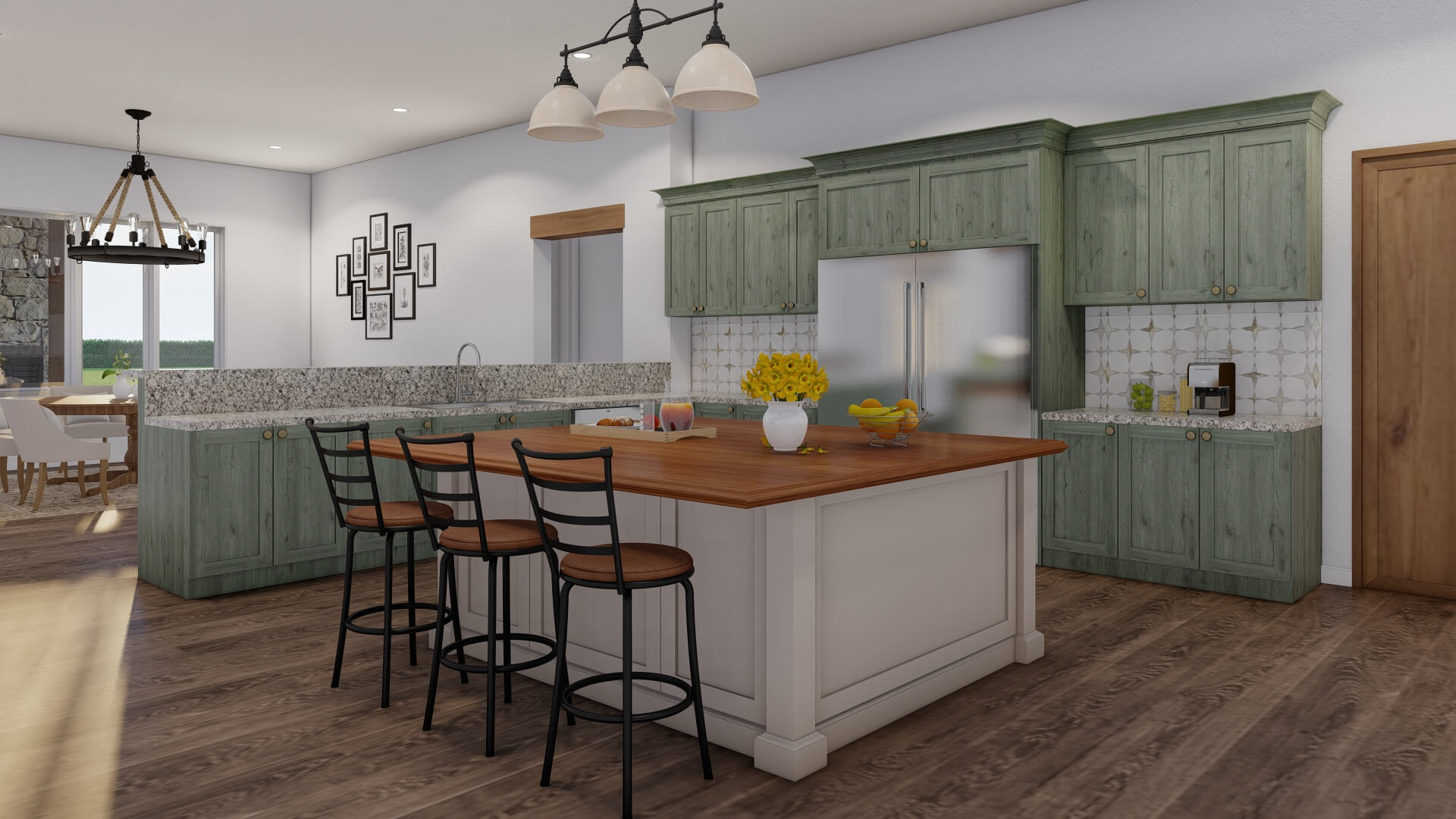

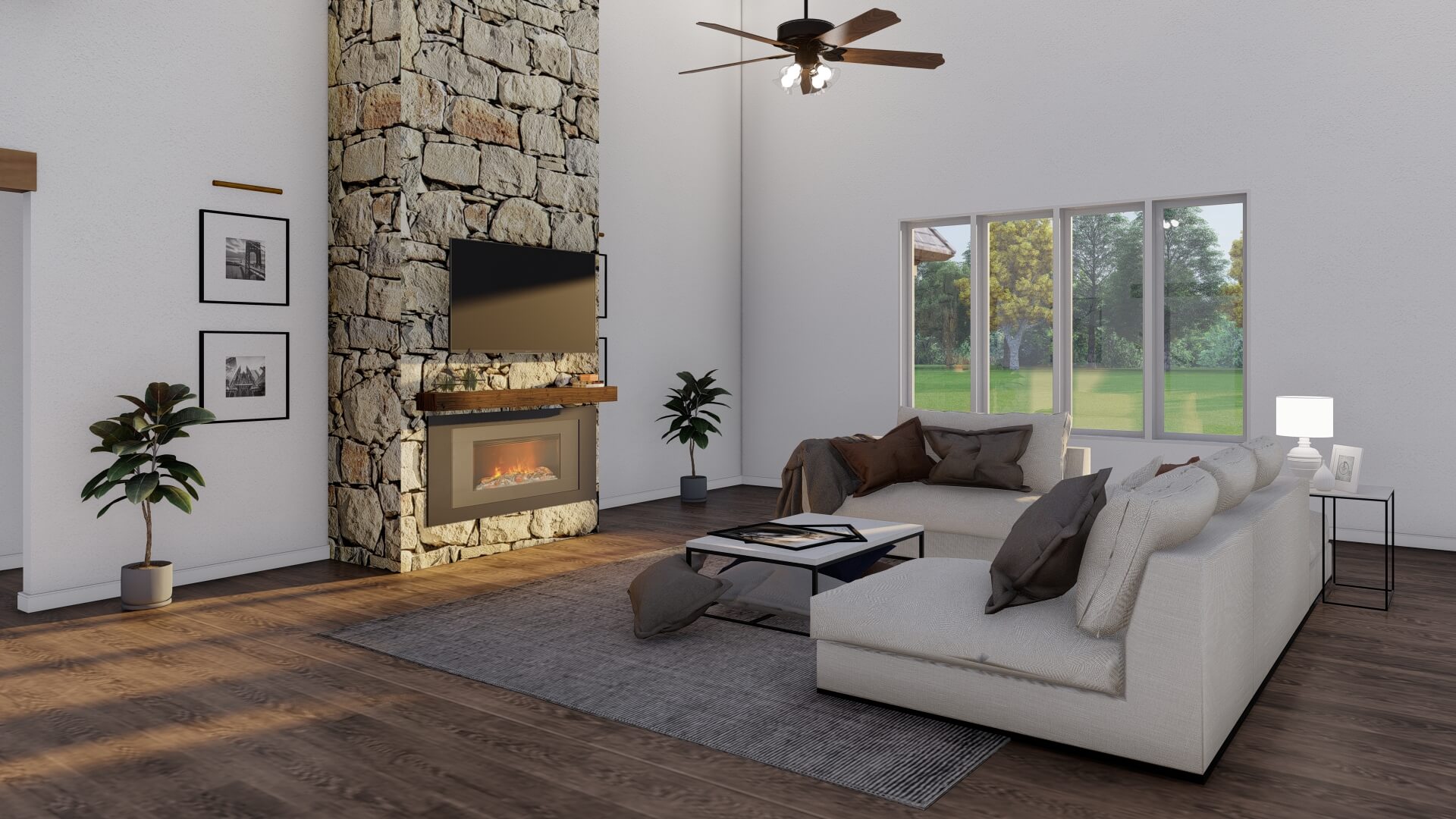

Stunning European design is beautiful captured in this Michael E Nelson design. Grand rooflines and a stately front porch will great your eye as you drive up to your home. Step into the foyer and you can marvel at the open balcony above. French doors on either side lead into the Fitness Room on the left and the Study on the right. Head into the Great Room where you can enjoy a cozy evening cuddle up in front of the fireplace. Love to cook? Then you certainly won't be disappointed in this spacious Kitchen complete with 60" range with a pot faucet and large vent hood. The connected Dining Room gives a beautiful view of the Outdoor Living Porch. Located behind the Kitchen is the huge Laundry Room and Hunting Room as well as the access to the 3 Car Garage. The entire left Side of the home is dedicated to the Master Suite giving you plenty of room. Head upstairs and you'll find Bedrooms 2 and 4 with a shared Jack and Jill Bath, Bedroom 3 with a private bath, and a spacious TV Room with a wet bar and 1/2 Bath. Bedrooms 2 and 3 also have access to the balcony above the front entry of the home.

Specifications

  • Total Living Space:6001Sq.Ft.
  • Main Floor: 3831 Sq.Ft
  • Upper Floor (Sq.Ft.): 2170 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1302 Sq.Ft.
  • Garage (Sq.Ft.): 1021 Sq.Ft.
  • Total Square Feet: 8324 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 51
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
