House Plan 5045 Ainsley Manor, European House Plan

House Plan 5045 Ainsley Manor, European House Plan

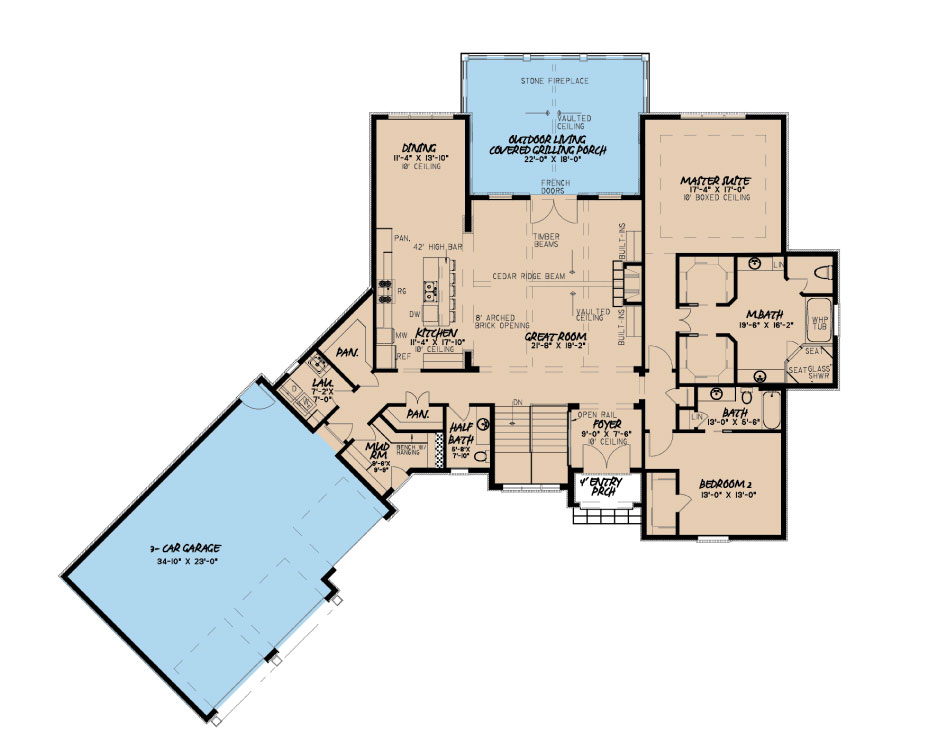

House Plan MEN 5045 Main Floor

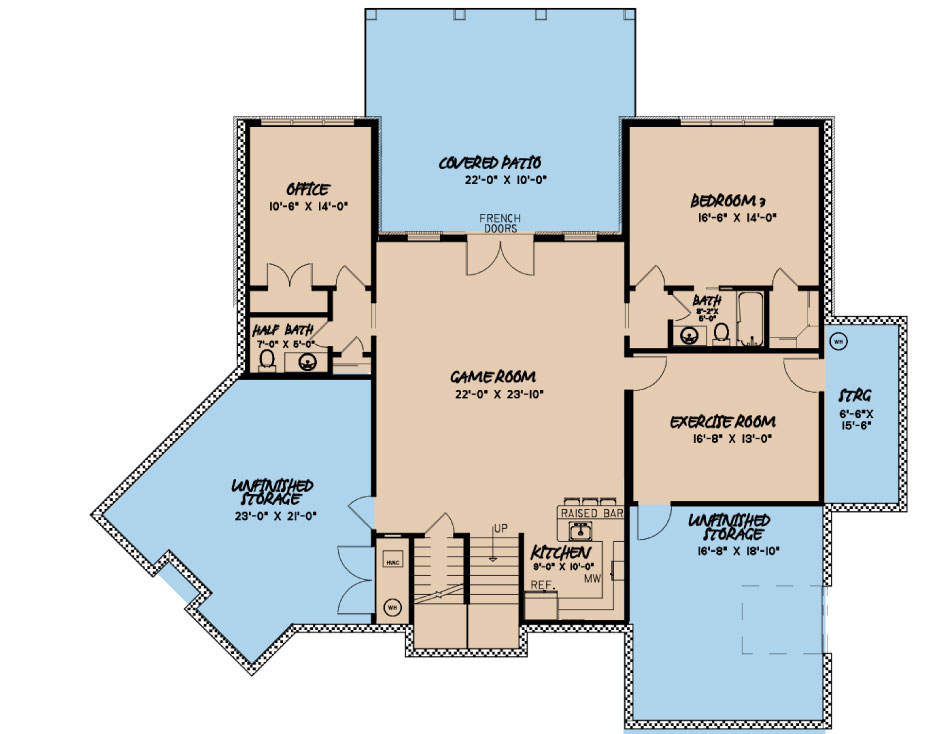

House Plan MEN 5045 Basement

Floor plans

MEN 5045

House Plan 5045 Ainsley Manor, European House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: MEN 5045
  • Total Living Space:4275Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 2
  • Garage: 3 Bay Yes
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 98
  • Width In.: 2
  • Depth Ft.: 84
  • Depth In.: 8

Description

This home plan blends charming craftsman style accents with European design to create beautiful curb appeal. The main floor of this home boasts a large great room complete with a cozy fireplace and plenty of natural light from the outdoor living porch. The open floor plan is only broken up by a stately 8" arched brick opening leading from the great room into the kitchen where you'll find a large island with a high bar and a connected dining room. Around the corner are two large pantries, a mudroom and separate laundry room, half bath and the entrance to the 3car garage. On the opposite side of the home is the luxurious master suite with a huge bathroom, his and hers walk-in closets and a great view to the back of the home. You'll also find bedroom 2 with an en-suite bath on this side of the home. Head down to the walk-out basement where you're met with the game room and connected kitchen as well as an exercise room, office and bedroom 3.

**Unfinished Basement is 756 Sq. Ft**

Specifications

  • Total Living Space:4275Sq.Ft.
  • Main Floor: 2604 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1671 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 445 Sq.Ft.
  • Garage (Sq.Ft.): 907 Sq.Ft.
  • Total Square Feet: 6383 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
