House Plan 503 Windstone Place, Village at Windstone III House Plan

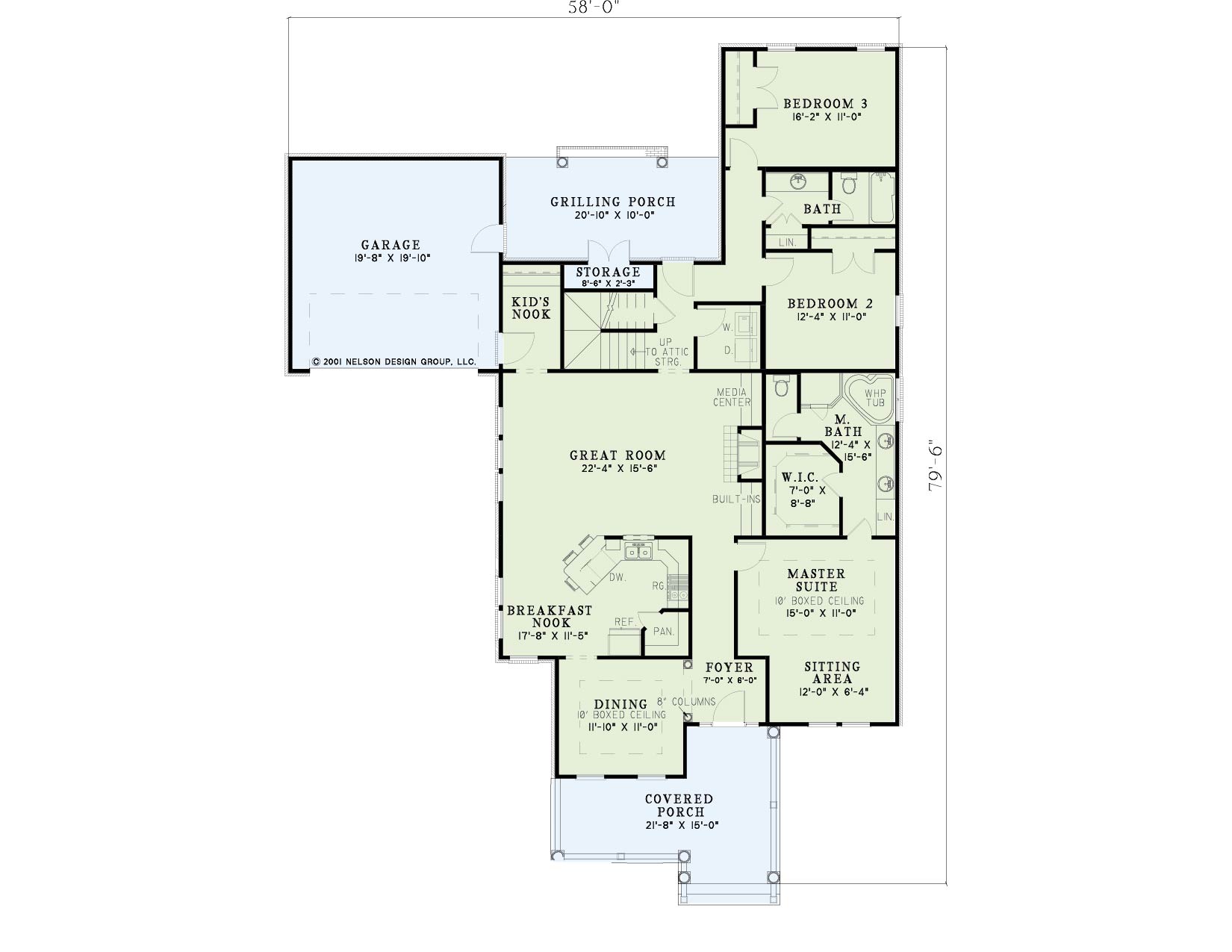

House Plan NDG 503 Main Floor
House Plan NDG 503 Main Floor

Floor plans

NDG 503

House Plan 503 Windstone Place, Village at Windstone III House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 503
  • Total Living Space:2026Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: N/A
  • Depth Ft.: 79
  • Depth In.: 6

Description

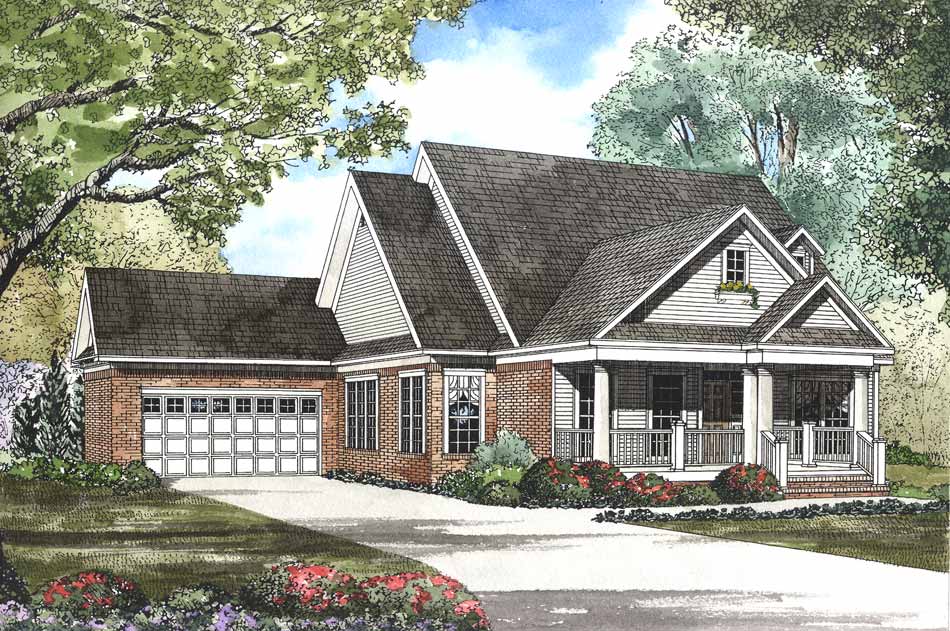

This is historically representative of a home that our parents grew up in. This home has recreated a traditional design with modern amenities. The covered porch welcomes visitors like outstretched open arms. Upon entering the foyer, a formal dining room is on your left and accesses a breakfast nook through to the kitchen. An angled bar area opens into a great room with media center and built-ins. The large master bathroom has a walk-in closet, corner whirlpool tub, separate shower, and separates the Master suite from the other bedrooms for added privacy. A sitting area in the master bedroom can be used as a study area. A kid's nook is creatively added to help organize a busy lifestyle and accesses a garage which is recessed for added street appeal.

Specifications

  • Total Living Space:2026Sq.Ft.
  • Main Floor: 2026 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 479 Sq.Ft.
  • Garage (Sq.Ft.): 421 Sq.Ft.
  • Total Square Feet: 2926 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
