House Plan 5025 Adirondack Place, Arts and Crafts House Plan

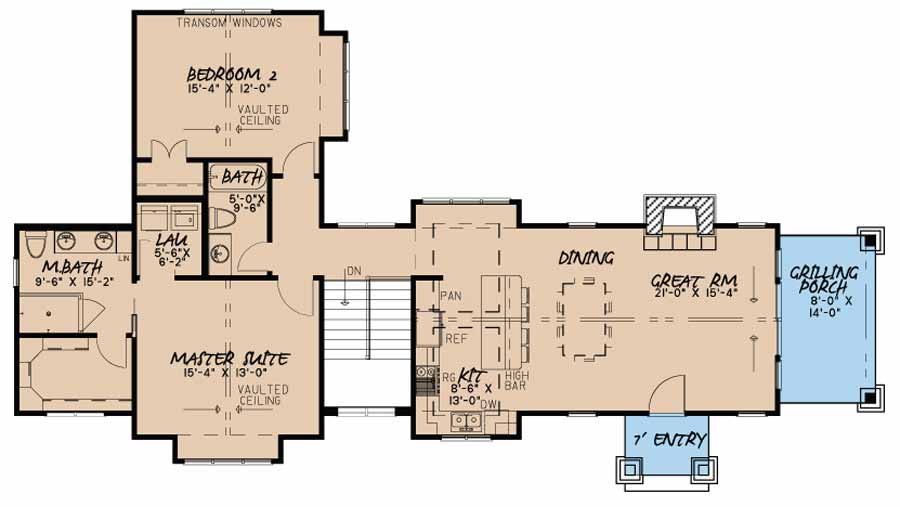

House Plan MEN 5025 Main Floor

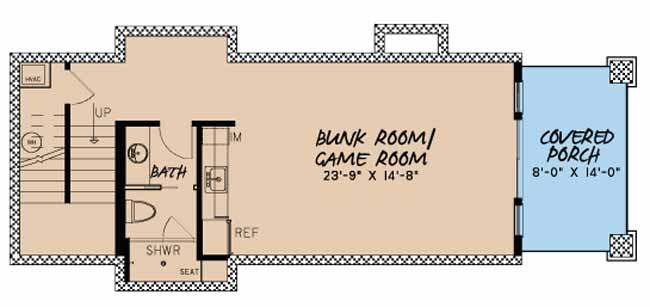

House Plan MEN 5025 Basement
House Plan MEN 5025 Main Floor
House Plan MEN 5025 Basement

Floor plans

House Plan MEN 5025 Main Floor

House Plan MEN 5025 Basement
MEN 5025

House Plan 5025 Adirondack Place, Arts and Crafts House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: MEN 5025
  • Total Living Space:1921 Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 72
  • Width In.: N/A
  • Depth Ft.: 37
  • Depth In.: 10

Description

Designer Michael E. Nelson’s use of stone and timber creates a stunning exterior from both the front and side view of the home. The main level of this rustic home features an open floor plan with a spacious great room, dining area, and kitchen with a high bar. To the right of the great room is a covered grilling porch. Down the hall you will find a spacious master suite featuring vaulted ceiling, access to the laundry room, large walk-in closet, and a large private bath. Bedroom two is also found on this side of the home as well as a hall bath. The lower level of this home contains space for a bunk room or game room, a full bath, and access to the lower covered porch.

Specifications

  • Total Living Space:1921 Sq.Ft.
  • Main Floor: 1330 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 591 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 257 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2178 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Metal
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 2:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
