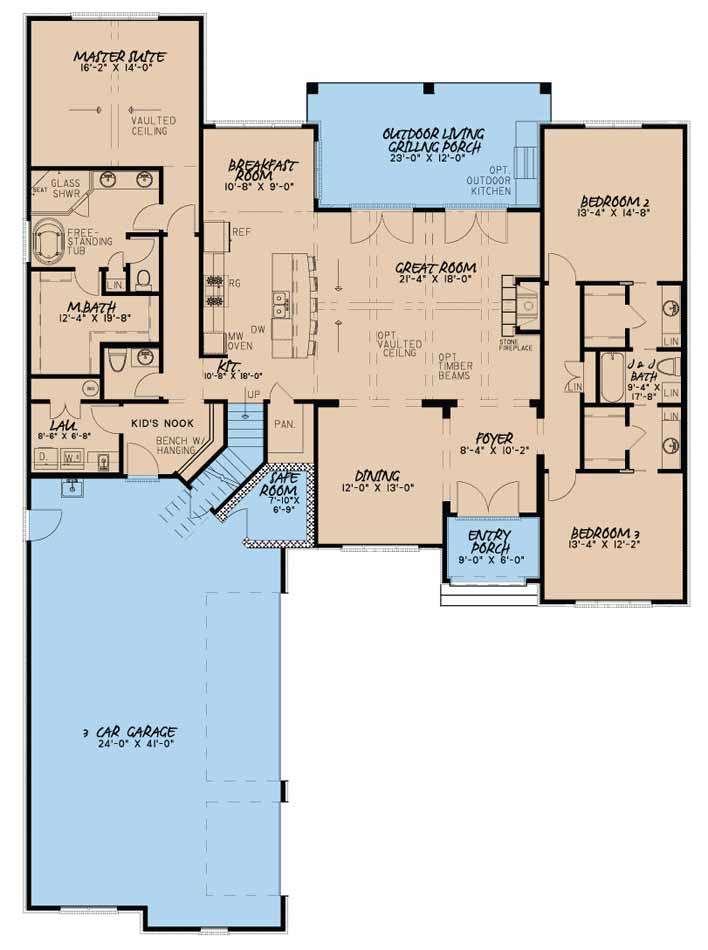

House Plan MEN 5022 Main Floor
House Plan MEN 5022 Upper Floor/Bonus Room
>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022>
House Plan - MEN 5022
House Plan MEN 5022 Main Floor

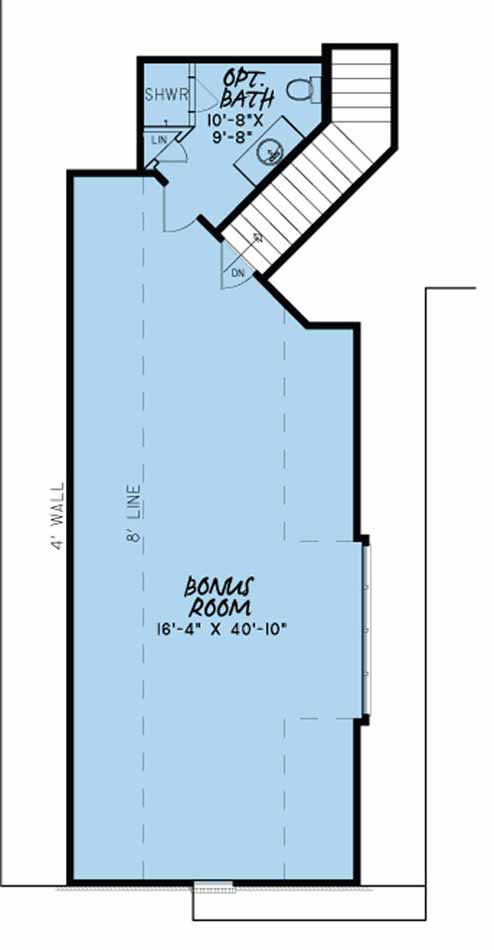

House Plan MEN 5022 Upper Floor/Bonus Room
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022
House Plan - MEN 5022

Floor plans

MEN 5022

House Plan 5022 Saddler Manor, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: MEN 5022
  • Total Living Space:2409Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 63
  • Width In.: 2
  • Depth Ft.: 87
  • Depth In.: 6

Description

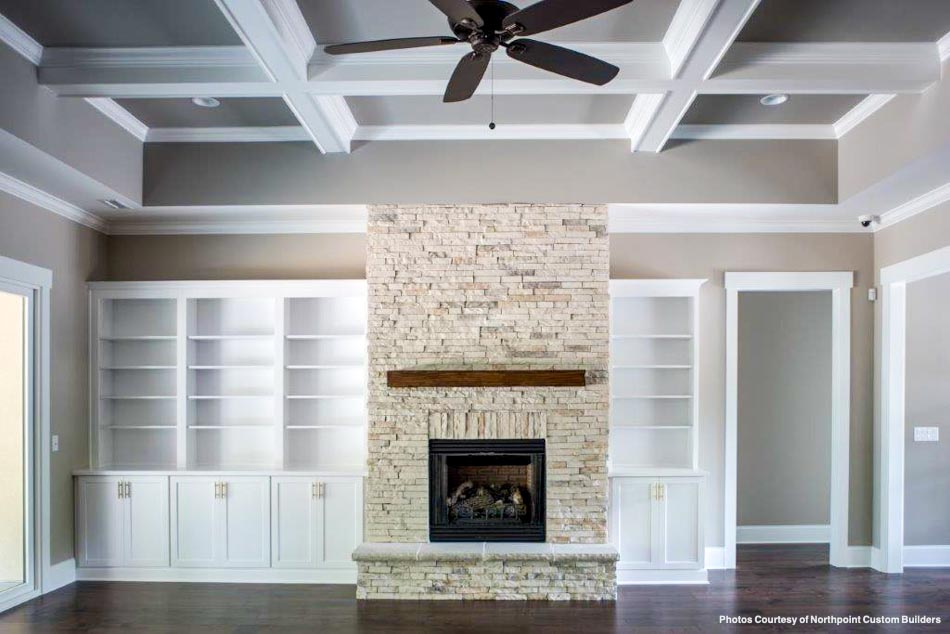

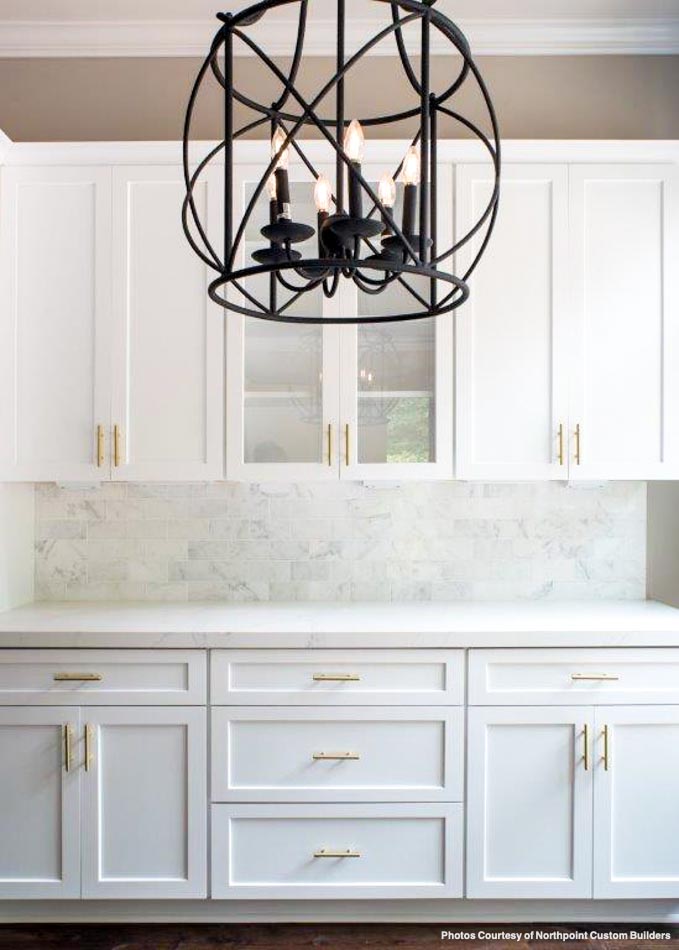

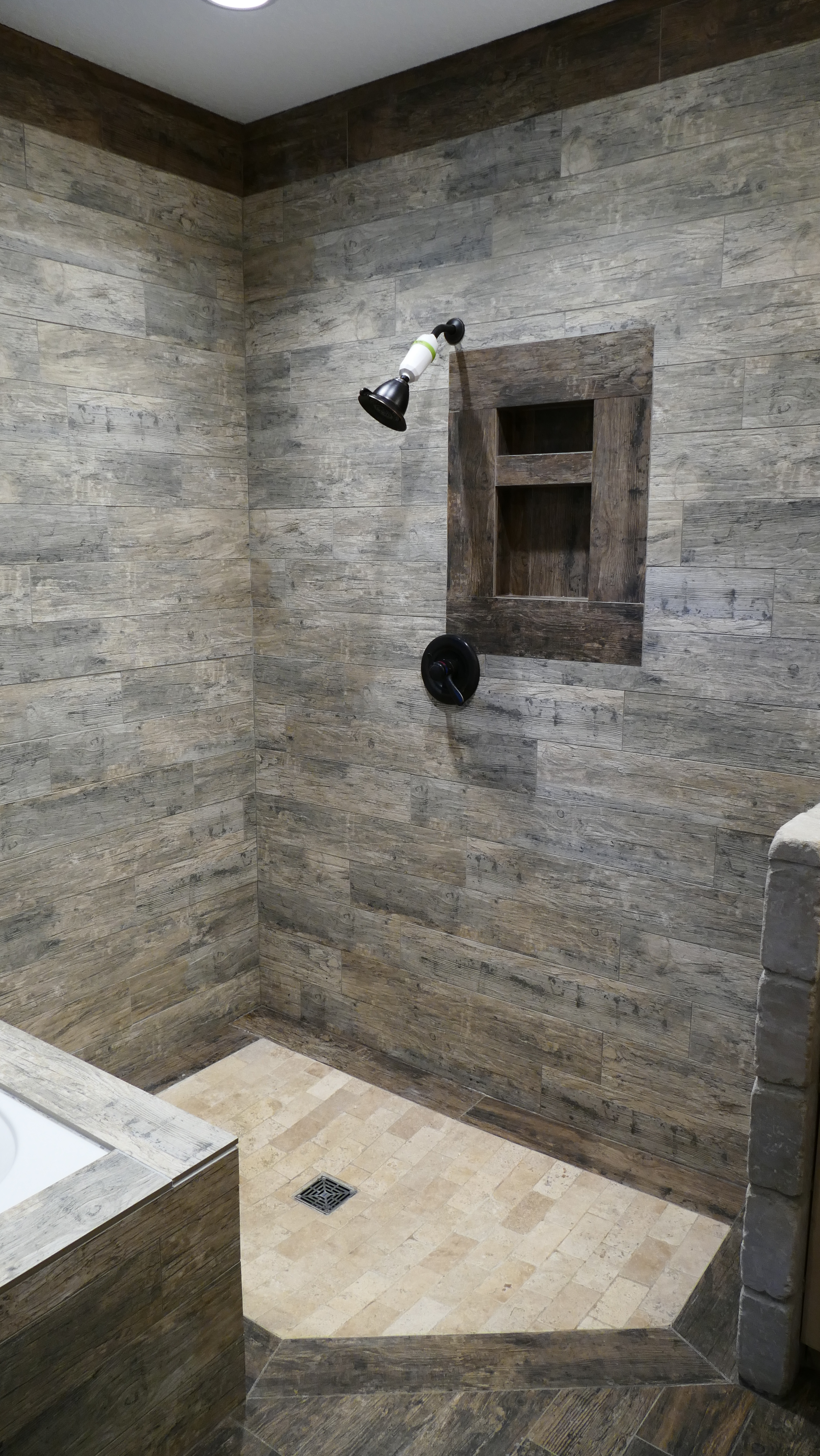

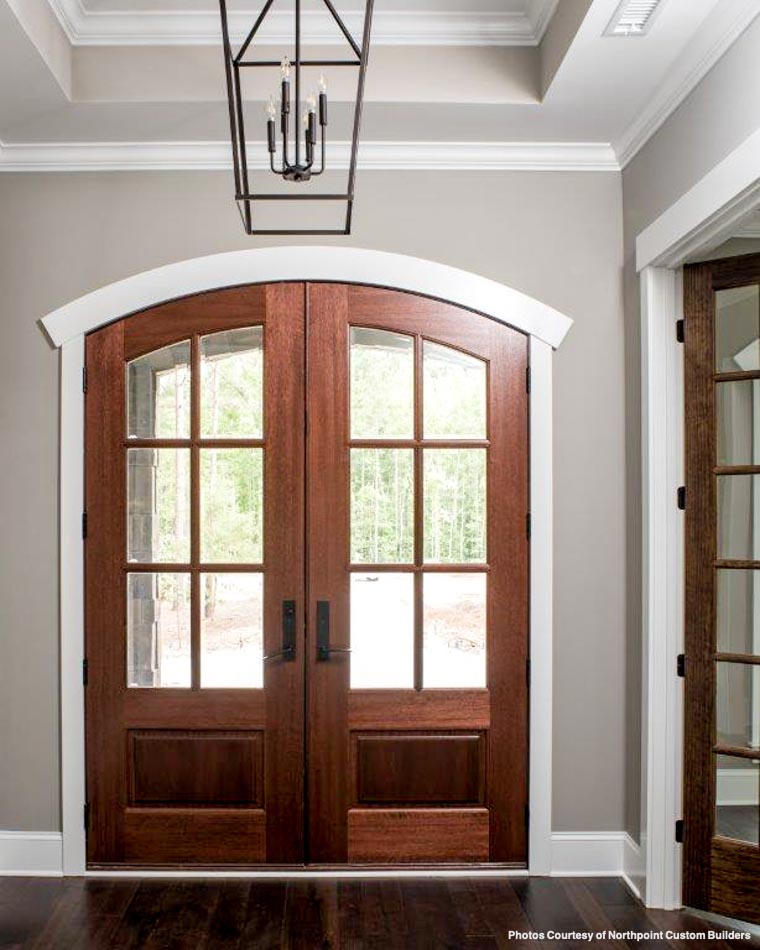

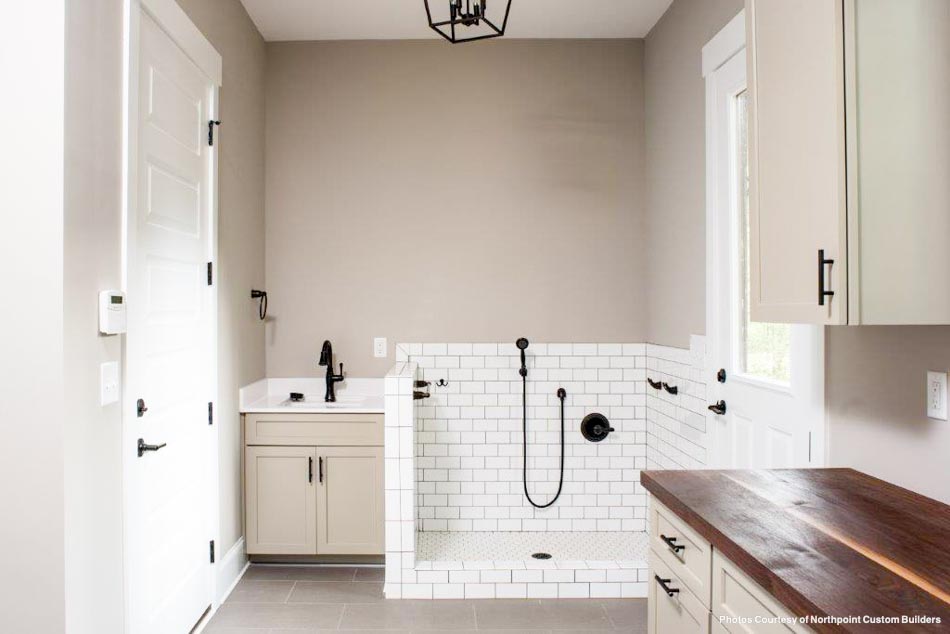

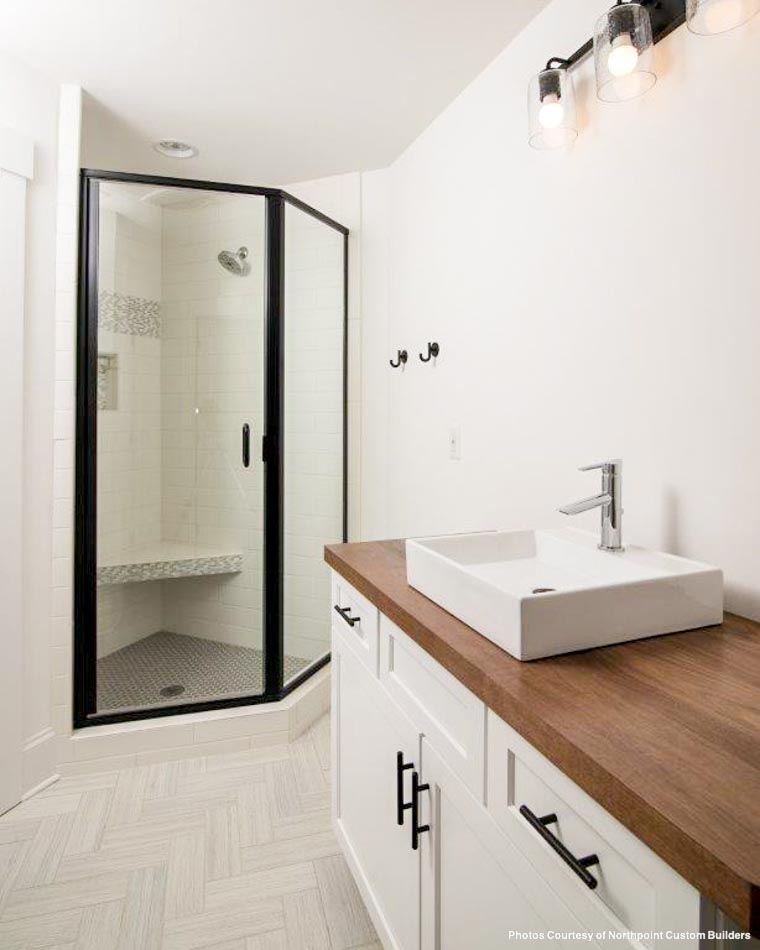

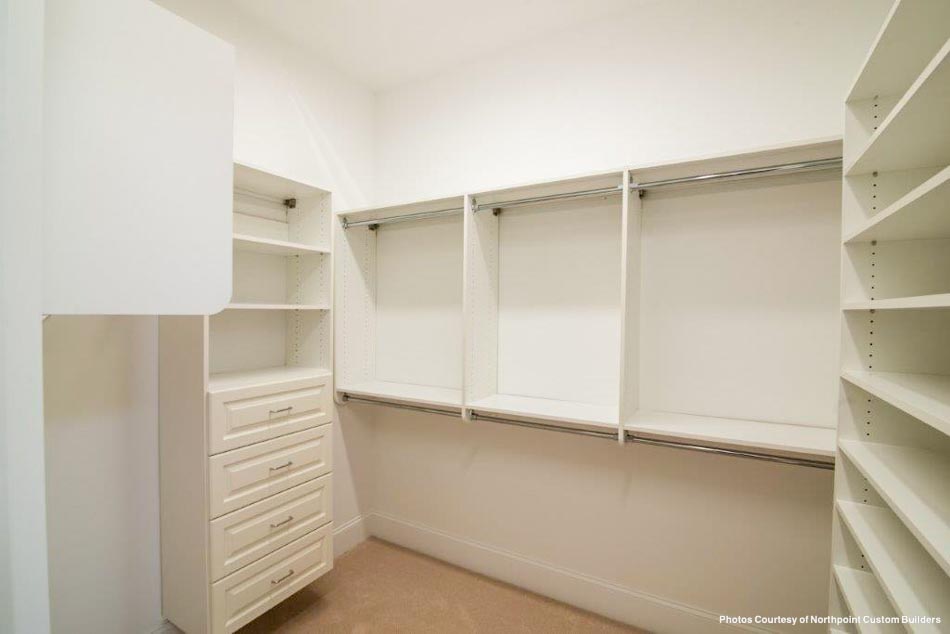

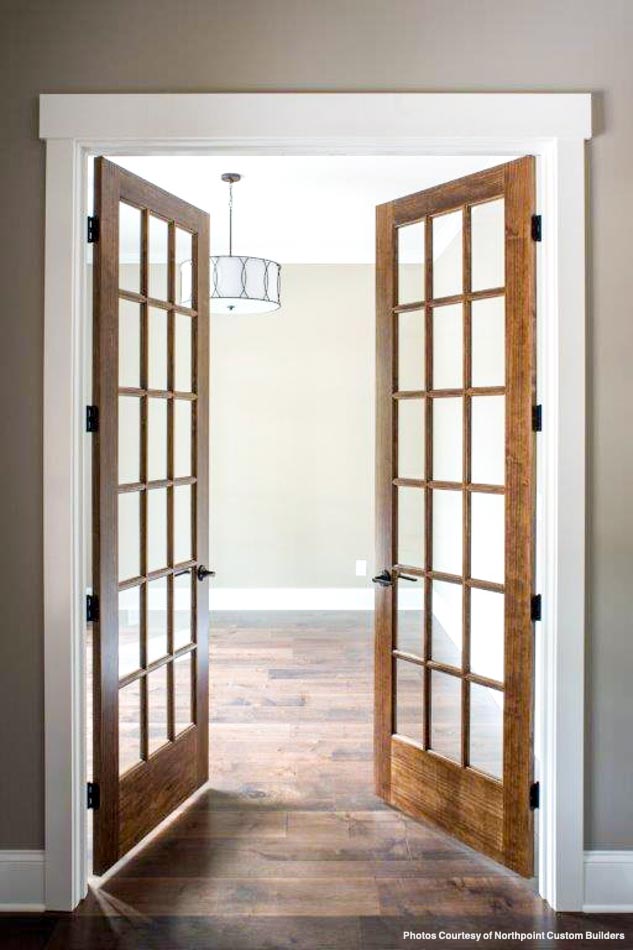

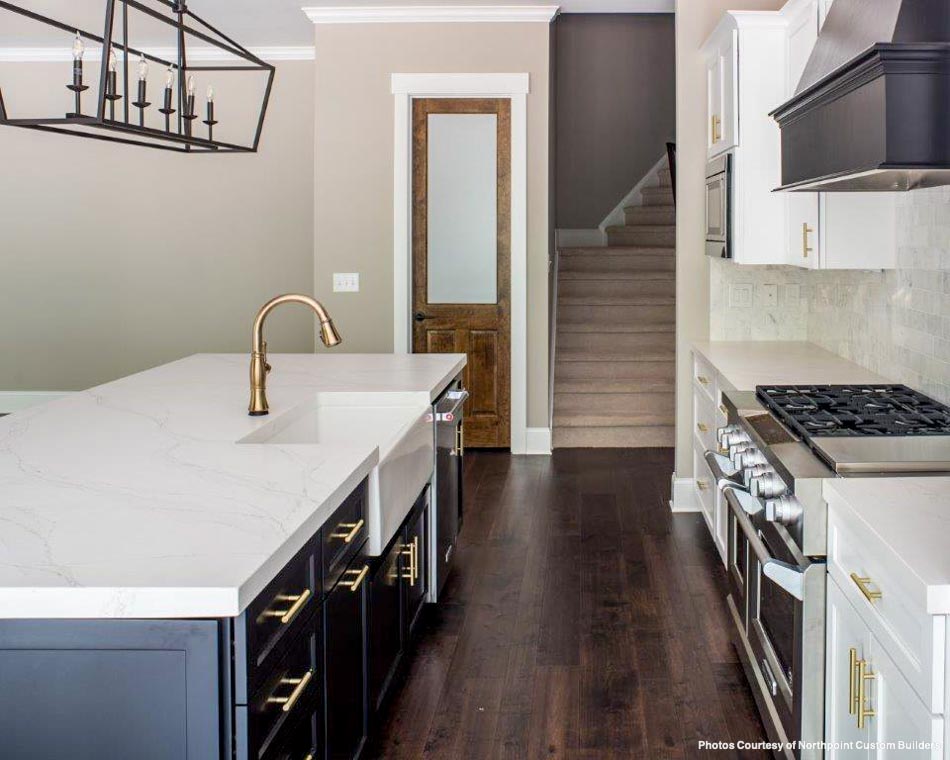

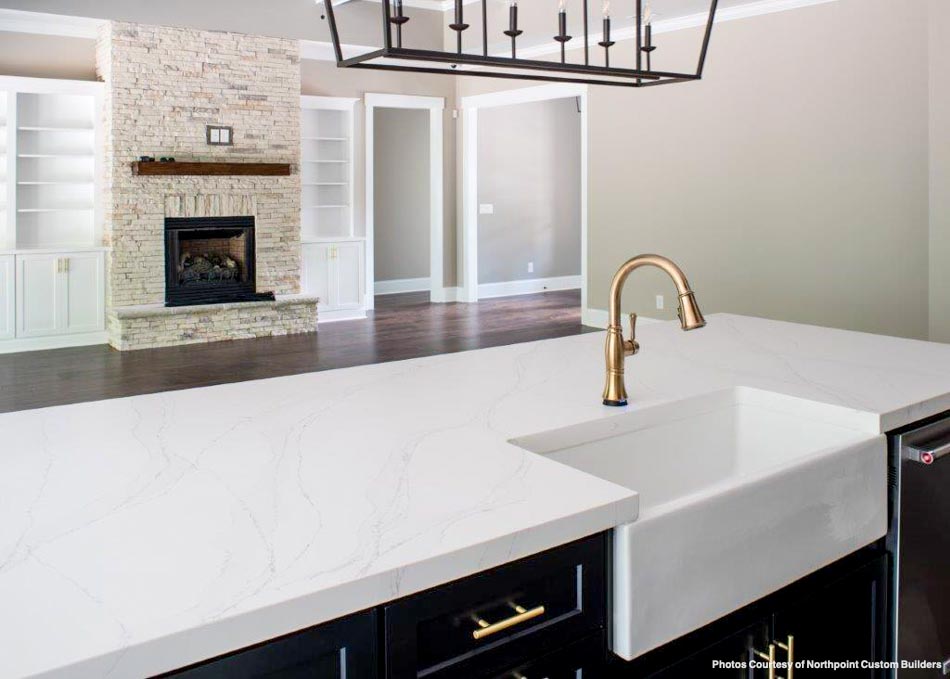

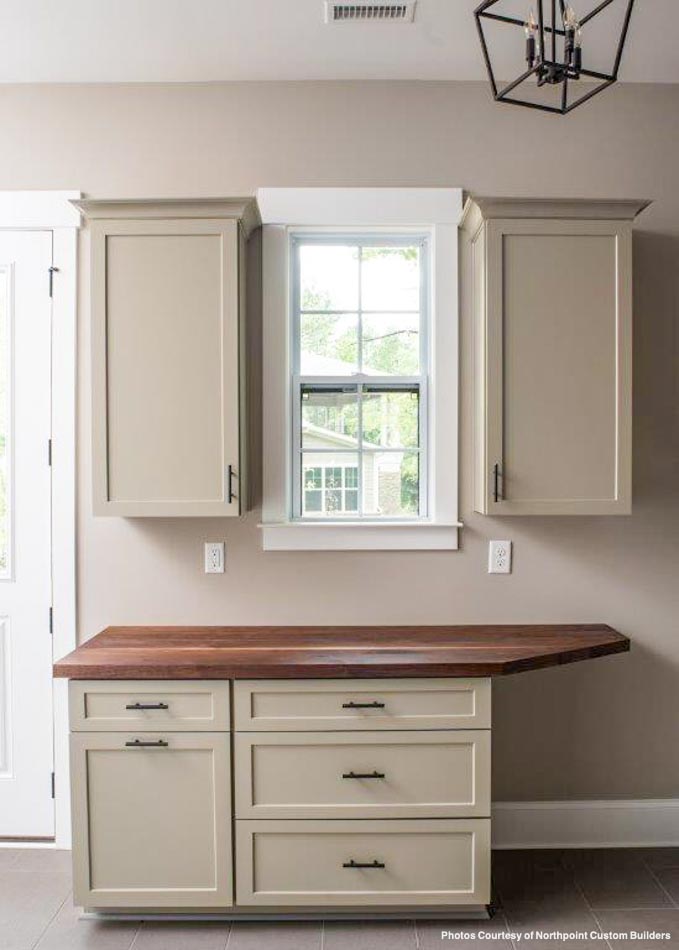

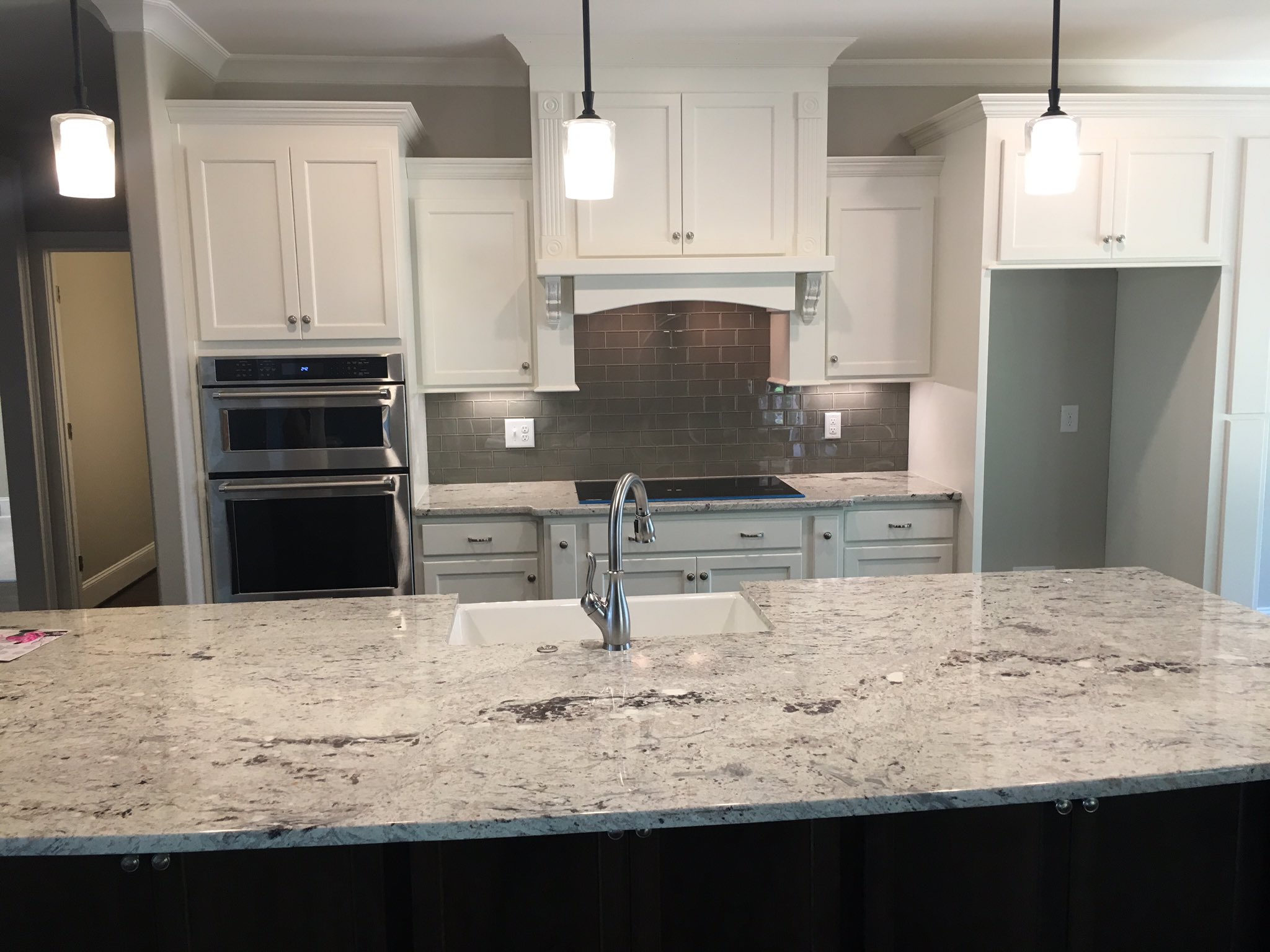

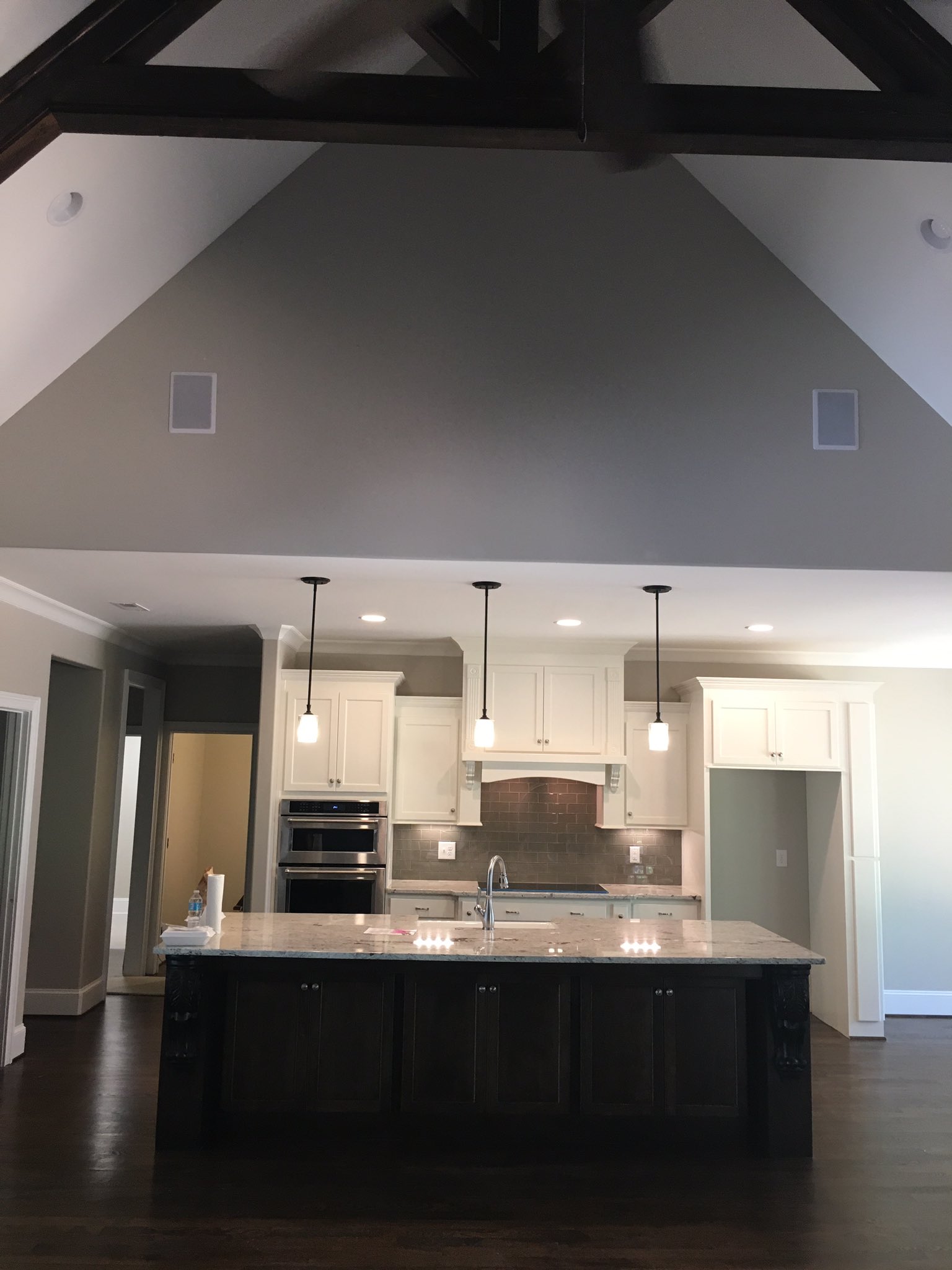

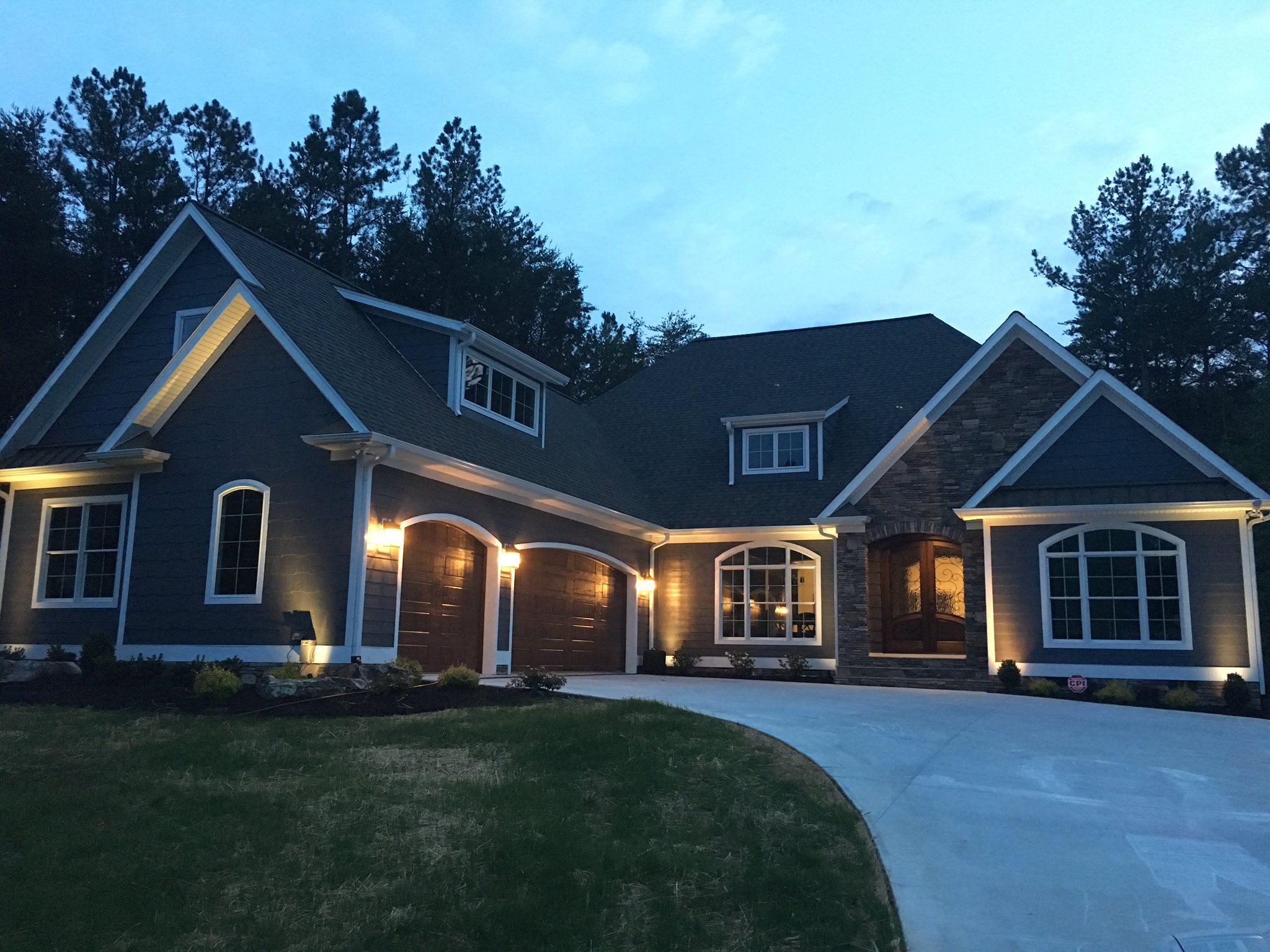

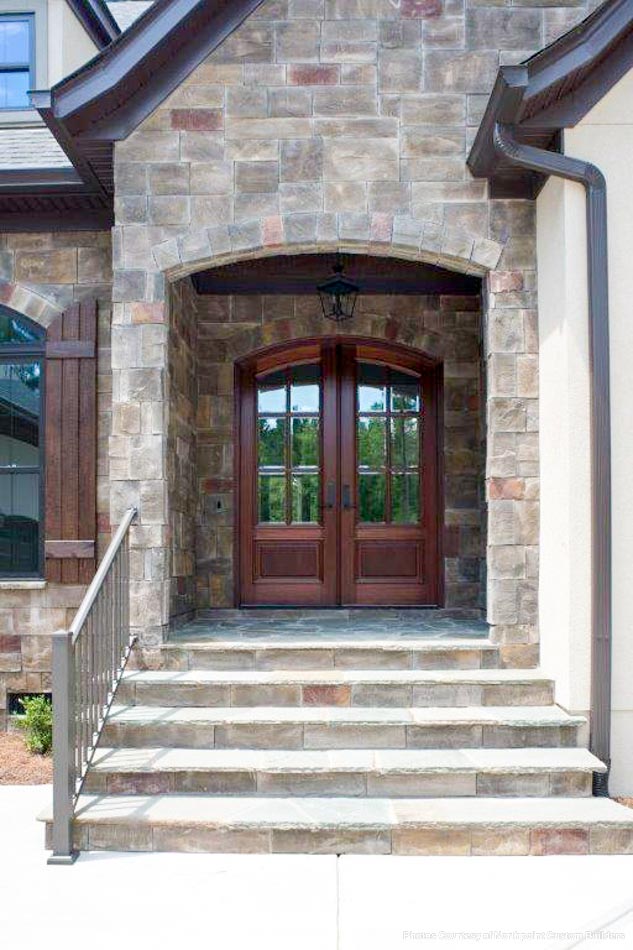

This beautiful European style design features a brick and stone exterior with arched windows and doors and a courtyard oriented 3-car garage. Once inside, the foyer welcomes you with the dining room on the left, 2 bedrooms with a Jack & Jill bath to the right, and the Great Room ahead. The Great Room features an optional vaulted ceiling and a stone fireplace and the room is open to the kitchen and has 2 sets of French doors that open to the rear grilling porch. The kitchen offers a large eat-at island bar, perfect for entertaining, and a walk-in pantry with a breakfast room next to it. Around the corner from the kitchen is the Master Suite with a vaulted ceiling while the master bath features a corner glass shower with a seat, a free-standing tub, and a huge walk-in closet. Coming in from the garage, you’ll appreciate the kid’s nook with a corner bench and hanging space that doubles for a mud room with the laundry room next to it that offers a convenient closet. Upstairs over the garage, is a huge bonus room and bathroom that presents tons of useful opportunities.

Specifications

  • Total Living Space:2409Sq.Ft.
  • Main Floor: 2409 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 729 Sq.Ft.
  • Porch (Sq.Ft.): 322 Sq.Ft.
  • Garage (Sq.Ft.): 1083 Sq.Ft.
  • Total Square Feet: 4543 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
