House Plan 5009 St. Augustine, French Country House Plan

House Plan MEN 5009 Main Floor
House Plan MEN 5009 Bonus Room
House Plan MEN 5009 Main Floor
House Plan MEN 5009 Bonus Room

Floor plans

MEN 5009

House Plan 5009 St. Augustine, French Country House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5009
  • Total Living Space:2428Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 75
  • Width In.: 8
  • Depth Ft.: 89
  • Depth In.: 9

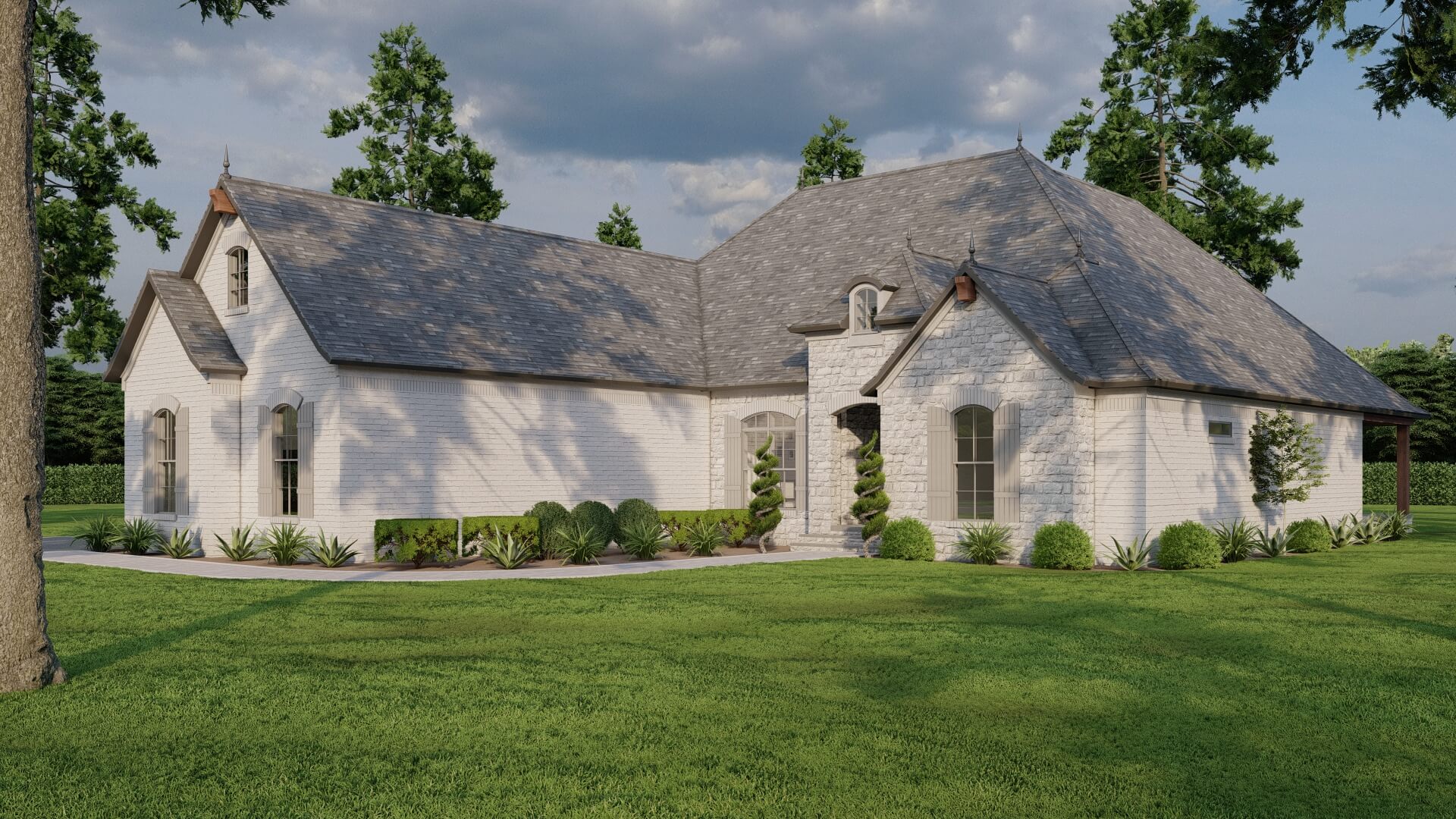

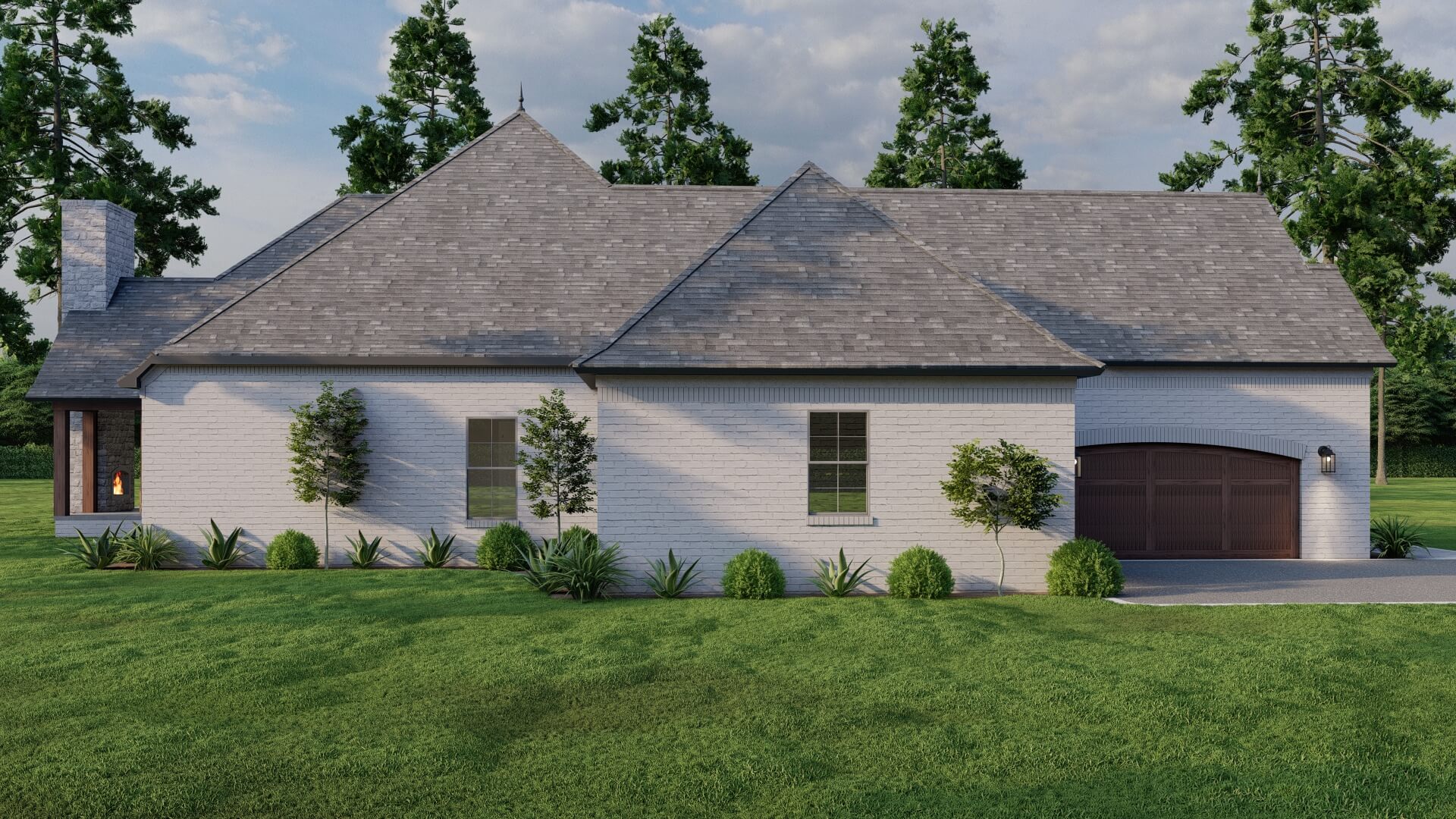

Stunning European design inspired this beautiful house plan. The mixture of stone and brick siding adds depth and visual interest to the home. Elegant arched windows are complimented by wooden shutters while the towering rooflines are complimented by beautiful finials. All these design elements work together to give you perfect street appeal.

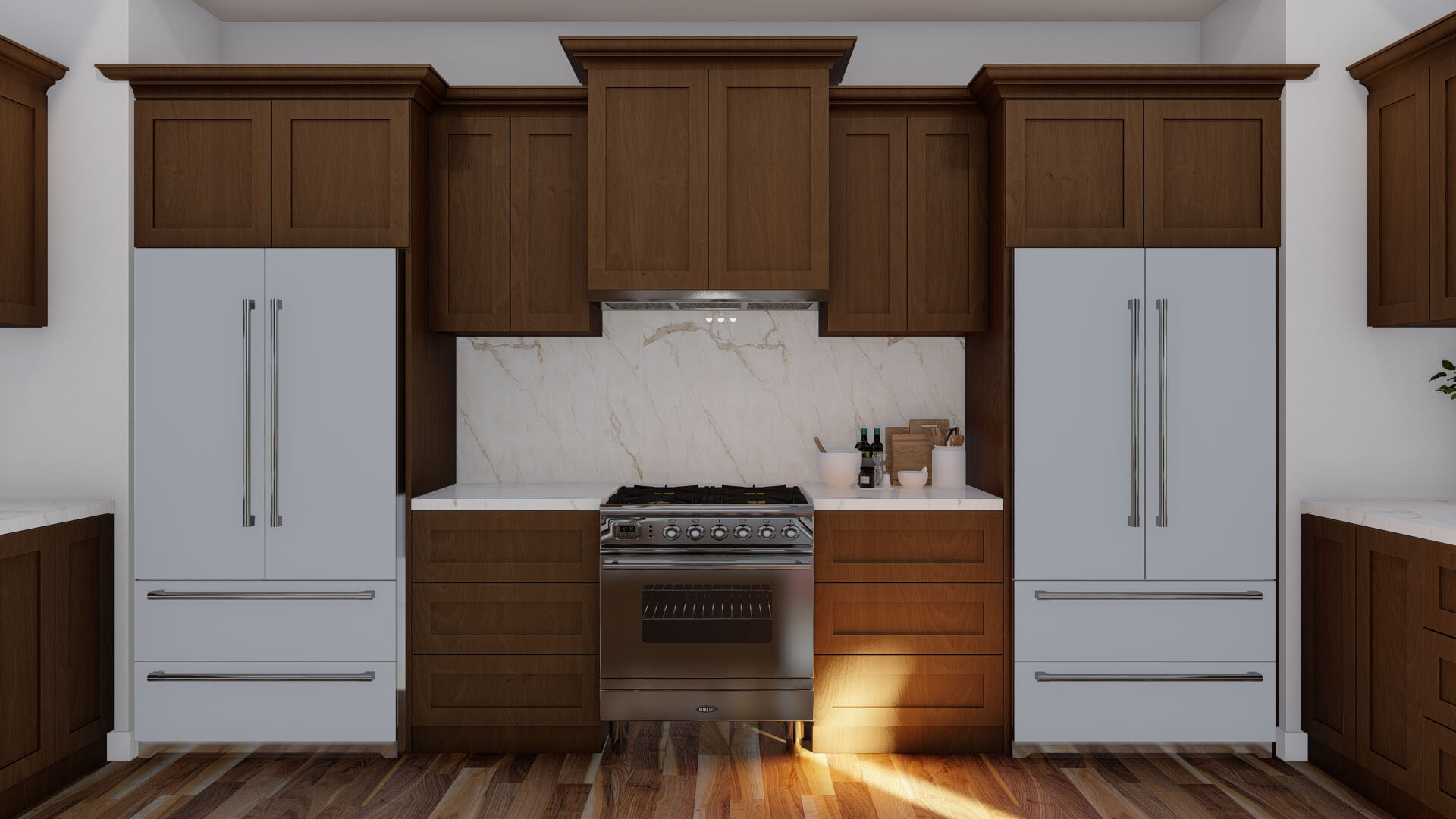

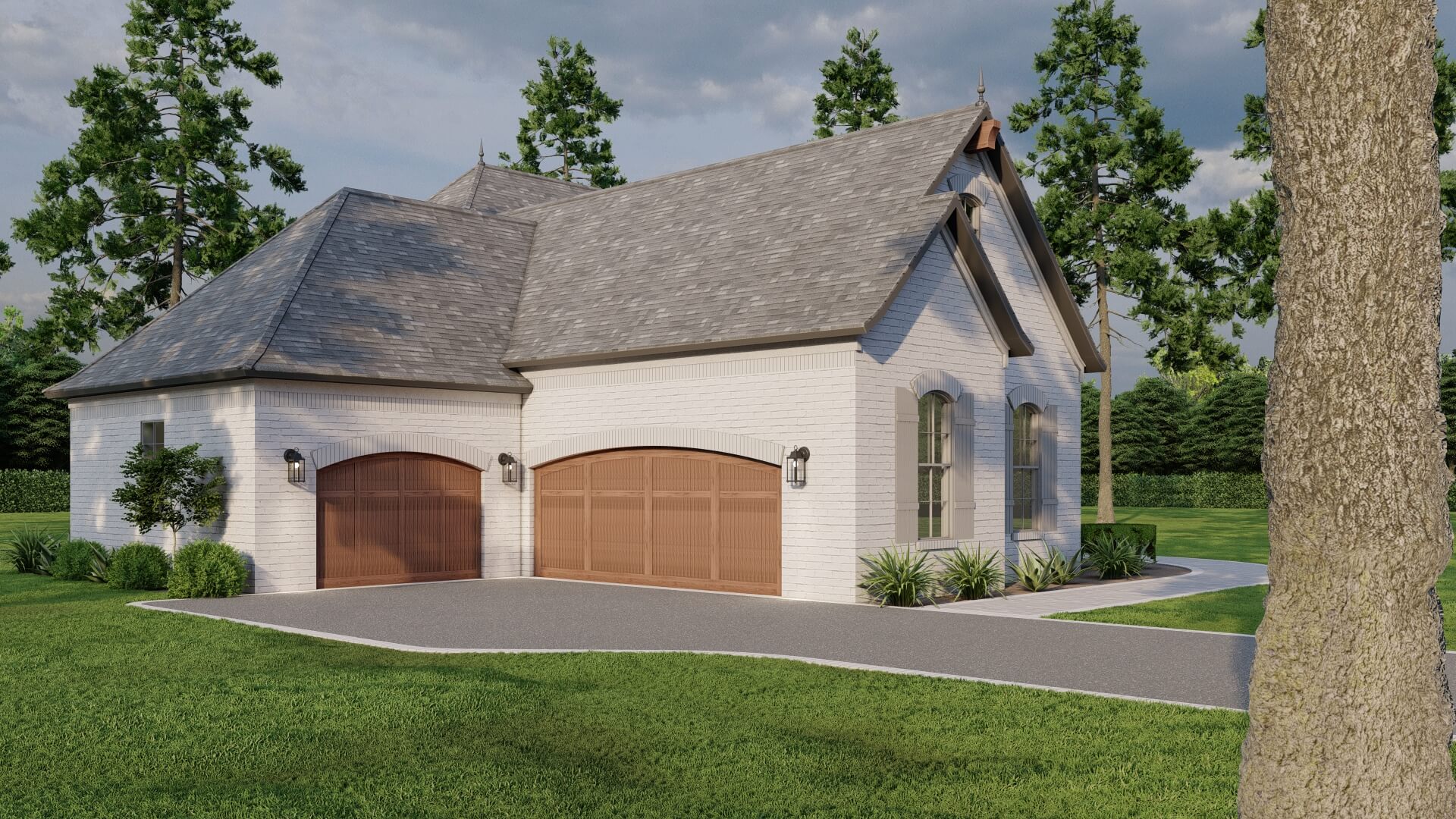

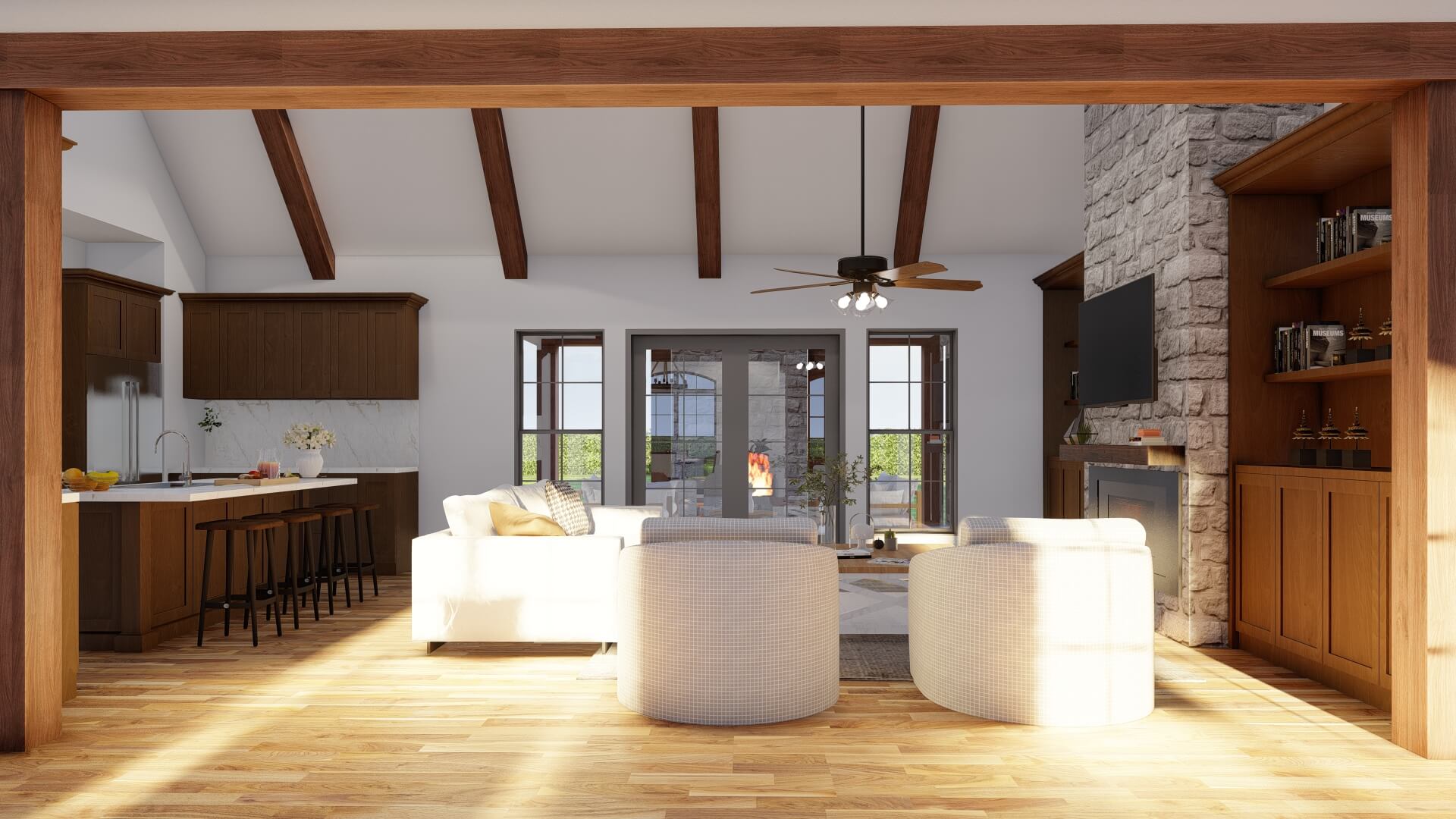

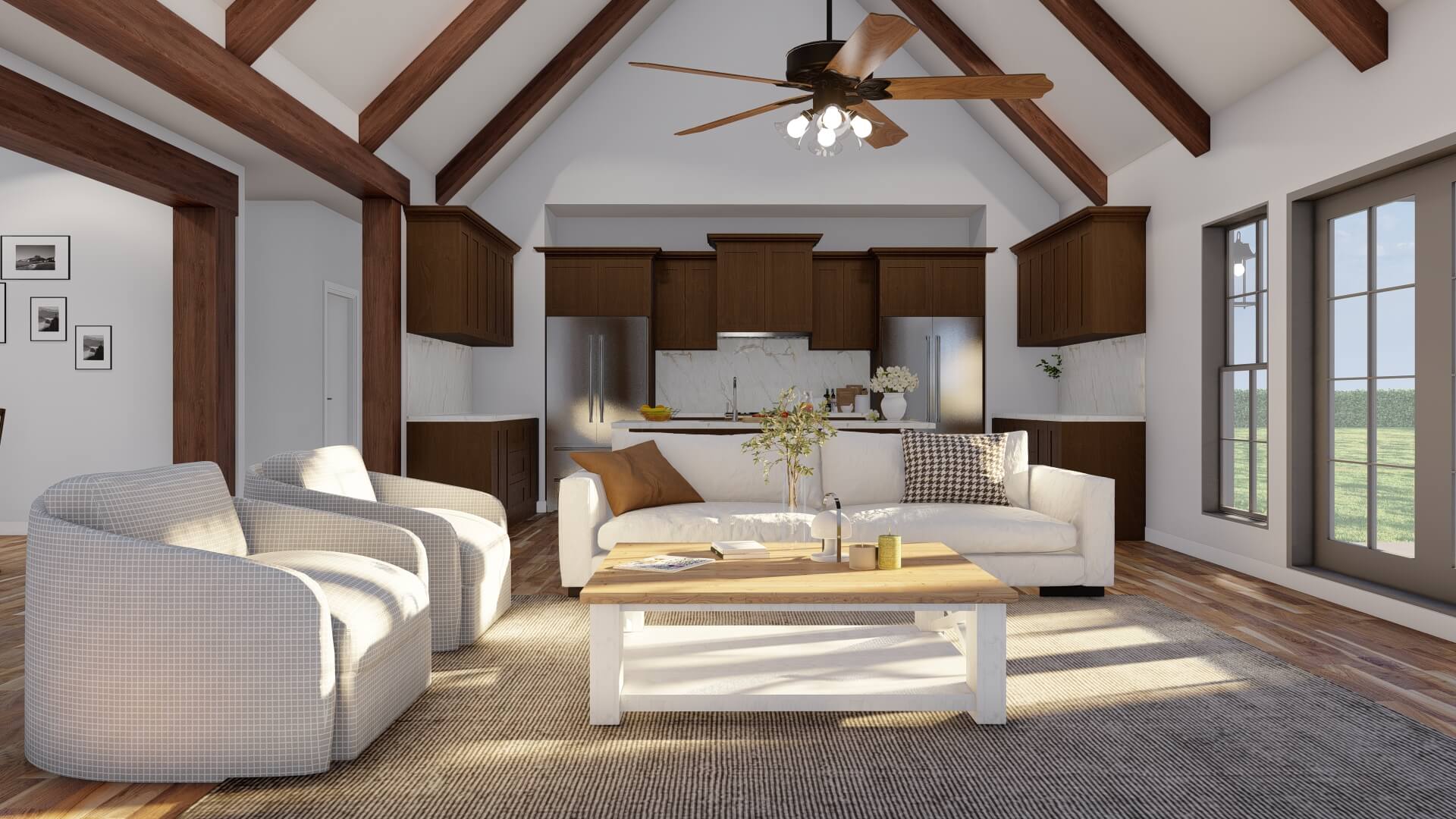

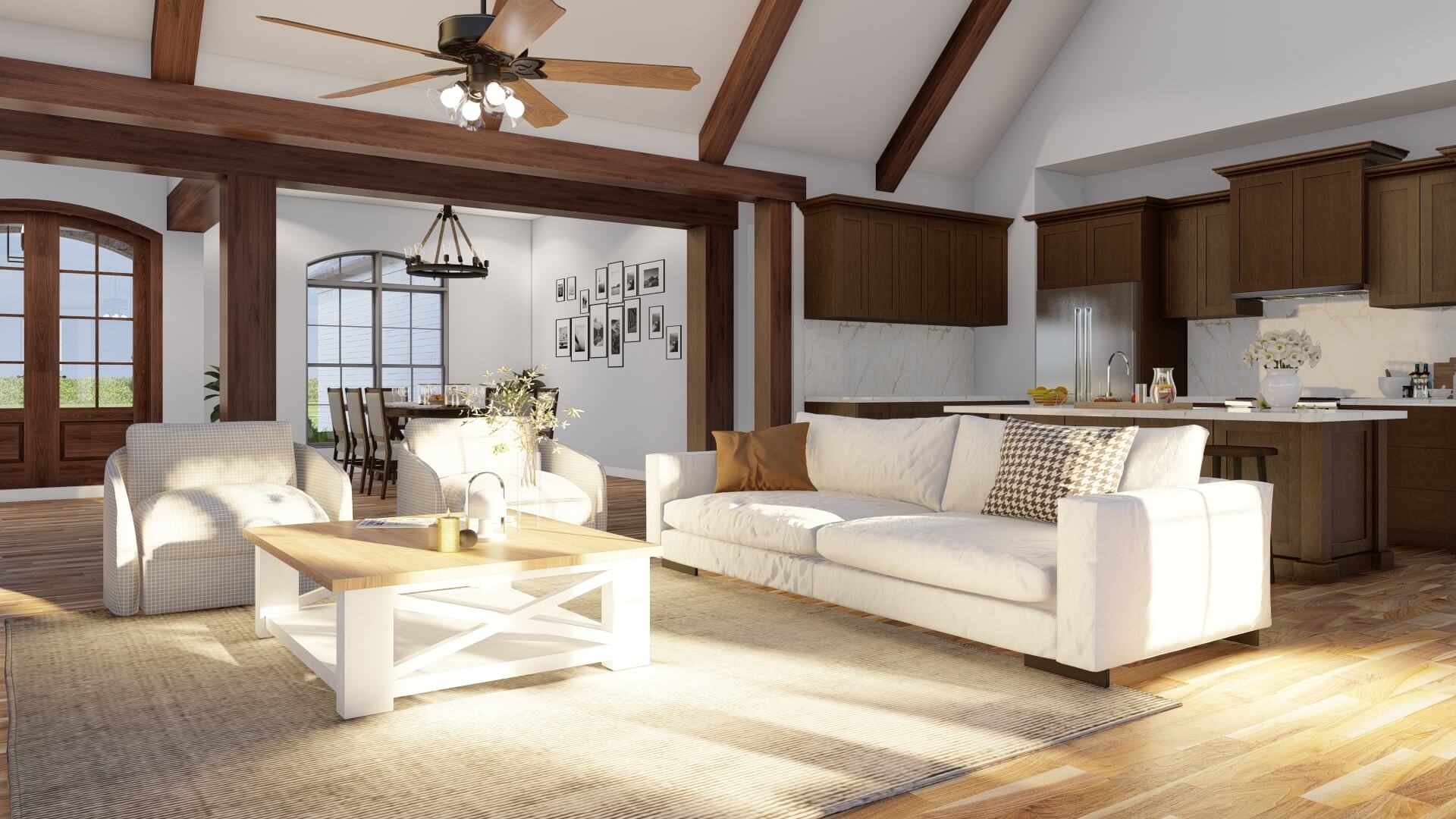

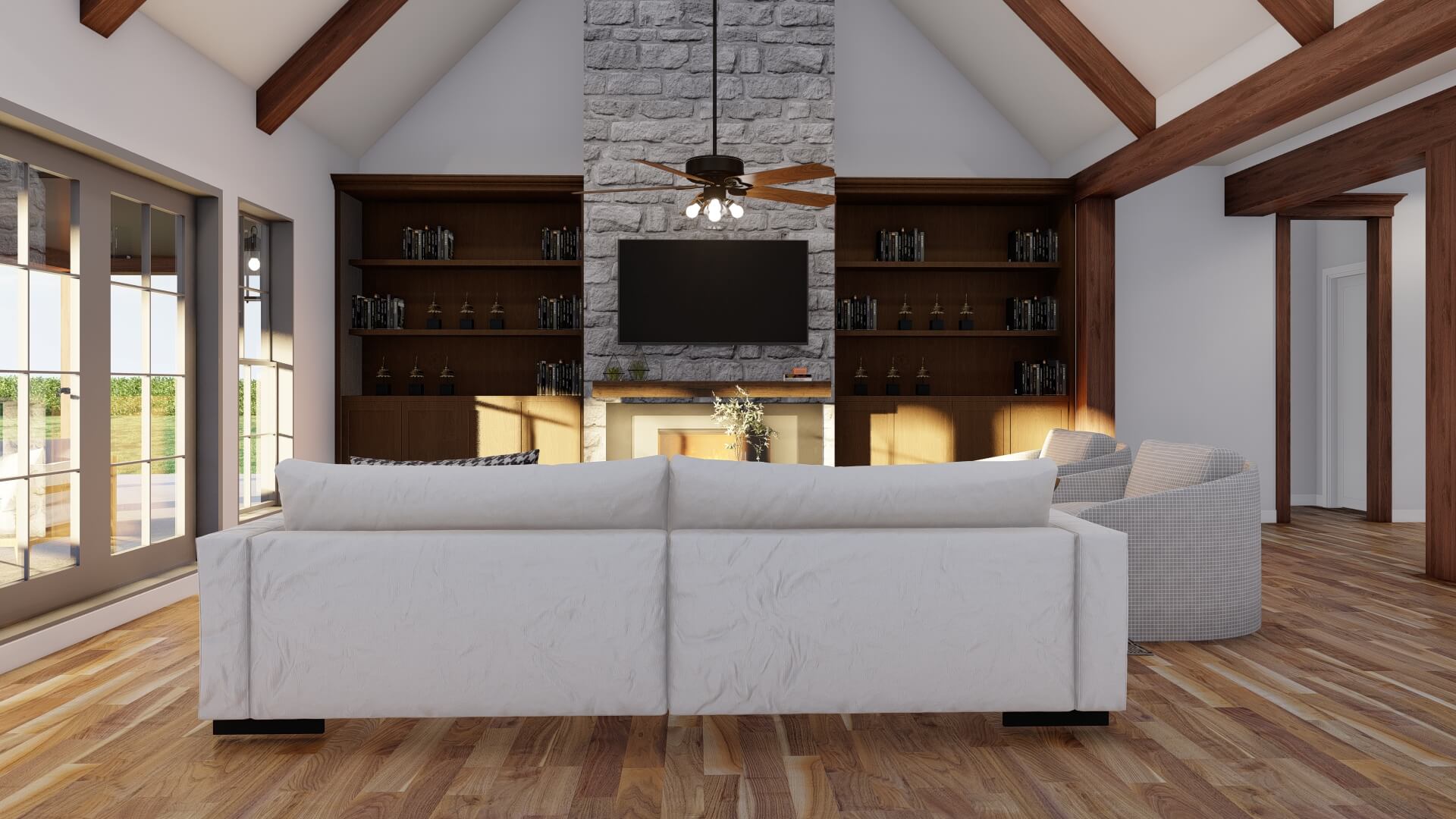

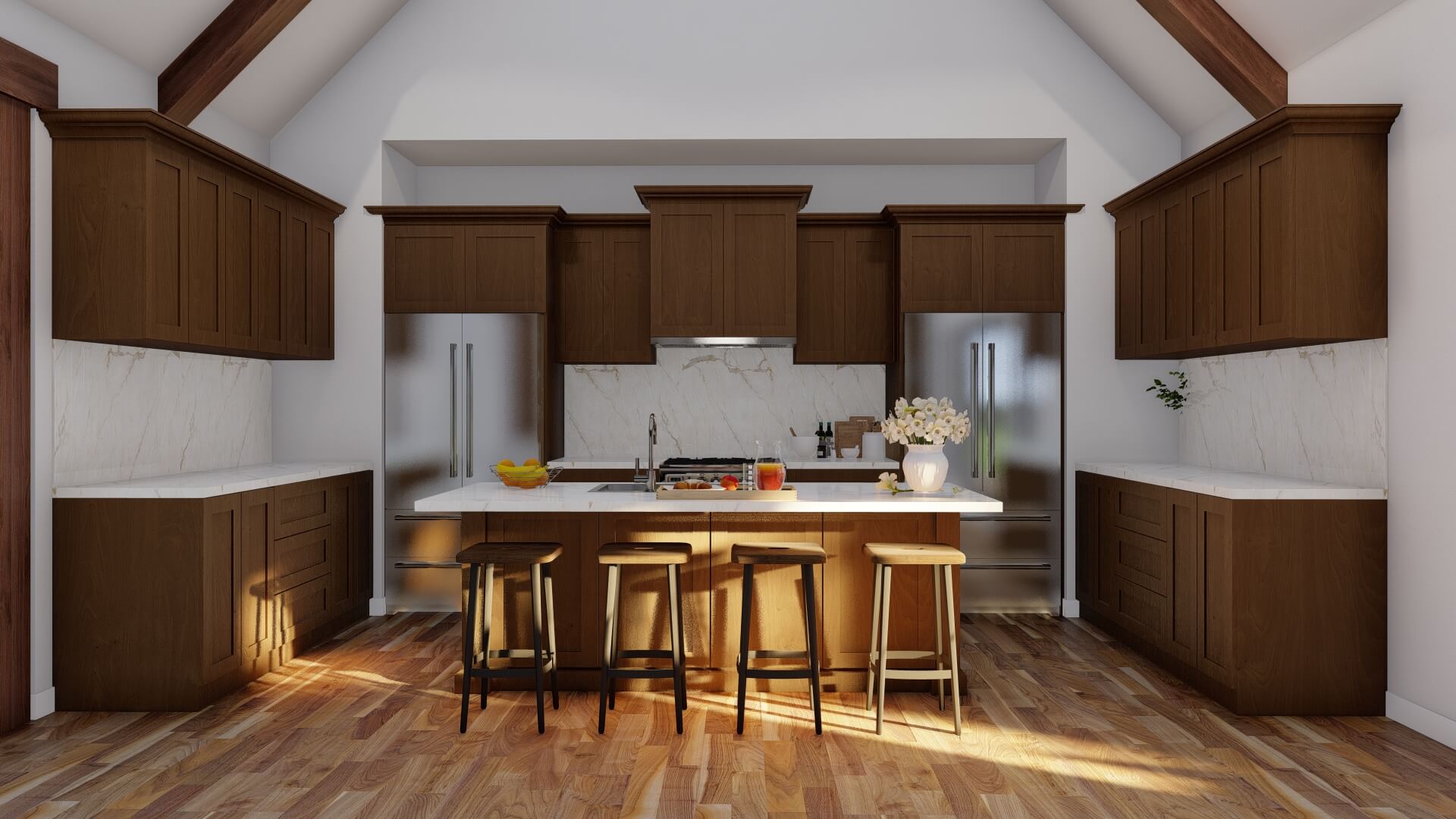

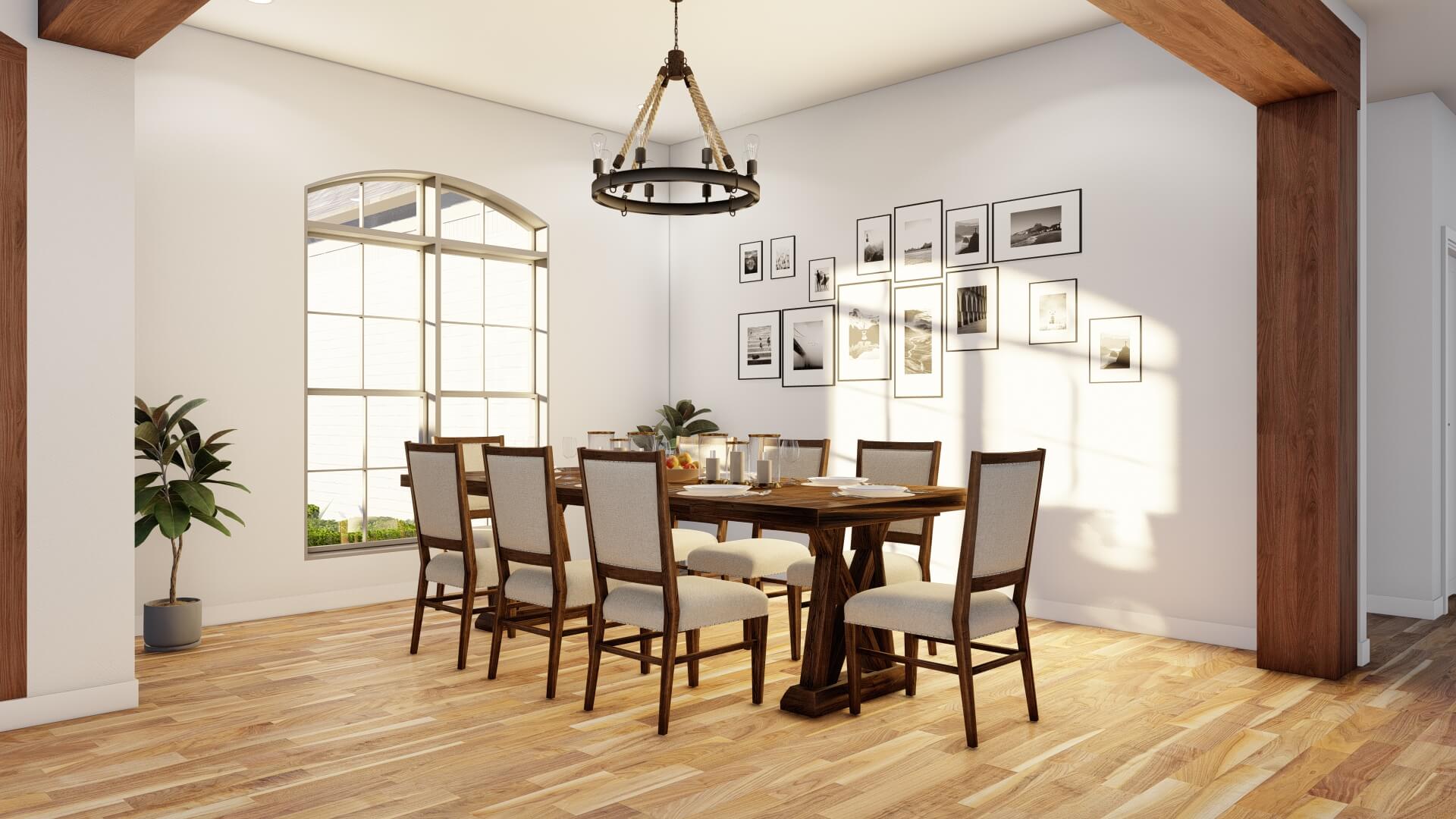

An arched entry way and arched double door welcome you into the home where you will find yourself in the foyer which displays a lofty 12’ ceiling. To the left of the foyer you will see the formal dining room that is flanked by timber posts and beams. Heading straight into the main living area of home through the hall is the great room and kitchen. This open floor plan allows these two spaces to flow together seamlessly. Both spaces share an elegant vaulted ceiling displaying exposed false timber beams. A fireplace in the great room is the perfect spot to enjoy a cup of coffee and a roaring fire during the chilly winter months. The kitchen in this house plan has plenty to offer including a large island with a sink and high top bar with seating. You will also find plenty of additional counter space and even room for an ice machine (I.M.). To the left side of the home are bedrooms 2 and 3. These rooms are both spacious with large closets and they share a Jack and Jill style bathroom between them. On this side of the home you will also find the entrance to the 2 car side load garage, from which you can access the additional single bay front load garage, a half bath conveniently located right off the main hall for guests, and the huge laundry room with a sink and plenty of counter and cupboard space as well as a desk. Heading over to the right side of the home you will notice it is entirely devoted to the master suite. This master bedroom displays a beautiful boxed ceiling as well as a private French door entry from the covered porch. The master bath is complete with dual sink vanity, private toilet room, whirlpool tub, separate shower and a huge walk-in closet. In this beautiful house plan you certainly can’t forget about the wonderful outdoor living spaces. French doors lead from the great room out to the covered porch which features a vaulted ceiling and outdoor fireplace. From here you have access to an additional covered porch and a grilling patio. Other Great Features Of This Home: A bonus room above the garage that can be finished out for an additional 382 Sq.Ft. A small bench area with hanging for a “drop zone” as you enter the home from the garage Convenient linen closets located throughout the home A storage closet in the 2 car garage Enough room in the master closet for drawers in the center

Large Laundry Rooms One Of The Best Rooms In The Home

One of the worst chores for most people is laundry… Everyone has to do it and most everyone hates it, especially the folding! Laundry is a never ending chore that seems to multiply like rabbits. While this chore may never make it off your “hate it” list, it can be a little be easier and less dreaded if you have a large laundry room. A large laundry room gives you the ability to sort your clothes without feeling like the piles of laundry are trying to eat you alive. It also gives you the ability to use your counter space to fold clothes and get them in the proper baskets for each room of the home. Having a sink in your laundry room will also be very convenient for your hand wash items or things that maybe need a little hand scrubbing before going into the washer. You will no longer have to take those items into the bathroom or kitchen to get them cleaned because let’s face it, if you have to do that it will most likely sit in the bottom of the hamper for way too long before you do it.

Customizing This House Plan Taking It From Good To Great

As one of the leading designers in the country we understand that stock plans do not work for every family. Sometimes they need a few tweaks and adjustments to make them perfectly fit your needs. Our experienced team of designers and house plan specialist help hundreds of customers each year do just that. Want to know more about the customization process? Check out our Modifications FAQ page. To get in touch with a Nelson Design Group Home Plan Specialist and get started you can send an email to or give us a call at 870-931-577.


  • Total Living Space:2428Sq.Ft.
  • Main Floor: 2428 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 382 Sq.Ft.
  • Porch (Sq.Ft.): 623 Sq.Ft.
  • Garage (Sq.Ft.): 994 Sq.Ft.
  • Total Square Feet: 4045 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
