House Plan 5003 Treetop Retreat, Craftsman Bungalow House Plan

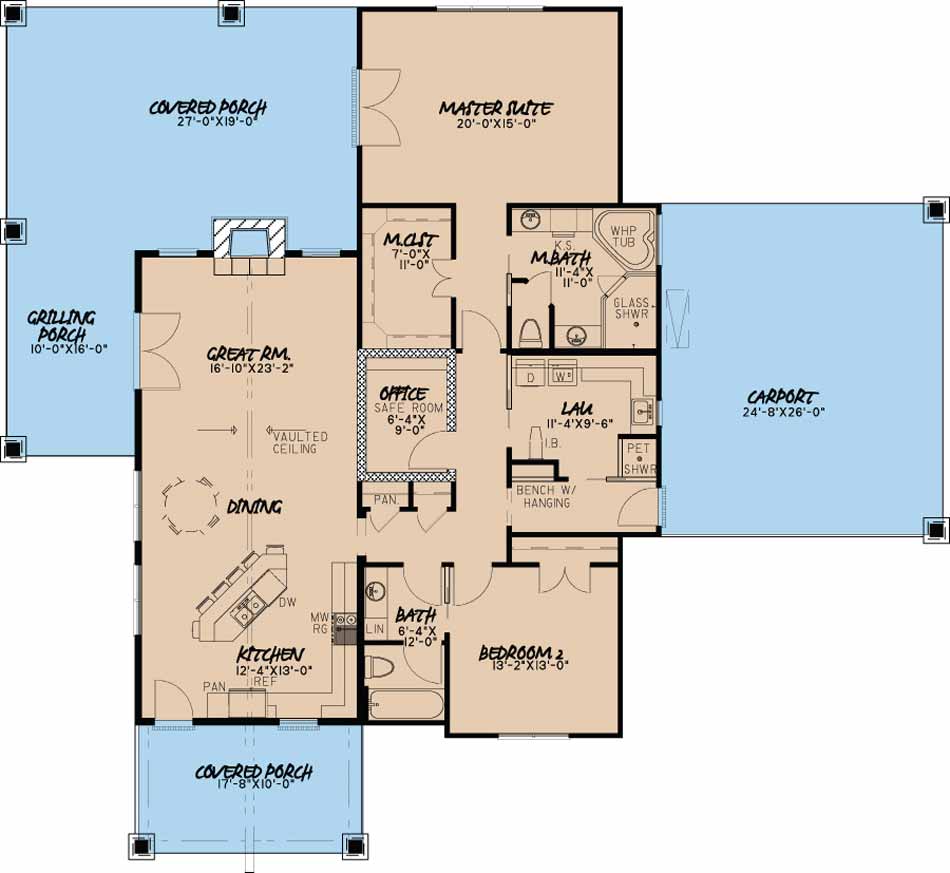

House Plan MEN 5003 Main Floor
House Plan MEN 5003 Main Floor

Floor plans

MEN 5003

House Plan 5003 Treetop Retreat, Craftsman Bungalow House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5003
  • Total Living Space:1891Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Front Load
  • Stories: 1
  • Width Ft.: 73
  • Width In.: N/A
  • Depth Ft.: 66
  • Depth In.: N/A

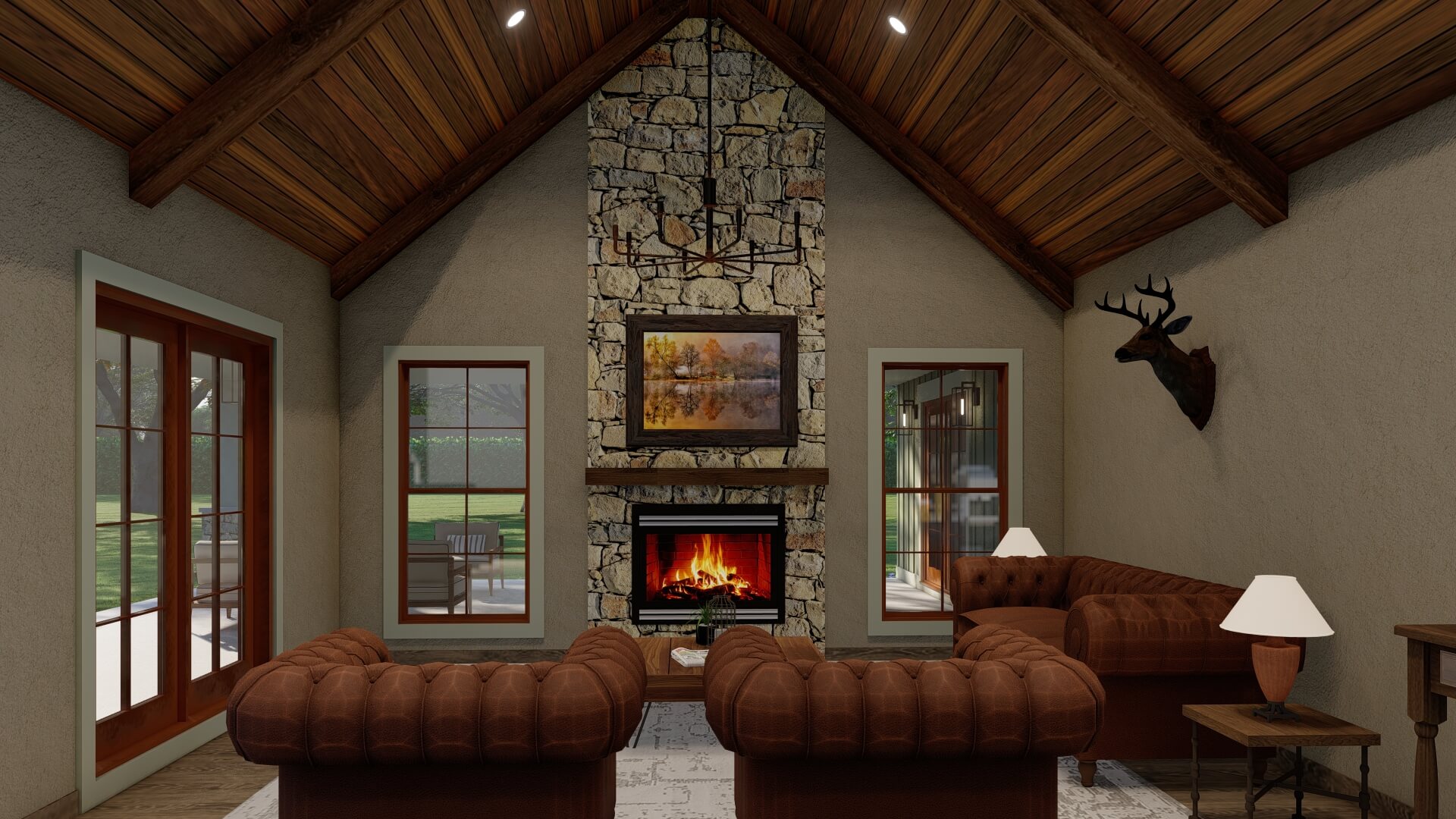

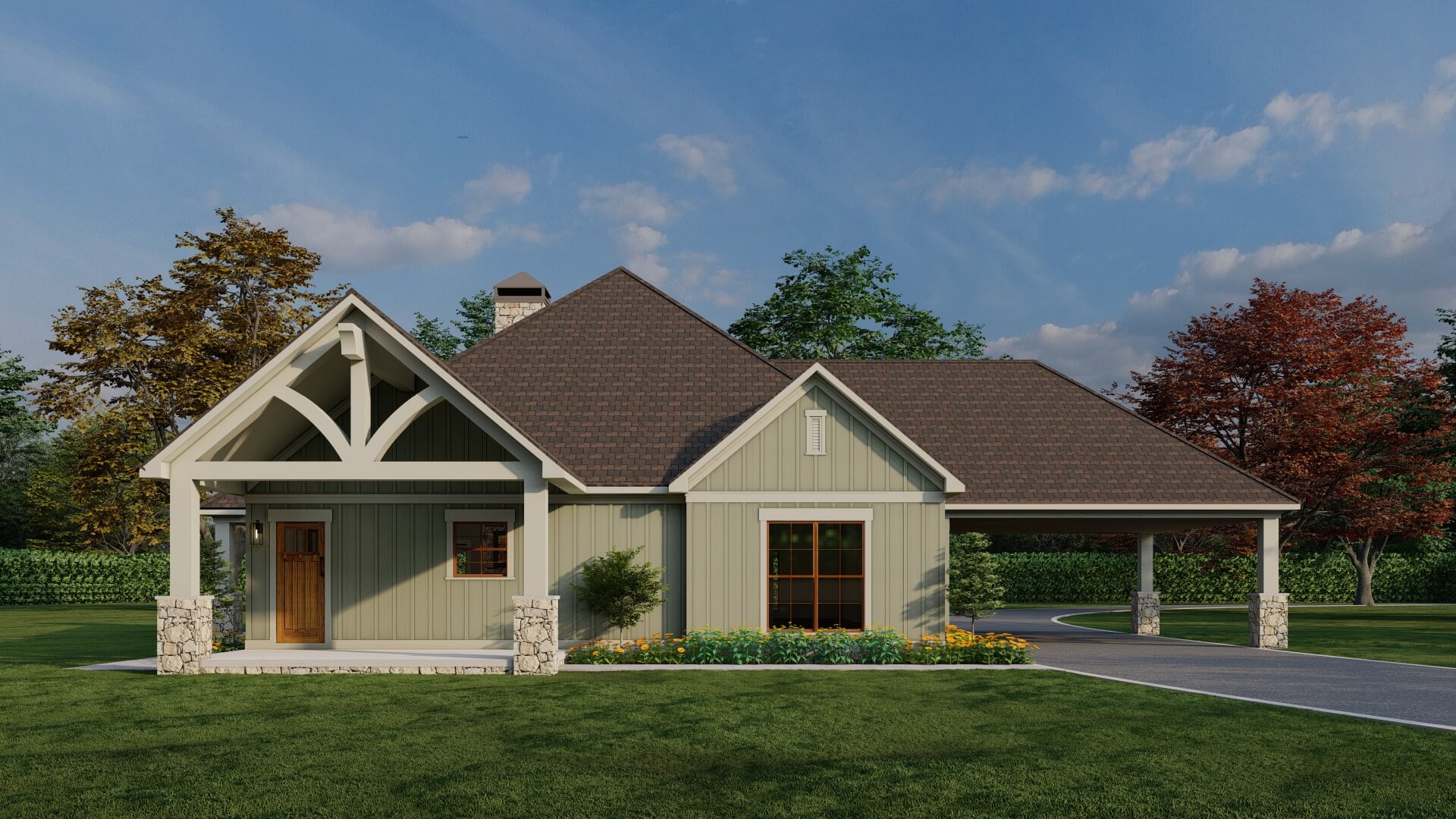

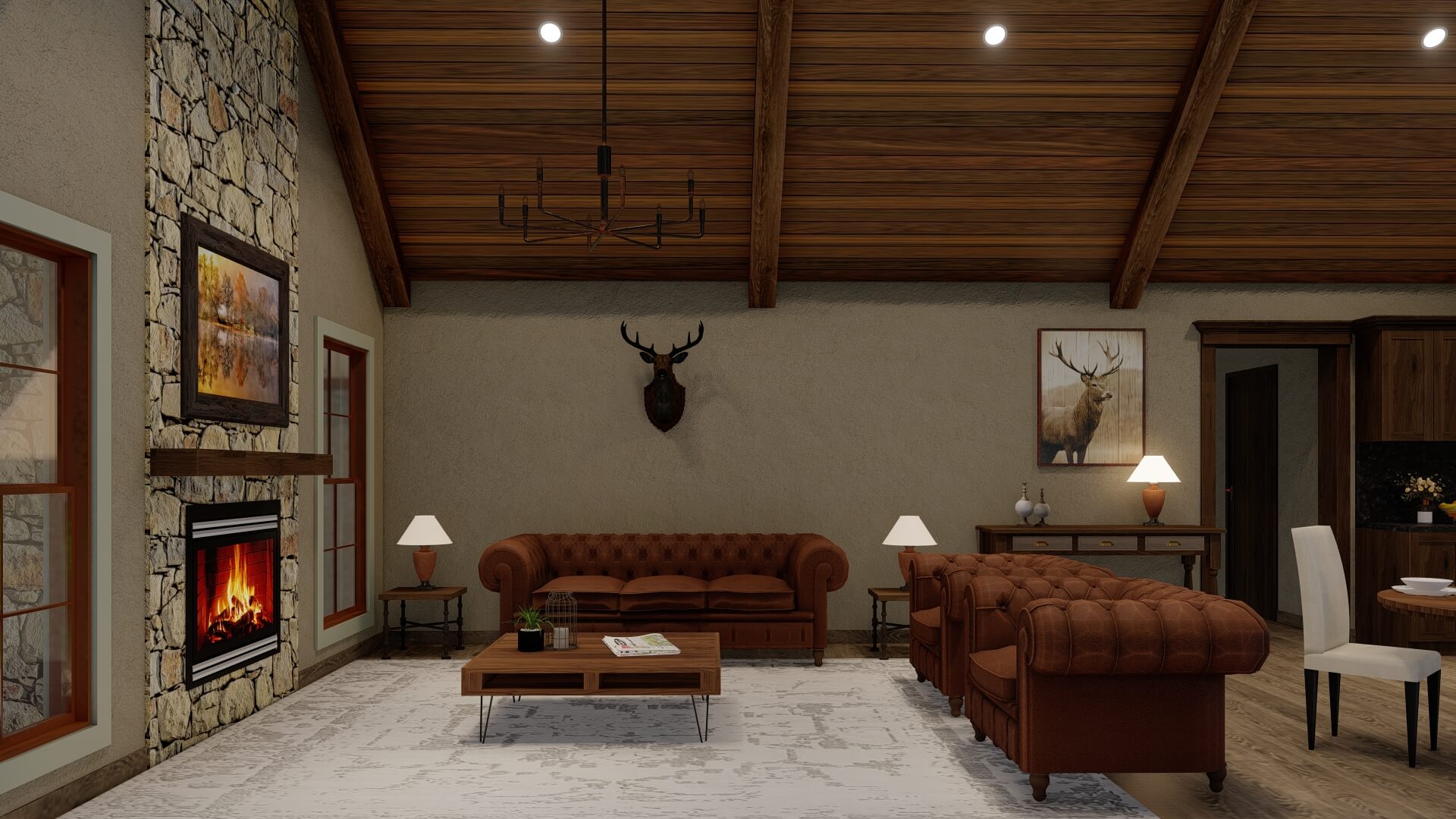

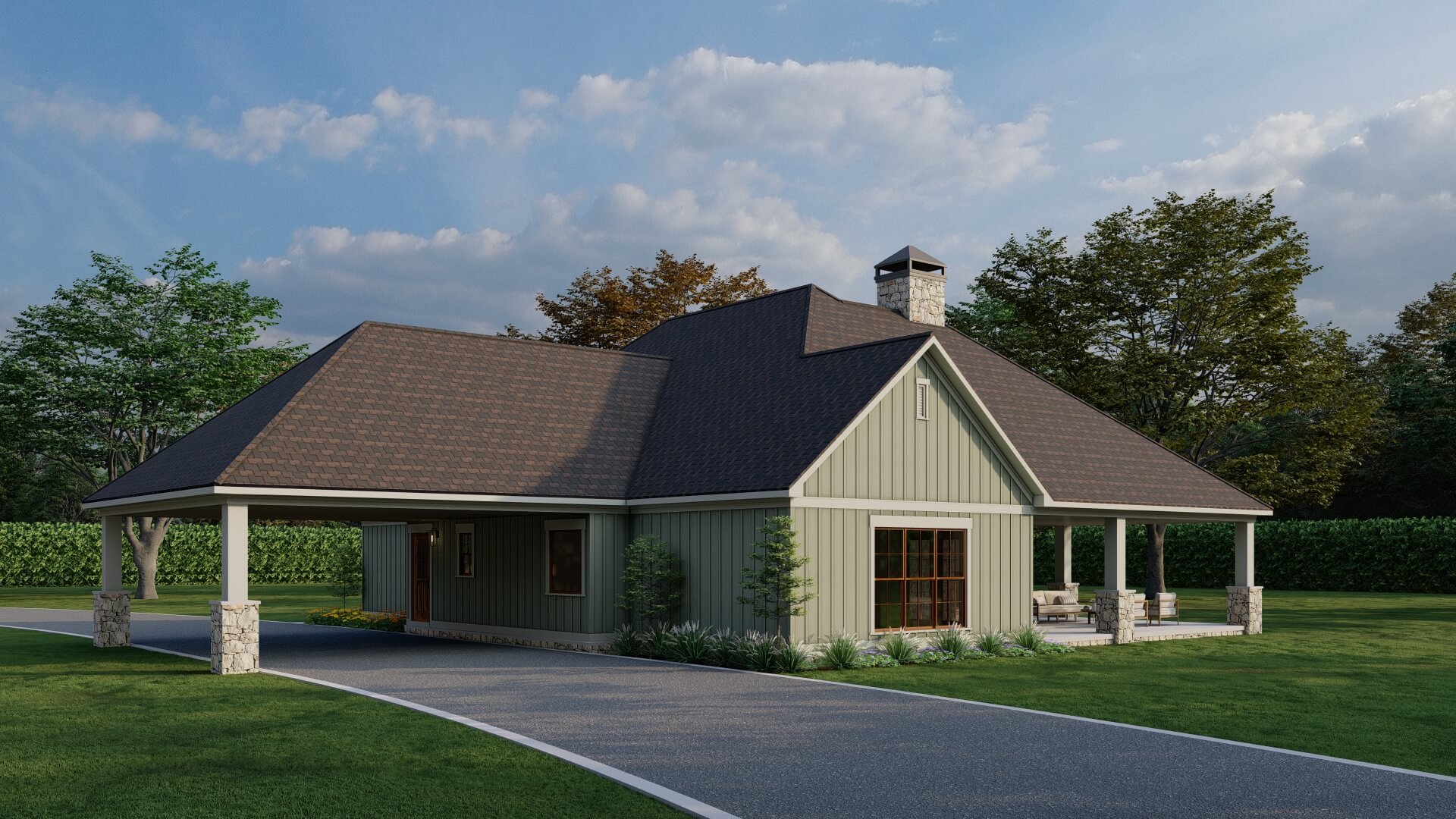

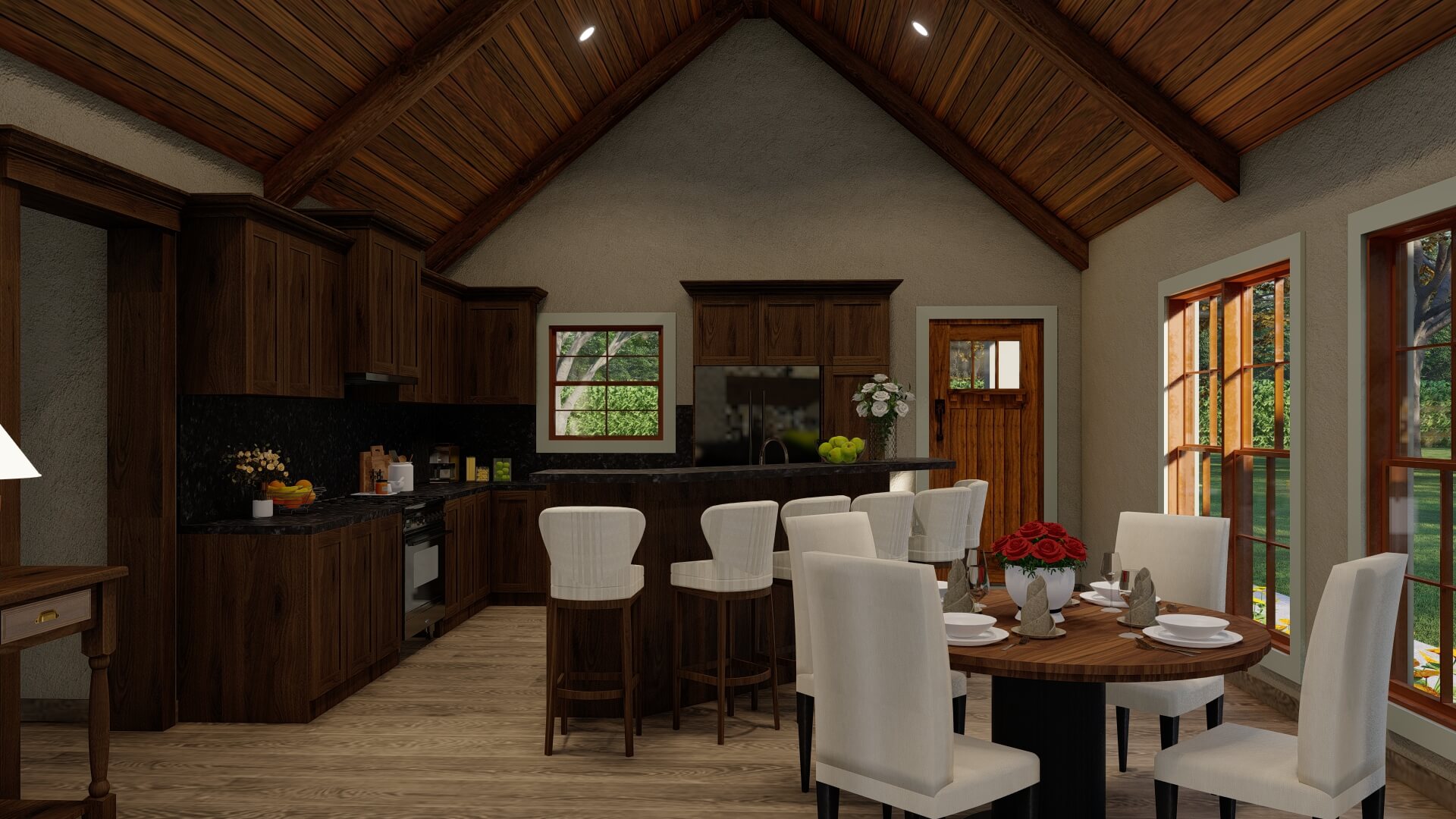

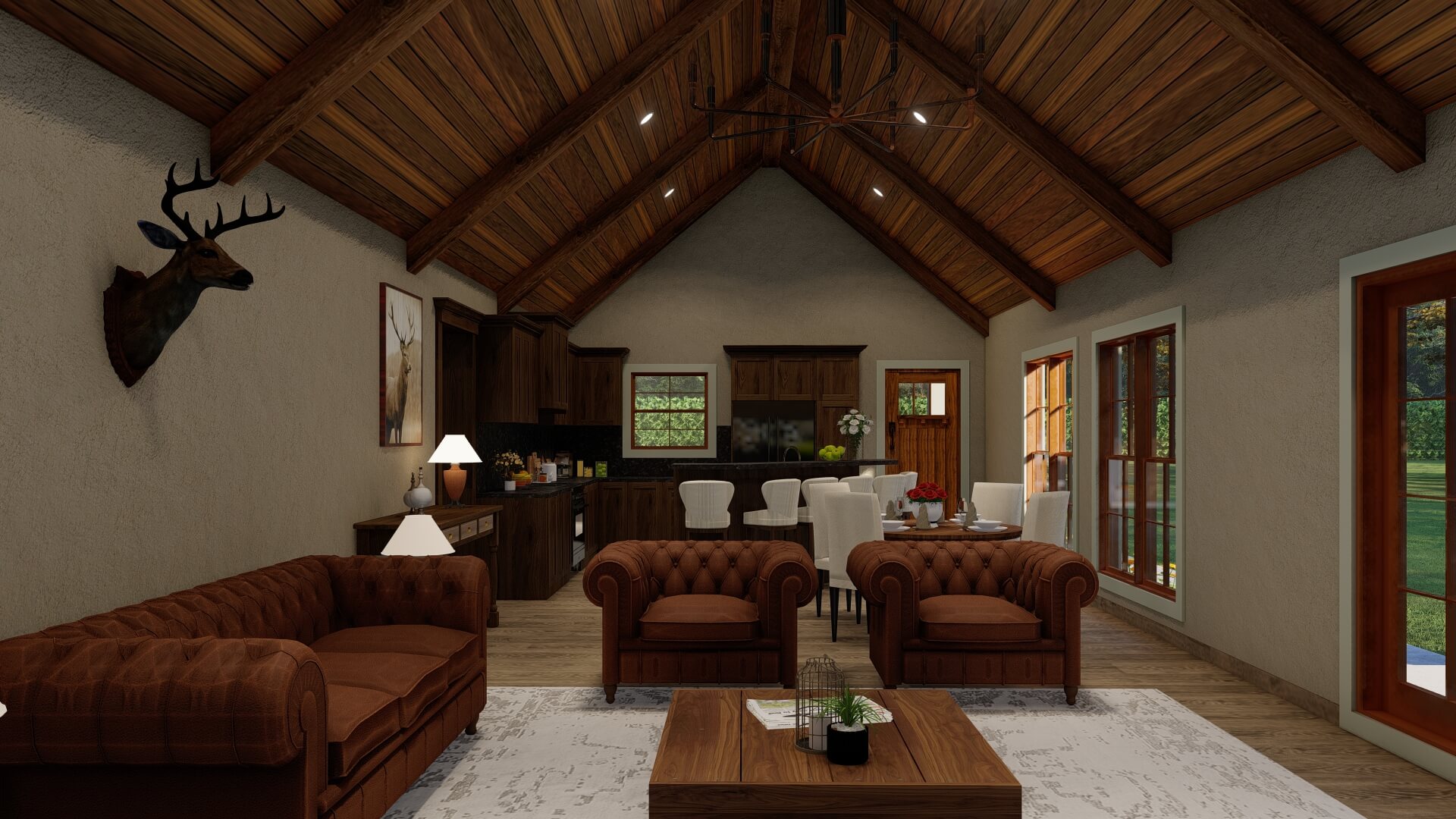

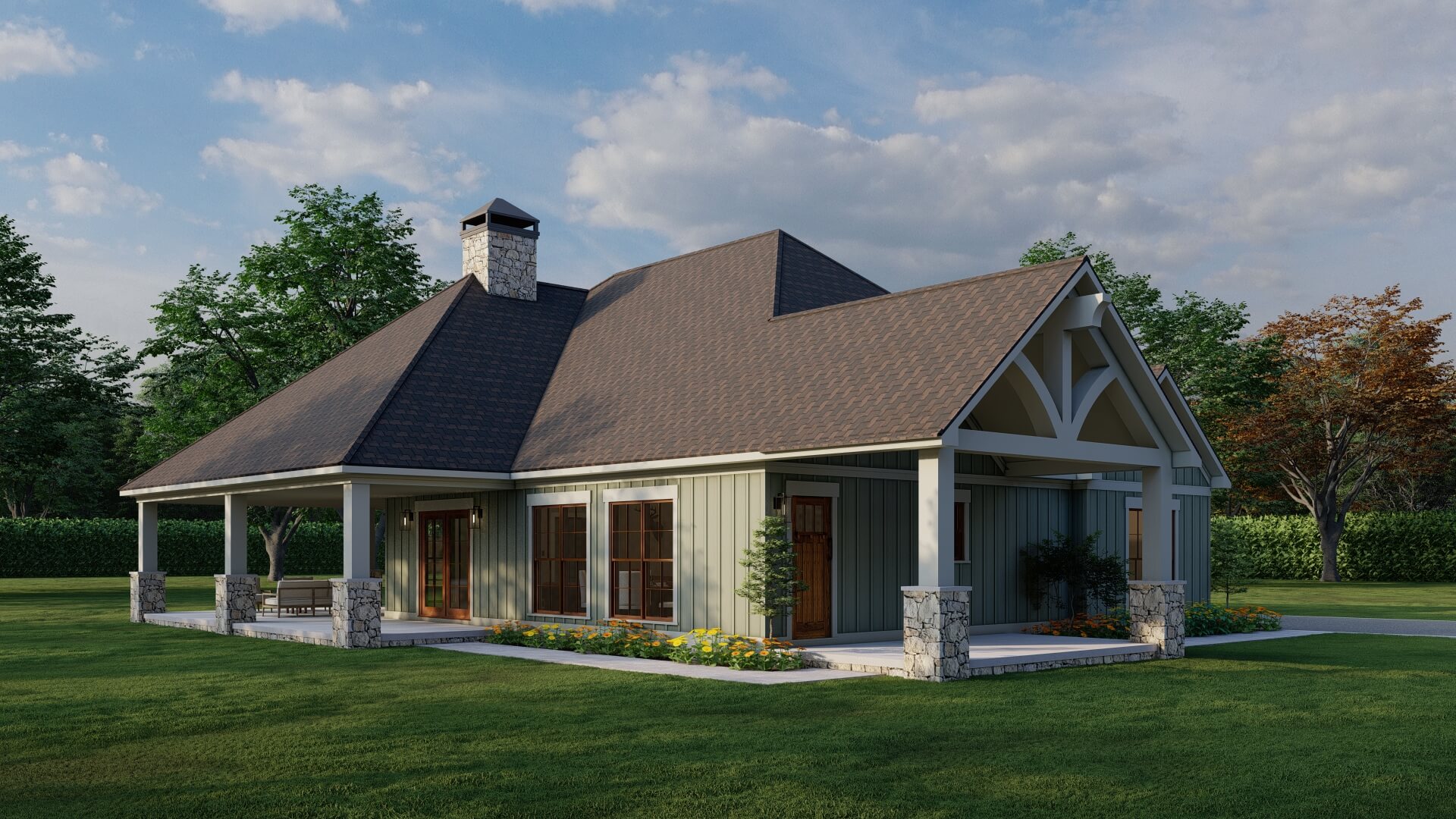

This plan is a great get-away home or vacation home with 2 bedrooms, 2 bath, an open living space and lots of porch area. The large front covered porch is ideal for a porch swing and enjoying the evenings. The spacious kitchen has an agled eat-at island bar, perfect for entertaining and is open to the Great Room that features a fireplace and a vaulted ceiling. And it has access to the side and rear Covered Grilling Porch, a popular gathering spot for sure.


  • Total Living Space:1891Sq.Ft.
  • Main Floor: 1891 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 856 Sq.Ft.
  • Garage (Sq.Ft.): 574 Sq.Ft.
  • Total Square Feet: 3321 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
