House Plan 488 Cambridge Court, Multi-Family House Plan

>

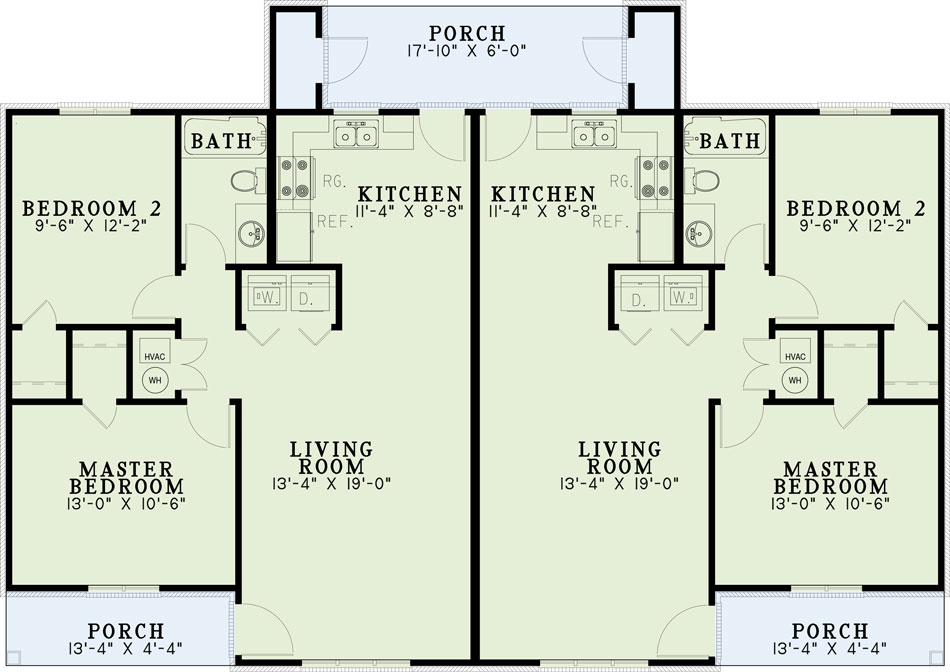

Floor plans

NDG 488

House Plan 488 Cambridge Court, Multi-Family House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 488
  • Total Living Space:818Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 54
  • Width In.: 6
  • Depth Ft.: 38
  • Depth In.: 4

Description

This two bedroom duplex plan allows neighbors privacy as well as a shared rear porch for afternoon conversation. An enormous living room opens to the kitchen and gives you many options for furniture arrangement. A handy storage room located on the rear porch is available for a clutter free backs

Specifications

  • Total Living Space:818Sq.Ft.
  • Main Floor: 818 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 129 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 947 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 7:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
