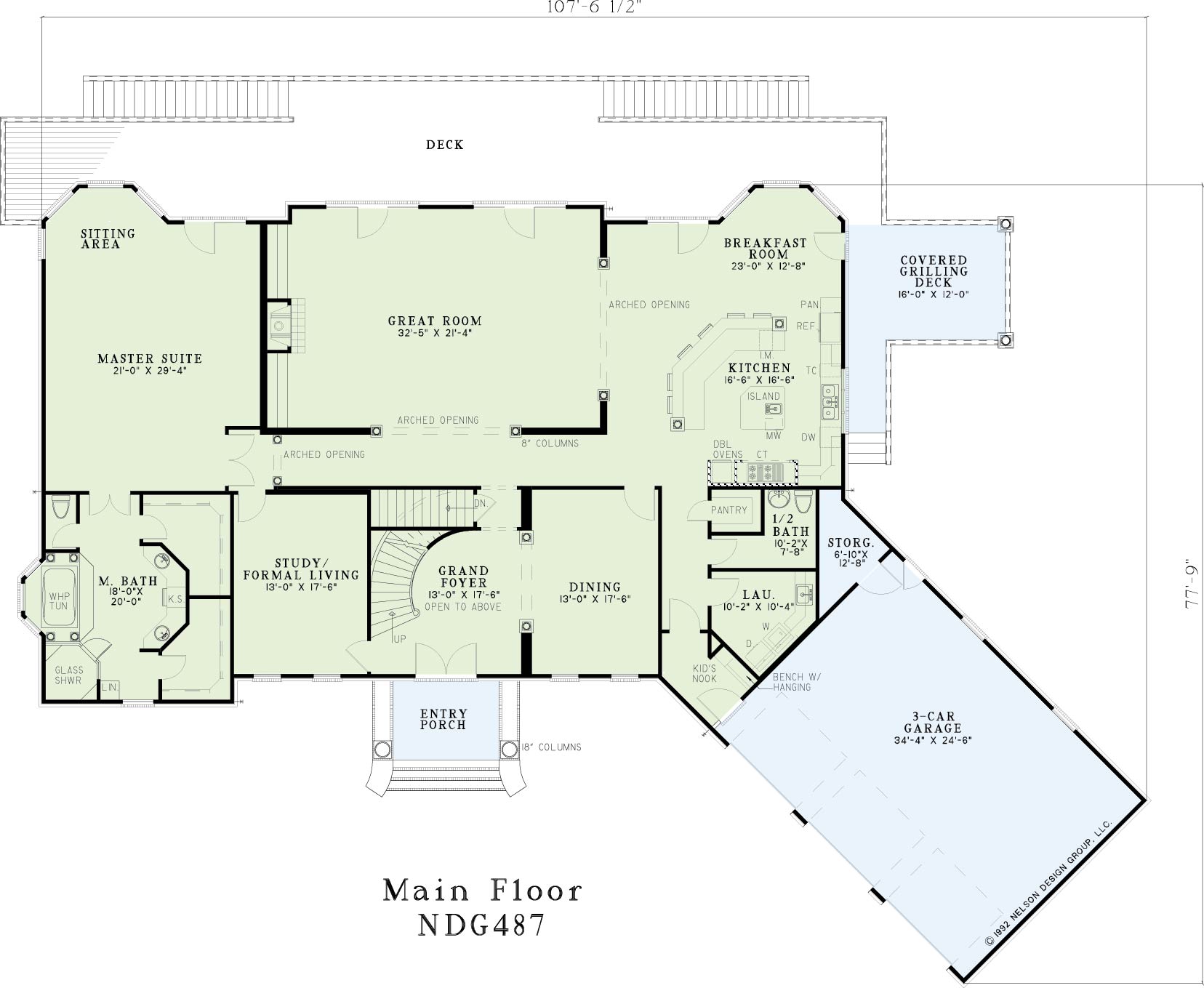

House Plan NDG 487 Main Floor

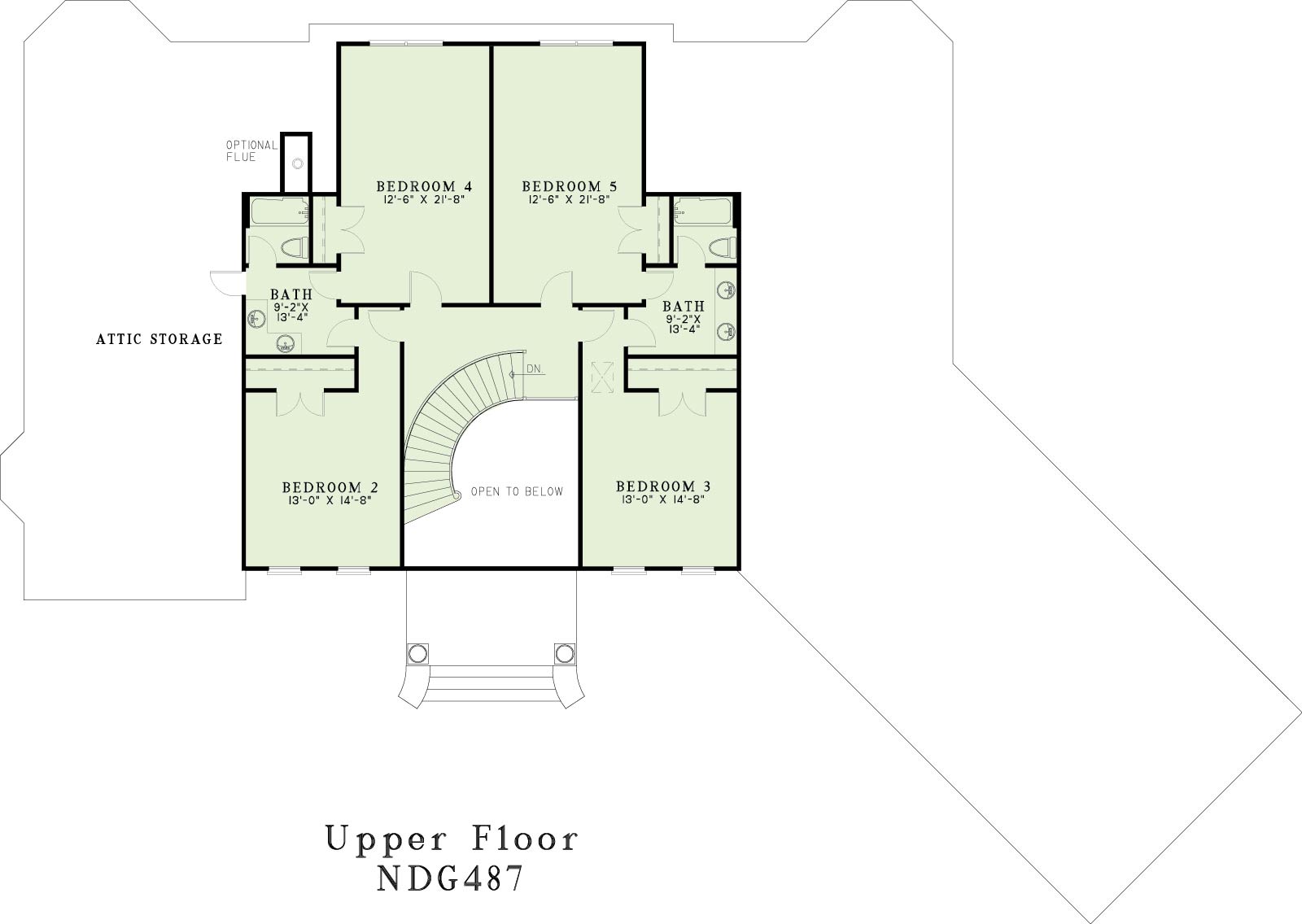

House Plan NDG 487 Upper Floor

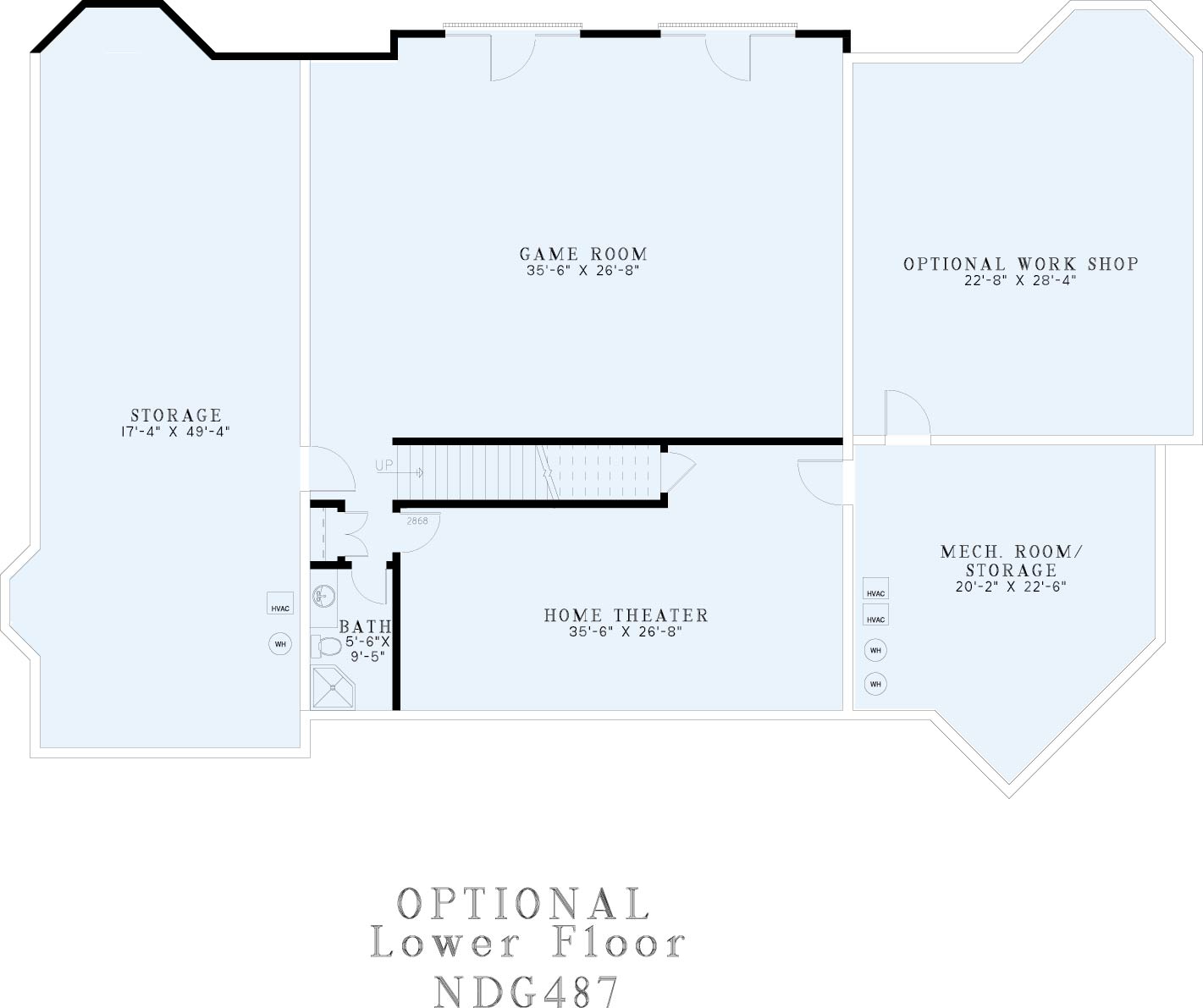

House Plan NDG 487 Basement
House Plan NDG 487 Main Floor
House Plan NDG 487 Upper Floor
House Plan NDG 487 Basement

Floor plans

NDG 487

House Plan 487 Huntington Avenue, Luxury House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 487
  • Total Living Space:6703Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 107
  • Width In.: 7
  • Depth Ft.: 77
  • Depth In.: 9

Description

Three levels hold all of the amenities in this luxurious Nelson Design Group home. The main floor features a grand foyer that ushers your guests into the dining room with columns. This kitchen was designed with the chef in mind and features double ovens, an island workspace, and bar seating. A covered grilling deck is also available for cookouts just off of the expansive rear deck. The upper floor of this home houses four bedrooms and two full baths, as well as plenty of storage space. The lower floor, however, could be the favorite of the entire family. A large game room and home theater can be found here, along with the option of a future workshop.

Specifications

  • Total Living Space:6703Sq.Ft.
  • Main Floor: 3612 Sq.Ft
  • Upper Floor (Sq.Ft.): 1438 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 306 Sq.Ft.
  • Garage (Sq.Ft.): 925 Sq.Ft.
  • Total Square Feet: 7934 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: 12
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
