House Plan 468 Madison Drive, Traditional House Plan

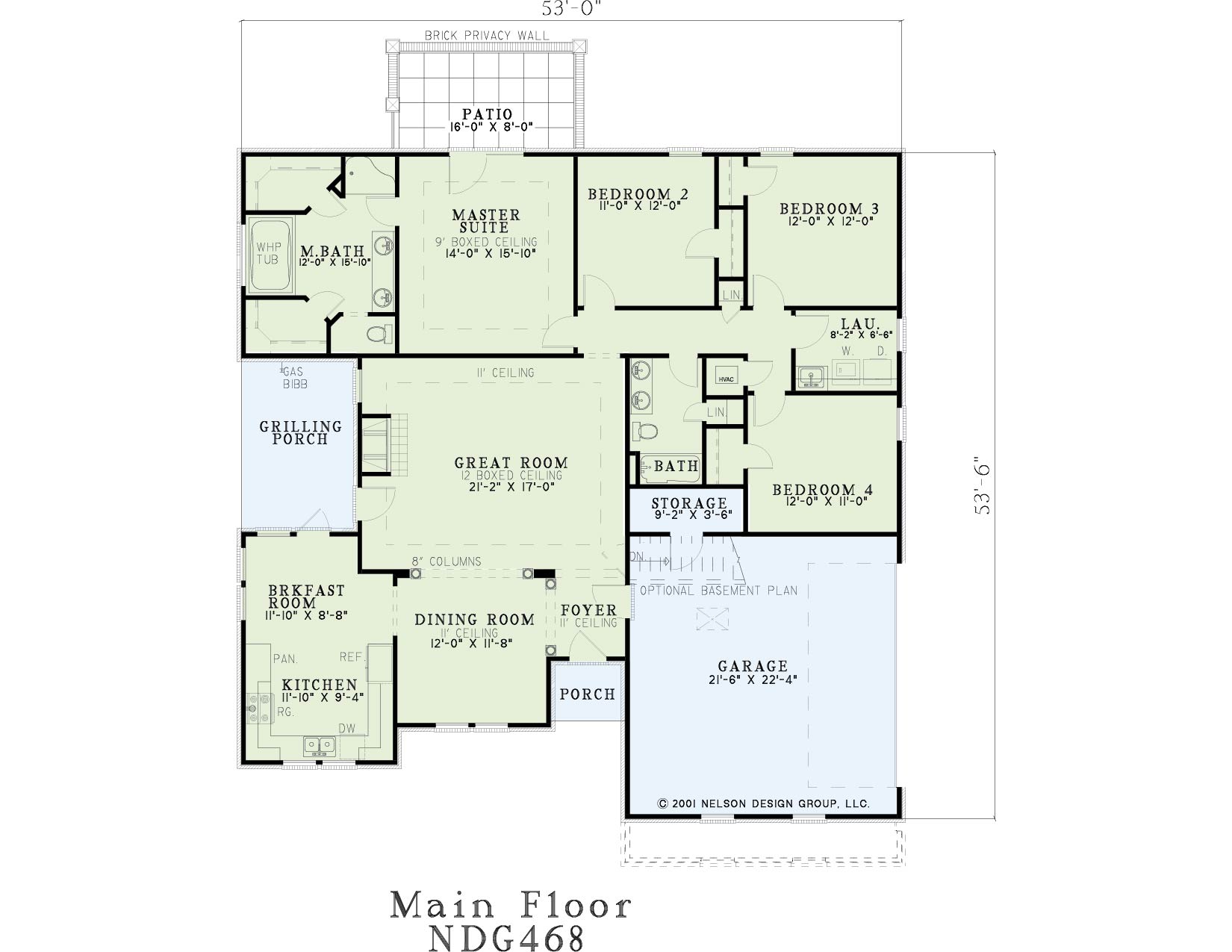

Floor plans
NDG 468
House Plan 468 Madison Drive, Traditional House Plan
Plan Details
- Plan Number: NDG 468
- Total Living Space:1950Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 53
- Width In.: N/A
- Depth Ft.: 53
- Depth In.: 6
Description
This four-bedroom plan has interior columns and high ceilings for an exceptional welcome. A formal dining room opens to the foyer and great room allowing guests to mingle before dinner or enjoy conversation on the grilling porch. The Master Suite features a nine-foot ceiling and luxurious private bath as well as patio with a brick privacy wall for enjoying starlit evenings.
Specifications
- Total Living Space:1950Sq.Ft.
- Main Floor: 1950 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 154 Sq.Ft.
- Garage (Sq.Ft.): 536 Sq.Ft.
- Total Square Feet: 2640 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
