House Plan 449 Rosewood, Multi-Family House Plan

>

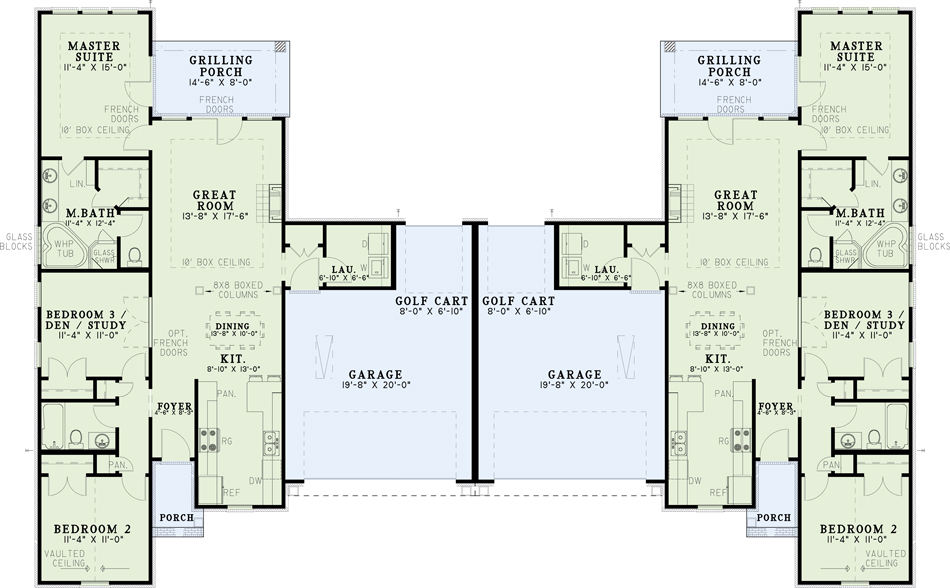

Floor plans

NDG 449

House Plan 449 Rosewood, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 449
  • Total Living Space:1359Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 92
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: 4

Description

Natural rock and boxed columns give this duplex wonderful street appeal. This floor plan has ten foot-boxed ceilings in the great room and master suite bedroom and a vaulted ceiling in the front guestroom. Columns are used to frame the dining area while enjoying a view of the great room. The master suite has French doors leading to the grilling porch and a luxurious private bathroom. The center bedroom has optional French doors and is perfect for a home study. The double car garage has a rear golf cart bay for that glorious golf course living.

Specifications

  • Total Living Space:1359Sq.Ft.
  • Main Floor: 1359 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 434 Sq.Ft.
  • Garage (Sq.Ft.): 786 Sq.Ft.
  • Total Square Feet: 2579 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
