House Plan 446 Maple Street, Traditional House Plan

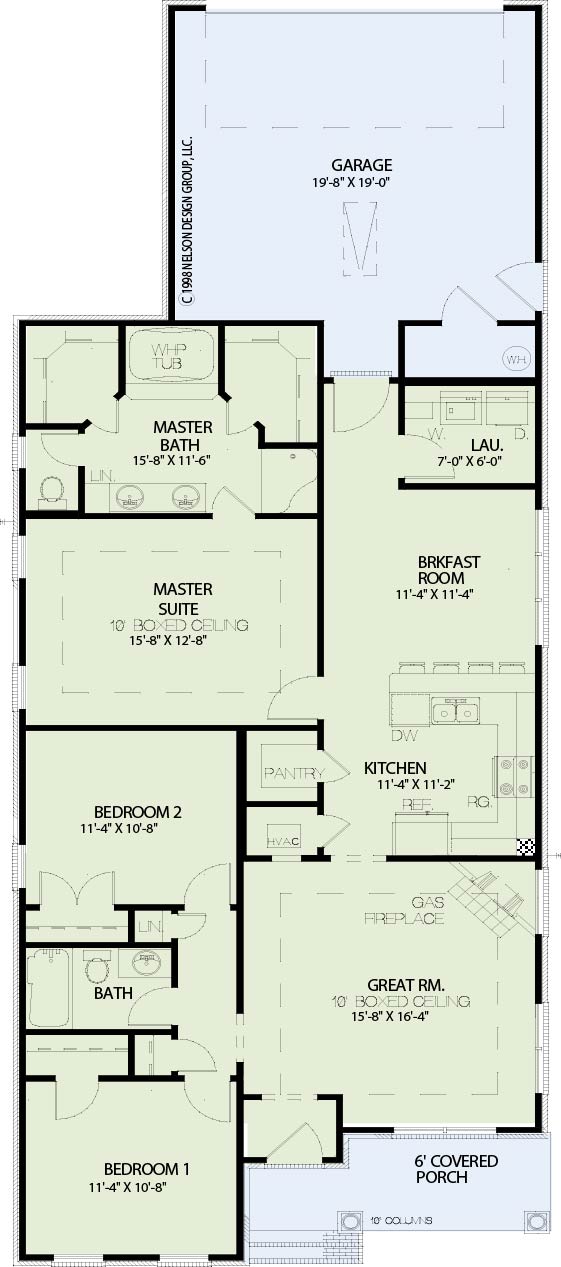

House Plan NDG 446 Main Floor
House Plan NDG 446 Main Floor

Floor plans

NDG 446

House Plan 446 Maple Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 446
  • Total Living Space:1445Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 28
  • Width In.: N/A
  • Depth Ft.: 77
  • Depth In.: N/A

Description

On those cold winter nights, enjoy family time in your great room enhanced by an angled fireplace and a ten foot boxed ceiling. This Southern Traditional home kitchen features an eat at bar as well as a large breakfast room, making starting the day with your family a treat for all. The children will enjoy having their own section of the house with a full bath separating bedrooms two and three. As for you and your significant other, you’ll find peace and luxury in the master bedroom adorned with ten foot ceilings and a large master bath complete with whirlpool tub, and ‘his and her’ vanities as well as spacious walk-in closets.

Specifications

  • Total Living Space:1445Sq.Ft.
  • Main Floor: 1445 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 144 Sq.Ft.
  • Garage (Sq.Ft.): 374 Sq.Ft.
  • Total Square Feet: 1963 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
