House Plan 444 Windstone Place, Village at Windstone III House Plan

House Plan 444 Windstone Place, Village at Windstone III House Plan

House Plan - ndg444 Front View

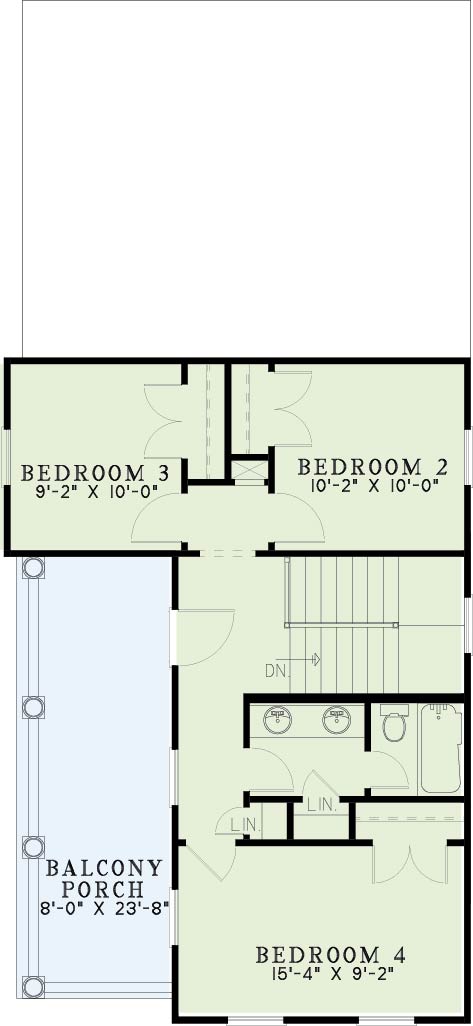

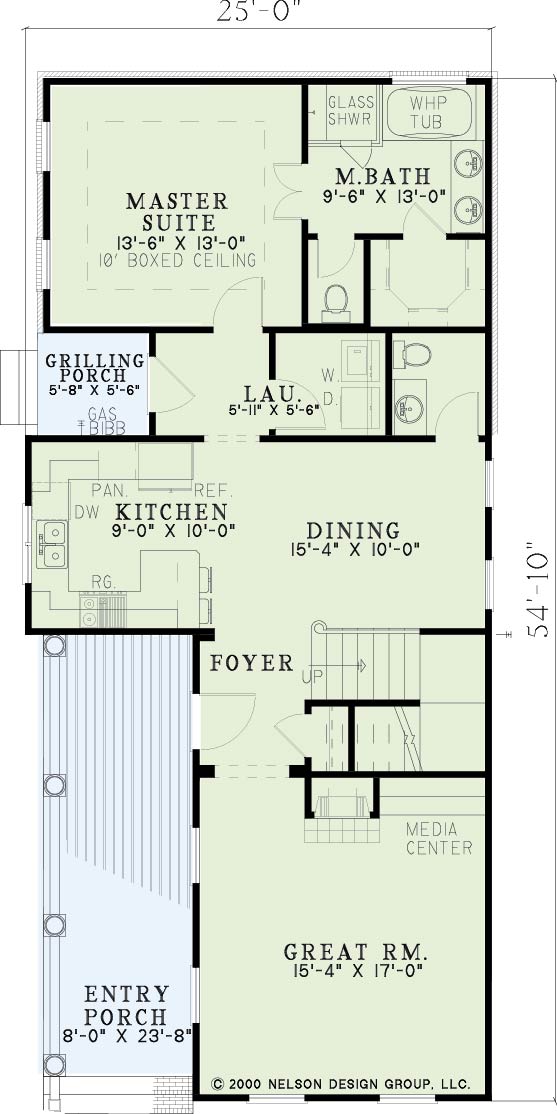

Floor plans

NDG 444

House Plan 444 Windstone Place, Village at Windstone III House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 444
  • Total Living Space:1701Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 25
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 10

Description

This historically inspired home with covered porch and balcony make this plan a perfect family haven. The front porch leads into the foyer which separates the great room from dining room and leads to an upstairs. The great room has a fireplace and media center for the electronic buff. Entertaining with a grilling porch just off the kitchen. And of course, the master suite is enhanced with a ten-foot boxed ceiling and double French door entry into the master bathroom. The bathroom amenities include a large walk-in closet, glass shower, private toilet room, and whirlpool tub. Upstairs, three bedrooms and a full bathroom with plenty of linen closets make for a clutter free downstairs.

Specifications

  • Total Living Space:1701Sq.Ft.
  • Main Floor: 1095 Sq.Ft
  • Upper Floor (Sq.Ft.): 606 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 409 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2110 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($800.00)
    • CAD ($1,600.00)
    • Five Set ($900.00)
    • PDF ($800.00)
    • PDF + Unlimited Build ($1,500.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
