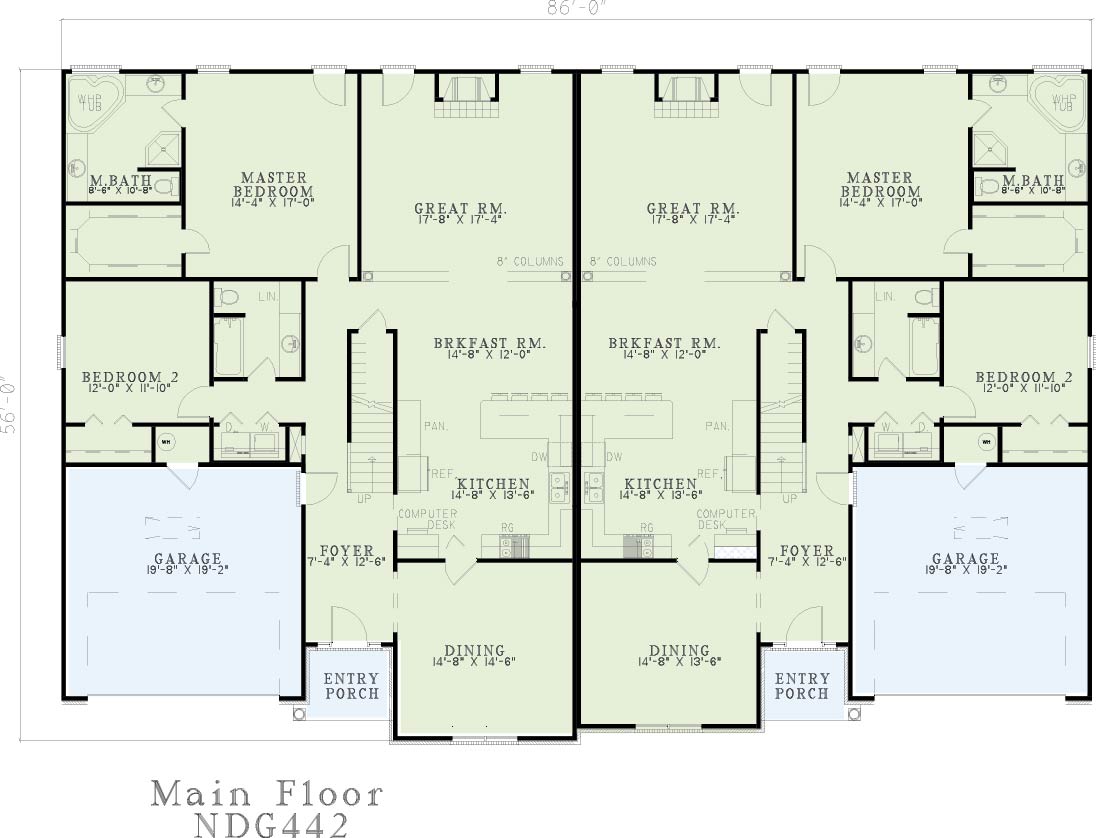

House Plan NDG 442 Main Floor

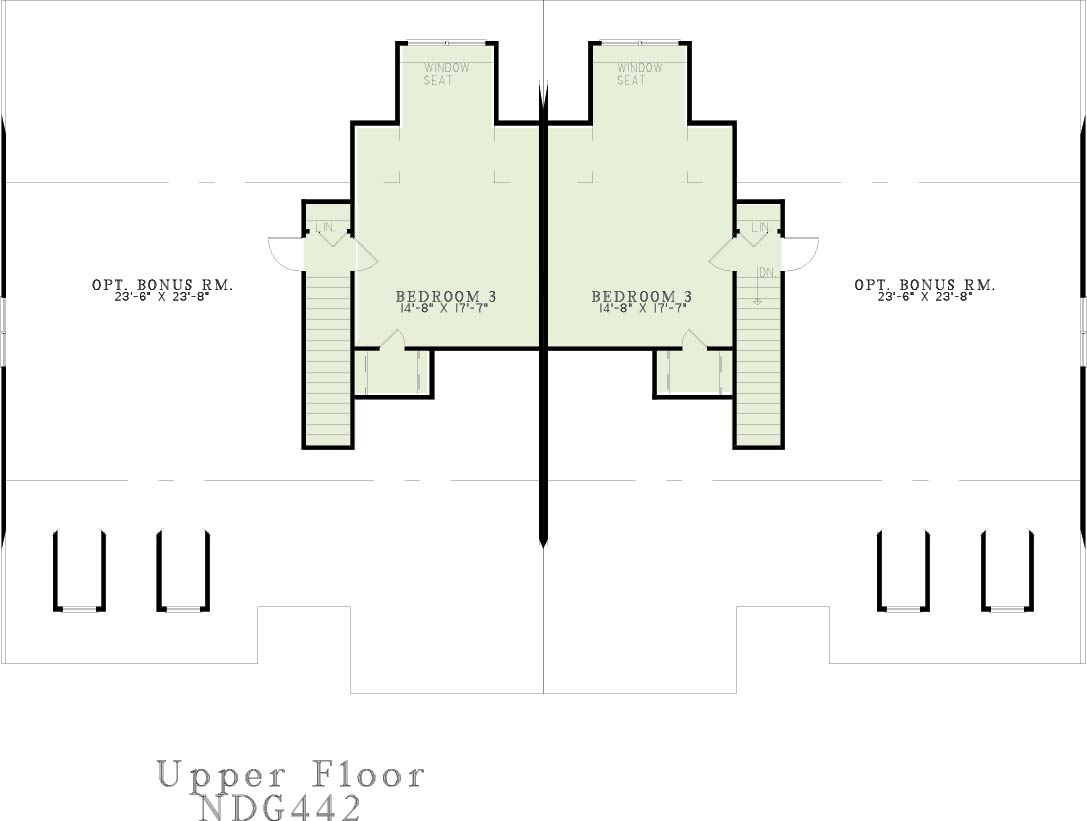

House Plan NDG 442 Upper Floor
House Plan NDG 442 Main Floor
House Plan NDG 442 Upper Floor

Floor plans

NDG 442

House Plan 442 Carriage Hill, Multi-Family House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 442
  • Total Living Space:2252Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 86
  • Width In.: N/A
  • Depth Ft.: 56
  • Depth In.: N/A

Description

This duplex design features a spacious great room with columns, a cozy fireplace and access to a well-manicured backyard. Also opening to the great room is a large breakfast room with additional seating at the kitchen bar counter. A built-in computer desk in the kitchen will be great for study time and keeping an eye on computer time. The master suite is located on the main floor and has a large walk-in closet, private bathroom with corner whirlpool tub, separate shower and double vanities. The upstairs has an optional bonus room and a huge bedroom with window seat and walk-in closet.

Specifications

  • Total Living Space:2252Sq.Ft.
  • Main Floor: 1868 Sq.Ft
  • Upper Floor (Sq.Ft.): 384 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 152 Sq.Ft.
  • Garage (Sq.Ft.): 754 Sq.Ft.
  • Total Square Feet: 3158 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
