House Plan 438 Cabe Court, Multi-Family House Plan

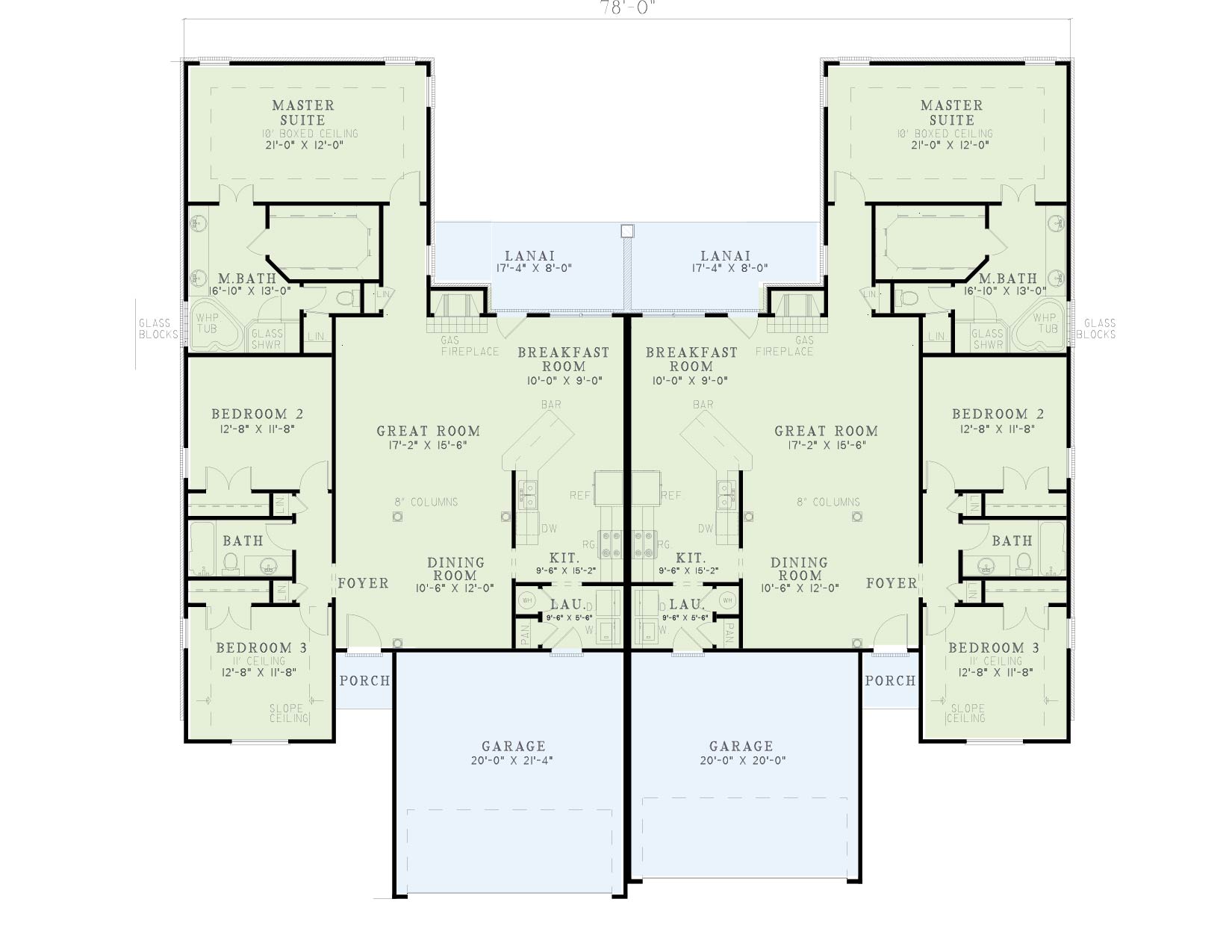

House Plan NDG 438 Main Floor
House Plan NDG 438 Main Floor

Floor plans

NDG 438

House Plan 438 Cabe Court, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 438
  • Total Living Space:1750Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 78
  • Width In.: N/A
  • Depth Ft.: 73
  • Depth In.: 8

Description

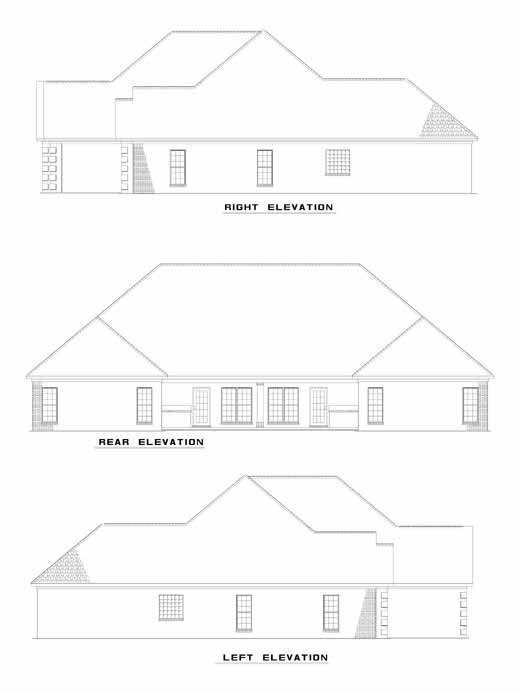

This spacious duplex features round top windows and tiered gables for great street appeal. A small porch welcomes you into an open plan well designed for ultimate entertaining. The formal Dining room has columns to separate it from the large great room while a spacious breakfast room opens to the kitchen enjoying a view of the great room fireplace as well as the rear lanai. One of the two front bedrooms has a sloped ceiling and would make a great study or home office. The Master Suite is privately placed at the rear of the house and enhanced with a ten-foot boxed ceiling and luxurious bathroom. This master suite bedroom has French door access to the bathroom containing a corner whirlpool tub with glass blocks above, separate shower, private toilet area and a huge walk-in closet.

Specifications

  • Total Living Space:1750Sq.Ft.
  • Main Floor: 1750 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 400 Sq.Ft.
  • Garage (Sq.Ft.): 800 Sq.Ft.
  • Total Square Feet: 2950 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
