House Plan 429 Ivy Green, Multi-Family House Plan

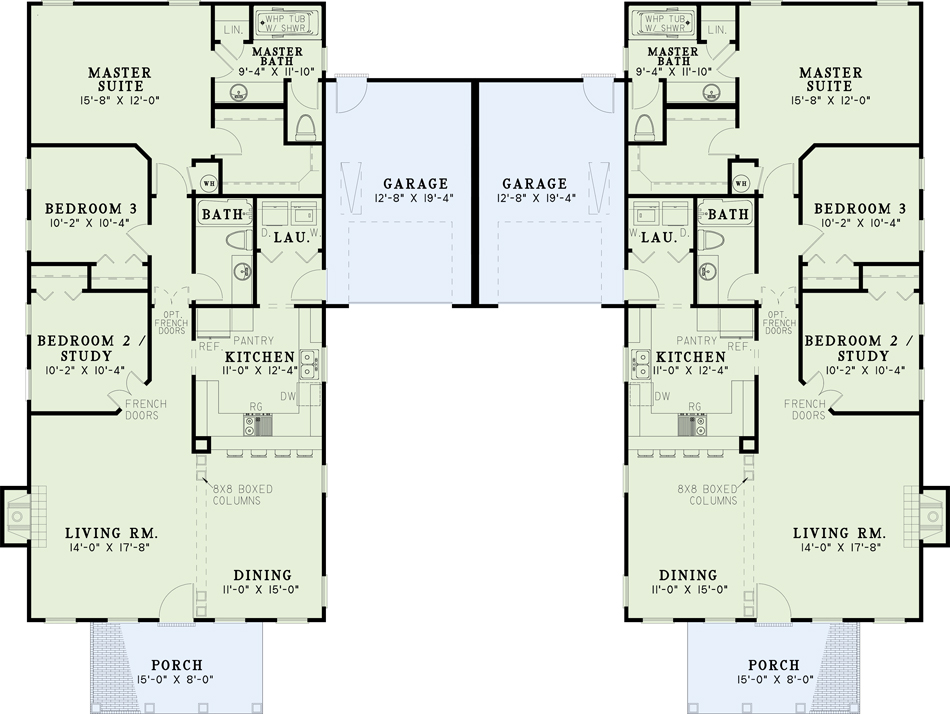

Floor plans
NDG 429
House Plan 429 Ivy Green, Multi-Family House Plan
PDF: $1,350.00
Plan Details
- Plan Number: NDG 429
- Total Living Space:1404Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 1 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 82
- Width In.: 8
- Depth Ft.: 62
- Depth In.: N/A
Description
The street appeal of this duplex ly reflects southern charm with a centered gable and a lovely porch with columns. A spacious living room with fireplace opens to the formal dining room enhanced with a column-lined entry and views the kitchen through a bar stool counter. One of the bedrooms has French doors and will make the perfect study or home office. The master suite is placed at the rear of the home and has a large walk-in closet and luxurious bathroom with a whirlpool tub/shower. A laundry room is conveniently placed step from the kitchen and accesses the single garage.
Specifications
- Total Living Space:1404Sq.Ft.
- Main Floor: 1404 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 550 Sq.Ft.
- Garage (Sq.Ft.): 490 Sq.Ft.
- Total Square Feet: 2444 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 19
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
Plan Collections
Plan Styles
Customize This Plan
Need to make changes? We will get you a free price quote!
Modify This Plan
Property Attachments
Plan Package
