House Plan 414 Pebble Creek, Riverbend House Plan

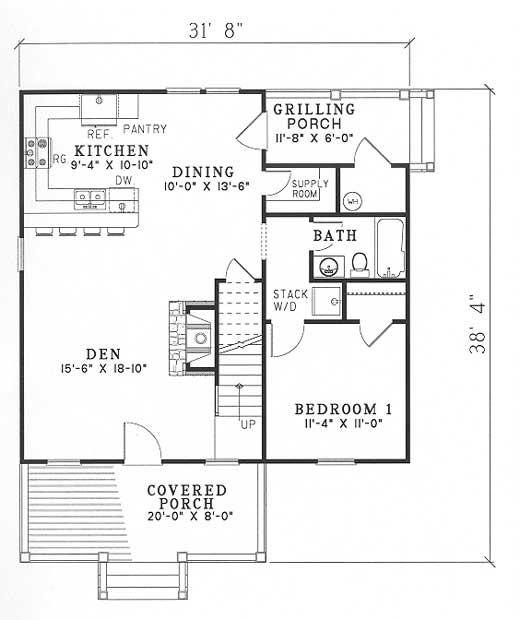

House Plan NDG 414 Main Floor

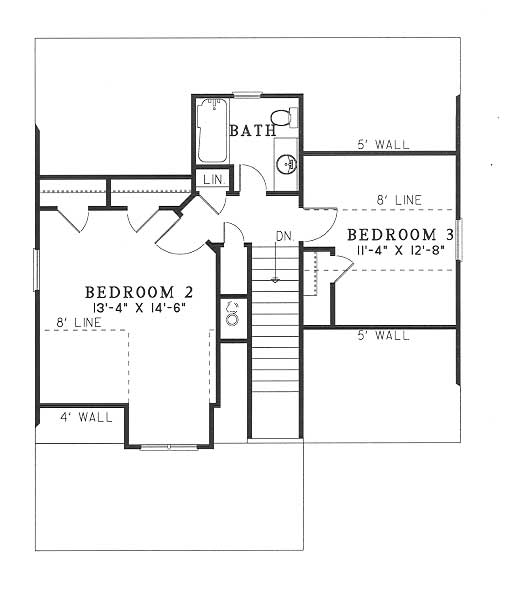

House Plan NDG 414 Upper Floor

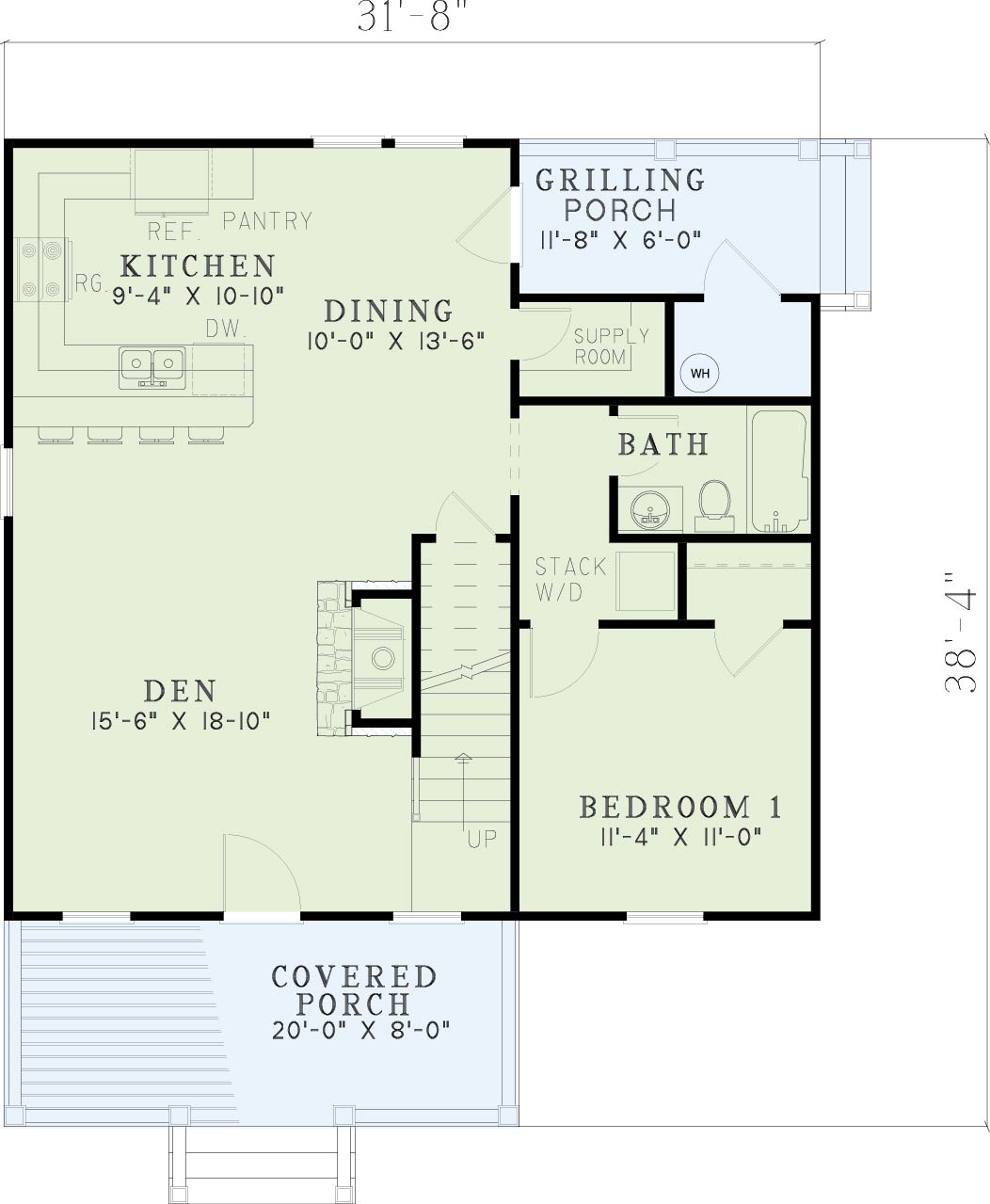

House Plan NDG 414 Main Floor

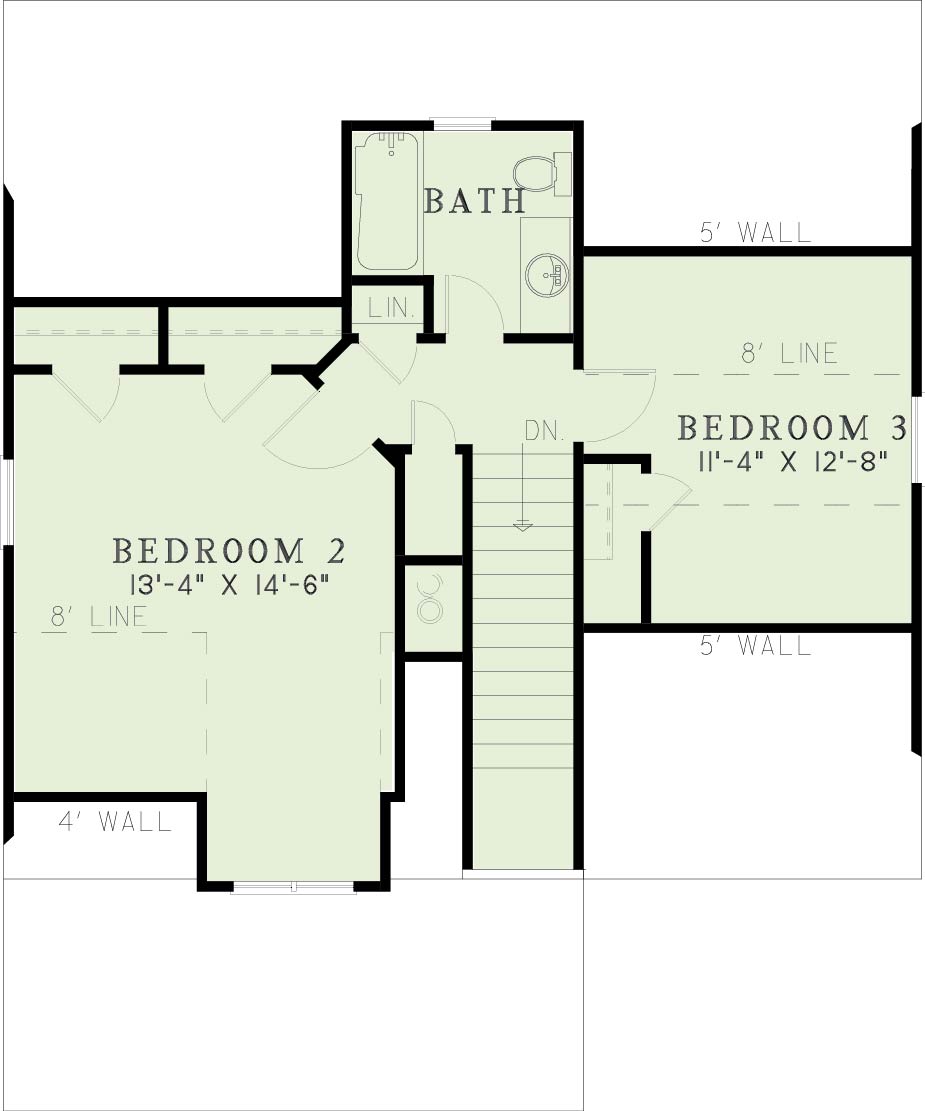

House Plan NDG 414 Upper Floor

Floor plans

NDG 414

House Plan 414 Pebble Creek, Riverbend House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 414
  • Total Living Space:1378Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 31
  • Width In.: 8
  • Depth Ft.: 38
  • Depth In.: 4

Description

As the smooth stones skipped across the clear water, the children giggled with delight. Both remembered how Mom and Dad had taught them how to skip rocks, it was all in the wrist. There were many smooth, flat stones perfect for skipping that lined River Bend. At night, everyone would sit along the side of the river and talk about the adventures of the day. Adventures were always abundant at Pebble Creek.

Specifications

  • Total Living Space:1378Sq.Ft.
  • Main Floor: 868 Sq.Ft
  • Upper Floor (Sq.Ft.): 510 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 253 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1631 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
