House Plan 375 Brandon Circle, Farmhouse House Plan

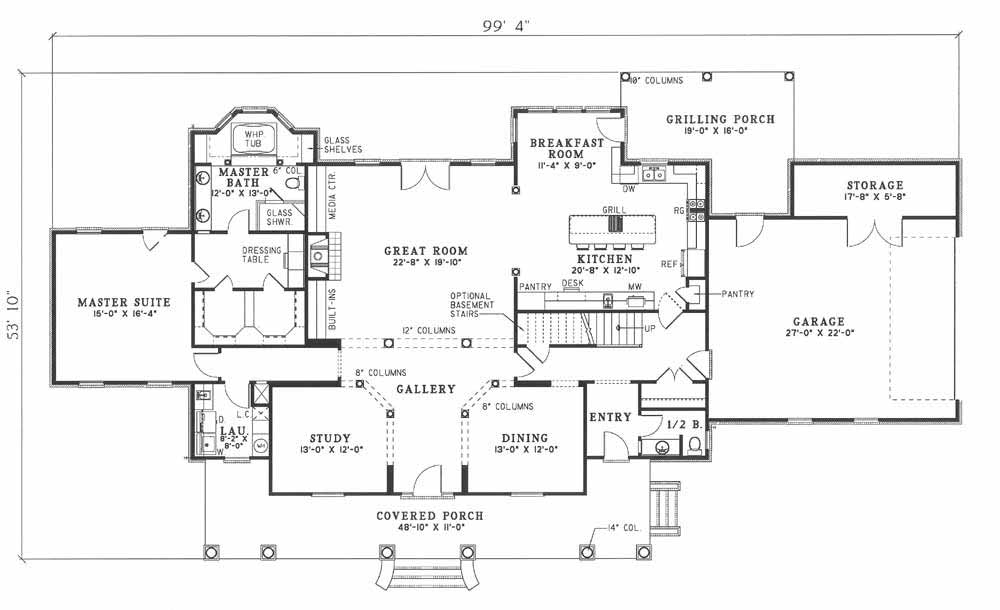

House Plan NDG 375 Main Floor

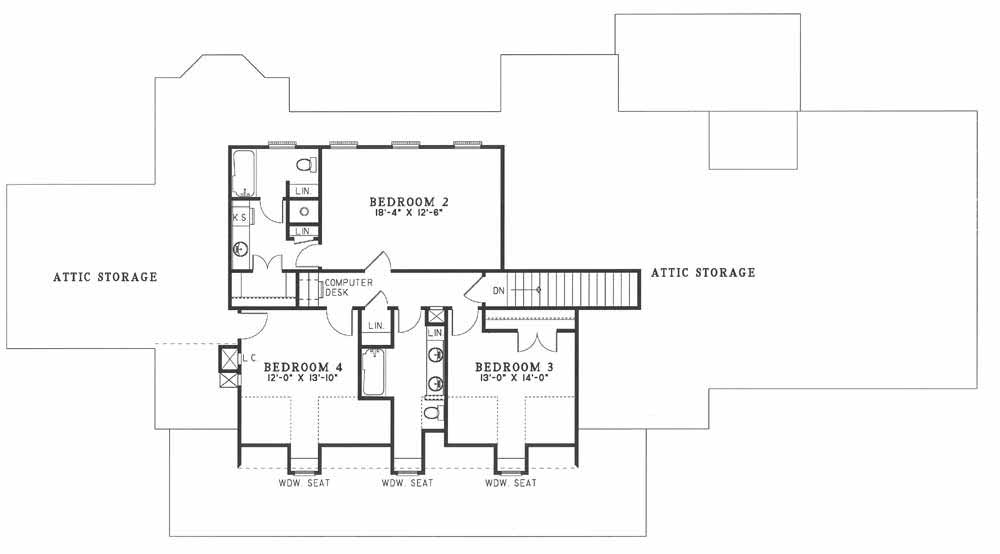

House Plan NDG 375 Upper Floor

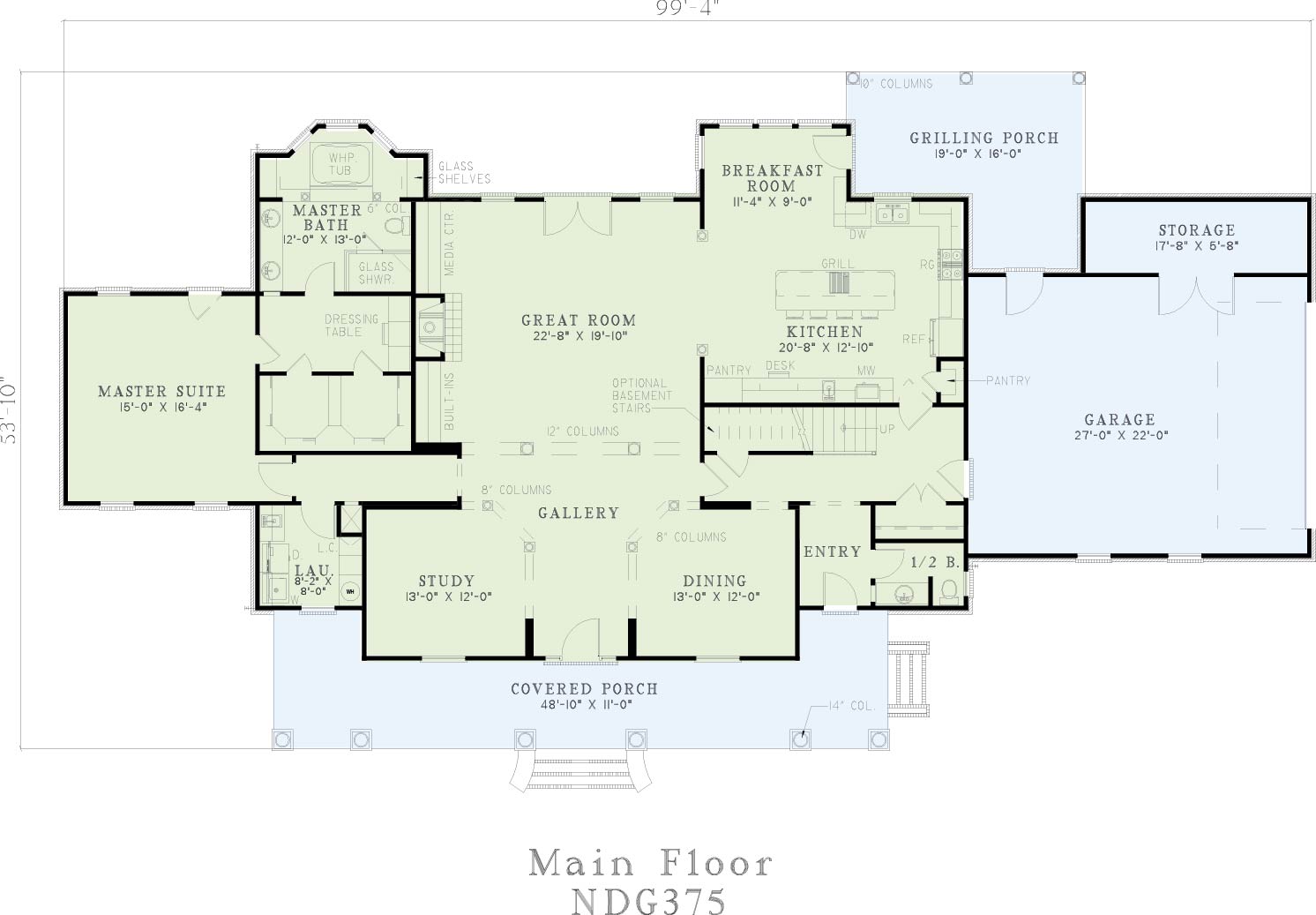

House Plan NDG 375 Main Floor

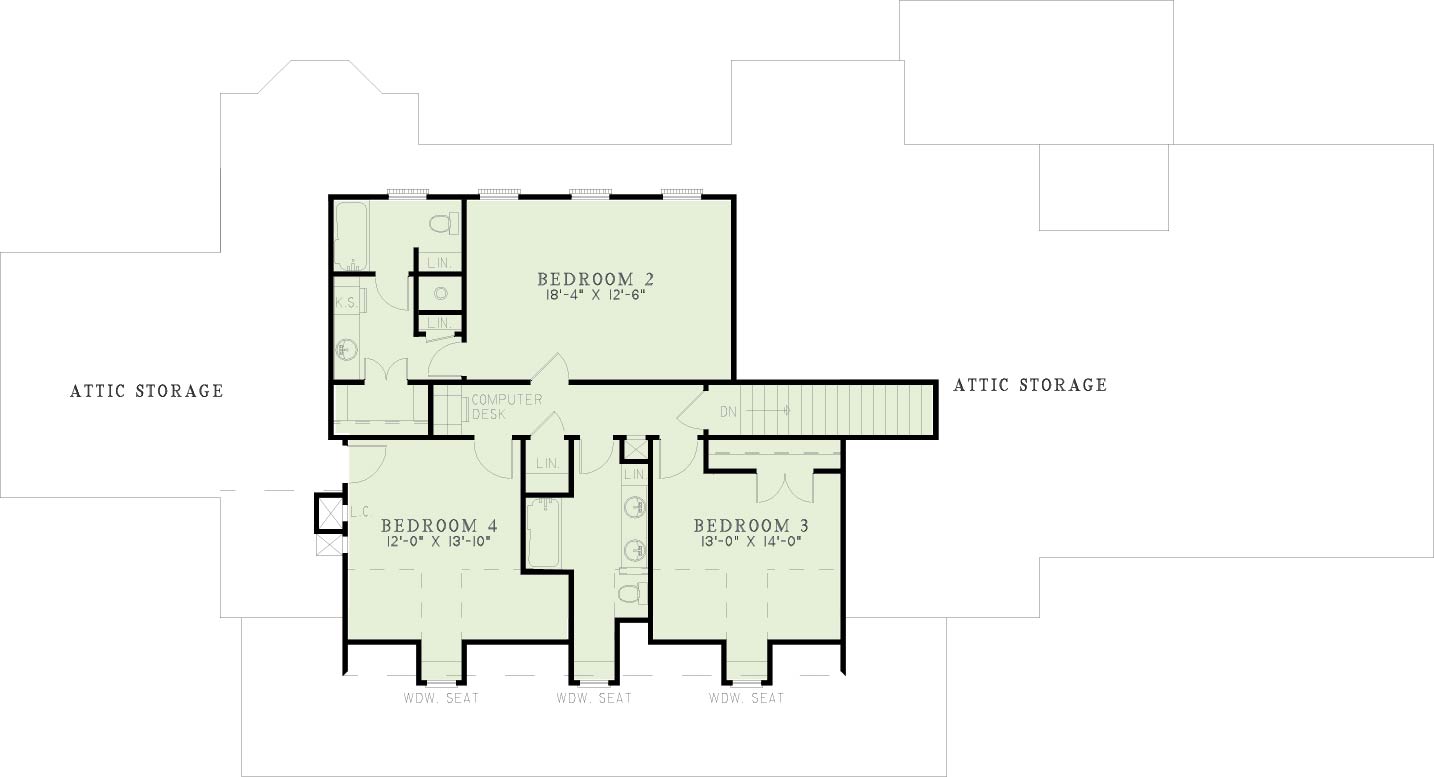

House Plan NDG 375 Upper Floor

Floor plans

NDG 375

House Plan 375 Brandon Circle, Farmhouse House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 375
  • Total Living Space:3195Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 99
  • Width In.: 4
  • Depth Ft.: 53
  • Depth In.: 10

Description

This traditional country-styled home is accented by including stately interior columns throughout. The wide-open area of the main floor gives holiday guests room to maneuver. The great room features a built-in media center and bookshelves surrounding a radiant fireplace and blends nicely with a large kitchen and breakfast room combination. The utilitarian kitchen offers a desk, an island with a built-in grill, and swinging door access to the gallery. An elegant master bath includes a columned entrance to the whirlpool tub located in a bay window. Three window seats and a centrally located computer desk highlight the secondary bedrooms upstairs.

Specifications

  • Total Living Space:3195Sq.Ft.
  • Main Floor: 2396 Sq.Ft
  • Upper Floor (Sq.Ft.): 799 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 786 Sq.Ft.
  • Garage (Sq.Ft.): 594 Sq.Ft.
  • Total Square Feet: 4575 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
