House Plan 373 Olive Street, Country Home House Plan

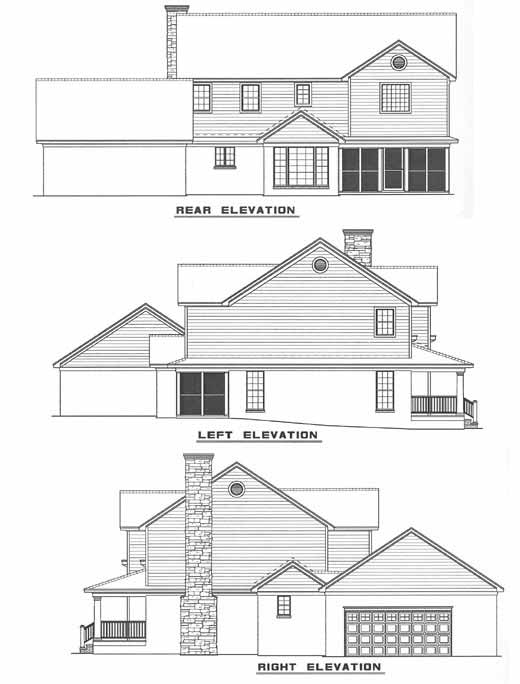

Floor plans
NDG 373
House Plan 373 Olive Street, Country Home House Plan
Plan Details
- Plan Number: NDG 373
- Total Living Space:2582Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 61
- Width In.: 8
- Depth Ft.: 61
- Depth In.: 4
Description
Sunday afternoons on the front porch of this home with friends and conversation will make this house a home. You will be a favorite among friends and family with the wonderful game room and convenient wet bar. French doors open to the rear screened porch that will make a marvelous haven for your plants. You’ll find a cozy window seat in the breakfast room that will be popular with the children. Upstairs, you’ll find all the bedrooms located in one area, for easy monitoring of the children.
Specifications
- Total Living Space:2582Sq.Ft.

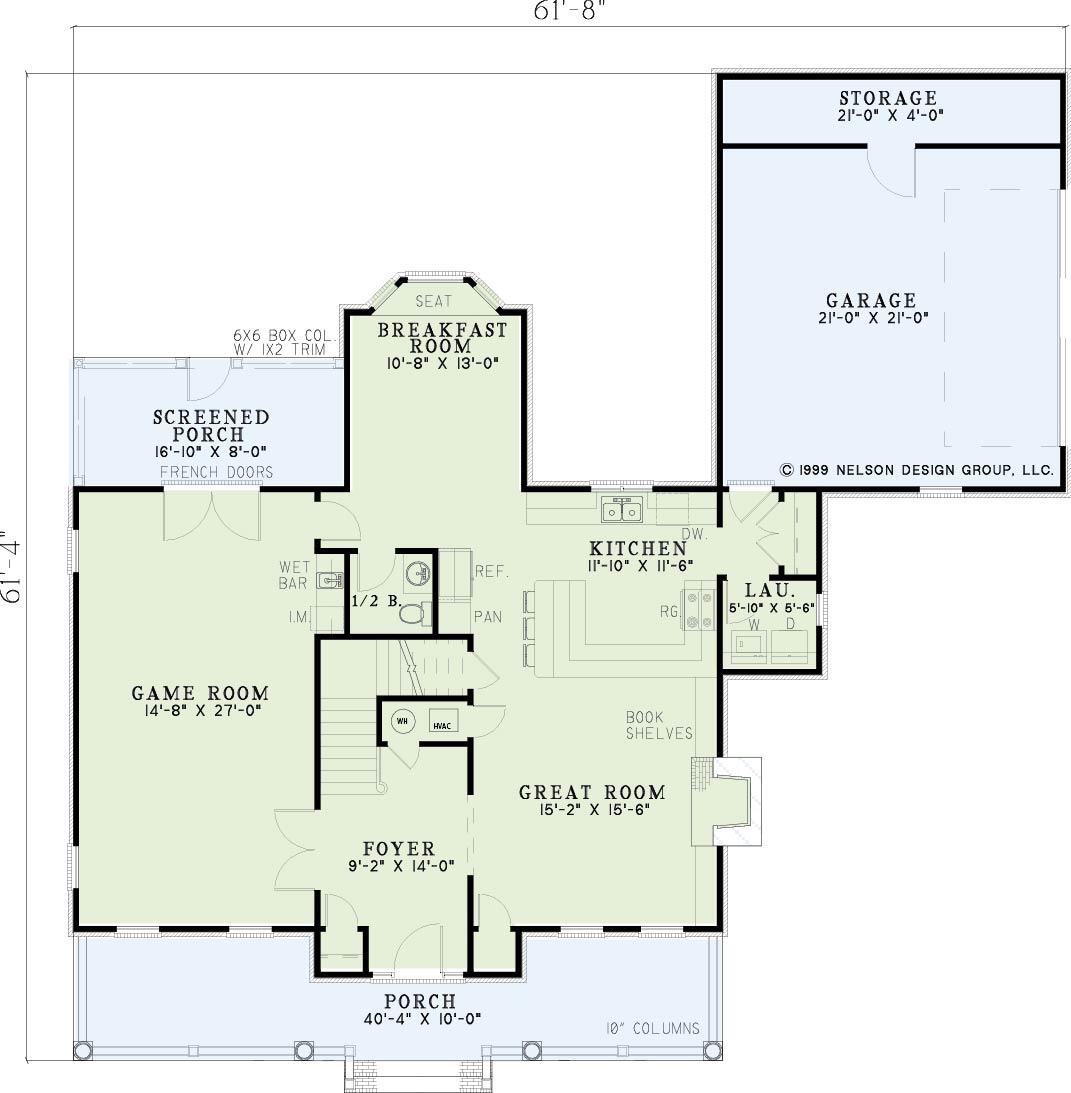

- Main Floor: 1362 Sq.Ft

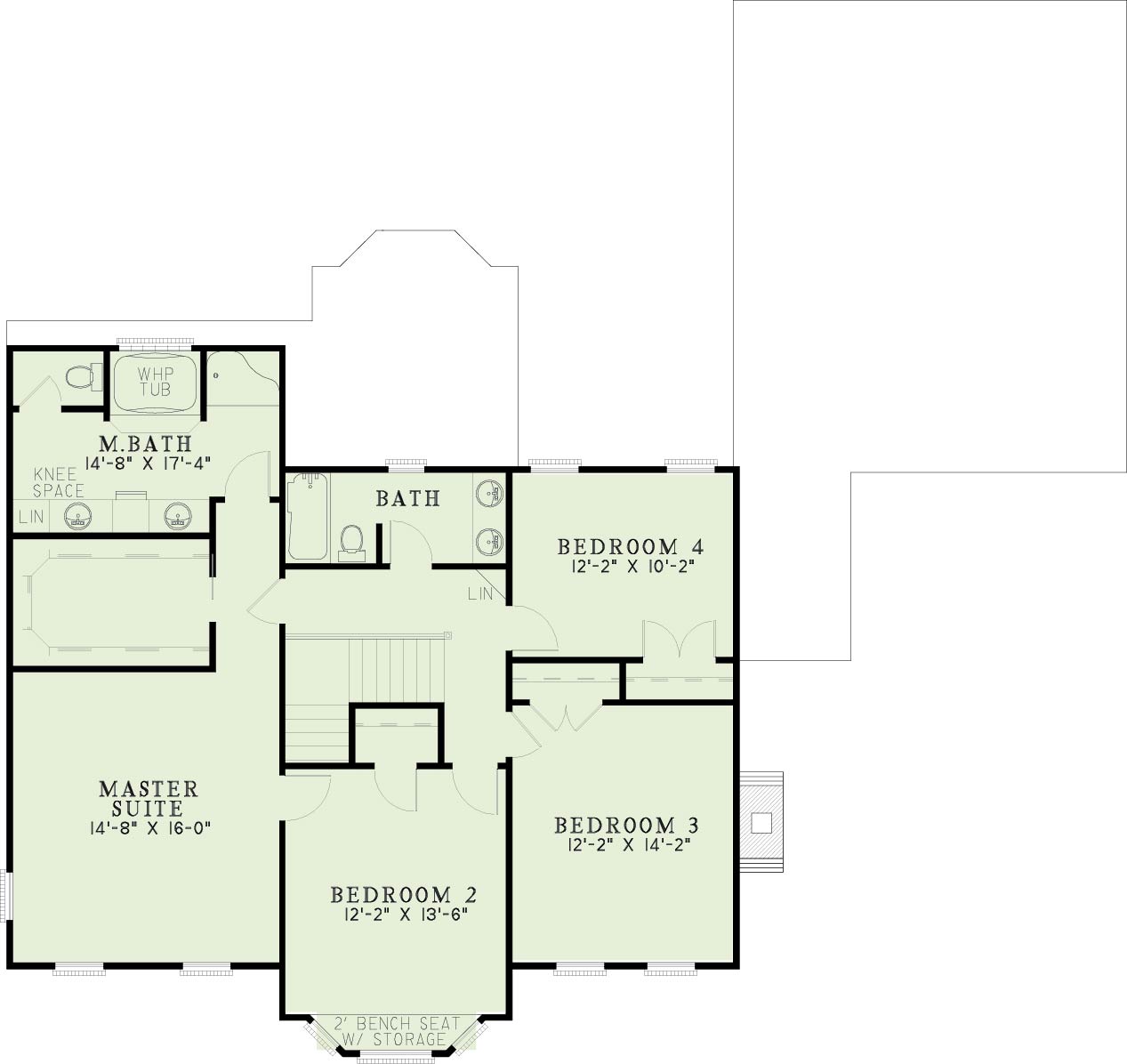

- Upper Floor (Sq.Ft.): 1220 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 576 Sq.Ft.
- Garage (Sq.Ft.): 441 Sq.Ft.
- Total Square Feet: 3599 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: 4:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 2
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
