House Plan 354 Windstone Place, Village at Windstone II House Plan

>

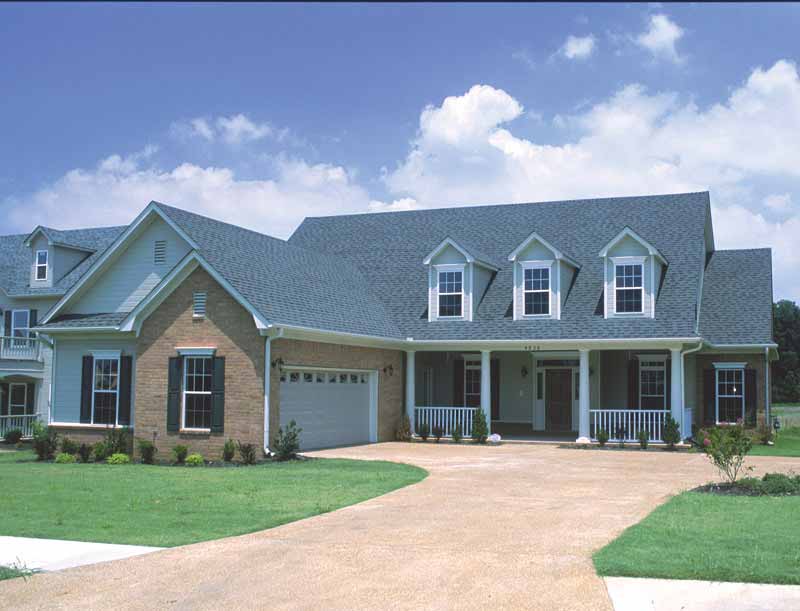

House Plan - NDG354 Front Front View>
House Plan - NDG354 Front Front View

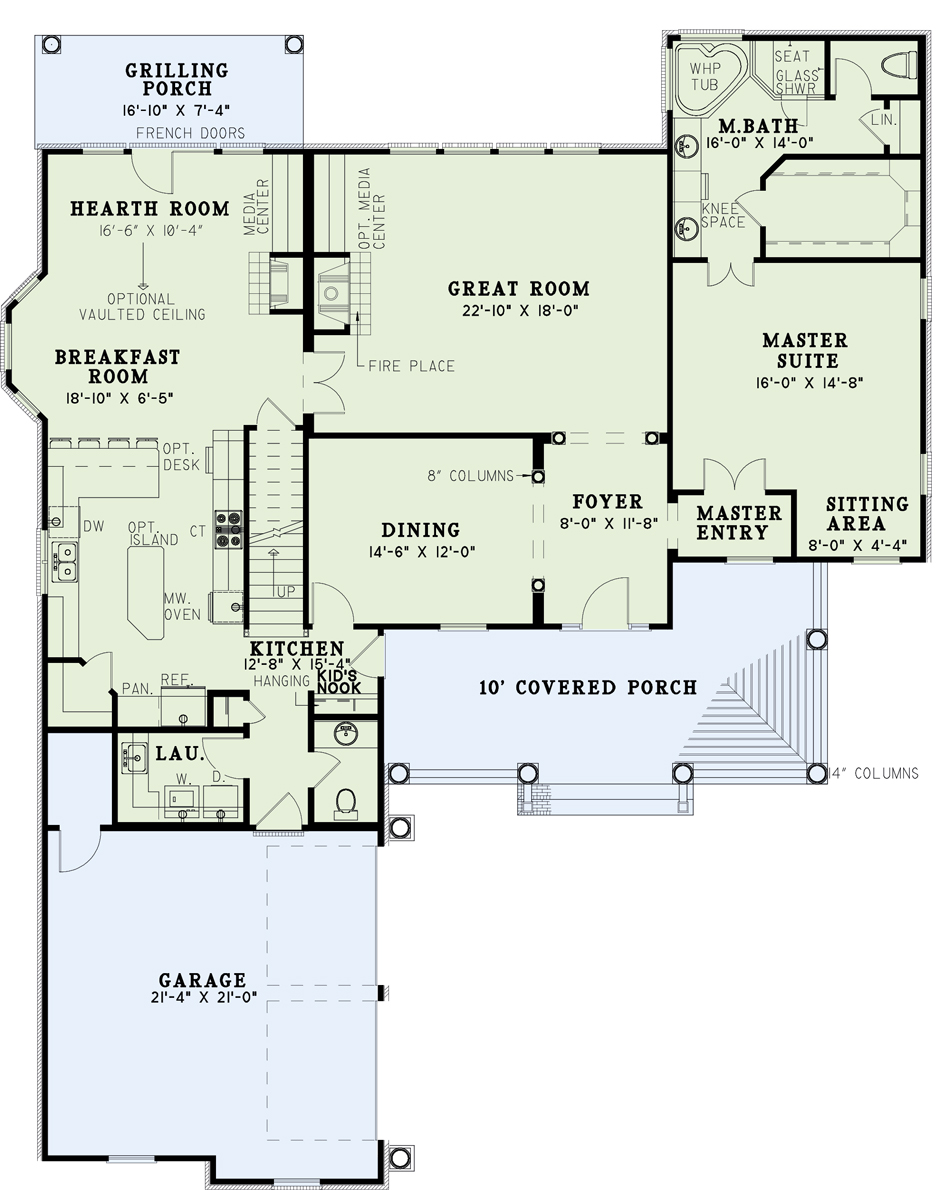

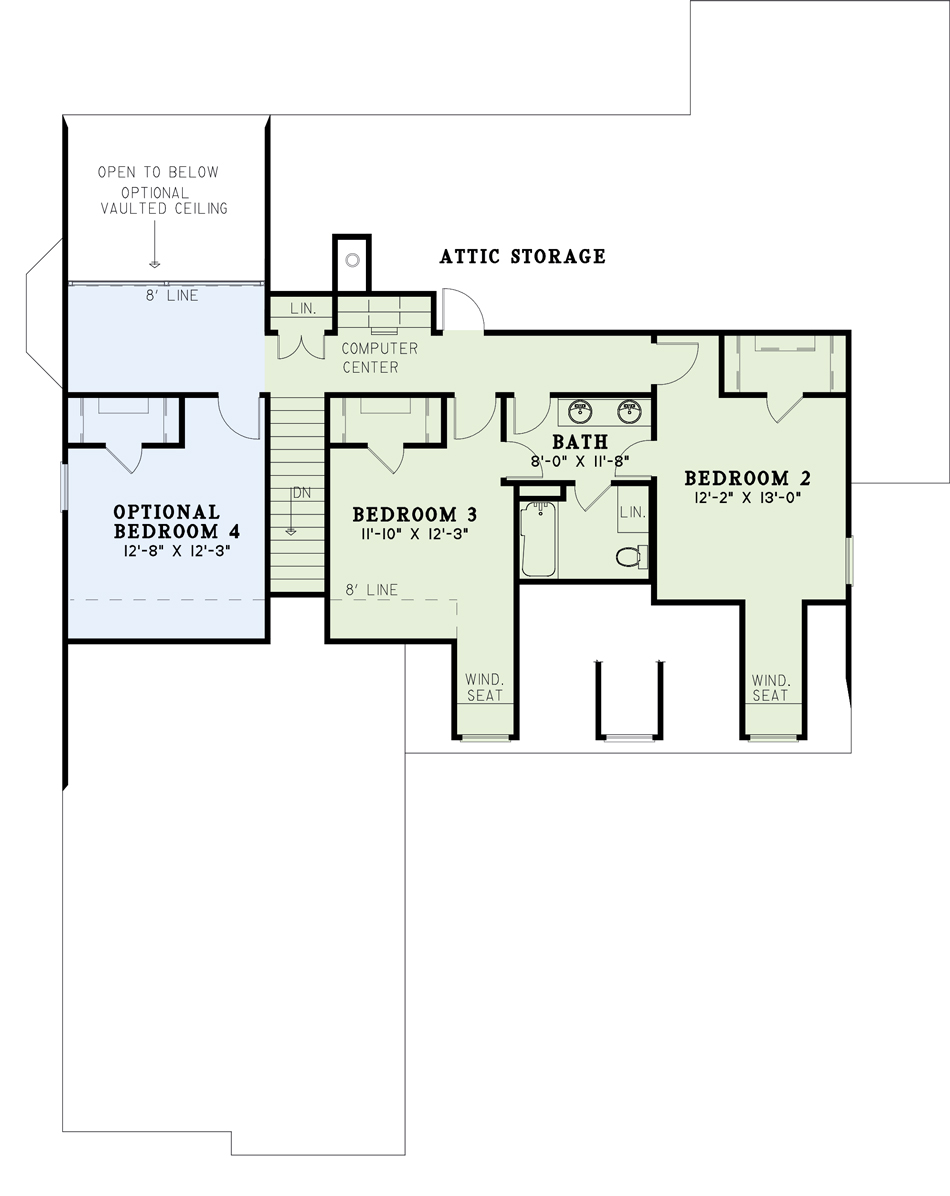

Floor plans

NDG 354

House Plan 354 Windstone Place, Village at Windstone II House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 354
  • Total Living Space:2787Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 59
  • Width In.: 4
  • Depth Ft.: 74
  • Depth In.: 2

Description

This grand one and a half story Nelson Design Group home combines historic southern charm with modern technology and design. A spacious two-car garage and engaging covered front porch with 14 inch columns allow optimum convenience. A marvelous foyer leads directly to an elegant dining room and comfortable great room- perfect for family fun. A separate entrance opens to a sitting area in the master suite, providing ample privacy and comfort. The family will love cookouts on your grilling porch-accessible to both a hearth room and breakfast nook by way of French doors. Traveling to the upper level you’ll find plenty of room for the kids-complete with computer area.

Specifications

  • Total Living Space:2787Sq.Ft.
  • Main Floor: 2092 Sq.Ft
  • Upper Floor (Sq.Ft.): 695 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 310 Sq.Ft.
  • Porch (Sq.Ft.): 580 Sq.Ft.
  • Garage (Sq.Ft.): 529 Sq.Ft.
  • Total Square Feet: 4206 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
